Cluster Disassembly

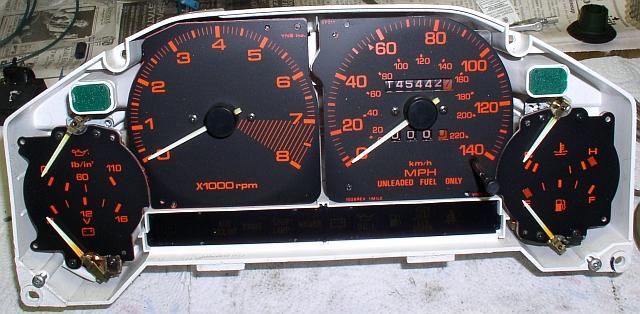

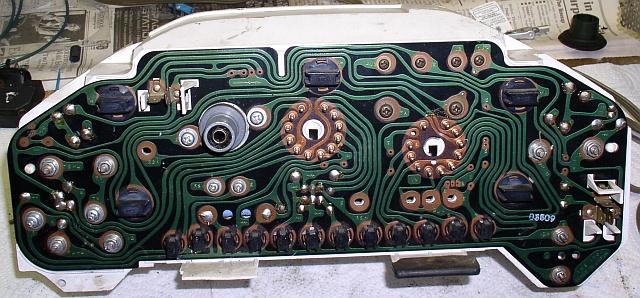

I want to take my gauge cluster completely apart...I got it as far as the pictures show, and didn't want to ruin it trying to get it the rest of the way apart. How do you take the circuit board off the back?
Thanks,
Rich
Thanks,
Rich
#4
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
Thanks trochoid -
This is the spare cluster I bought because my oil pressure gauge doesn't work right. I just want to see what's in it and see if it's goin to be possible to fix the gauge. I was able to fix the fuel gauge in my '79 many years ago.
Rich
This is the spare cluster I bought because my oil pressure gauge doesn't work right. I just want to see what's in it and see if it's goin to be possible to fix the gauge. I was able to fix the fuel gauge in my '79 many years ago.
Rich
#6
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

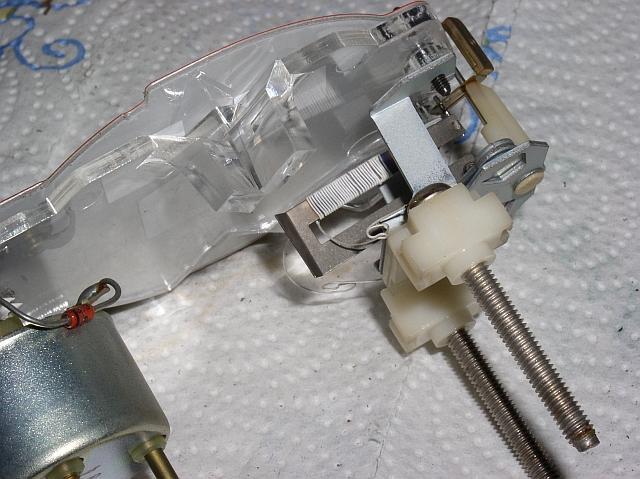

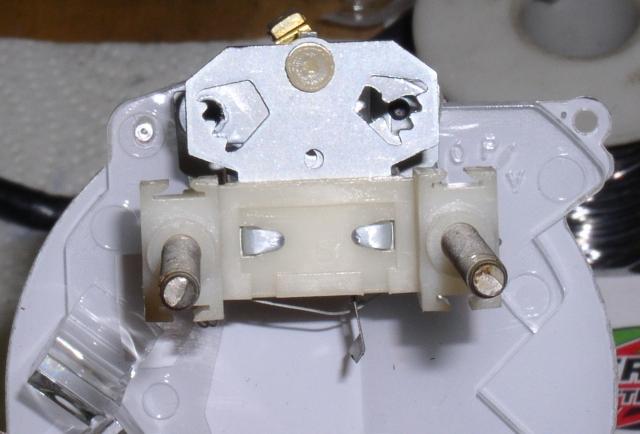

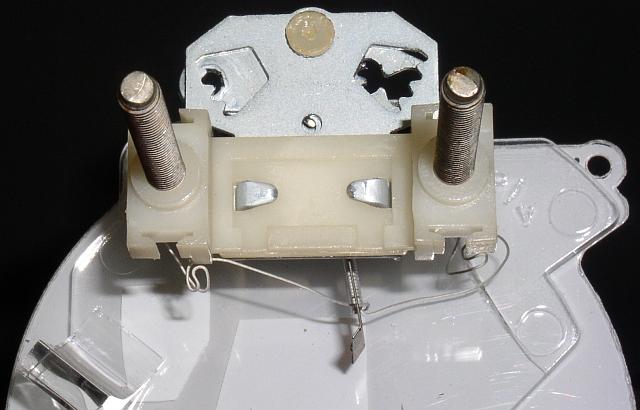

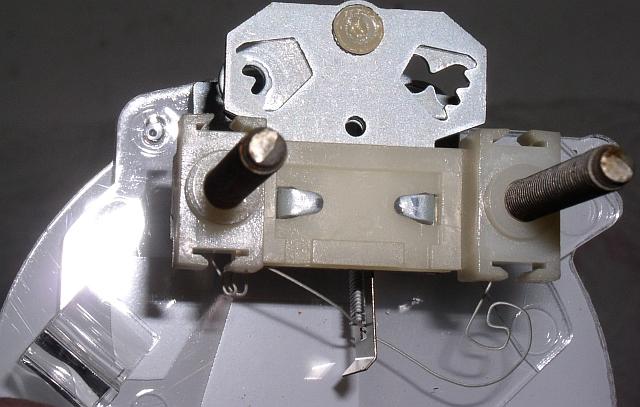

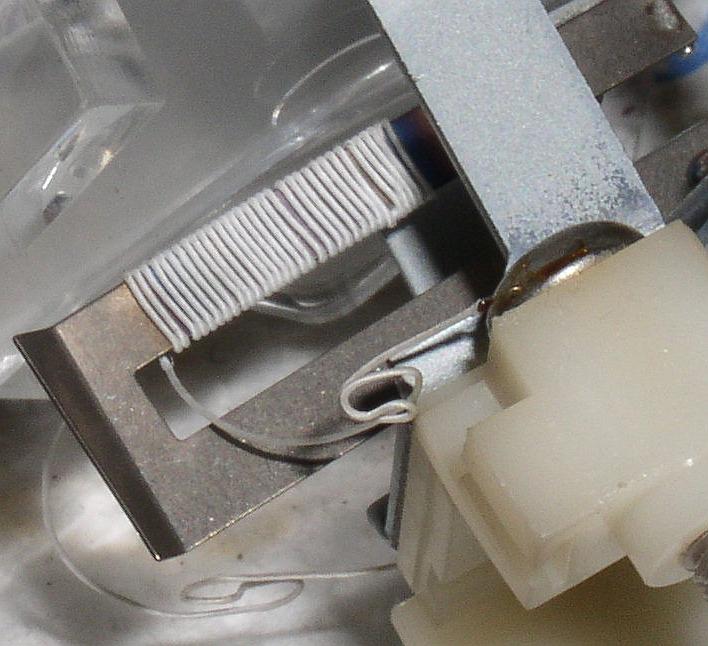

Here's what the oil pressure gauge looks like for anyone that's interested. I'm surprised that the wires show no signs of overheating. I'm going to tinker with it. It looks like there are a couple of adjustments on it.
Rich
Rich
#7
Go Hawks!
Thread Starter
iTrader: (1)
Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts

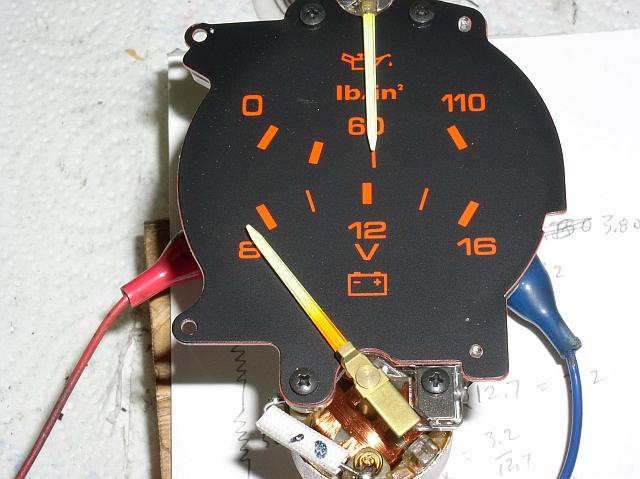

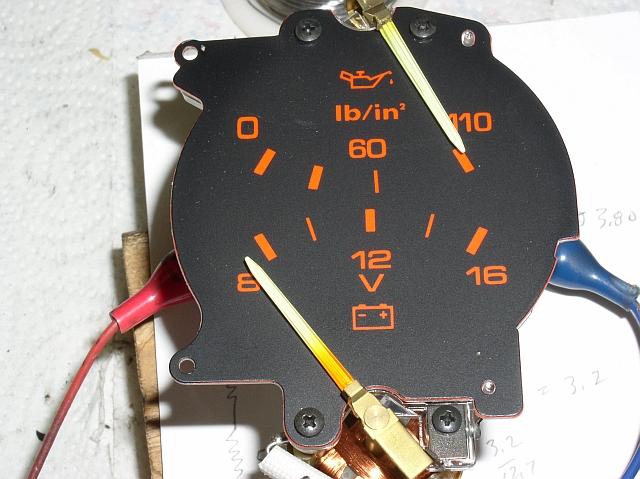

Hey! It worked! By tinkering with the adjustments at the top of the oil pressure gauge, I was able to make it read right again. The picture with the gauge at 60 pounds was taken with a variable resister set to 141 ohms, and the power supply set at 14.4 volts. The one with the gauge at 110 pounds was taken with a variable resister set to 102 ohms, and the power supply set at 14.4 volts.

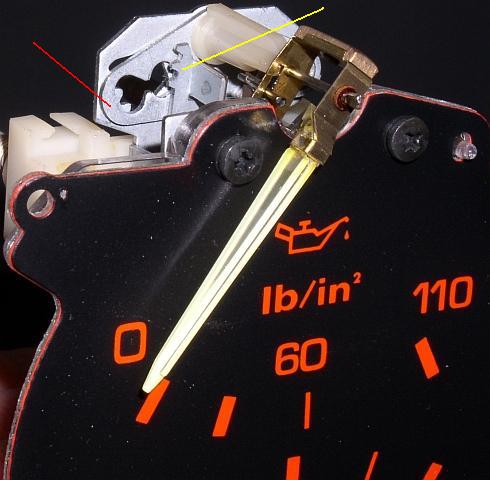

There are two adjustments at the top. The one with the red line pointing to it seemed to have more effect on the zero setting, and the one with the yellow line pointing to it seemed to have more effect on the full scale reading.
It's a good thing I got this one working...the one in the spare cluster I bought off eBay doesn't work at all...and I made sure I asked the seller if they all worked.
Rich
There are two adjustments at the top. The one with the red line pointing to it seemed to have more effect on the zero setting, and the one with the yellow line pointing to it seemed to have more effect on the full scale reading.
It's a good thing I got this one working...the one in the spare cluster I bought off eBay doesn't work at all...and I made sure I asked the seller if they all worked.
Rich
