Goldhawg

I have a GSL-SE rear end and I have the calipers, unfortunately do not have a set of the brackets. Is there a source for brackets? Is it possible that I could be blessed and the bracket is the same as the GSL?

Mach Cherub

I'm 95% sure you'll need to source used brackets as they're not available new anymore. They are not the same as those on the GSL.

mc

82transam

iTrader: (18)

Yeah, unfortunately they are unique to the SE. I've never heard of anyone finding a match from another car...

NCross

iTrader: (18)

What about base model FC? Same caliper. Could it be the same bracket?

82transam

iTrader: (18)

Only the front caliper is the same between the SE and base model FC. The rear caliper is quite a bit different unfortunately.... That said, I'm actually running base model FC rear calipers on one of mine using a modified re-speed adapter bracket. It's a solid rotor, so not as good as the SE parts, but easier to find (assuming you have, or can make, the re-speed style bracket)

Carl

iTrader: (2)

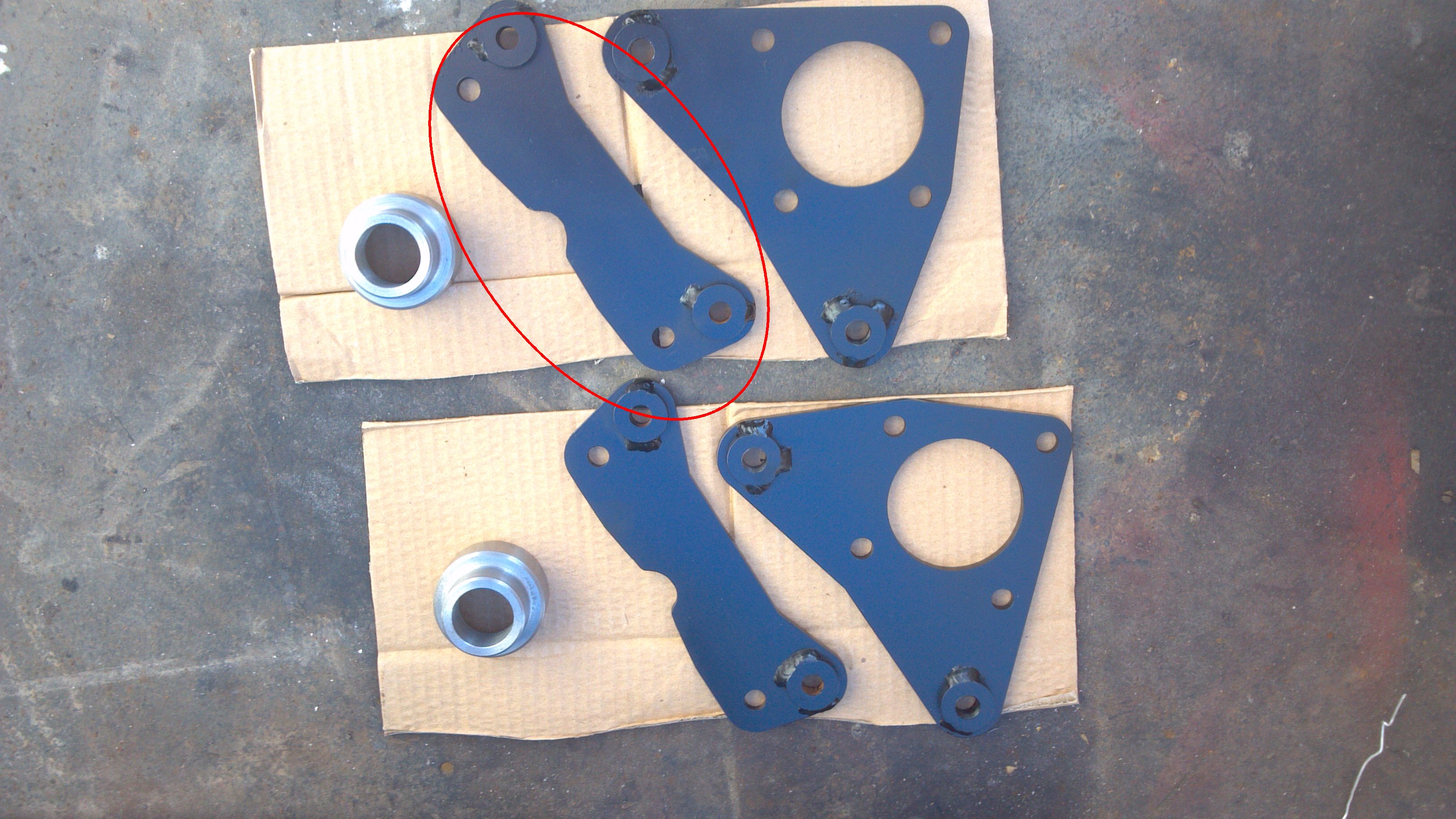

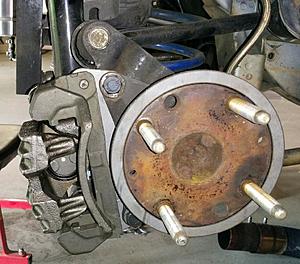

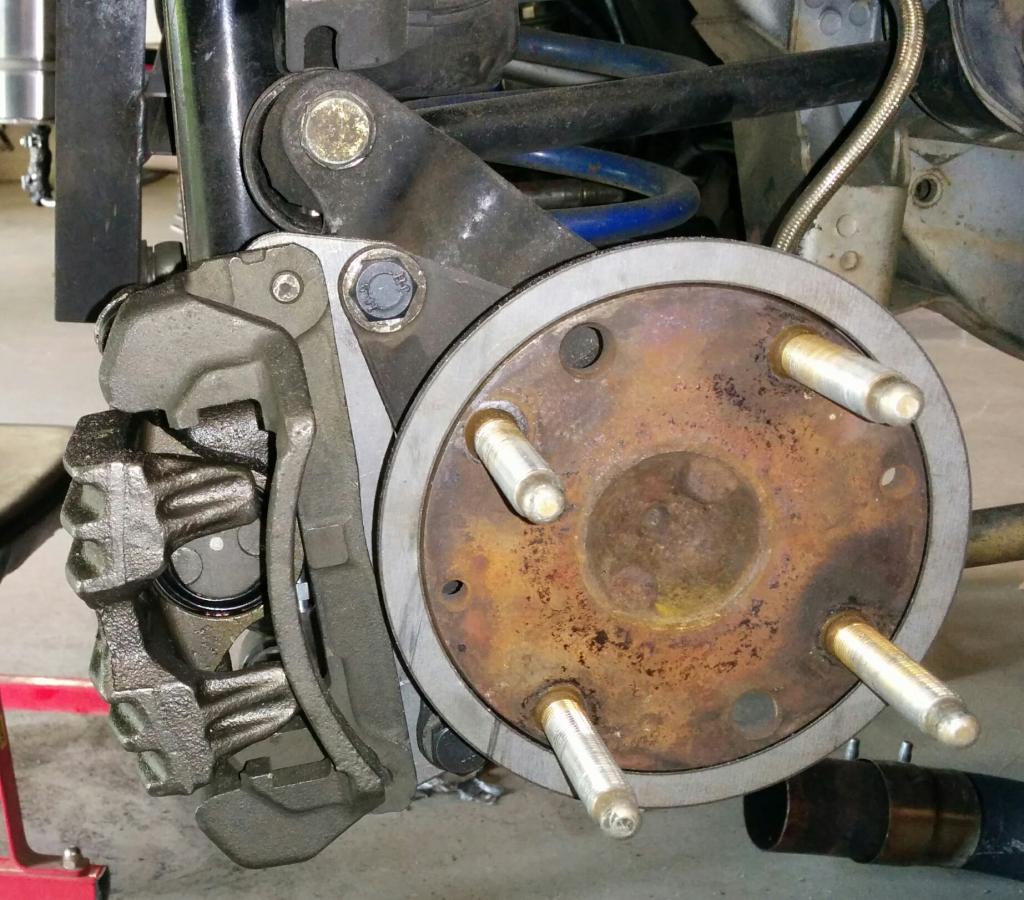

You can make a bracket kind of like those shown in the pictures. I think these were both for 2nd gen brakes to a GSL axle housing, but the concept is about the same. If you decide that you can use the design for 2nd gen to GSL housing I can send you the drawing.

DreamInRotary

iTrader: (49)

Carl,
Could you send me the drawing that you have? I have a set of RE-Speed adapters, the entire kit actually, for the TII brake swap. I'm going to be taking measurements to modify them somewhat here in the next few months I believe.

Thanks,
Austin
