Can anyone post a couple of good shots of a non modded SA22C Rats Nest? Trying to get the car back to stock and the guy who had it before me Blocked off a ton of ****, especialy the lines that go to the bottom of the carb(or the top of the intake)... not sure where they go to. I have Both a Haynes and a Factory book, but i couldnt tell where those lines are going (the 4 closest to the carb, that also lead to the Vac.Advanced on the dizzy) any info would help.
Thanks,
Tim



i would give u pics but mines gone. what is the reason for making it stock again if u dont mind my asking?

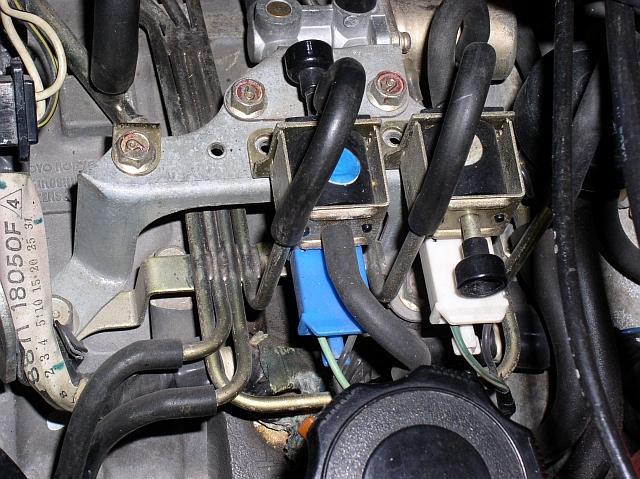

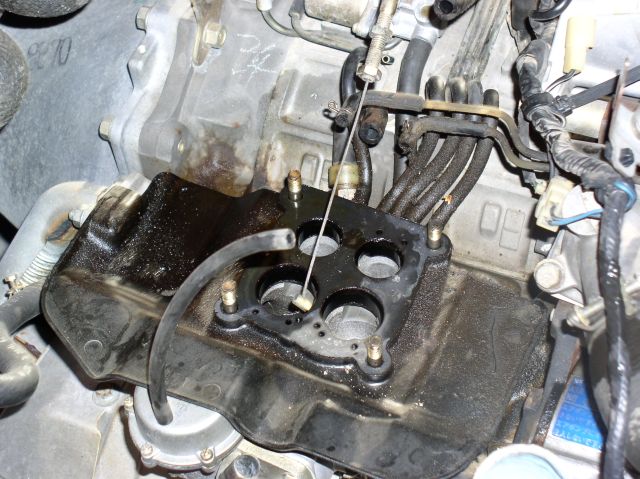

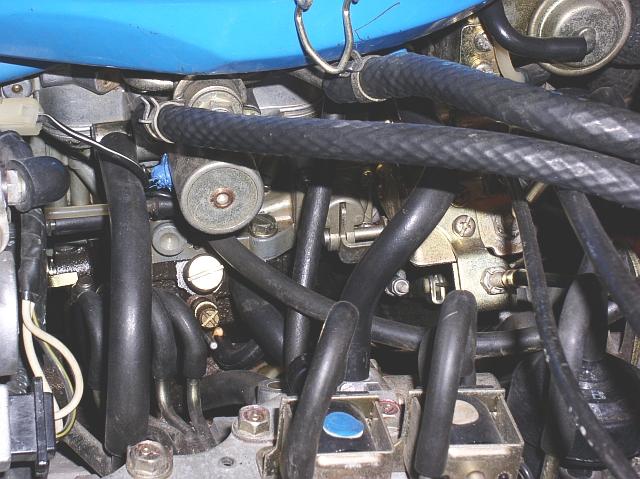

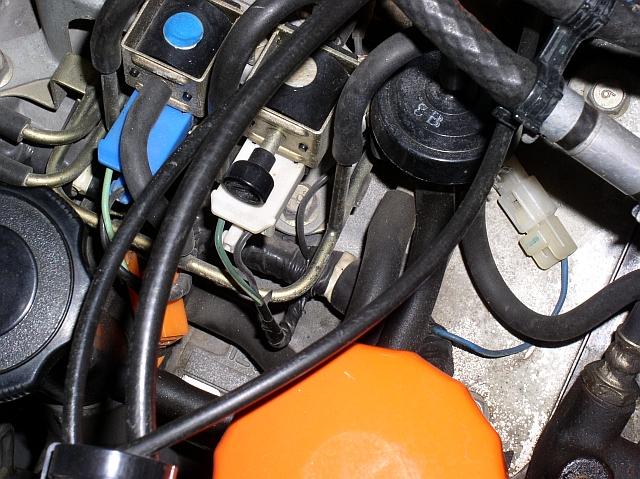

Here are a few...let me know if what you want isn't here. Tell me exactly what you want to see and I can take more pictures. My engine is 100% original, except the electronic distributor.

Rich



well, trying to figgure out what has been done to this car... the guy before me said he didnt know about carbs and started blocking off stuff and also replaced the carb... looking to see whats wrong with it and trying to understand the emissions system in an RX7(or anycar period... still learning to tune and turn a wrench...) im not sure what the deal is but the lines from the carb look weird...

Besides its always best to start from the beggning right? Im still considering the RatsNest Removal Procedure, being that the Cat has been removed already... but just for now, back the basics and to stock...
Ill take some pics of stuff and you guys can tell me whats going on(and where to put stuff)

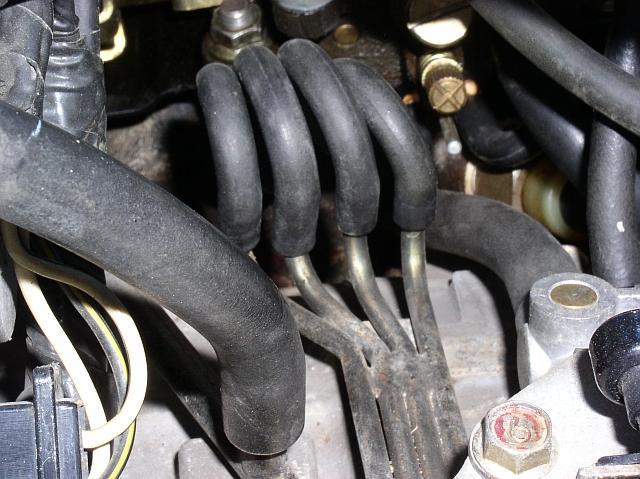

Thanks 64MGB, if you can, could mainly use a pic of the 4 lines below the Air Vent Solinoid, where they go into the manifold... i think that mine only has 3 there... trying to figure if im an ideot or that somthing is a miss
Thanks,


THIS STUFF IS NUTZ

Edit: your stuff is freaking clean.... nice... never saw an engine rats nest that clean, I'd eat offa that engine...



Thanks for the nice words MrFC3S...I appreciate it.

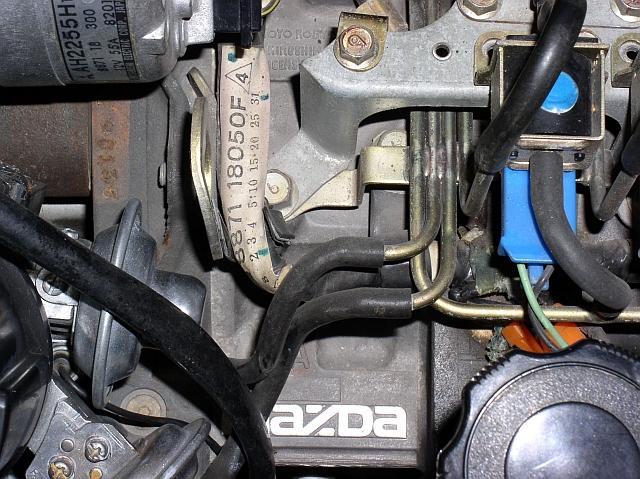

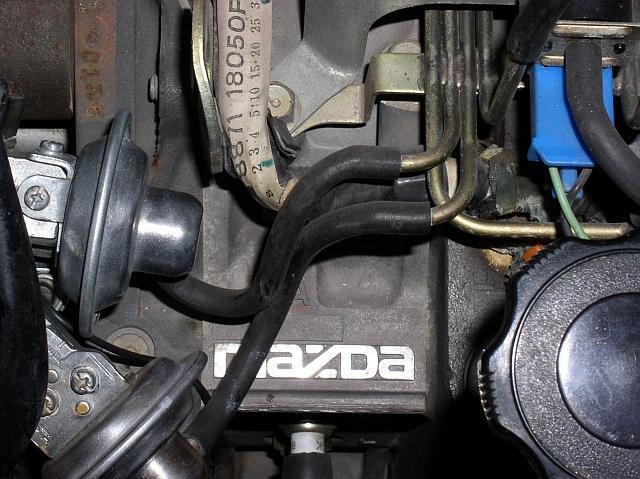

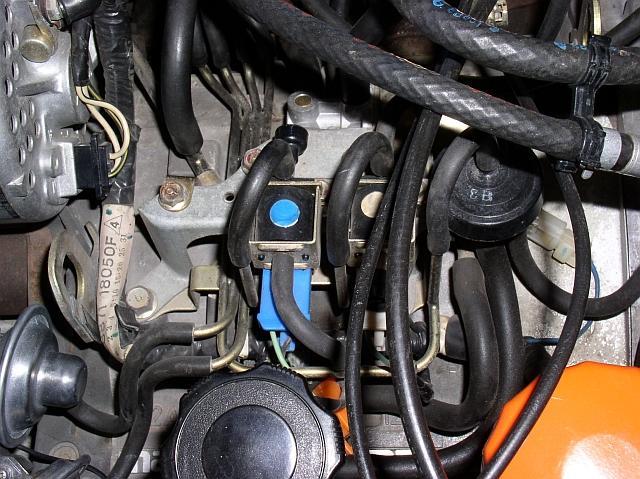

Here's some more pictures...do these help?

Rich
