1983 having issues. Carb, fuel?

Yesterday, while driving, my motor loses power instantly, had to keep it pedaled to keep it alive and make it home. When I took my foot off the gas, it idled down really slow from 3000rpm, gets down to 1500 and chokes out, dumps smoke until it died. Major gas smell came with this, inside the carb and out the exhaust. Carb cleaner would clear the smoke while sprayed but no permanent fix. Checking spark plugs next. Just wondering if anyone has had a similar issue with their 12a. Also one hose to the air filter starts whistling, blowing air making a ridiculous vacuum noise. Can't help but think this is all part of the same problem. Really have no ideas where to start. Thanks for the time and any help.
Reply
Old Oct 4, 2015 | 06:21 PM
  #2
rx7inoregon's Avatar
Full Member
iTrader: (1)

Joined: Jan 2015
Posts: 121
Likes: 0
From: Medford, Oregon
Originally Posted by Blam101
Yesterday, while driving, my motor loses power instantly, had to keep it pedaled to keep it alive and make it home. When I took my foot off the gas, it idled down really slow from 3000rpm, gets down to 1500 and chokes out, dumps smoke until it died. Major gas smell came with this, inside the carb and out the exhaust. Carb cleaner would clear the smoke while sprayed but no permanent fix. Checking spark plugs next. Just wondering if anyone has had a similar issue with their 12a. Also one hose to the air filter starts whistling, blowing air making a ridiculous vacuum noise. Can't help but think this is all part of the same problem. Really have no ideas where to start. Thanks for the time and any help.
The sound is your shutter valve gone bad. I'd cap that bastard off if I were you and just drive it, unless you need it for local smog regulations.
Reply
Old Oct 4, 2015 | 08:53 PM
  #3
TimWilbers's Avatar
Senior Member
Tenured Member: 10 Years
Liked
Loved
iTrader: (1)

Joined: Dec 2013
Posts: 644
Likes: 50
From: Dayton, Ohio
Please correct me if I'm off base.

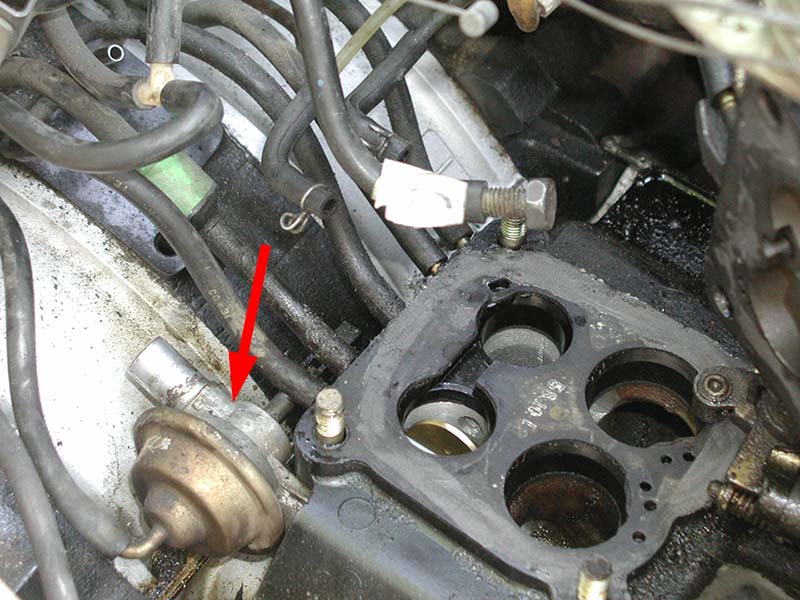

First pic is the shutter valve. To the left of the arrow is where the hose goes to the air cleaner. The vacuum line is at the lower left.
Second pic is the Vacuum Hose Routing Diagram. (The valve is labeled Coasting valve.)
In the diagram, the green vacuum line goes from the rats nest to the valve.
To test the valve, apply vacuum. If the valve is bad it will not hold vacuum as the internal diaphragm is shot.

Last edited by TimWilbers; Oct 4, 2015 at 08:54 PM. Reason: No pics
Reply
Old Oct 4, 2015 | 08:55 PM
  #4
TimWilbers's Avatar
Senior Member
Tenured Member: 10 Years
Liked
Loved
iTrader: (1)

Joined: Dec 2013
Posts: 644
Likes: 50
From: Dayton, Ohio
Images.
Reply
Old Oct 4, 2015 | 08:57 PM
  #5
TimWilbers's Avatar
Senior Member
Tenured Member: 10 Years
Liked
Loved
iTrader: (1)

Joined: Dec 2013
Posts: 644
Likes: 50
From: Dayton, Ohio
Trying one more time to upload the images.
Attached Thumbnails 1983 having issues. Carb, fuel?-coasting-valve.jpg   1983 having issues. Carb, fuel?-ratsnest.jpg
Reply
Old Oct 5, 2015 | 03:06 PM
  #6
Blam101's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Jun 2006
Posts: 14
Likes: 0
From: Olympia, WA
Originally Posted by TimWilbers
Trying one more time to upload the images.
Thank you, hitting this when I get home
