Willopap

iTrader: (1)

Hey guys, I need you're help. So Im swapping a 13B REW into my FB. Im planning a single turbo upgrade. The motor im getting is a mild street port keg (no manifolds just bare). So Im wondering if anyone has done done the single turbo swap into a first gen and if so, which turbo manifold did you use? Preferably stainless steel with clean welds and a t4 flange, needs to have good performance and wont crack on me. I don't want to runn into any clearance issues so I need you're help. I love the short runners of an FC turbo manifold but the L.I.M. Ive heard will contact the turbo. Has anyone worked there way around this? As a last resort I might just get a custom one made but any suggestions would be greatly appreciated thanks.

Jeff20B

iTrader: (13)

I know an S5 turbo will fit an FD setup but we used a 1/4" spacer because it was previously on a carbed setup that needed the extra clearance. As I recall, the turbo fit the FD setup with room to spare.

Willopap

iTrader: (1)

Alright awesome, ill look into it thanks

2GSLSE

iTrader: (6)

I used a spare Apex rx6 kit from my FD and it fit the car fine with no clearance issues.

Willopap

iTrader: (1)

Sweet, thanks. Any idea where I could find that?

craaaazzy

iTrader: (9)

No suggestions here but start a build thread so we can see how u are performing the swap.

Willopap

iTrader: (1)

Will do, I'm not to far into it, the car is just stripped so its a great time to start a thread. Thanks brotha

doogy2

iTrader: (2)

Well this can save u some time rotory-works search on eBay has manifolds and down pipe that's the way I'm probably going to go

elwood

iTrader: (1)

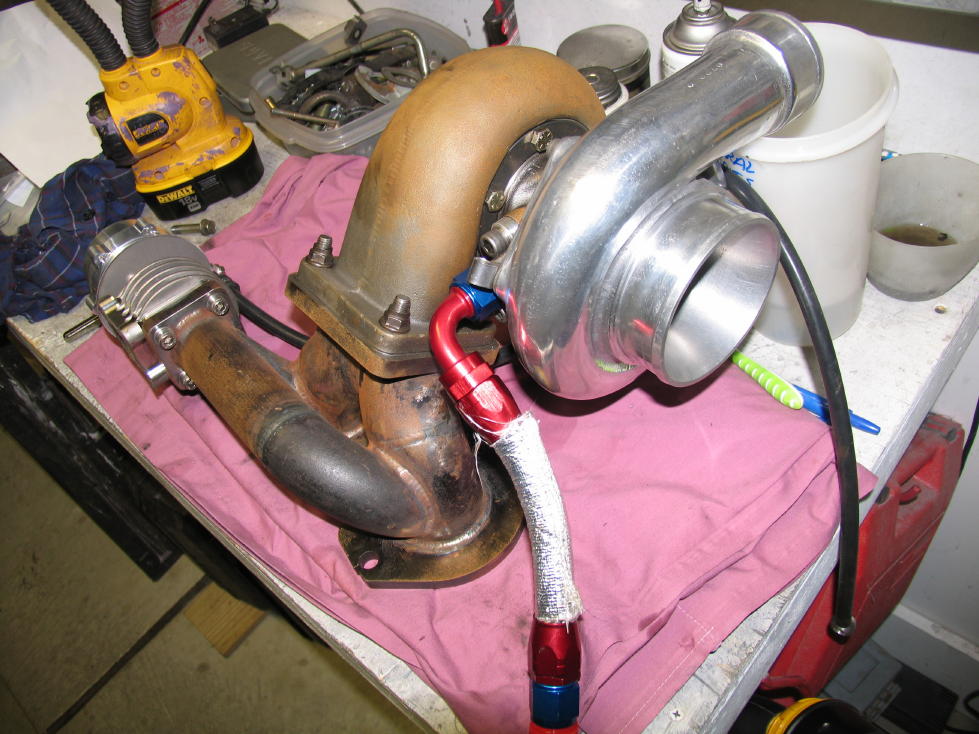

I made my own out of heavy gauge mild steel. I bought the flange from Racing Beat and used thick weld ells to build it up. It has short, equal length runners and a divided T4 flange (also home made). The turbo's a 60-1 and the WG is a TiAL 46mm.

All it took was a die grinder, some basic tools, and a friend who knows how to weld with a TIG. Didn't cost much$.

After I took the pic, I changed to two separate 44mm wastegates to keep the pulses separated and a GT35R turbo. Spool improved by almost 2,000 RPM. I can hit full boost now at just over 3K.

estevan62274

iTrader: (32)

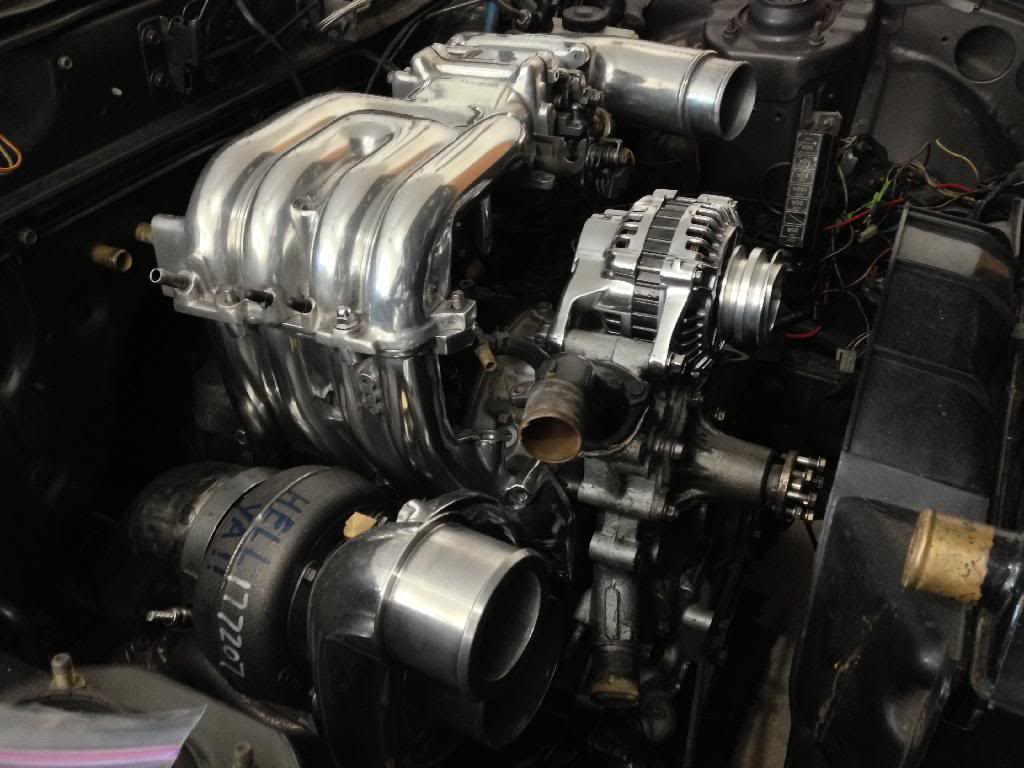

FD SS manifold & BW 363 here.
The FD cast manifold fits fine also and are a very affordable bolt on option.
Search the build threads, lots of info in them.




.

Willopap

iTrader: (1)

Ya I was looking at those manifolds, very affordable but I've heard mixed reviews about their products so its hard to make a decision thanks

Willopap

iTrader: (1)

damm man, it sounds wicked! I might just end up doing that, its probably cheaper in the long run it just take a wee bit more time I guess. I could just tack it up and bring it to a shop to weld up :$ thanks

Willopap

iTrader: (1)

Sweeeeettt, thanks man. Ill look into it. I appreciate all the help guys
