GSL-SE Power Steering Pump Flow Control Valve

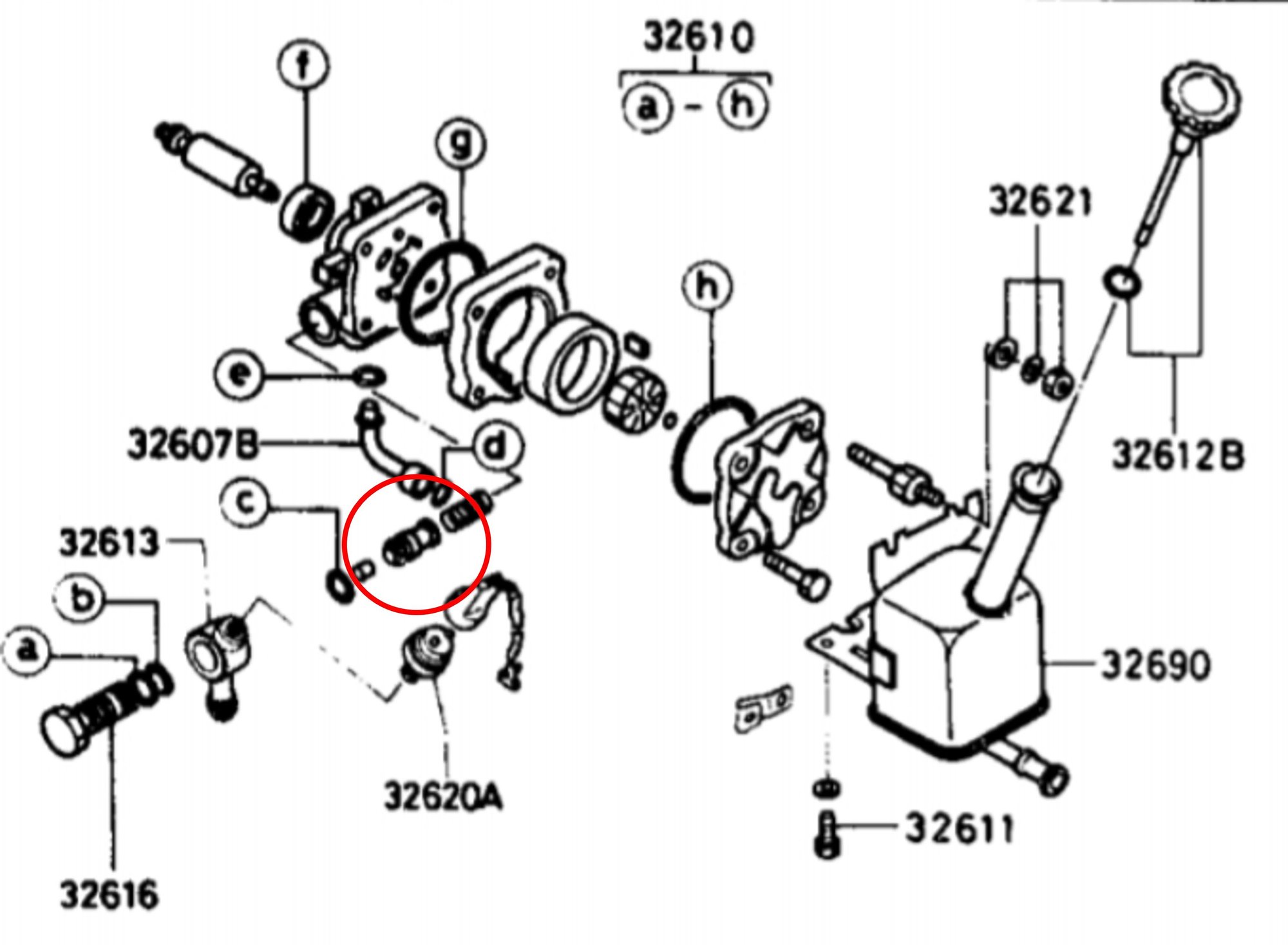

Anybody have a pic of a disassembled pump? I had my '84 GSL-SE P/S pump rebuilt by a reputable local shop and when I got it back I took the banjo fitting off to make it easier to install and noticed that the flow control valve looked like was installed backward. When I removed it, I swear the flat end was facing out and the "nib" was facing in - toward the spring. The rebuilt pump had the flat end towards the spring. Found a diagram that appears to indicate the shop installed it correctly? Thanks!
