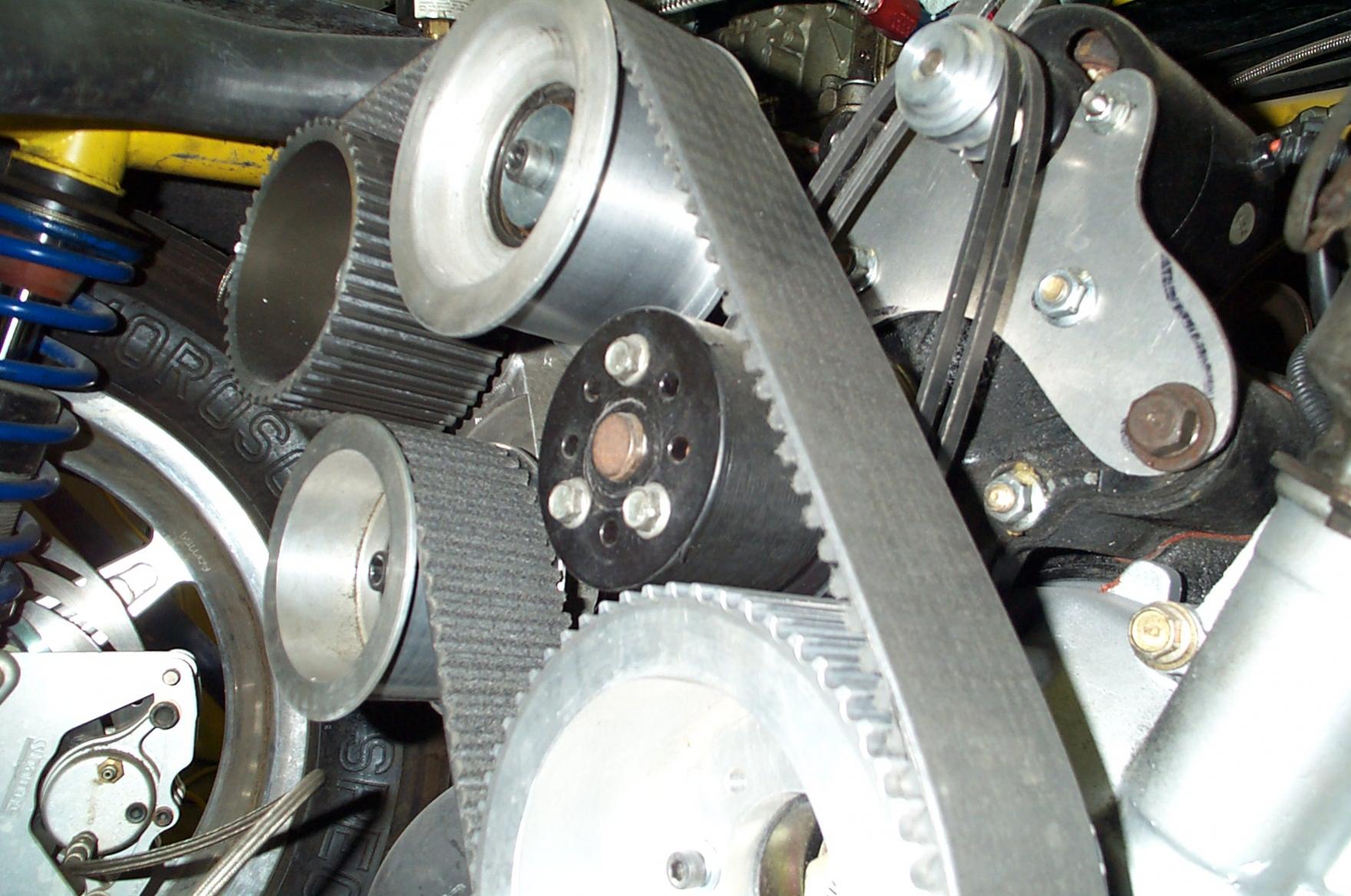

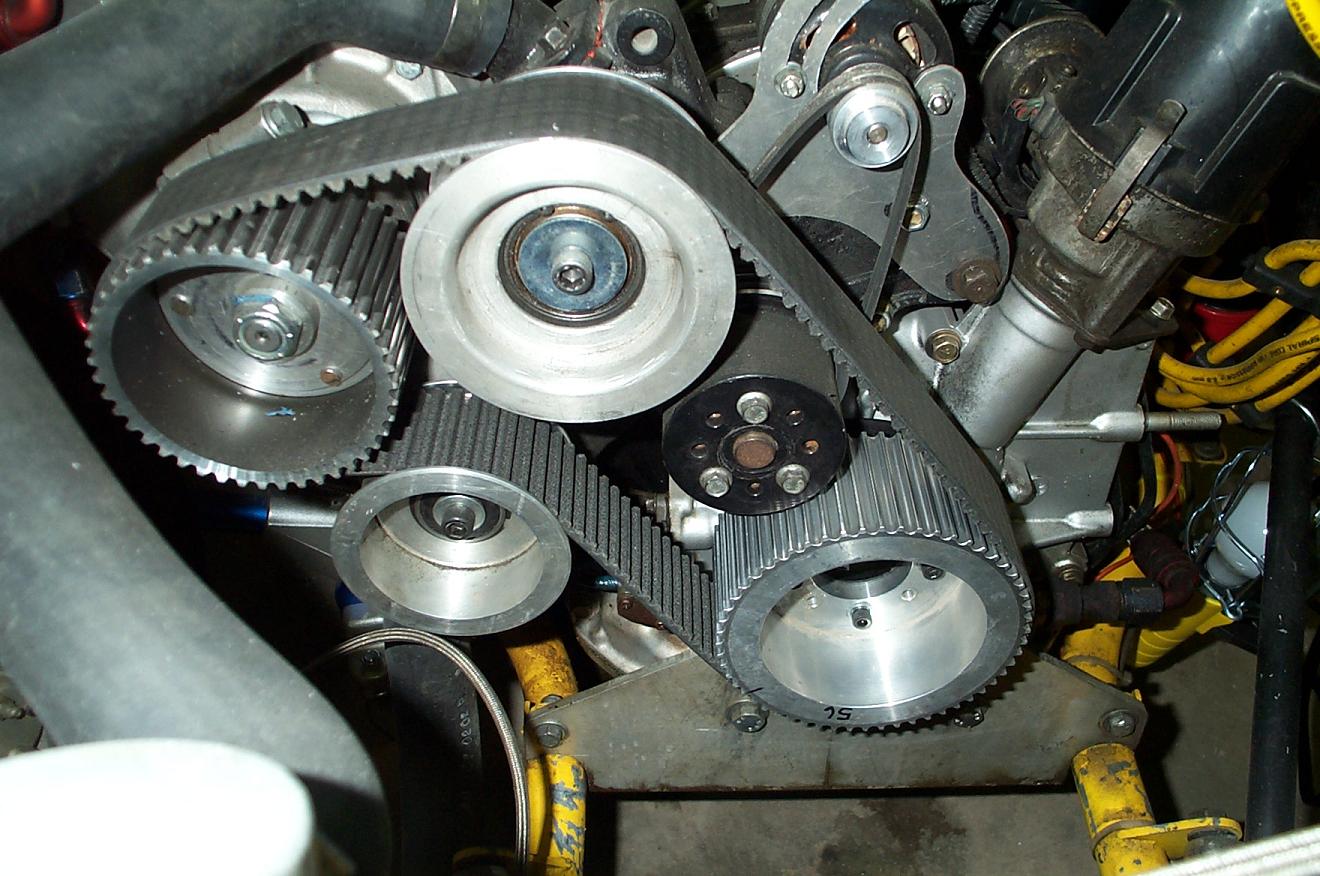

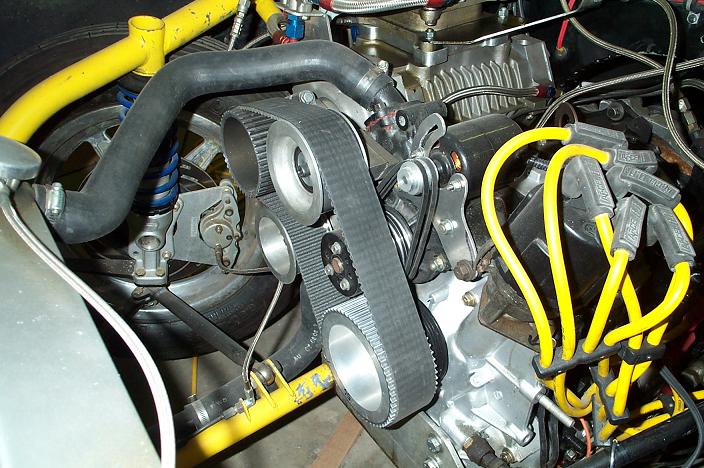

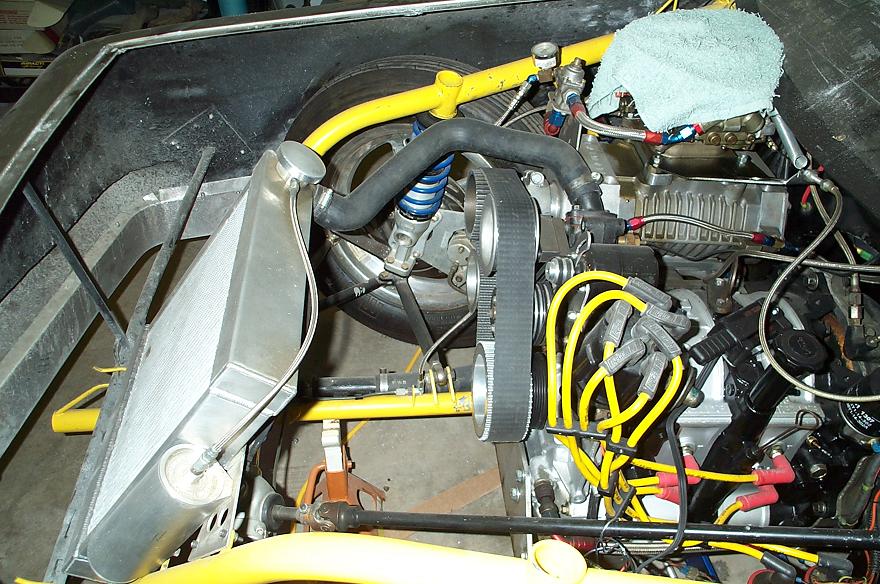

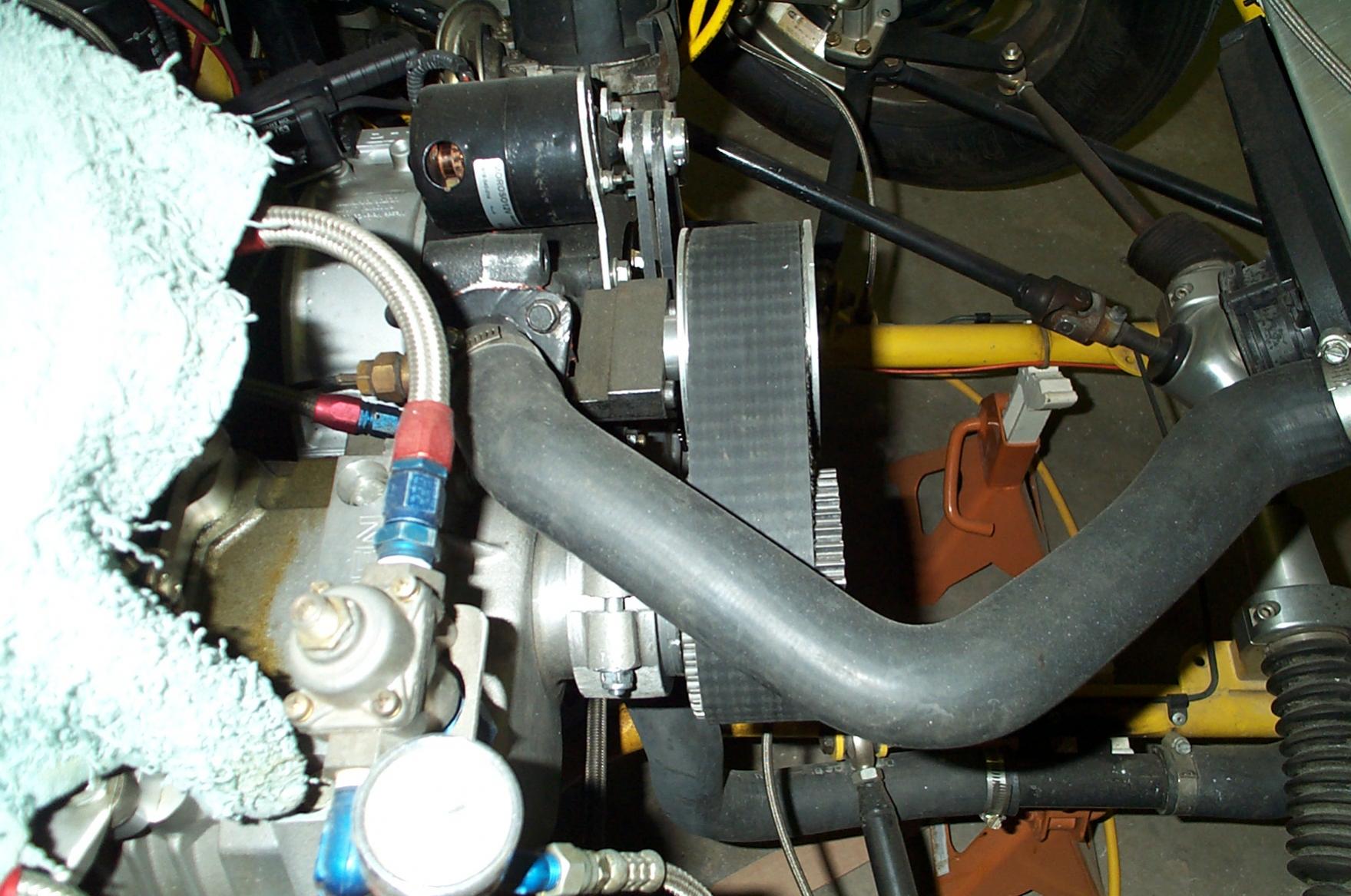

A couple of pics of my new setup
#51
I need a new user title
Thread Starter
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
#56
I need a new user title
Thread Starter
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Nope, actually I won't. I'll be at the dyno, but I probably won't be running because I'm out of money again and I need a new O2 sensor. It'll be much more interesting once I have the tune dialed in anyway. But I don't anticipate much over 170 at the wheels.
#58
I need a new user title
Thread Starter
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Or maybe I ought to go to Cali.
Seriously, though, the car isn't much to look at. Looks like an RX-7 with 214K miles, really. I'd like to change that eventually.
Seriously, though, the car isn't much to look at. Looks like an RX-7 with 214K miles, really. I'd like to change that eventually.
#61
you actually have a "draw through setup". your supercharger SUCKS the air in right so its a darw through, but blow through is a better setup. look in the book "maximum boost" by corky bell.
but if iam wrong then iam sorry. just i cant really see the details in your PIC's
but nice job man
but if iam wrong then iam sorry. just i cant really see the details in your PIC's
but nice job man
#62
the edelbrock carb sucks man. everytime i hit hard on the pedal it holds me back! only boosting 6psi wtf! the secondarys jets are mess up. and i am using a mickey mouse idler pulley8 rib at this momnet. cause the one from camden is made out of plastic and broke. TWICE! they no longer have the 10 ribs. what can i do? I'm no expert on how carbs works too. so thinking of getting a different carb.
#64
Lives on the Forum
iTrader: (5)
I have a 6,7,8 and 9 pulley. The 7 is most ideal, 8 and 9 really heat up the air with the increased boost. I have 2 edelbrocks, a mighty demon and 3 holleys. Each have their advantages, all ranging from 600-800 cfm. The gatorback works the best. Buy some belt dressing for the pulley, big difference! Word of warning though, the belt slippage is a safety mechanism for the charger..but it will get addictive!
#67
the edelbrock carb sucks man. everytime i hit hard on the pedal it holds me back! only boosting 6psi wtf! the secondarys jets are mess up. and i am using a mickey mouse idler pulley8 rib at this momnet. cause the one from camden is made out of plastic and broke. TWICE! they no longer have the 10 ribs. what can i do? I'm no expert on how carbs works too. so thinking of getting a different carb.
Im running a edelbrock 600 on my SC 12a and what i did was change the stepup spring from a 5 to a 8 for a instant secondary activation and changed the metering jets from 100 primary to 104 and 95 secondary to 98, that fixed my problem.
Changed my pulley from a -7 to a -9 for 4 more pounds of boost (11P) and beleive me you can feal those extra pounds, next step im about to wrap the headers cause it dose get kinda hot down there but my hood scoop helps a little for now.
#68
I actually talked to atkins and pulleyboys and Bridgeport and SC are a great combination, theres actually a car in Amarillo TX with a 9 camden SC full bridgeport in the 9 seconds.
#69
#70
What edelbrock carb u using?
Im running a edelbrock 600 on my SC 12a and what i did was change the stepup spring from a 5 to a 8 for a instant secondary activation and changed the metering jets from 100 primary to 104 and 95 secondary to 98, that fixed my problem.
Changed my pulley from a -7 to a -9 for 4 more pounds of boost (11P) and beleive me you can feal those extra pounds, next step im about to wrap the headers cause it dose get kinda hot down there but my hood scoop helps a little for now.
Im running a edelbrock 600 on my SC 12a and what i did was change the stepup spring from a 5 to a 8 for a instant secondary activation and changed the metering jets from 100 primary to 104 and 95 secondary to 98, that fixed my problem.
Changed my pulley from a -7 to a -9 for 4 more pounds of boost (11P) and beleive me you can feal those extra pounds, next step im about to wrap the headers cause it dose get kinda hot down there but my hood scoop helps a little for now.
man, i want my car to run like it supposed to run. going to do a rebuilt along with a large street port.
#72
I need a new user title
Thread Starter
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
you actually have a "draw through setup". your supercharger SUCKS the air in right so its a darw through, but blow through is a better setup. look in the book "maximum boost" by corky bell.
but if iam wrong then iam sorry. just i cant really see the details in your PIC's
but nice job man
but if iam wrong then iam sorry. just i cant really see the details in your PIC's
but nice job man
I wish I had the money to drop on a set of Gilmer pulleys. I'm freaking tired of belt slippage. I have been meaning to pick up some belt dressing, but that just seems like a band-aid that doesn't fix the underlying problem, which is that the 6-rib pulleys are just too narrow for decent grip. I don't buy that it's protecting the supercharger, because with a -10 pulley it'd be spinning far faster than the RPM I'm subjecting it to with the -7 and only a 7K redline.
As for the Holley vs. Edelbrock thing, I didn't notice a huge difference between the two aside from my lack of a choke cable making cold starts with the Holley slightly more difficult. However, it did feel like I picked up some power in the lower gears with the Holley, possibly because of the mechanical secondaries or even just different AFRs; I still haven't successfully had my wideband hooked up to it.
Seriously, though, if I were to do it again, I'd cough up the dough for an EFI setup. This stumbling on left-hand turns is driving me nuts.
#73
Parts number:
My carb 1405 performer series.
Metering jets:
.98 my upgraded secondarys= #1427
.100 = #1428
.101 my upgraded primary = #1429
.104 = #1430
Stepup springs:
Set # 1464 (factory 5 upgrade to 7 pink springs).
