This can be fixed. Take a knife or razor blade and expose the wires in the sensor where they broke. Solder and heatshrink the wires back. I then use some non-metallic expoxy to put back on the connection. These wires get hot and corrode really easy. It's also a bad design because they bend at that point.
Make sure to use the aluminum crush washer when reinstalling.
Last edited by KansasCityREPU; Oct 13, 2019 at 11:29 AM.
This can be fixed. Take a knife or razor blade and expose the wires in the sensor where they broke. Solder and heatshrink the wires back. I then use some non-metallic expoxy to put back on the connection. These wires get hot and corrode really easy. It's also a bad design because they bend at that point.
Make sure to use the aluminum crush washer when reinstalling.

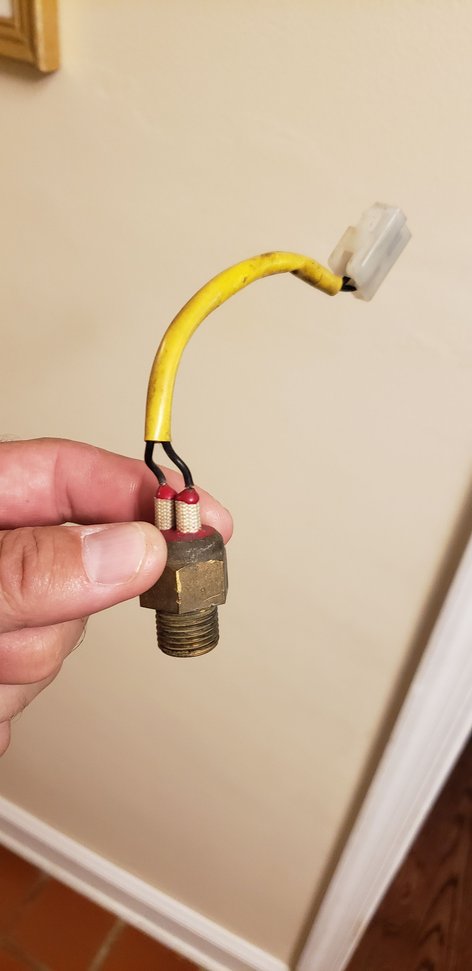

MW, I have one here off my '85 in good working condition. I think it's the same but not 100% (can anyone verify?). Look at the pictures and PM me if interested.
Last edited by Maxwedge; Oct 13, 2019 at 06:56 PM.

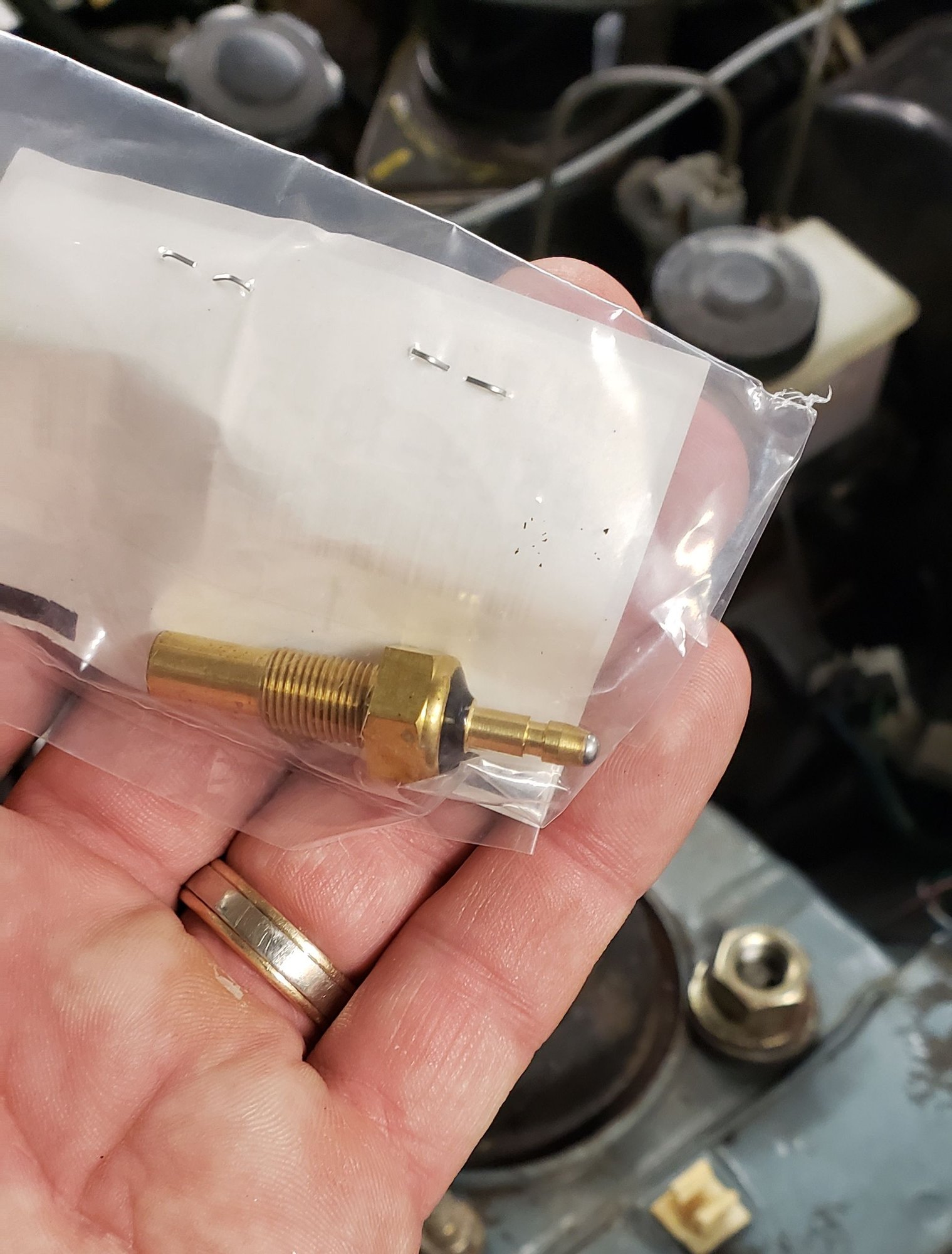

Oh and just so you know, it only sends the temp to your choke-**** control, so the choke turns off once the engine warms up. The temp gauge in your dash is signaled from this temp sender on the driver's side of rear iron.
Last edited by Maxwedge; Oct 13, 2019 at 06:55 PM.
