Road race/circuit turbo cars heat management.
#1
F**K THE SYSTEM!!
Thread Starter
Road race/circuit turbo cars heat management.
The main thing in question here are turbo blankets. I would appreciate if only guys with real experience post in this thread. BY real experience I am referring to guys who consistently put their cars through the limits and have ran to all the heat management issues already. I would like to keep the posting to a minimum. Anyone who goes to real track such as Rd. atlanta, Rd america ,Sebring, Laguna Seca and put down more than just 2-3 laps per session are welcome to post. Im talking about cars that can go through a gas tank. I Would love for guys such as Damian,Fritz , and HOward coleman to chime in. Are you guys running turbo blankets?
There have been rumors of turbo blanket not being ideal for circuit/rd racing cars and even DD street cars. Rumors such as it trapping so much heat it can warp turbine housing, cause premature turbo damage and even cook the oil. I have also ran across threads where someones race tech asked them to remove the turbo blanket while on they are on track putting down numerous laps back to back. Even factory turbocharged vehicles such as turbo diesels seem to prefer shielding over blankets. I understand shields have a longer life span but is there more to it?
I have also been looking a hundreds of pictures of factory backed turbo race engines and the theme seams to be inconel shields not turbo blankets.
What are you guys doing on your personal cars? Are turbo blankets a thing of the past with bad info floating around about how good they are. I mean sure, they can lower engine bay temps and create faster spool but do the cons outweigh the pros? Lets use this thread to break the myths and bring light to the real world. WHy should we or should not use turbo blankets.
There have been rumors of turbo blanket not being ideal for circuit/rd racing cars and even DD street cars. Rumors such as it trapping so much heat it can warp turbine housing, cause premature turbo damage and even cook the oil. I have also ran across threads where someones race tech asked them to remove the turbo blanket while on they are on track putting down numerous laps back to back. Even factory turbocharged vehicles such as turbo diesels seem to prefer shielding over blankets. I understand shields have a longer life span but is there more to it?
I have also been looking a hundreds of pictures of factory backed turbo race engines and the theme seams to be inconel shields not turbo blankets.
What are you guys doing on your personal cars? Are turbo blankets a thing of the past with bad info floating around about how good they are. I mean sure, they can lower engine bay temps and create faster spool but do the cons outweigh the pros? Lets use this thread to break the myths and bring light to the real world. WHy should we or should not use turbo blankets.
#3
Instrument Of G0D.
iTrader: (1)
Im underqualified to post here, but i think my limited experience is relevant to this.
Had a turbo beanie on mine for a few months of weekend STREET use limited to gentle cruising and occasional traffic light 0-60 squirt.
It caused blue heat spots to the cast iron housing which werent there for 9 years of abuse and trackdays without the beanie. Scary to think what would happen to it on track day. Wont be using one again.
New turbo is ceramic coated, and will incorporate as much heat shielding as possible/neccisary, mostly on intake manifolds and surrounding ancilliaries, due to space constraints.
Ive got nothing againt wraps on piping. Can put as much or as little on as you want. Single layer with overlap (pretty much an even two layers) ,on for the same period of time as the turbo beanie, caused no real marking on my stainless steel down pipe and cast iron manifold.
Had a turbo beanie on mine for a few months of weekend STREET use limited to gentle cruising and occasional traffic light 0-60 squirt.
It caused blue heat spots to the cast iron housing which werent there for 9 years of abuse and trackdays without the beanie. Scary to think what would happen to it on track day. Wont be using one again.
New turbo is ceramic coated, and will incorporate as much heat shielding as possible/neccisary, mostly on intake manifolds and surrounding ancilliaries, due to space constraints.
Ive got nothing againt wraps on piping. Can put as much or as little on as you want. Single layer with overlap (pretty much an even two layers) ,on for the same period of time as the turbo beanie, caused no real marking on my stainless steel down pipe and cast iron manifold.
Last edited by WANKfactor; 12-28-13 at 05:31 PM.
#4
1308ccs of awesome
iTrader: (9)
I put a blanket on my turbo and ran 1 track day, and it already looks like it's about to flake into dust... I wouldn't bother with one. You also get fiberglass and who knows what in your eyes every time you work around it... Go with some sort of ceramic coating and/or inconel sheilds
#5
Senior Member
I roadrace my 20b fd turbo for 30 min to 1 hour races, and the blanket fell apart after a few weekends. The turbine got flakey as well. I would build a shield unless you're frying components near the turbo.
Trending Topics
#8
F**K THE SYSTEM!!
Thread Starter

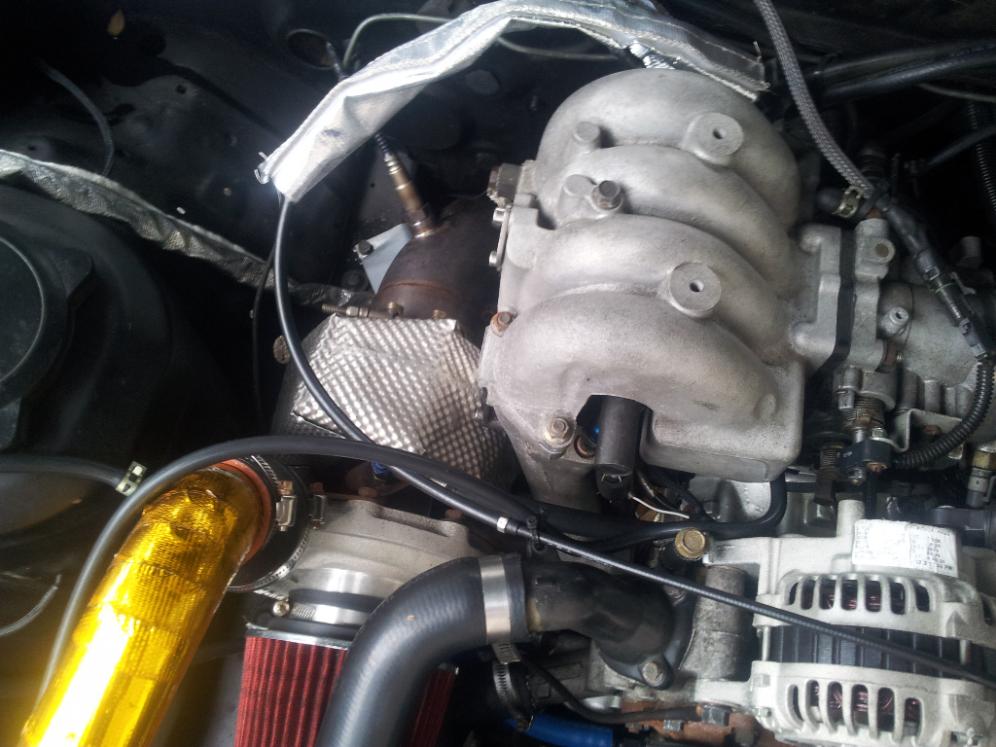

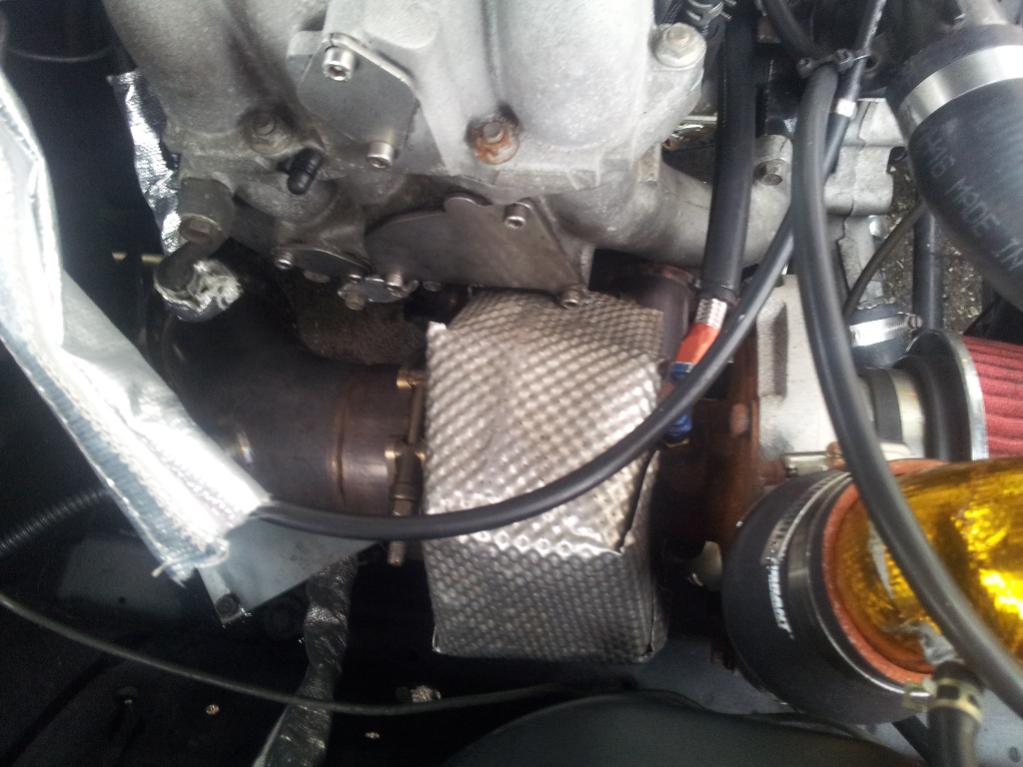

Well I think I have all the evidence I need. Turbo blankets should be avoided at all cause. I will concentrate my efforts on inconel shields, shrouding, and hood venting. Here's my first attempt at shielding my turbine housing. I really need to get my lower manifold "shaved" so I can run a sheet of inconel from exhaust manifold upper bolts all the way to hood level.
#10
1308ccs of awesome
iTrader: (9)
anyone have any experience with ceramic coating?
White Lightning Exhaust Coatings | Swain Tech Coatings | Industrial Coatings | High Performance Racing Coatings
White Lightning Exhaust Coatings | Swain Tech Coatings | Industrial Coatings | High Performance Racing Coatings
#12
Money talks-mine says bye
iTrader: (18)
I've tried all of the above and here's a hint at my experience:
1) Fiberglass blankets will survive as long as you don't disturb them, which I always do for some reason. They also smoke like a banshee when new, although the "lava rock" blankets appear to have potential.
2) I've Swain tech coated my exhaust manifold and it's held-up well after a track event. Recently however, I've migrated to E85, which as y'all know runs much cooler and completely changes the game regarding the need for exhaust heat protection.
3) HIgh temp (1800*F) ceramic coatings will tolerate rotary exhaust for a spell, but most typical ceramic coatings (rated to 1600*F) will flake off, especially when combined with a heat shield.
4) I currently run a custom heat shield on a lava strip wrapped turbo exit down pipe to prevent fuel line/regulator heating and it's been the best solution so far.
1) Fiberglass blankets will survive as long as you don't disturb them, which I always do for some reason. They also smoke like a banshee when new, although the "lava rock" blankets appear to have potential.
2) I've Swain tech coated my exhaust manifold and it's held-up well after a track event. Recently however, I've migrated to E85, which as y'all know runs much cooler and completely changes the game regarding the need for exhaust heat protection.
3) HIgh temp (1800*F) ceramic coatings will tolerate rotary exhaust for a spell, but most typical ceramic coatings (rated to 1600*F) will flake off, especially when combined with a heat shield.
4) I currently run a custom heat shield on a lava strip wrapped turbo exit down pipe to prevent fuel line/regulator heating and it's been the best solution so far.
#13
F**K THE SYSTEM!!
Thread Starter
Turbo blanket longevity shouldnt matter if its shortening the life of a turbo. It should be completely avoided.
My next plan of attack and possibly the ideal way of doing engine bay heat management goes a little like this
*Nothing trapping heat on exhaust parts, particularly the turbine housing. I plan on removing my inconel turbine heat shield.
* Running a inconel shield in between the header and intake manifold all the way up to the to the hood. Also making sure to leave at least 1 inch of space between the shield and intake manifold.
* Vent the turbo side out of the hood via custom hood vent(shield should butt to under hood "completely" isolating heat. Also feed fresh air in between the shield and intake manifold via a hose ran from front air dam.
This will be my next attempt and should be truly functional.
My next plan of attack and possibly the ideal way of doing engine bay heat management goes a little like this
*Nothing trapping heat on exhaust parts, particularly the turbine housing. I plan on removing my inconel turbine heat shield.
* Running a inconel shield in between the header and intake manifold all the way up to the to the hood. Also making sure to leave at least 1 inch of space between the shield and intake manifold.
* Vent the turbo side out of the hood via custom hood vent(shield should butt to under hood "completely" isolating heat. Also feed fresh air in between the shield and intake manifold via a hose ran from front air dam.
This will be my next attempt and should be truly functional.
#15
1308ccs of awesome
iTrader: (9)
mcmaster carr sells it:
McMaster-Carr
or you can just buy ones from turblown that have 2 layers of inconel and other stuff on the inside:
TurboSource 12 x 12 Inconel Sheet - Turblown Engineering
McMaster-Carr
or you can just buy ones from turblown that have 2 layers of inconel and other stuff on the inside:
TurboSource 12 x 12 Inconel Sheet - Turblown Engineering
#16
I'll blow it up real good
iTrader: (1)
or you can just buy ones from turblown that have 2 layers of inconel and other stuff on the inside:
TurboSource 12 x 12 Inconel Sheet - Turblown Engineering
TurboSource 12 x 12 Inconel Sheet - Turblown Engineering
#17
F**K THE SYSTEM!!
Thread Starter
I would like to hear more about damaged turbos instead of blankets falling apart. This is about blankets ruining your track day or leaving you on the side of the road after an event. A turbo blanket flanking off or disintegrating won't cause your weekend to end early.
Any one else with some turbo damage experience?
Any one else with some turbo damage experience?
#18
Senior Member
warped turbine housing is the start of a problem. took a bit of the wheel off. I tried to swap the bearing and compressor section from a newer turbo one day and it no longer fit the turbine housing. had to get a new one.
#20
Trackstar motorsport
iTrader: (8)
The only company I would use for coating are these guys. They are used in F1 so I'm assuming the coasting doesn't flake off.
Zircotec - high performance heat management for automotive and motorsport
Zircotec - high performance heat management for automotive and motorsport
#23
Lives on the Forum
iTrader: (9)
The only company I would use for coating are these guys. They are used in F1 so I'm assuming the coasting doesn't flake off.
Zircotec - high performance heat management for automotive and motorsport
Zircotec - high performance heat management for automotive and motorsport
Shipping stuff to England seems prohibitive—is there anything similar in the states?
#25
Rotary Freak
The really powerful circuit cars here - far more power than a rotary - tend to shroud the housing(s) and exhaust and run some scat to cool everything down. Having said that, have the white crud on the car here, will see how it goes in a 300km race next week, assuming the car lasts the distance!
Bolted flange turbos, guaranteed to eventually f-up sooner or later in extreme use too.
Bolted flange turbos, guaranteed to eventually f-up sooner or later in extreme use too.
