Fuel pump rewire help.
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Both ways work.
Both are equally flawed as well.

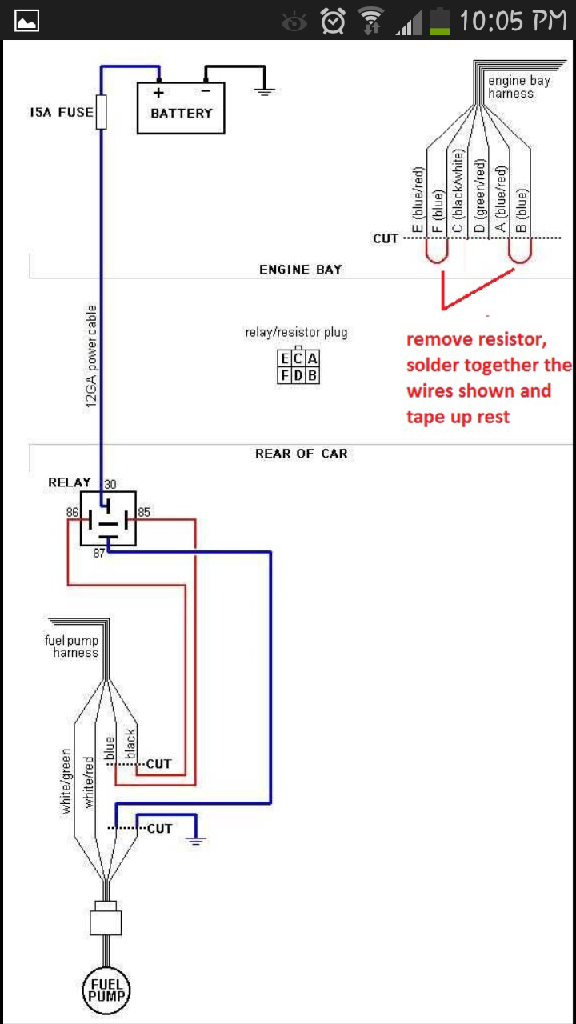

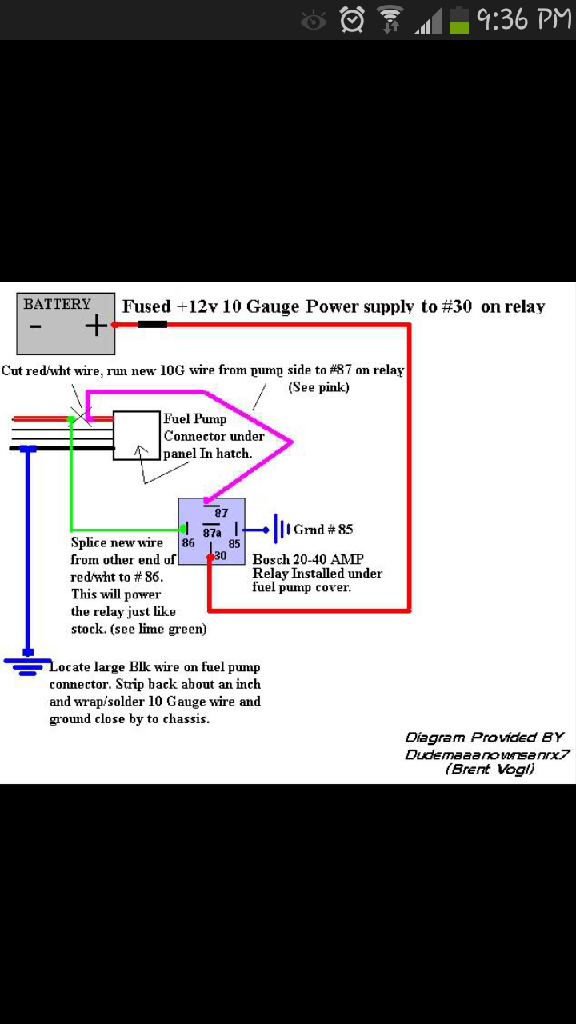

The top diagram is what I would recommend. However I would make some changes. The fuel pump relay is located under the dash above your right knee (driver seat). I'd place the relay there and make all connections to the stock harness at that point. Then I would run a separate wire from the 80A main fuse, with that wire fused at the connection point for 20A, to the relay. Then run the wire from the relay back to the fuel pump and make the connection there.
Placing the relay back at the fuel pump is silly.
Both are equally flawed as well.
The top diagram is what I would recommend. However I would make some changes. The fuel pump relay is located under the dash above your right knee (driver seat). I'd place the relay there and make all connections to the stock harness at that point. Then I would run a separate wire from the 80A main fuse, with that wire fused at the connection point for 20A, to the relay. Then run the wire from the relay back to the fuel pump and make the connection there.
Placing the relay back at the fuel pump is silly.
