Bent Frame, Much Shame
Hey guys, I have an '88 N/A FC that I slid into a curb going sideways at around 35mph. The rack and pinion is busted but I have the replacement unit already. Other than that, I took some frame damage that I need assistance on. I'm not sure what exactly is wrong (total car noob) and I would like to know what's busted, how to fix it, and if it's even worth it. Thanks, fellas.
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

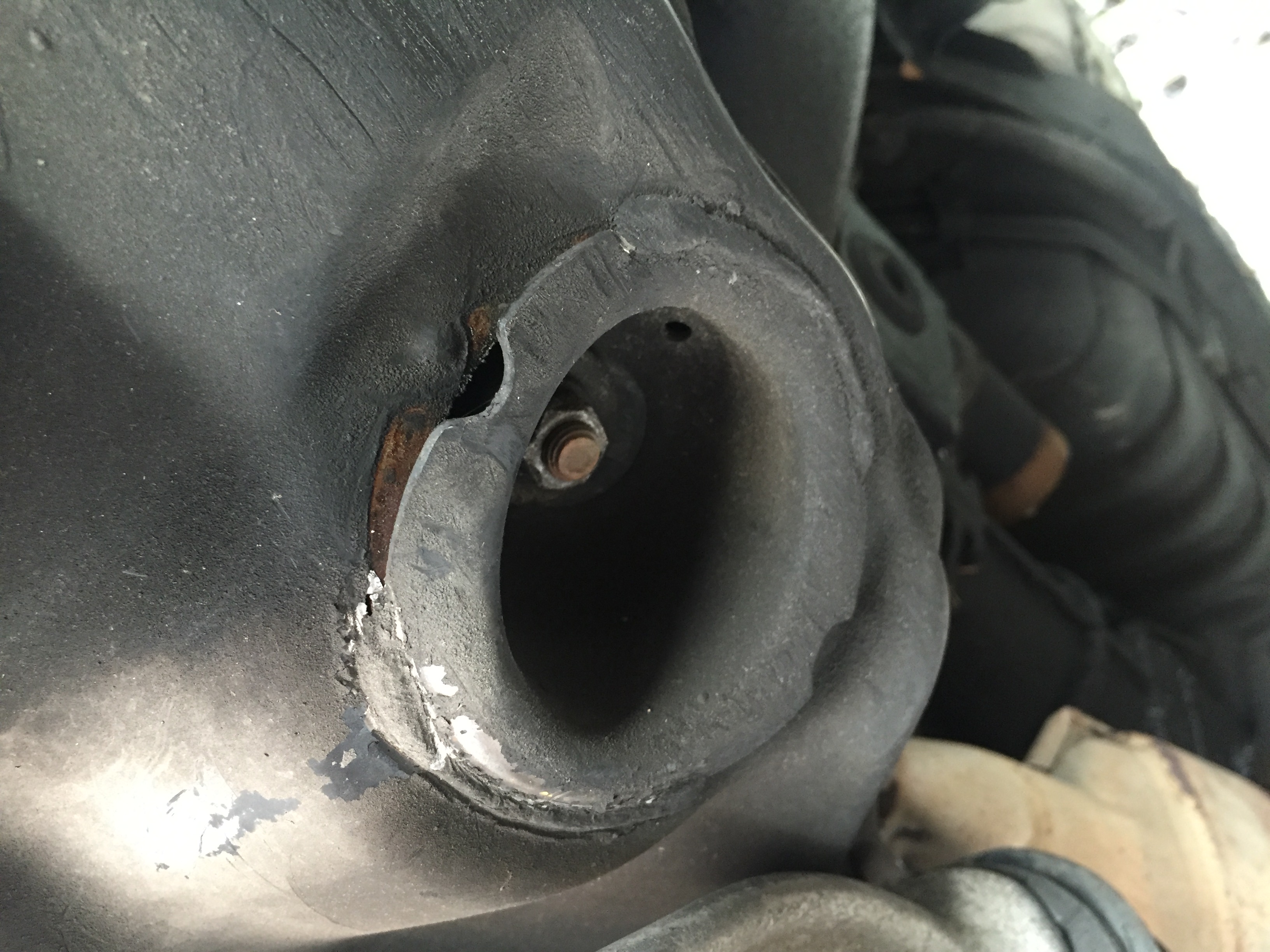

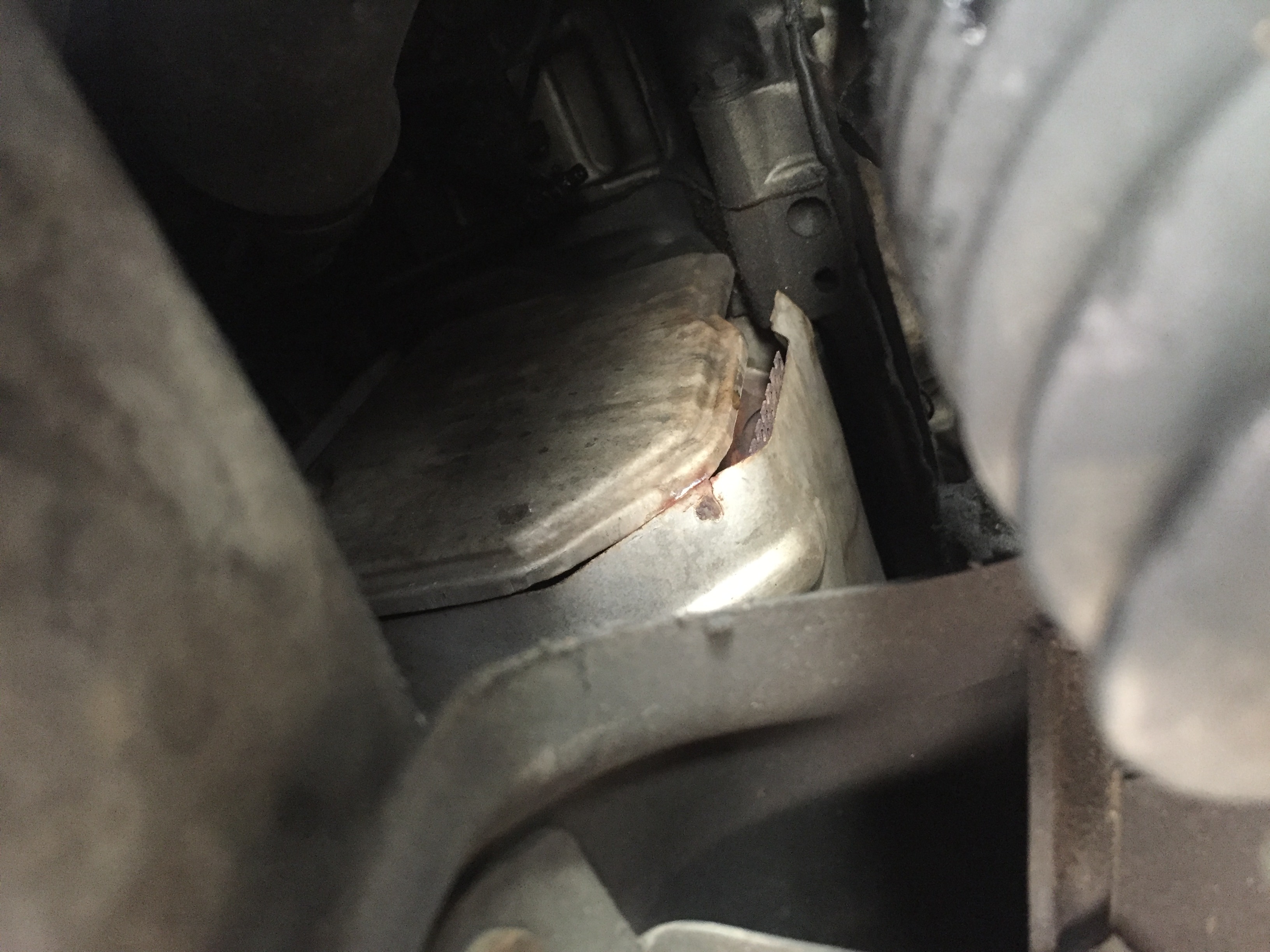

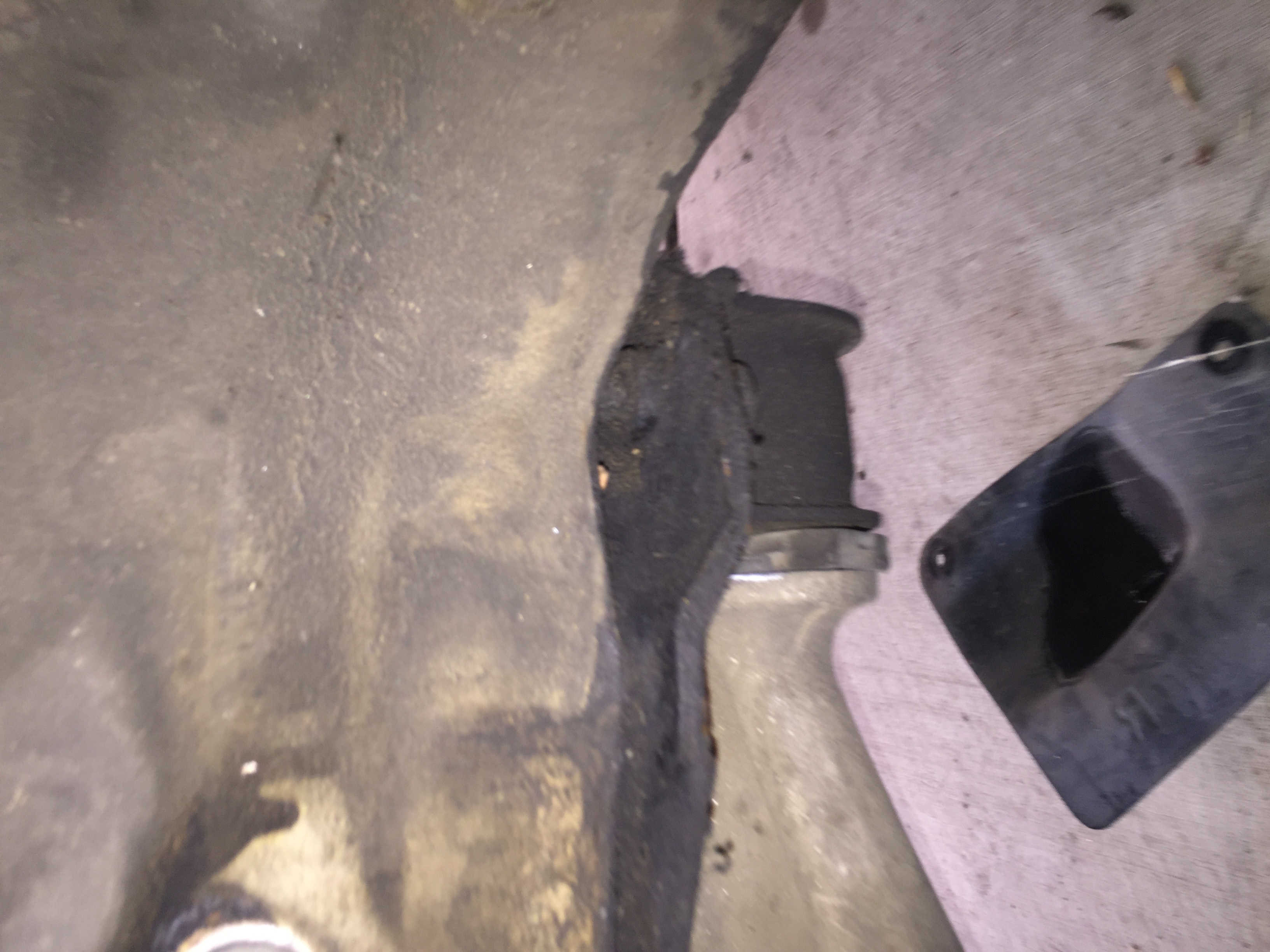

You need to take that car to a frame shop and have the alignment of the body checked. Picture #2 shows the floor pan separated from the frame rail. You must have hit HARD. I expect the entire front end is tweaked. Same with picture #4. Never have I seen the engine mount pocket broken from the subframe.
Doors still close alright? Fender gaps at the front?
Looks like 50MPH, not 35.
Doors still close alright? Fender gaps at the front?
Looks like 50MPH, not 35.
#3
Poor College Student
Join Date: Apr 2014
Location: Oklahoma
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
#4
Junior Member
Thread Starter
Join Date: Jul 2016
Location: SoCal
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
You need to take that car to a frame shop and have the alignment of the body checked. Picture #2 shows the floor pan separated from the frame rail. You must have hit HARD. I expect the entire front end is tweaked. Same with picture #4. Never have I seen the engine mount pocket broken from the subframe.
Doors still close alright? Fender gaps at the front?
Looks like 50MPH, not 35.
Doors still close alright? Fender gaps at the front?
Looks like 50MPH, not 35.
#5
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You can hang the engine from a hoist while you remove the subframe.
If you can access the floor pan, then it can be welded back.
However I highly suggest you ask a frame shop.
I have NEVER, EVER seen a subframe bent. If bent to the point where the pocket has separated, then the subframe should be replaced, not repaired.
As the body lines don't line up, the entire front end of the car has been shifted. It needs to go onto a frame jig and professionally evaluated. They may find cracked welds everywhere and can offer advice as to how it should be repaired. At the very minimum, the frame will need to be pulled back straight.
If you can access the floor pan, then it can be welded back.
However I highly suggest you ask a frame shop.
I have NEVER, EVER seen a subframe bent. If bent to the point where the pocket has separated, then the subframe should be replaced, not repaired.
As the body lines don't line up, the entire front end of the car has been shifted. It needs to go onto a frame jig and professionally evaluated. They may find cracked welds everywhere and can offer advice as to how it should be repaired. At the very minimum, the frame will need to be pulled back straight.
#6
turbo or bust
iTrader: (8)
Join Date: May 2012
Location: bristol,pa
Posts: 870
Likes: 0
Received 0 Likes
on
0 Posts

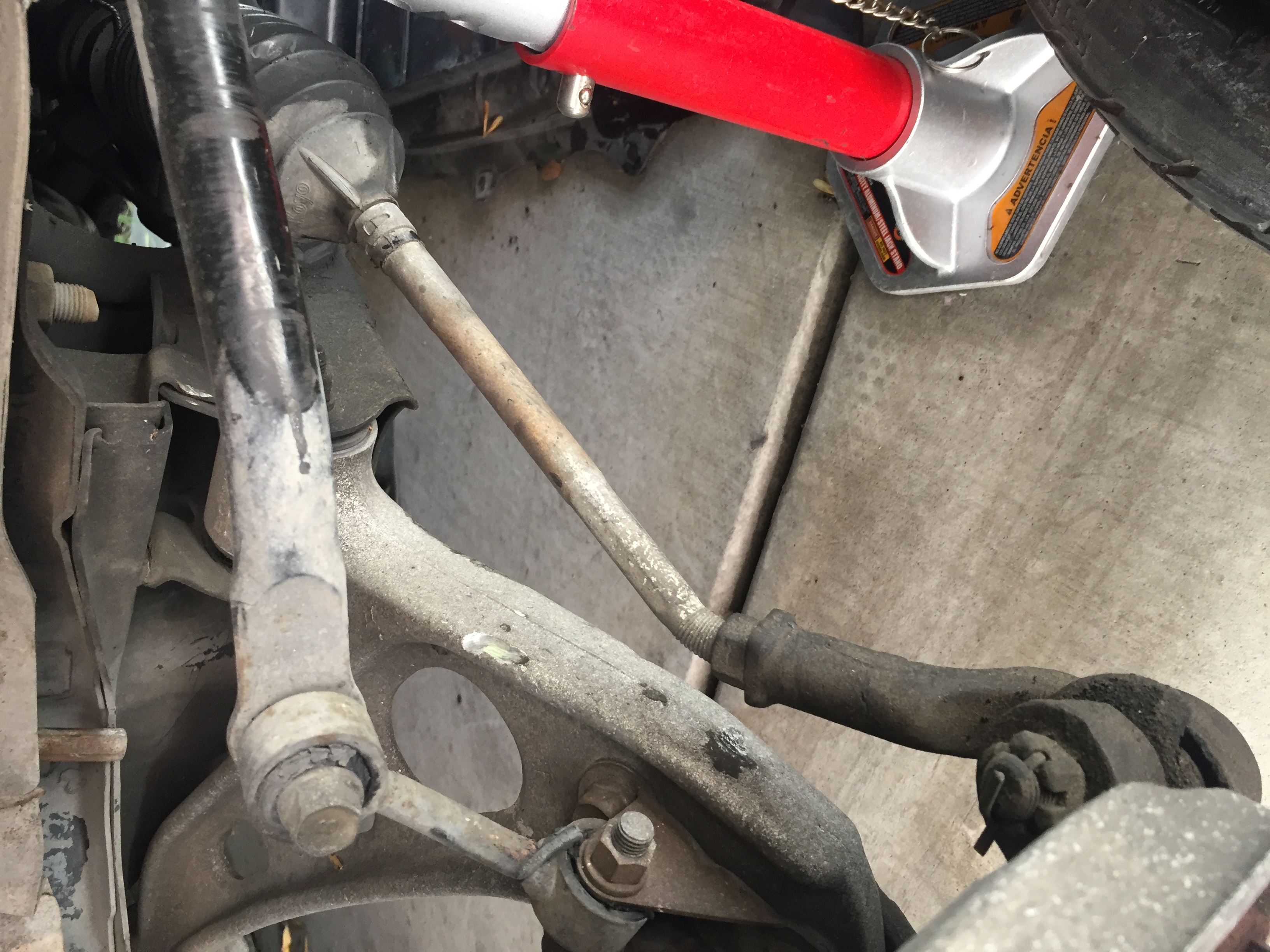

I work at a body shop and see this type of hit all the time,at the very minimal,you need a inner tie rod,sub frame,and it looks like either the side apron or the floor pan seperated,if the tie rod bent like that,you probably need a lower control arm also. That's just what I can see from the pictures,your going to have to take it to a body shop and have it put on a frame machine and measured.you can probably get the suspension parts used for a couple hundred. But then you have the cost of the frame and body work which is going to be high
#7
Junior Member
Thread Starter
Join Date: Jul 2016
Location: SoCal
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys. The FC is going to a body shop by next week. I'll make sure I relay the information to and from the forum to my mechanic. This isn't going to stop me from finishing this build and all the help is highly appreciated.
What is the exact name of the part of the subframe that clamps the control arms? It's also under the rack and pinion and it looks like it's removable by 9 bolts all around. I'm looking into finding a replacement for that. I'm just not sure what it's called. Probably just called the subframe..?
I'm going to have the control arms removed and looked at but other than some scuffs, they look fine. Would the crack before they bend? Or the other way around? Is this the same for the front tie rods?
Also, once the frame is aligned I might as well change out the bushings (my FC was a commuter car and has 317k miles on it).
What is the exact name of the part of the subframe that clamps the control arms? It's also under the rack and pinion and it looks like it's removable by 9 bolts all around. I'm looking into finding a replacement for that. I'm just not sure what it's called. Probably just called the subframe..?
I'm going to have the control arms removed and looked at but other than some scuffs, they look fine. Would the crack before they bend? Or the other way around? Is this the same for the front tie rods?
Also, once the frame is aligned I might as well change out the bushings (my FC was a commuter car and has 317k miles on it).
Trending Topics
#8
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Suggestion..
Go back around that curb the other way..
Slam!...FIXED!..Straight..
If you are tossing more than 800 into that car you are tossing away money.
Go back around that curb the other way..
Slam!...FIXED!..Straight..
If you are tossing more than 800 into that car you are tossing away money.
#9
Junior Member
Thread Starter
Join Date: Jul 2016
Location: SoCal
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
#10
Can Post Only in New Member Section
Join Date: Sep 2016
Location: Victorville, CA
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to hear it, bud. I think you should just call some of the local body shops and find out which ones give out free quotes. That way you get it checked out by a pro, and you'll know then whether it's worth it to you or not. It can't hurt. Good luck!
#11
Junior Member
Thread Starter
Join Date: Jul 2016
Location: SoCal
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
were bent in
Quick bump and update. She's on the road fellas. I bought a secondhand subframe and refurbished rack and pinion. The body frames on passenger side were bent in but we cut around it. The subframe was bored new holes and kept the alignment correct. Every other suspension component was still usable (bushings, ties, links will be swapped soon). The car will not be driven hard or often but will be constantly worked on. Thanks fellas. I'll be on site way more often now.
#12
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I had sort of a similar situation with my first car,second car thing.
First car was rough,second car was a slight smacked,insurance claim buy..
Parted the first car to get the second car into the body shop and created one good car.
That car eventually got turned into "the blue grenade" which made 357HP.
First car was rough,second car was a slight smacked,insurance claim buy..
Parted the first car to get the second car into the body shop and created one good car.
That car eventually got turned into "the blue grenade" which made 357HP.
#13
Junior Member
Thread Starter
Join Date: Jul 2016
Location: SoCal
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
I had sort of a similar situation with my first car,second car thing.
First car was rough,second car was a slight smacked,insurance claim buy..
Parted the first car to get the second car into the body shop and created one good car.
That car eventually got turned into "the blue grenade" which made 357HP.
First car was rough,second car was a slight smacked,insurance claim buy..
Parted the first car to get the second car into the body shop and created one good car.
That car eventually got turned into "the blue grenade" which made 357HP.
#14
Quick bump and update. She's on the road fellas. I bought a secondhand subframe and refurbished rack and pinion. The body frames on passenger side were bent in but we cut around it. The subframe was bored new holes and kept the alignment correct. Every other suspension component was still usable (bushings, ties, links will be swapped soon). The car will not be driven hard or often but will be constantly worked on. Thanks fellas. I'll be on site way more often now.
