4-Rotor FC Build

Finally I've started on my build. After thinking about building a 4-Rotor for a long time I finally disassembled a few n/a engines I had lying around and started work. It's not purpose build for drifting or racing or anything, I'm pretty into fabricating my own parts, so this is more of a hobby project to keep me busy than anything else. The chassis is a basic red S4 FC, with Tein HA coilovers and SSR Type-C wheels. It's not the most pretty thing ever, but I don't mind. I'm not going to do anything outrageous with the chassis, just make sure the suspension and everything is in good condition, maybe remove some of the interior like the back seat's you can't use anyway but that's about it.

Now for the interesting bit, the engine. I can type out a really really long story about the engine, but I'm just going to let the pictures speak for themselves. All these pictures were taken within the last 6 weeks:

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
John Huijben is offline   Reply With Quote
Old 10-28-11, 02:10 PM   #2
Insane Burnout

John Huijben's Avatar

Trader Score: (1)

Join Date: Oct 2010
Location: The Netherlands
Posts: 441
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
John Huijben is offline   Reply With Quote
Old 10-28-11, 02:10 PM   #3
Insane Burnout

John Huijben's Avatar

Trader Score: (1)

Join Date: Oct 2010
Location: The Netherlands
Posts: 441
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
John Huijben is offline   Reply With Quote
Old 10-28-11, 02:11 PM   #4
Insane Burnout

John Huijben's Avatar

Trader Score: (1)

Join Date: Oct 2010
Location: The Netherlands
Posts: 441
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

http://www.youtube.com/watch?feature...&v=UDCborFfCmU

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.


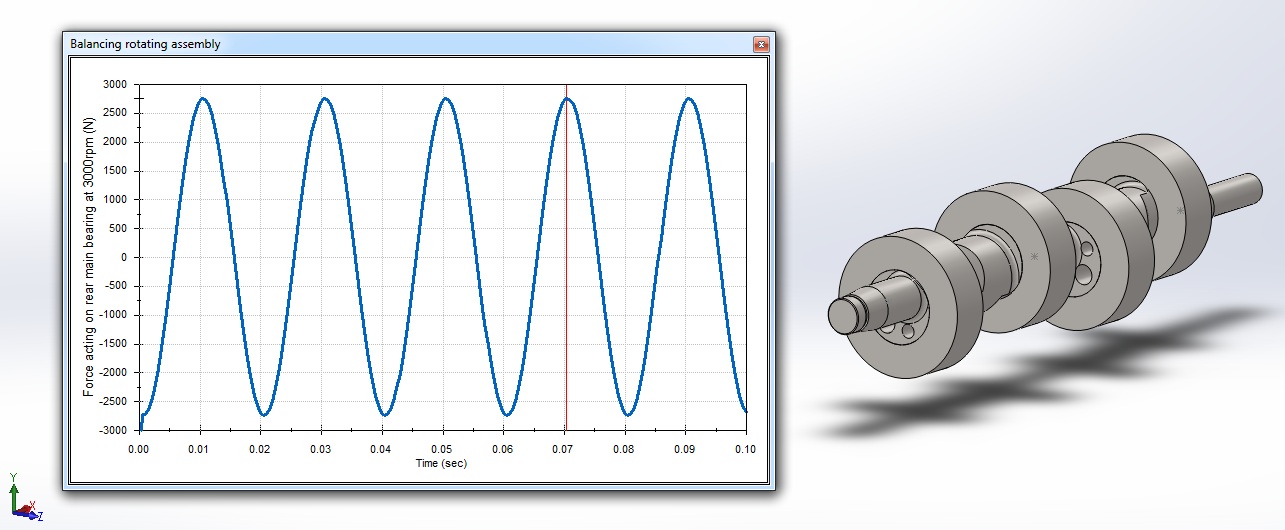

Progess so far, the e-shaft is coming along great, need to drill the final holes tomorrow, so the shaft can go out for heat treatment.nThe rotor housings are also coming along well, the ports are all in, need to add some epoxy in the water channel near the intake port though. I'm also planning some further modifications to the housings, but I need fuel injectors for that so I have to wait for the ID1000's to get here before I can continue with that. No worries though, lots of stuff to do in the meantime.
John Huijben is offline   Reply With Quote
Old 10-28-11, 02:28 PM   #5
Warheads on foreheads!
10 Year Member

MIDNFauciUSN's Avatar

Trader Score: (8)

Join Date: Mar 2003
Location: Salinas, CA
Posts: 1,691
Send a message via AIM to MIDNFauciUSN
jeezus h. christ!
__________________
"aerodynamics are for people that can't build engines..."
MIDNFauciUSN is offline   Reply With Quote
Old 10-28-11, 02:32 PM   #6
We are the wolves
10 Year Member

Battle Cat's Avatar

Trader Score: (77)

Join Date: Nov 2007
Location: LOS ANGELES
Posts: 10,283
battlecatfd
Send a message via AIM to Battle Cat
this is extremely awesome
Battle Cat is offline   Reply With Quote
Old 10-28-11, 02:34 PM   #7
Jose Claudio

jclau45's Avatar

Trader Score: (0)

Join Date: Mar 2011
Location: south florida
Posts: 21
joseclaudio911@msn.com joseclaudio911
FL

Excellent work John, keep us posted.
jclau45 is offline   Reply With Quote
Old 10-28-11, 02:36 PM   #8
I need a new user title
5 Year Member

PercentSevenC's Avatar

Trader Score: (0)

Join Date: Oct 2005
Location: Seattle, WA
Posts: 2,643
Send a message via AIM to PercentSevenC Send a message via MSN to PercentSevenC Send a message via Yahoo to PercentSevenC
Interesting exhaust sleeves. I'm very curious how that will turn out. Also, I see GSL-SE/RESI rotor housings. Any particular reason for using those rather than the more readily available later style housings?

Can't wait to see how you do the center stationary gears.

Edit: I just noticed the slide throttle. I've been wondering how a slide throttle right up close to the ports like that would work out. Are you going to use round holes or teardrop ones?
__________________
"Dude, you're gonna set your bumper on fire!"
PercentSevenC is offline   Reply With Quote
Old 10-28-11, 02:44 PM   #9
No Life.
10 Year Member

Islander's Avatar

Trader Score: (6)

Join Date: Aug 2002
Location: Charlotte NC
Posts: 786
When u get it running, make me one as well.

Thank you sir.
__________________
93 SSM widebody S475 build completed! Hooray beer!
Islander is offline   Reply With Quote
Old 10-28-11, 02:57 PM   #10
Spinner
5 Year Member

Trader Score: (0)

Join Date: Dec 2003
Location: Calgary, Alberta
Posts: 237
Click the image to open in full size.
Zero10 is offline   Reply With Quote
Old 10-28-11, 03:29 PM   #11
Engine, Not Motor
10 Year Member
5 Year Member

Aaron Cake's Avatar

Trader Score: (1)

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 28,046
Send a message via ICQ to Aaron Cake Send a message via Yahoo to Aaron Cake
Very nice. It must be wonderful to have a machine shop at your disposal.

I'm wondering why you chose that design for the exhaust sleeves? Mazda created them in the shape they did so that the gasses could rapidly expand once they exited the port. I'd expect a smaller design would be a fair restriction at higher flow levels. About the only engines that Mazda had such narrow sleeves on are the 20B and 13B-RE, which are designed as low/midrange engines.

Quote:
Originally Posted by PercentSevenC View Post
I'm very curious how that will turn out. Also, I see GSL-SE/RESI rotor housings. Any particular reason for using those rather than the more readily available later style housings?
Those are FC housings. Earlier housings have coolant o-ring grooves in the housing. As does the Renesis.

Last edited by Aaron Cake; 10-28-11 at 03:32 PM.
Aaron Cake is offline   Reply With Quote
Old 10-28-11, 04:04 PM   #12
No Sleep, No Food
5 Year Member

arghx's Avatar

Trader Score: (3)

Join Date: Aug 2004
Location: cold
Posts: 14,523
There are some things for you to consider regarding port and manifold design. PM sent...
arghx is offline   Reply With Quote
Old 10-28-11, 04:15 PM   #13
Insane Burnout

John Huijben's Avatar

Trader Score: (1)

Join Date: Oct 2010
Location: The Netherlands
Posts: 441
Quote:
Originally Posted by PercentSevenC View Post
Interesting exhaust sleeves. I'm very curious how that will turn out. Also, I see GSL-SE/RESI rotor housings. Any particular reason for using those rather than the more readily available later style housings?

Can't wait to see how you do the center stationary gears.

Edit: I just noticed the slide throttle. I've been wondering how a slide throttle right up close to the ports like that would work out. Are you going to use round holes or teardrop ones?
These are S4 N/A housings. I wasn't sure if I could succesfully modify the housings without warping them or anything so I took the cheapest and best available housings there are, S4 N/A housings. They are used, but still have a lot of life left in them. I might replace them with better ones when the engine is running and dialed in and has done some miles, but I'm a very very very long way from that.

The slide throttles will have round holes (or, well with a small cutout), because the peripheral port inserts in the rotor housings are round, and the intake manifold is also round. I'm going for uninterrupted laminar smooth flow here.

Click the image to open in full size.



Quote:
Originally Posted by Aaron Cake View Post
Very nice. It must be wonderful to have a machine shop at your disposal.

I'm wondering why you chose that design for the exhaust sleeves? Mazda created them in the shape they did so that the gasses could rapidly expand once they exited the port. I'd expect a smaller design would be a fair restriction at higher flow levels. About the only engines that Mazda had such narrow sleeves on are the 20B and 13B-RE, which are designed as low/midrange engines.
Well, It's something I wanted to test for a while. I did a lot of flow simulation's, and I found that this sort of port doesn't increase backpressure like you would think. It does improve gas velocity however which should be good. I actually wonder if the expanding shape has something to do with the air injection system. The flow is very turbulent when it exits the rotor housing, I tried to make a straight uniform shape which should convert the turbulent flow to a laminar flow very quickly. This shape also makes it easy to create an anti reversion lip.

Click the image to open in full size.

I think it will be fine, there is another topic about it here:
custom exhaust sleeves explained

I also looked at the 26B exhaust inserts, they also aren't as large as you would think. This is not a turbo where you need to cram a lot of energy through the exhaust channels.
John Huijben is offline   Reply With Quote
Old 10-28-11, 04:20 PM   #14
I need a new user title
5 Year Member

PercentSevenC's Avatar

Trader Score: (0)

Join Date: Oct 2005
Location: Seattle, WA
Posts: 2,643
Send a message via AIM to PercentSevenC Send a message via MSN to PercentSevenC Send a message via Yahoo to PercentSevenC
Well, I stand corrected, but those are the weirdest looking S4 rotor housings I've ever seen. Must be a Europe thing. I just saw the smooth castings and oil injection holes and assumed GSL-SE/RESI. Now that I look closer I can see the lack of coolant seal grooves, but otherwise they look exactly like GSL-SE housings except for the emissions tubes by the exhaust ports.
__________________
"Dude, you're gonna set your bumper on fire!"
PercentSevenC is offline   Reply With Quote
Old 10-28-11, 04:51 PM   #15
Insane Burnout

schaft's Avatar

Trader Score: (1)

Join Date: Sep 2010
Location: ohio
Posts: 533
http://www.facebook.com/#!/profile.php?id=100003371034329 infernoskeleton
I love these diy builds!!
schaft is offline   Reply With Quote
Old 10-28-11, 06:07 PM   #16
Forum Vendor
5 Year Member

RotaryEvolution's Avatar

Trader Score: (30)

Join Date: Oct 2003
Location: Las Vegas, 1 mile from the strip
Posts: 2,372
curious to see how you work out the lubrication system and modified center stat gear plate.

been working on the design but going a slightly different direction trying to adapt as much OE parts as possible. as my aim is to produce modified 26B's.
__________________
rotaryevolution.net
We are currently not scheduling any more work as we work on doubling our volume capacity and other major changes with the shop, PMs will not currently be replied to in a timely manner. We apologize for any inconveniences during this transition, Thanks.

-Ben
RotaryEvolution is offline   Reply With Quote
Old 10-28-11, 06:21 PM   #17
rotors excite me
5 Year Member

SpeedOfLife's Avatar

Trader Score: (15)

Join Date: Jun 2006
Location: Central Iowa
Posts: 4,055
I'm posting just so I can subscribe. I love you, man; if I had your resources, I'd be doing the same mf thing.
__________________
Quote:
Originally Posted by foothill
No, it means she's stupid. Listen to the drivel spewing from her mouth.
Quote:
Originally Posted by Aaron Cake
Guess how my girlfriend knew that I'd been media blasting...
...she looked up at me from about waist level and asked "Honey, why do I have sand in my mouth?"
SpeedOfLife is offline   Reply With Quote
Old 10-28-11, 06:29 PM   #18
GXL/Turbo
5 Year Member

dwb87's Avatar

Trader Score: (17)

Join Date: Jan 2006
Location: Burien, WA
Posts: 2,744
This is amazing... Very very interesting build here. I have definitely subscribed.

Great work so far!
dwb87 is offline   Reply With Quote
Old 10-28-11, 06:38 PM   #19
Spinner

Trader Score: (1)

Join Date: Oct 2011
Location: Under the seven
Posts: 197
Are you planning on modifying the firewall to fit this? how about mounting it? drivetrain?

Very impressive skills, keep the pics coming
Panda86 is offline   Reply With Quote
Old 10-28-11, 07:34 PM   #20
Spinner
5 Year Member

otaku85's Avatar

Trader Score: (0)

Join Date: Jul 2007
Location: Seattle, WA
Posts: 205
bad ***, don't know what it is but love watching anything and everything getting machined.
__________________
93 MB Touring w/R1 lip
blown seals
otaku85 is offline   Reply With Quote
Old 10-28-11, 07:51 PM   #21
Jose Claudio

jclau45's Avatar

Trader Score: (0)

Join Date: Mar 2011
Location: south florida
Posts: 21
joseclaudio911@msn.com joseclaudio911
FL tool steel used

John, mind me asking what tool steel did you used, oil or air hardening?
jclau45 is offline   Reply With Quote
Old 10-28-11, 08:32 PM   #22
Passion for Racing

REAmemiya_fan's Avatar

Trader Score: (0)

Join Date: Aug 2010
Location: Crown Point, Indiana
Posts: 1,067
Daulton Grothaus O9K BaconStrips TRE_GlobeKIDD
Greatest. Build. Ever. And the engine isn't even done yet.
__________________

Automotive Student- BMW Service Technician Education Program
[/font]
REAmemiya_fan is offline   Reply With Quote
Old 10-28-11, 08:47 PM   #23
has more skills than you
5 Year Member

sen2two's Avatar

Trader Score: (10)

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 2,960
Did you weld the inserts to the Chrome surface for the intake?
__________________
what I have:
1985 Gs: 12a All Motor Drag car - 1973 Rx2: Play car - 2006 Shinka Rx8
What I had:
93 Touring: TRADED - 91 Coupe: TRADED - 90 GTU: RHD Conversion - 88 10AE: SOLD - 87 Base: SOLD - 86 Base: SOLD - 1985 GSLSE: Junked - 85 Gsl: SOLD - 80 Gs: TRADED - 1972 Rx2 SOLD
sen2two is offline   Reply With Quote
Old 10-28-11, 08:53 PM   #24
Insane Burnout
5 Year Member

unren's Avatar

Trader Score: (3)

Join Date: Jan 2009
Location: Woodbridge, VA
Posts: 395
Legendof420
subscribed, very awesome build man
__________________
WTB Artic Silver Driver's side fender.
unren is offline   Reply With Quote
Old 10-28-11, 11:09 PM   #25
Insane Burnout

nvmarx's Avatar

Trader Score: (1)

Join Date: May 2011
Location: new zealand
Posts: 364
that is savage man i am very exsited
nvmarx is offline   Reply With Quote
Old 10-28-11, 11:09 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
4rotor, build, building, engine, fc, fd3, gslse, housing, inserts, make, port, rotor, rotores, rx7, sale

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


All times are GMT -5. The time now is 01:16 PM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts

SEO by vBSEO ©2010, Crawlability, Inc.
