Pics of SMIC duct extension?
#1
thats not paint....
Thread Starter
Pics of SMIC duct extension?
I picked up one of these a while back and have been staring at the thing figuring out how to mount it. I pulled my fogs off cuz those were in the way and now there is that black plastic support for the mouth of the bumper Im about to cut off.
Anyone have any pics of this installed?
Anyone have any pics of this installed?
#3
thats not paint....
Thread Starter
If you don't mind taking a pic, it would be helpful. I kinda made room for it. Had to remove the fogs & cut off those black bars. Haven't really found the mounting solution yet though.
#7
2/4 wheel cornering fiend
With all due respect to Kevin, that duct extension leaves a lot to be desired. You'll get a lot more airflow into the duct and IC if you make the transition into the duct much smoother, instead of what amounts to a near 90-degree bend inward.
I'm probably going to fab my own extension out of some fiberglass.
When I fabbed an extension to the duct for my Greddy SMIC a long time ago, I made sure the transition was as smooth as possible, and I noticed a significant decrease in IC body temps at lower speeds.
I'm probably going to fab my own extension out of some fiberglass.
When I fabbed an extension to the duct for my Greddy SMIC a long time ago, I made sure the transition was as smooth as possible, and I noticed a significant decrease in IC body temps at lower speeds.
Trending Topics
#8
Wishin I Still Had The FD
My extension duct it still sitting on the shelf But I remember Kevin saying that you're to trim it to your desired length with regards to radiator blockage, and use friction to hold it into place. I've yet to try to install mine, so I'm not sure what friction he was referring to.
#9
Eats, Sleeps, Dreams Rotary

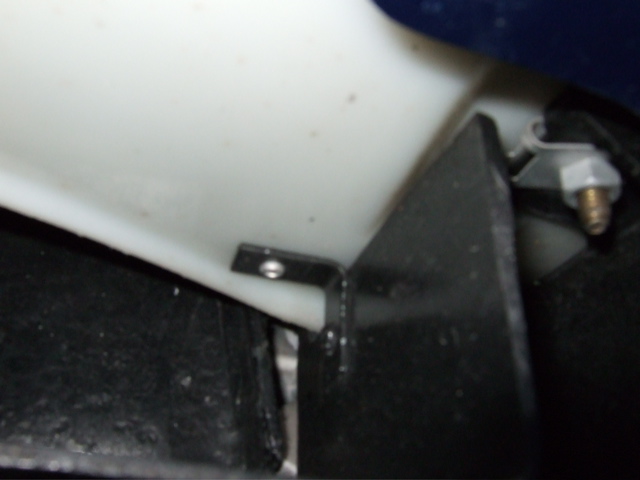

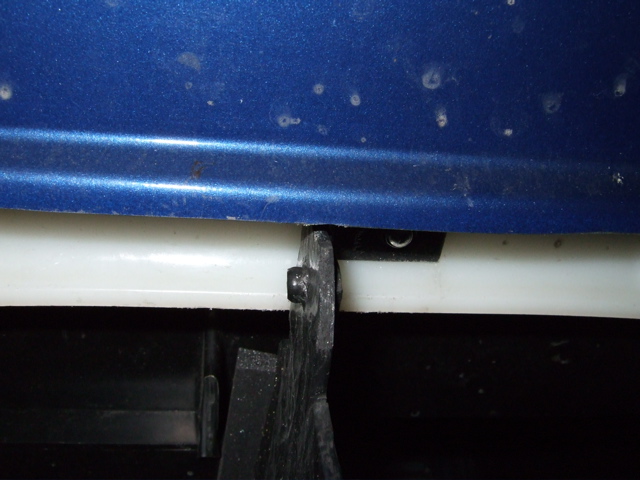

Ok here is how I did mine. I basically trimmed the duct and used two "L" brackets and a rivot gun.

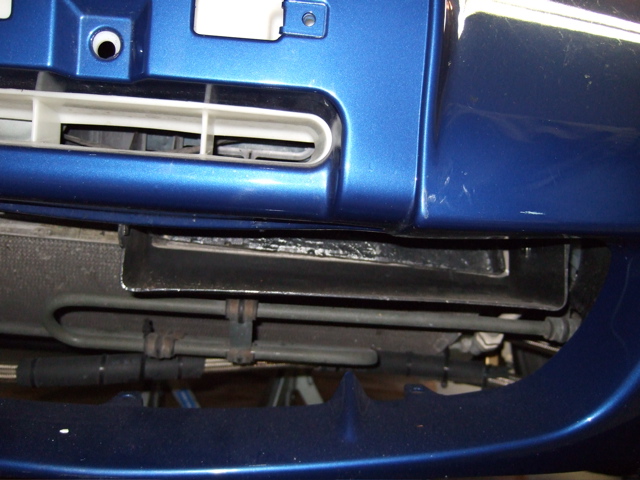

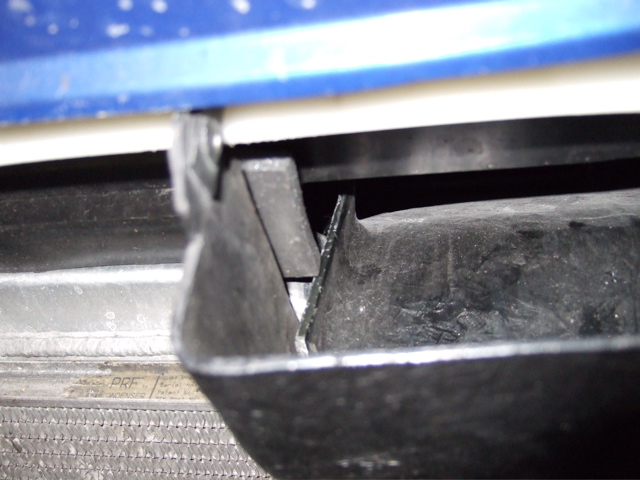

I tilted it down slightly so you could see the junction of the bottom of the duct to the scoop.
I tilted it down slightly so you could see the junction of the bottom of the duct to the scoop.
