Pics: Custom Intake, Damian Heat Shield
03-21-04, 07:17 PM
#1
Senior Member
Thread Starter
Pics: Custom Intake, Damian Heat Shield

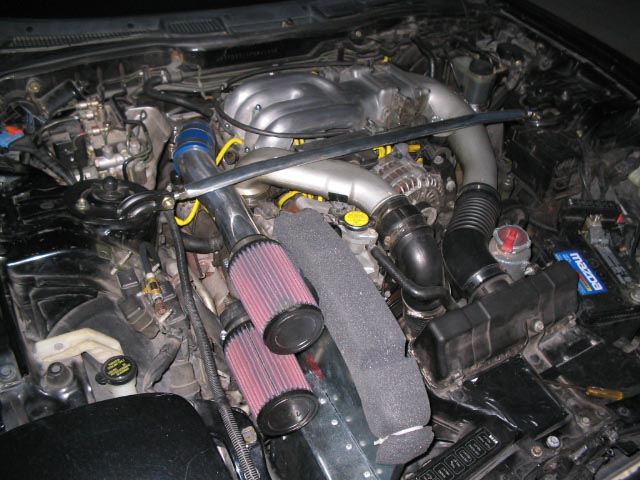

Just finished my heatshield thanks to Damian and his templates. I didnt cut a hole in the shield for the air pump, since I dont have my stock cat anymore anyways and plan on getting rid of the air pump soon.
Ebay Intake Pipes/Couplers: $30 shipped
K&N Universal Filters (2) PN#KNN-RD-0720: $29.99 each
4'x8' piece of sheet metal, the smallest size I could buy: $8
Total was about 100 bucks. I am happy with it.
Ebay Intake Pipes/Couplers: $30 shipped
K&N Universal Filters (2) PN#KNN-RD-0720: $29.99 each
4'x8' piece of sheet metal, the smallest size I could buy: $8
Total was about 100 bucks. I am happy with it.
03-21-04, 07:50 PM
#3
Senior Member
Thread Starter
I have the little flapper on the bottom, and a piece of foil heating duct stuff that I was thinking about using to throw cold air up in there, have you done it? Does it help? That foil stuff is pretty ghetto...I dont wanna use it unless it helps
03-21-04, 07:57 PM
#6
Senior Member
Thread Starter
6" long and 3" around i believe. it runs decent
Which is the EGR? if thats the long hose that goes to the stock air box, i just left it off. It makes an annoying moo'ing noise, which im going to have to deal with. Any other missing lines are from going non-seq.
Which is the EGR? if thats the long hose that goes to the stock air box, i just left it off. It makes an annoying moo'ing noise, which im going to have to deal with. Any other missing lines are from going non-seq.
Last edited by racerfoo; 03-21-04 at 08:03 PM.
Trending Topics
03-21-04, 08:18 PM
#8
Senior Member
Thread Starter
Nope, just the noise. Its not real noticable, my exhaust drowns out most noises, but at certain RPMs it really moos.
I ran a 13.07 @ 106.8 a few weeks ago without the intake. Im hoping for 12s with it, if not I'm going to have to get some sticky tires. Only performance mods I have are intake, downpipe, gutted main cat, and catback @ 8-9lbs boost. I was afraid that I would need a new ECU, but boost hasnt shown any signs of being out of control, so maybe my turbos are just getting old.
I ran a 13.07 @ 106.8 a few weeks ago without the intake. Im hoping for 12s with it, if not I'm going to have to get some sticky tires. Only performance mods I have are intake, downpipe, gutted main cat, and catback @ 8-9lbs boost. I was afraid that I would need a new ECU, but boost hasnt shown any signs of being out of control, so maybe my turbos are just getting old.
03-21-04, 08:55 PM
#13
Planning my come back
iTrader: (7)
Join Date: Feb 2003
Location: Austin, Tx
Posts: 3,393
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by scratchjunkie
can you scan your time slip please.
can you scan your time slip please.
03-21-04, 09:12 PM
#14
Senior Member
Thread Starter

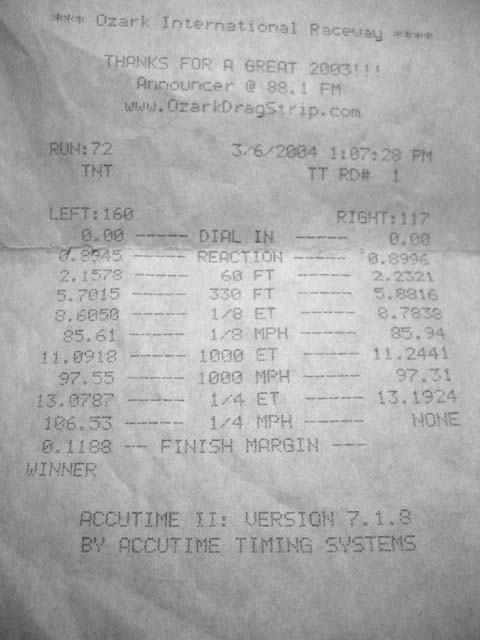

dug out the slip, goofed on the mph, 106.5, not 106.8.
edit: i can hear my turbos now, before i couldnt hear them much at all with the stock box and accordians. but my exhaust is pretty loud.
edit: i can hear my turbos now, before i couldnt hear them much at all with the stock box and accordians. but my exhaust is pretty loud.
Last edited by racerfoo; 03-21-04 at 09:14 PM.
03-21-04, 09:22 PM
#15
Originally posted by racerfoo
I have the little flapper on the bottom, and a piece of foil heating duct stuff that I was thinking about using to throw cold air up in there, have you done it? Does it help? That foil stuff is pretty ghetto...I dont wanna use it unless it helps
I have the little flapper on the bottom, and a piece of foil heating duct stuff that I was thinking about using to throw cold air up in there, have you done it? Does it help? That foil stuff is pretty ghetto...I dont wanna use it unless it helps
03-21-04, 09:28 PM
#16
Porn Star
iTrader: (1)
Join Date: Jan 2004
Location: Connecticut
Posts: 553
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Nameless
Is there a template for damian's heat shield?
Is there a template for damian's heat shield?
http://www.myrx7.com/images/damians_...d_template.pdf
Here's the animaition of what it should look like,
http://www.myrx7.com/images/heatsheild.html
03-21-04, 10:40 PM
#17
$ pit on wheels...
Join Date: Mar 2001
Location: Bay Area, Ca
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
Nice job! I'm jelous now. I have a hole in my stock airbox. Somehow I think the turbos could use some more air then they're getting. Does anyone know if this mod will lower your intake temps? I am seriously cosidering this same mod. Nice work again!
03-22-04, 08:14 AM
#18
Rotary Freak
Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by xstacy7
What are the dimensions of the K&N's you have there?
How's she run?
What are the dimensions of the K&N's you have there?
How's she run?
2.5" diameter where it bolts to the pipe. 6" long. I forget total diamteter of the filter, but it is around 3" maybe a little more.
03-22-04, 12:03 PM
#19
racerfoo if you are truly running 8-9psi your engine is healthy. I trapped 106 with intake, dp, totally stock cat, cb and 10psi in sequential on my last car as a reference. My best time that setup was a 13.5 with a 2.2 60 time. Once I got a pettit ported motor, midpipe, pettit ecu and 12psi it was all over and I could hit 12s just playing around every run. You are doing real well with what you have. Id love to see it hit 12s with the intake on stock ecu let us know and perhaps turn the boost to 10! if it is moving from 8-9 it will hold even better at 10 and not creep at all. I dont know how much the stock ecu likes to be run on non seq though...
03-22-04, 01:04 PM
#20
Rotary Freak
Join Date: Dec 2001
Location: chandler, AZ
Posts: 2,402
Likes: 0
Received 0 Likes
on
0 Posts
also, the the mooing is coming from the ACV, not the EGR which is not connected to the intake. Do a search, I've seen write-ups on how to make mufflers for that annoying sound. I plan to have the same setup also, I just need to order the filters and the pipes.
03-22-04, 02:05 PM
#21
Rotary Freak
Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,690
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by SkywarpR
Nice job! I'm jelous now. I have a hole in my stock airbox. Somehow I think the turbos could use some more air then they're getting. Does anyone know if this mod will lower your intake temps? I am seriously cosidering this same mod. Nice work again!
Nice job! I'm jelous now. I have a hole in my stock airbox. Somehow I think the turbos could use some more air then they're getting. Does anyone know if this mod will lower your intake temps? I am seriously cosidering this same mod. Nice work again!
03-22-04, 11:59 PM
#22
Senior Member
Thread Starter
Thats what the heat shield is for, and hose directing air from the front passenger oil cooler spot.
As for my boost, its always been low, when I bought the car it didnt have the pills in the wastegate lines, so I put in a manual boost controller and opened it all the way up. Im afraid to turn up the boost with a cheap ebay boost controller because I havnt seen good results with them on friends cars. Im waiting for an electric boost controller to be safe. The motor has about 10k miles on it, so it should be pretty healthy. Im hoping for 12s this weekend if I can pull off a decent launch.
As for my boost, its always been low, when I bought the car it didnt have the pills in the wastegate lines, so I put in a manual boost controller and opened it all the way up. Im afraid to turn up the boost with a cheap ebay boost controller because I havnt seen good results with them on friends cars. Im waiting for an electric boost controller to be safe. The motor has about 10k miles on it, so it should be pretty healthy.
Im hoping for 12s this weekend if I can pull off a decent launch.
12-20-09, 10:09 PM
#24
What kind of elbow (Hard? Silicon?) could be used with the KNN-RD-0720 and the OE primary turbo intake elbow that would allow clearance for a large SMIC and OE a/c lines? I noticed K&N has a kinked version of this filter. Is that what you guys are using?
