problems with the gauge cluster
alright people, this one just makes my jaw drop...and the only thing i can think of doing is trying a re-pin on the cluster...
87 na....swapped in 91 jdm motor. used jdm engine harness and usdm body harness...
was having problems with my s5 gauge cluster....fuel gauge, volt meter, and cluster not lighting up....
couldn't figure it out...
tried an s4 tII cluster....
all gauges except speed o aren't working...i understand the tac not working cause of the series difference...so now i need to see if a usdm s5 gauge cluster will work...
anyone know or think as i do that this will fix the problem? or am i gonna have to do some repining to make it work?
if anyone locally had a freakin cluster that i could use just to see if it worked i would really appreciate it. otherwise i gotta go spend like 40 bucks at the junkyard just to take a chance on it working.
87 na....swapped in 91 jdm motor. used jdm engine harness and usdm body harness...
was having problems with my s5 gauge cluster....fuel gauge, volt meter, and cluster not lighting up....
couldn't figure it out...
tried an s4 tII cluster....
all gauges except speed o aren't working...i understand the tac not working cause of the series difference...so now i need to see if a usdm s5 gauge cluster will work...
anyone know or think as i do that this will fix the problem? or am i gonna have to do some repining to make it work?
if anyone locally had a freakin cluster that i could use just to see if it worked i would really appreciate it. otherwise i gotta go spend like 40 bucks at the junkyard just to take a chance on it working.
#5
Livin fo the citaaay!
Thread Starter
sorry correction...damn i hate when i do this....everything is messed up on the cluster for the s4 TII cluster except for the speed o. the speed o works fine. everything else is not functioning...
maybe that'll clear it up a little....
my apologies.
its not lighting up...and not functioning except for the speed o...
the harness is s4 na and the gauges are from an s4 TII...i dont understand the problem except for the tach (because unless im wrong the tach reads from the ecu i believe)
maybe that'll clear it up a little....
my apologies.
its not lighting up...and not functioning except for the speed o...
the harness is s4 na and the gauges are from an s4 TII...i dont understand the problem except for the tach (because unless im wrong the tach reads from the ecu i believe)
Last edited by MTRfc; 10-15-09 at 06:06 PM. Reason: left something out
#6
Livin fo the citaaay!
Thread Starter
87 t-66: what does you running not a stock ecu/harness mean? im talking about running the stock harnesses and s5 jdm 374 ecu tuned by re-amemiya.
im sorry just trying to figure out wha tyou mean? if you're talking u mixed series and it didn't matter as long as the harness plug was re-pinned then that is cool and im pretty sure i can figure that out fine...actually if you had a diagram of exactly what goes where that would be awesome...like this one:
preferably turbo gauges...and again GOING FROM s4 (wiring harness) ---> s5 (gauges)
thanks again guys. you're the best!
im sorry just trying to figure out wha tyou mean? if you're talking u mixed series and it didn't matter as long as the harness plug was re-pinned then that is cool and im pretty sure i can figure that out fine...actually if you had a diagram of exactly what goes where that would be awesome...like this one:
preferably turbo gauges...and again GOING FROM s4 (wiring harness) ---> s5 (gauges)
thanks again guys. you're the best!
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Are you saying you have a JDM series five EM harness attached to the engine, but are using the stock series four FRONT harness.
Or put another way......your using a JDM harness on the engine and all the other harness in the car are the stock non turbo, series four 1987 harnesses?
Or?
Or put another way......your using a JDM harness on the engine and all the other harness in the car are the stock non turbo, series four 1987 harnesses?
Or?
Trending Topics
#8
not a drifter
iTrader: (133)
87 t-66: what does you running not a stock ecu/harness mean? im talking about running the stock harnesses and s5 jdm 374 ecu tuned by re-amemiya.
im sorry just trying to figure out wha tyou mean? if you're talking u mixed series and it didn't matter as long as the harness plug was re-pinned then that is cool and im pretty sure i can figure that out fine...actually if you had a diagram of exactly what goes where that would be awesome...like this one:
preferably turbo gauges...and again GOING FROM s4 (wiring harness) ---> s5 (gauges)
thanks again guys. you're the best!
im sorry just trying to figure out wha tyou mean? if you're talking u mixed series and it didn't matter as long as the harness plug was re-pinned then that is cool and im pretty sure i can figure that out fine...actually if you had a diagram of exactly what goes where that would be awesome...like this one:
preferably turbo gauges...and again GOING FROM s4 (wiring harness) ---> s5 (gauges)
thanks again guys. you're the best!
#10
Rotary Freak
iTrader: (9)

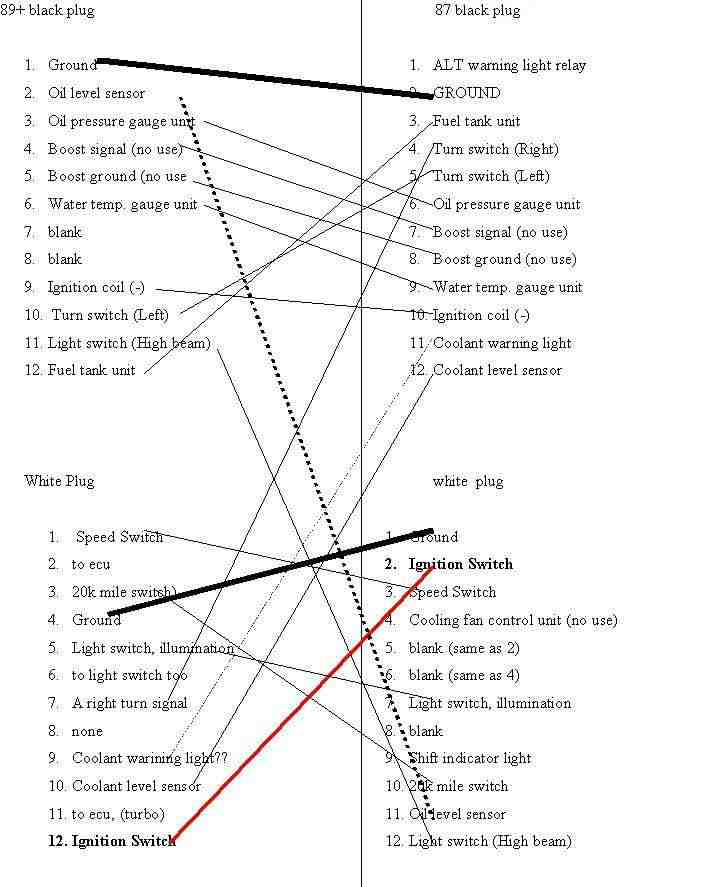

this is for repinning from s4 to a s5 gauge cluster
