CA Left blinker doesn't work, but right blinker does

So I've searched around and found the answer may be the cpu box where the relay is. I checked for signals on through the green/black wire and the green/yellow wire and they both receive voltages. The problem is the left blinker not working. I hear a fast click, but the dash light and the front/back left signal light won't come on. My right side is perfectly fine. With the hazard switch on, only the right side works.

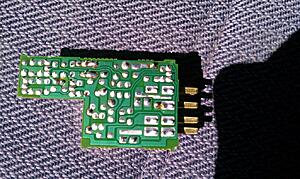

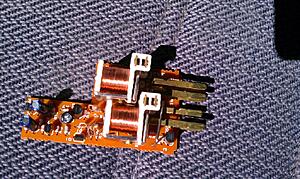

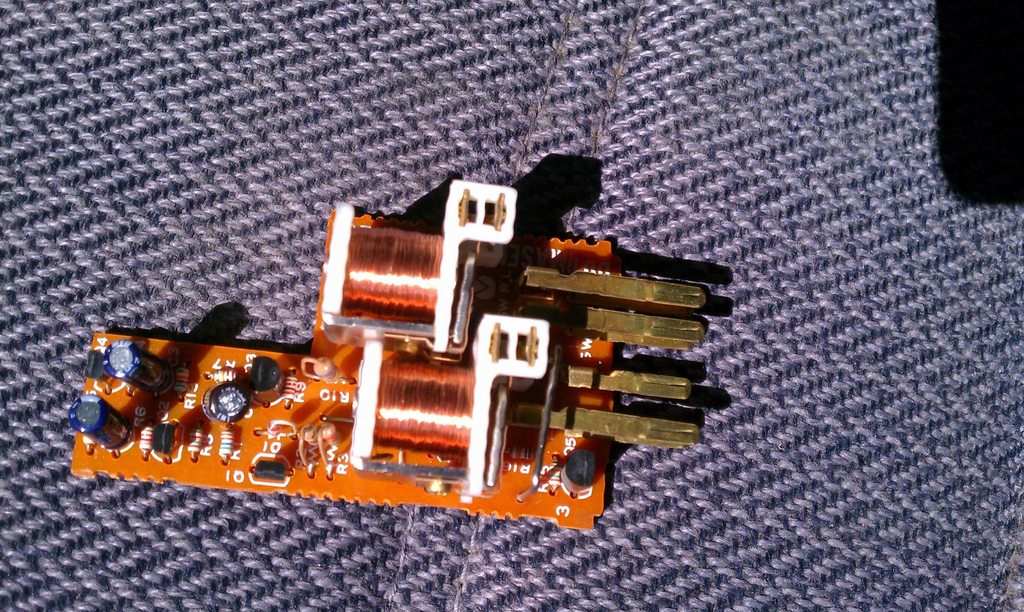

That's when I opened the box, took the relay out, and examined it. I believe that the left blinker doesn't work because of this orange corroded thing on the board. Is this board fixable or cleanable? I never dealt with this and don't know how to tackle it.

Thanks

Click the image to open in full size.

Click the image to open in full size.
jlee916 is offline   Reply With Quote
Old 08-18-12, 05:10 PM   #2
GateKeeper MOD.
5 Year Member

misterstyx69's Avatar

Trader Score: (136)

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 20,753
have you taken out the bulb in the rear and checked to see if it was burnt?
the board looks fine.the brown/orange stuff is flux.
misterstyx69 is offline   Reply With Quote
Old 08-18-12, 05:12 PM   #3
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
i haven't checked to see the bulb in the rear yet, but shouldn't the driver's side bulb work without the rear being blown or not? would the dash not light up if the bulbs in the rear or driver's side is blown?

i'll take a look in a bit. i found out that i was missing a brake light bulb, and thought it was blown. so possibly the previous owner removed the left blinkers as well.
jlee916 is offline   Reply With Quote
Old 08-18-12, 05:30 PM   #4
Because Streetcar!
5 Year Member

clokker's Avatar

Trader Score: (2)

Join Date: Jan 2007
Location: Mile High
Posts: 8,114
The blinker just blinks, it doesn't have a "left/right" side, so if one side works, the relay section is fine.
The "left/right" determination is handled by the switch.
clokker is offline   Reply With Quote
Old 08-18-12, 05:46 PM   #5
Forum Vendor
5 Year Member

RotaryEvolution's Avatar

Trader Score: (30)

Join Date: Oct 2003
Location: Las Vegas, 1 mile from the strip
Posts: 2,372
check and replace the faulty bulbs. may just want to replace them all for the markers and turn signals.

fast click is generally a simple bulb failure.

the orange "corrosion" is just extra flux from initial soldering, i don't see anything burnt or abnormal on that board.
__________________
rotaryevolution.net
We are currently not scheduling any more work as we work on doubling our volume capacity and other major changes with the shop, PMs will not currently be replied to in a timely manner. We apologize for any inconveniences during this transition, Thanks.

-Ben
RotaryEvolution is offline   Reply With Quote
Old 08-18-12, 07:51 PM   #6
GateKeeper MOD.
5 Year Member

misterstyx69's Avatar

Trader Score: (136)

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 20,753
The funny thing is that it just blinks fast to tell you it is not Right.(aka Burnt bulb filament)
The "brake" light will on if the bulb for the brakes is gone.
misterstyx69 is offline   Reply With Quote
Old 08-18-12, 10:10 PM   #7
Passion for Racing

REAmemiya_fan's Avatar

Trader Score: (0)

Join Date: Aug 2010
Location: Crown Point, Indiana
Posts: 1,067
Daulton Grothaus O9K BaconStrips TRE_GlobeKIDD
Really surprised to see an absence of (blinker fluid) trolling in here...
__________________

Automotive Student- BMW Service Technician Education Program
[/font]
REAmemiya_fan is offline   Reply With Quote
Old 08-18-12, 11:06 PM   #8
Forum Vendor
5 Year Member

RotaryEvolution's Avatar

Trader Score: (30)

Join Date: Oct 2003
Location: Las Vegas, 1 mile from the strip
Posts: 2,372
Quote:
Originally Posted by REAmemiya_fan View Post
Really surprised to see an absence of (blinker fluid) trolling in here...
considering he ripped the car apart to check the relay i figured that was going a little above and beyond, for a simple bulb replacement.
__________________
rotaryevolution.net
We are currently not scheduling any more work as we work on doubling our volume capacity and other major changes with the shop, PMs will not currently be replied to in a timely manner. We apologize for any inconveniences during this transition, Thanks.

-Ben
RotaryEvolution is offline   Reply With Quote
Old 08-18-12, 11:38 PM   #9
Banned. I got OWNED!!!
10 Year Member

Trader Score: (43)

Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,080
Send a message via ICQ to HOZZMANRX7
If he'd searched, he would have found numerous references to the left and right blinker fluid reservoirs.

To the OP, the right reservoir fill point is right behind the passenger side headlight bucket. The fill point for the left reservoir is at the back under the rear hatch.

If your local autoparts store is out of blinker fluid, you can use Windshield cleaner fluid like you get at AutoZone in the gallon jugs for a buck or two while the blinker fluid is on back order. But only use the blue stuff.

Damn rookies…………….
HOZZMANRX7 is offline   Reply With Quote
Old 08-19-12, 04:57 AM   #10
CC of L-Squared Shots
10 Year Member

w0ppe's Avatar

Trader Score: (0)

Join Date: Oct 2003
Location: Cincinnati/Columbus, Ohio
Posts: 564
w0ppe w0ppe w0ppe
Send a message via AIM to w0ppe
What you need to do is purchase some filament, and create a vacuum to which you melt glass over some wires attached to the filament. make your own light bulbs!
__________________
- w0ppe *Huaroar!*

1988 RX-7 10th AE 20B "D'Elsa"
1982 RX-7 Red/Yellow 12A #22 Pro7 Spec Racer
1988 RX-7 Black Vert 13B-DEI
2003 B2300 Regular Cab 2WD "Mollie"
w0ppe is offline   Reply With Quote
Old 08-19-12, 12:13 PM   #11
Armchair engineer
10 Year Member

j9fd3s's Avatar

Trader Score: (1)

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 19,434
Quote:
Originally Posted by clokker View Post
The blinker just blinks, it doesn't have a "left/right" side, so if one side works, the relay section is fine.
The "left/right" determination is handled by the switch.
mine failed on the power side of the relay, so it clicked but no lights worked.

if was fun i took the board out and let it dangle and played with the switch, you get to see the blinker blink!
__________________
Quote:
Originally Posted by ioTus View Post
I've learned from all this that even though the parts technically bolt together doesn't mean they'll work.
Quote:
Originally Posted by peejay
Your ideas frighten and worry me in ways that make me wonder if you're not "skiing" in Colorado right now.
j9fd3s is offline   Reply With Quote
Old 08-19-12, 01:04 PM   #12
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
Quote:
Originally Posted by j9fd3s View Post
mine failed on the power side of the relay, so it clicked but no lights worked.

if was fun i took the board out and let it dangle and played with the switch, you get to see the blinker blink!
yup, that's how i saw mine too with just the board plugged in. how did you fix yours? mine just tick fast with the left signal, but no lights on the dash and outside the car.
jlee916 is offline   Reply With Quote
Old 08-19-12, 01:32 PM   #13
Exhaust Leak

Trader Score: (0)

Join Date: Aug 2012
Location: charlotte nc
Posts: 27
bulb
mdfitness704 is offline   Reply With Quote
Old 08-19-12, 02:15 PM   #14
Armchair engineer
10 Year Member

j9fd3s's Avatar

Trader Score: (1)

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 19,434
Quote:
Originally Posted by jlee916 View Post
yup, that's how i saw mine too with just the board plugged in. how did you fix yours? mine just tick fast with the left signal, but no lights on the dash and outside the car.
mine had a burned solder joint, so i resoldered it, and it works. took lees time to fix that than to check the bulbs!

mine was also the left
__________________
Quote:
Originally Posted by ioTus View Post
I've learned from all this that even though the parts technically bolt together doesn't mean they'll work.
Quote:
Originally Posted by peejay
Your ideas frighten and worry me in ways that make me wonder if you're not "skiing" in Colorado right now.
j9fd3s is offline   Reply With Quote
Old 08-19-12, 06:17 PM   #15
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
Quote:
Originally Posted by j9fd3s View Post
mine had a burned solder joint, so i resoldered it, and it works. took lees time to fix that than to check the bulbs!

mine was also the left
Judging from my picture, do you see anything that I need to solder? Because everyone is telling me it's the bulbs. I replaced the bulbs today and my problem is still there. My left arrow dash light doesn't blink or turn green. It's black as if it's not turning on. On the outside of the car, there is no light at all. However my right arrow blinks and turns green, just like how it should be. My right blinkers has been working fine all these time before I replaced the bulbs.

Just to see for myself, I took off the right bulb in the rear and I heard a fast ticking sound, but the light on the dash still blinks no matter what. So I think my problem is the relay, but everyone is saying it looks fine.

What about the BTN 60amp fuse in the engine bay? I took it off just to see what it does and the dash light doesn't blink for the right side. My right blinkers became just like the left blinker; only a fast tick and no lights on the outside of the car and on the dash.

I've already replaced the fuses in the fuse box near the relay, in case anyone was wondering. I don't think it's the blinker switch because my multimeter is receiving continuity from the green/black and green/yellow wires when I have the switch on. Though I was checking the end point that connects to the relay box, and not the other point that connects to the blinker switch.

Thanks
jlee916 is offline   Reply With Quote
Old 08-19-12, 07:45 PM   #16
Moderator
5 Year Member

Trader Score: (0)

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 9,684
Unplug the 7 wire plug from the CPU which houses the G/B and G/R wires. Jumper a wire between these two wires and move the turn signal switch to left turn position and see if the left blinker lights turn on or not, and this is done w/the key to on of course. G/R provides voltage for G/B. The wires mentioned in your first post are unrelated.

Last edited by satch; 08-19-12 at 07:49 PM.
satch is offline   Reply With Quote
Old 08-19-12, 09:29 PM   #17
Moderator
5 Year Member

Trader Score: (0)

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 9,684
^If you unplug the plug just do so to make the jumper then replace the plug and try the above.
satch is offline   Reply With Quote
Old 08-19-12, 11:24 PM   #18
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
i tried it and the left arrow turns green. now what should i do?

just remembered i should have went outside and looked to see if the left blinker lights up.
jlee916 is offline   Reply With Quote
Old 08-20-12, 12:14 AM   #19
Moderator
5 Year Member

Trader Score: (0)

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 9,684
G/B is powered by G/R so if the jumper lights up the arrow/ blinker light then the problem lies within the CPU. W/o the jumper the G/B wire should receive voltage when the turn signal indicates left turn. Another possible cause would be one of two wires mentioned is pulled back within the plug making poor contact w/the circuit board.

Last edited by satch; 08-20-12 at 12:17 AM.
satch is offline   Reply With Quote
Old 08-20-12, 02:31 AM   #20
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
I'll take a look at the two wire prongs and see if they are well fitted in the harness.

If it is fitted in properly, then I'll pick a cpu up after I come back from my trip in 3 weeks.
__________________
Current Cars: 87 Black FC Sports with s5 13bt usdm full swap - 87 White FC base - 89 Red FC GTU
Previous Cars: 89 White FC GTU - 90 Red FC GTU - 90 Black FC GXL - 90 Black FC GXL
jlee916 is offline   Reply With Quote
Old 08-25-12, 05:05 PM   #21
Speed Racer

Trader Score: (0)

Join Date: Dec 2011
Location: Sacramento, CA
Posts: 206
jlee89
So I went to pick-n-pull and to my luck there were two s4 rx7 at the lot. The cashier and online database said there's only one in the lot, but i guess they haven't updated the system yet. This leaves me wondering if they even have other cars in stock and just haven't updated it in the system; for instance, i was waiting for a 240 to show up, but they never updated the website.

anyways, long story short i was able to get 2 blinker relays. brought them home and 1 of them were bad and the other one works fine!

i now have left blinker!!!!! thanks for the help guys!
