so i have a greddy profec B boost controller
but it seems like its not doing anything , and im having boost issues
5-3-10 pattern

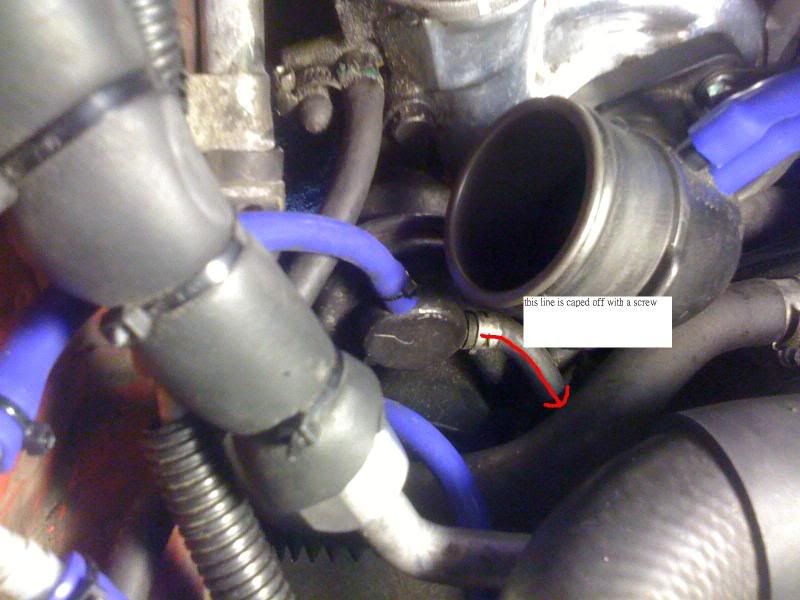

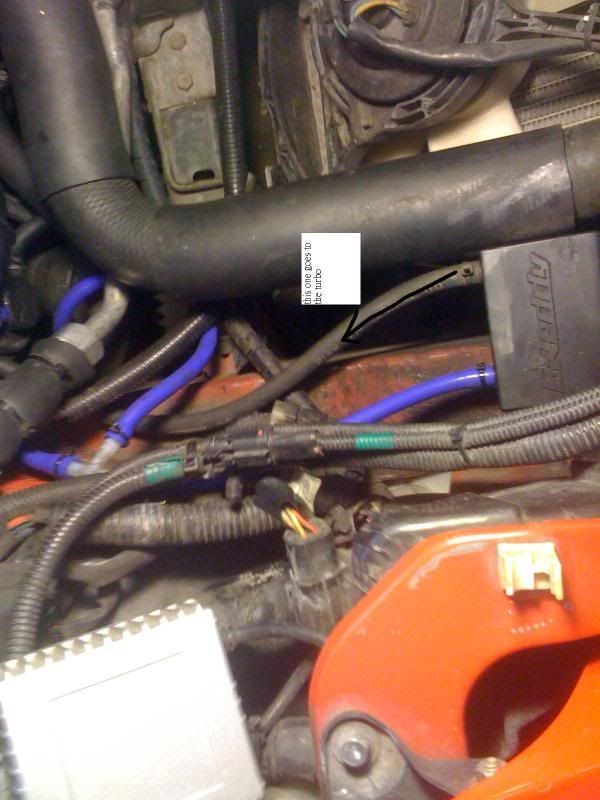

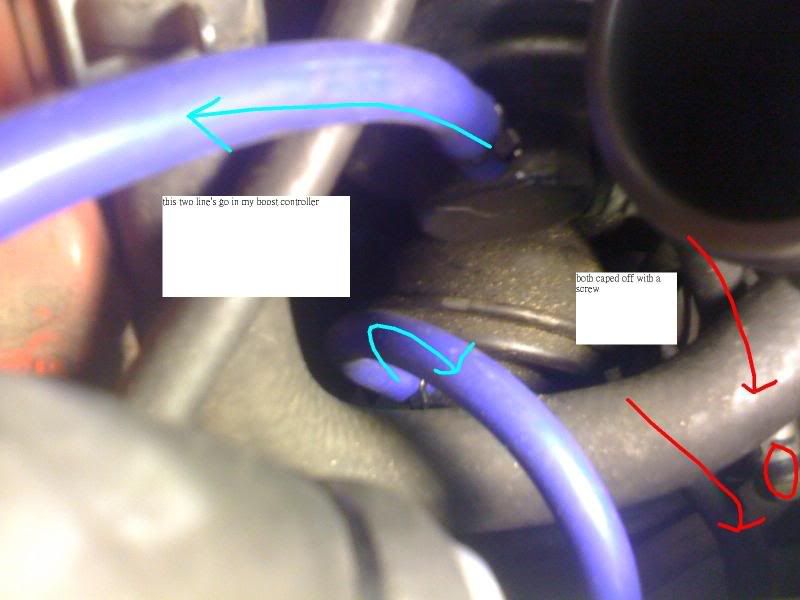

this is the prev owner setup i dont know if its wrong or anything




and how dose the crv work ? do i leave it uncaped ?
if i have to test the crv and see if its working right , how do i do it ?
thanks



That generally seems hooked up right, although it's sloppily done.

Start with boost leaks first - that is hands down the most common problem.

Dale



I agree with Dale



yea im gonna get the boost leak checked out first



Just a shot in the dark but I remember I removed the pills from the lines when I hooked up my boost controller. Could leaving them in cause this type of boost issue?



i could be wrong but i believe leaving the pills in would cause it to boost 10 psi or more only, since the pill resists enough air to make 10 psi you would not be able to boost under that regardless of MBC setting.





looks like i have version 2. but the existing source inlet is not 2 lines, but one

what if the steper motor ,in,out, was fliped sides what whould that cause ?



If you are pulling anything less than 7psi, then you have issues beyond boost control. It could be many things. Hopefully it's a boost leak.



First off, get a boost leak test before you do anything else. You're absolutely chasing your tail if you have boost leaks.

Next, to answer some of the other questions -

If you leave the pills in the line, you'll get overboosting with a boost controller. The pills are ONLY for the stock boost control setup, that's it.

Second, you do have the #2 setup. They show a T, but that isn't necessary - your car just has the second nipple capped off. The boost controller just has to have a boost reference signal to work with, using 2 nipples T'd together will do absolutely nothing over what you have.

Dale



forgot about this, wastegate is 7psi so if you are only boosting 5 the boost controler is not your only problem might not even be a problem at all, do you have the stock intercooler, the flexible rubber hoses can tear and you will not notice even if you look at them. The couplers can also rip and be hard to notice.

I was only boosting 5 psi for the longest time and could not find the leak, i decided to finally put in my large IC in the process of bending the stock hoses to ghetto mock fit it i noticed one of the hoses was split all the way down.



Version 2 is what's in the HKS EVC6 manual for plumbing to FDs. Instead of capping off though, it tells you to just unplug the solenoids. I havent tried any other way to plumb an EVC to my car, but boost is solid and transition is smooth



I'm stil useing the stock ic. But all the rubber hose has been changed to sillicone even the y pipe coupler Also. Could it be the stock intercooler it self cracked and leak ? Because my first turbo only hits 0.40psi. After 4500rpm when both turbo is online I get 0.75psi and continue to spool up to 1bar. I'm out of ideas



Head to Home depot and make yourself something like this. Pump it up and see if you leak. Also if you have a stock BOV, and CRV they could leak as well.
http://www.turbo4wd.com/Turbo4WD/ICPressureTester.html

http://www.vfaq.com/mods/ICtester.html



i have a apexi bov and a CRV, can i delete the CRV?



Very generous guys have been giving you good advice and emphasizing that you look at a couple of problem areas, yet you haven't done anything to help yourself!

Have you investigated for a possible boost leak?

All you want to do is continue to ask questions...



going to try this out tomrrow when it stops raining!



i apologize for that, i got way ahead of my self and over looked of thos great advise.



No need to apologize. You will find that many members will be willing to help you as long as:

1) you have already utilized the "search" function, as most everything has been done to this car
2) you have already tried to trouble shoot the problem

Just spend some time searching and reading. I am sure you will find tons of threads dealing with "boost leak"

Good luck



any update Kensin???????????
