J.T.P.

iTrader: (13)

can you post pics of the knuckles if you don't mind?

also if you have a newer rubber tie rod boot you can slip it towards the inner ball joint which will give you throw before the boot max's out..

danegerous

iTrader: (10)

Use safety wire instead of zipties

Pirate Rabbit

iTrader: (1)

Just by this thread I would go with JTPs knuckles, he is obviously easy to get a hold of and very stand up guy. 100$ now could save so much trouble later

I just realized how old the OP is.. haha my bad

RussTII

iTrader: (4)

they look cool too

beechwoodrx7

iTrader: (5)

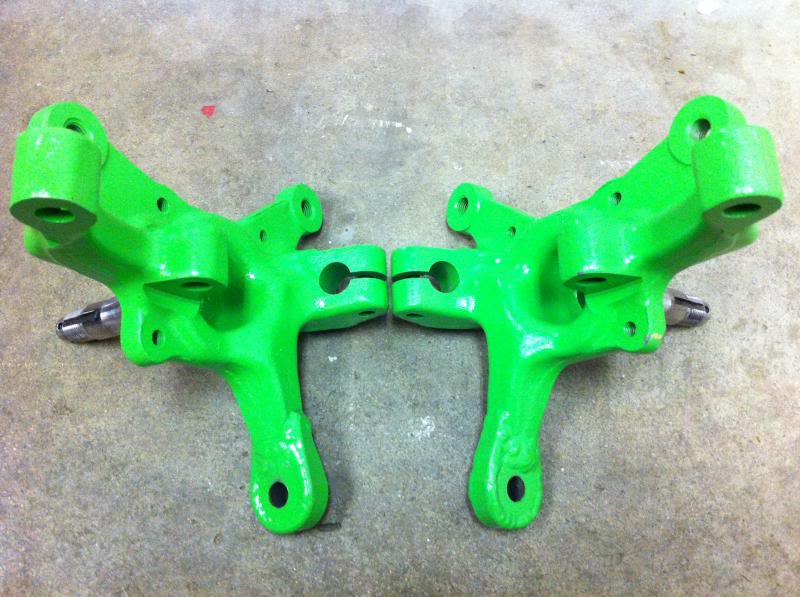

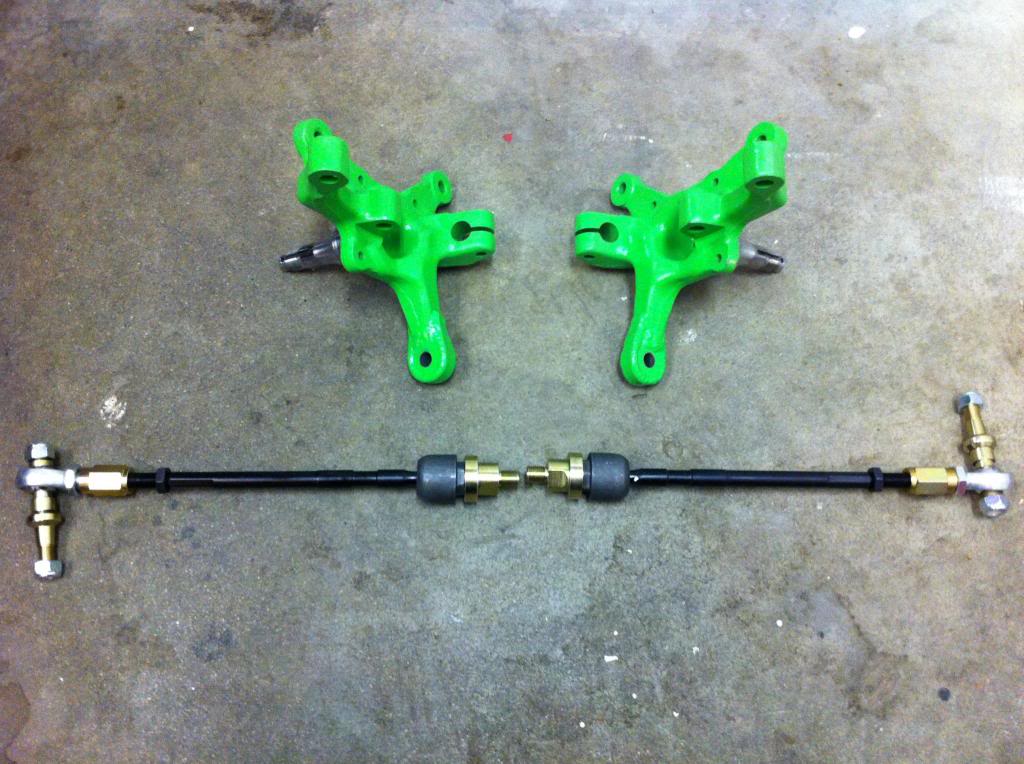

Pics of my install

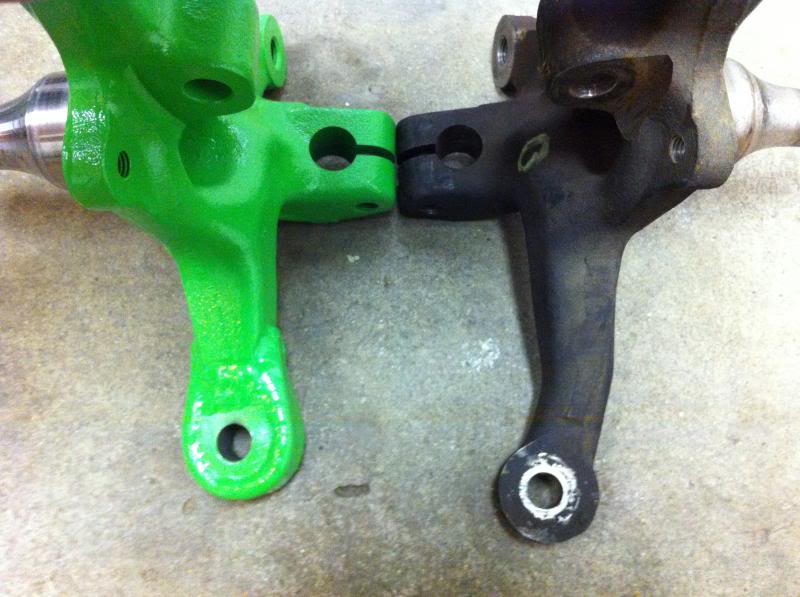

JTP/stock

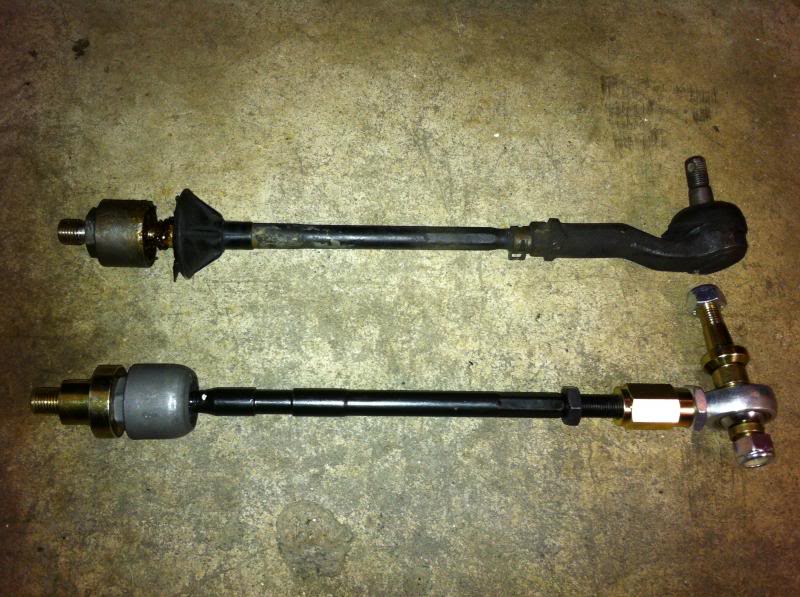

Mazdatrix/stock

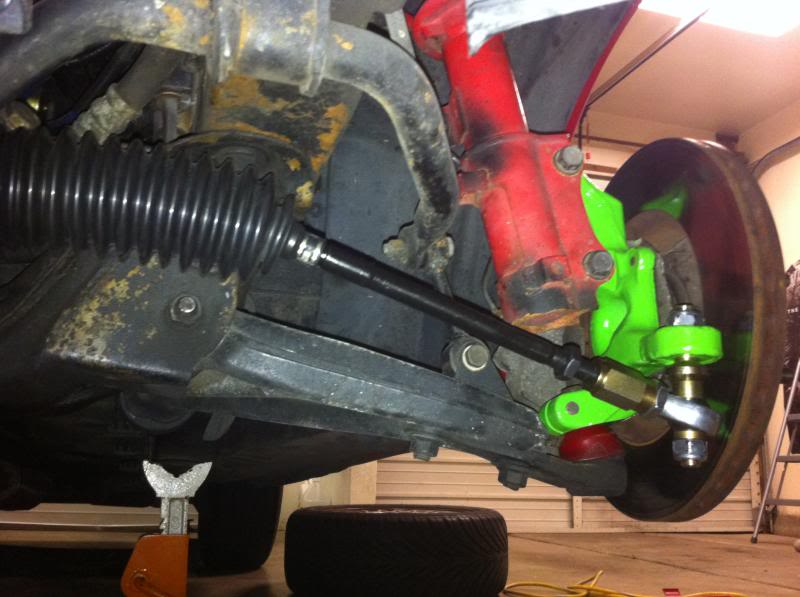

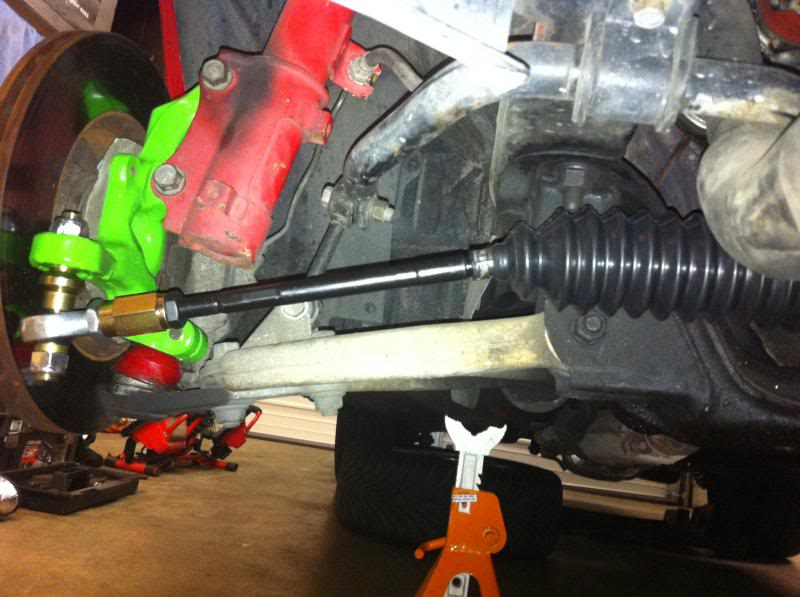

Installed

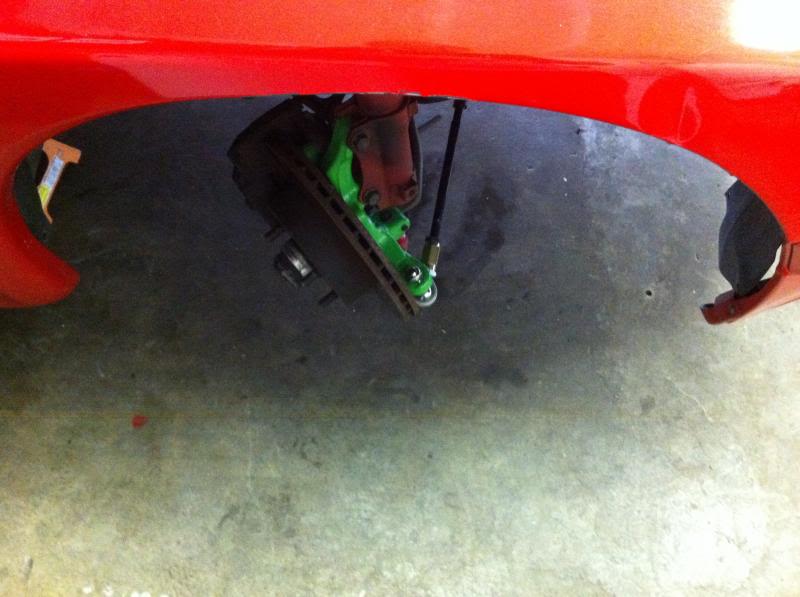

Wheels off

Hitting lower caliper bolt against control arm

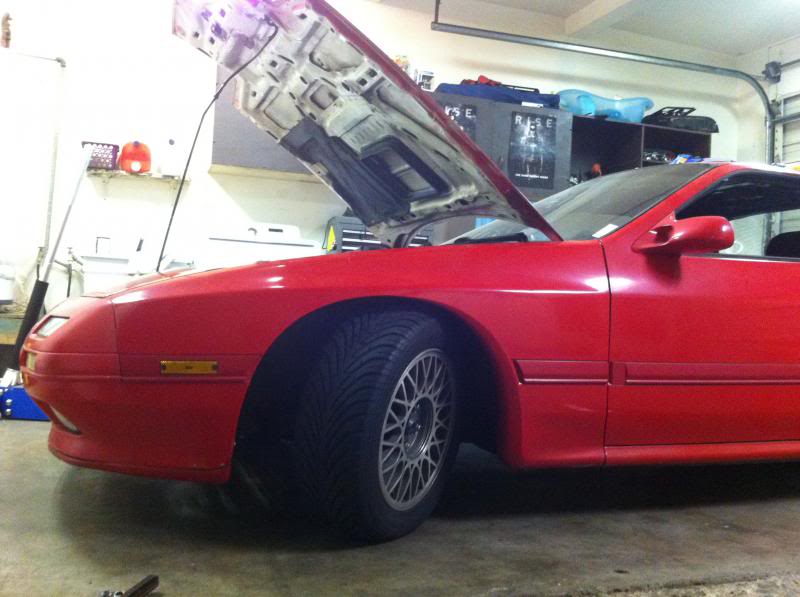

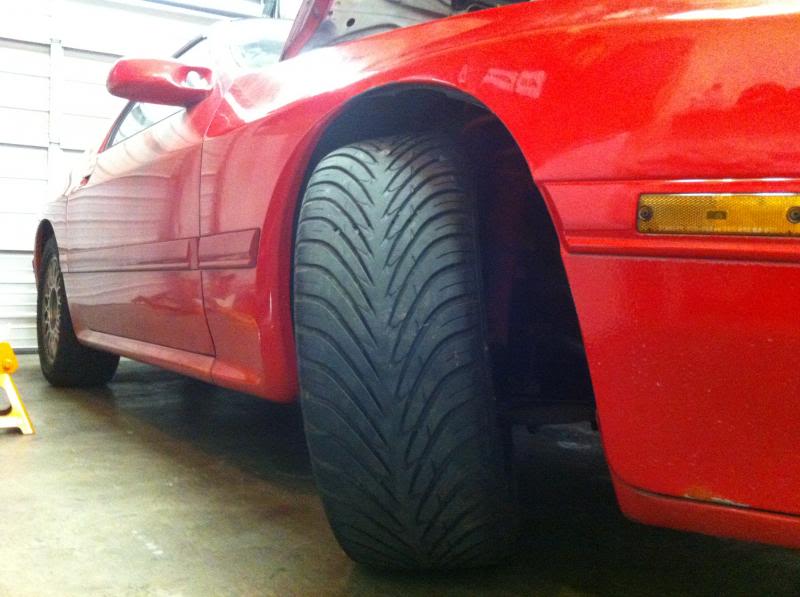

Wheels on

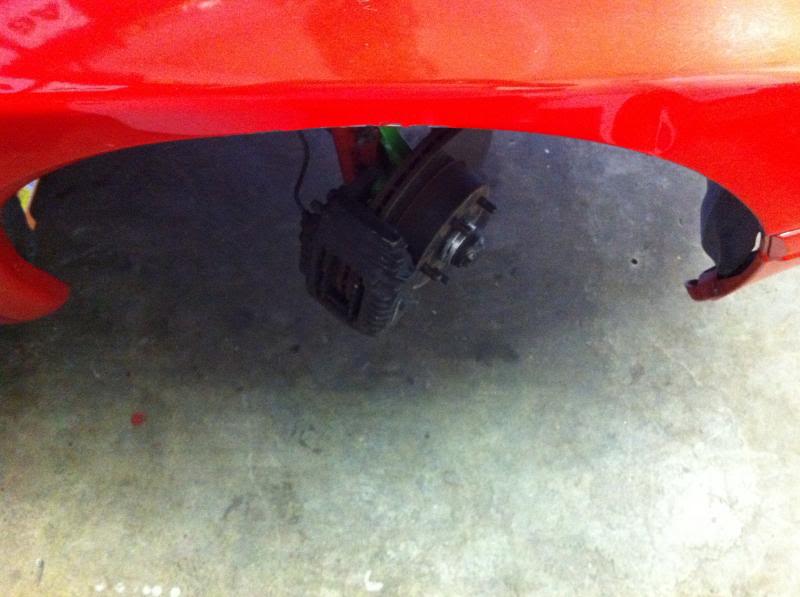

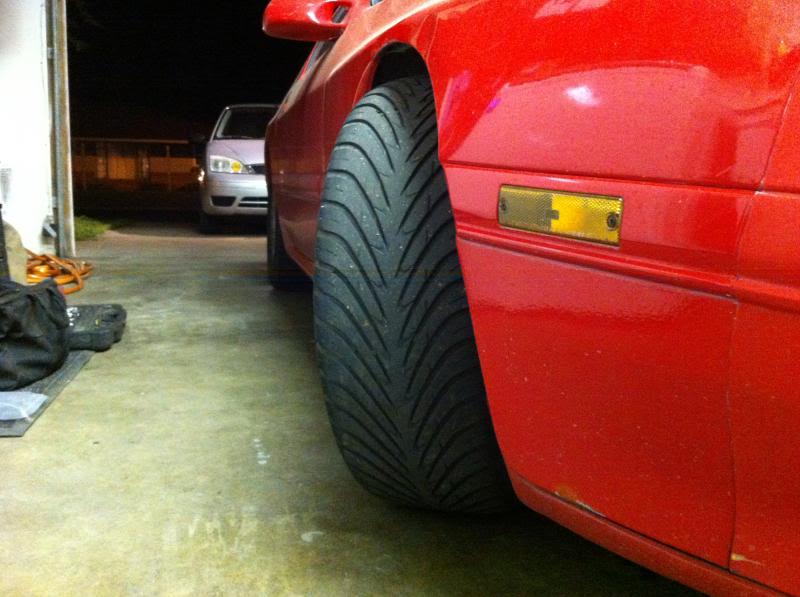

Stock

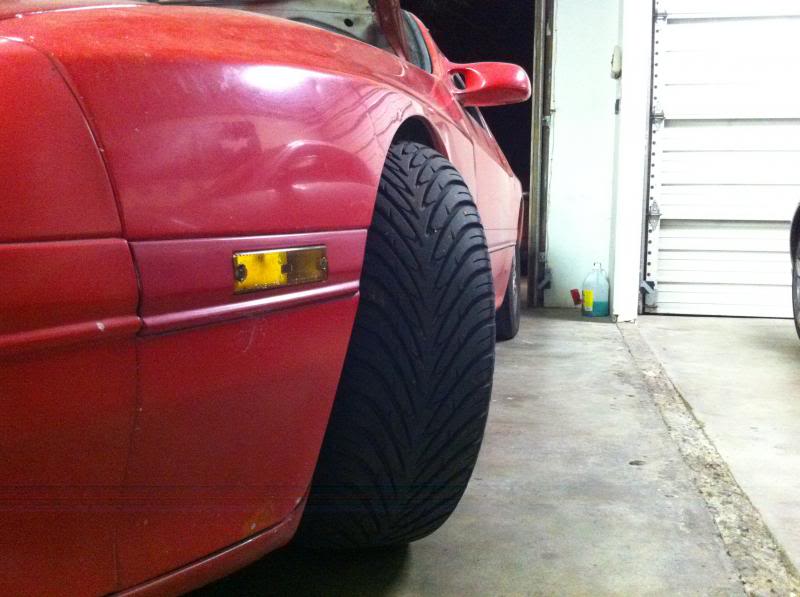

After

beechwoodrx7

iTrader: (5)

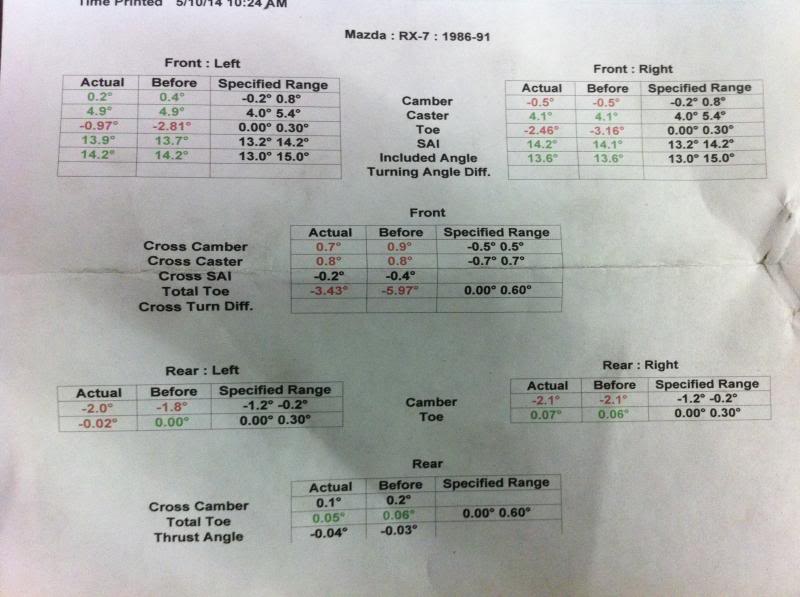

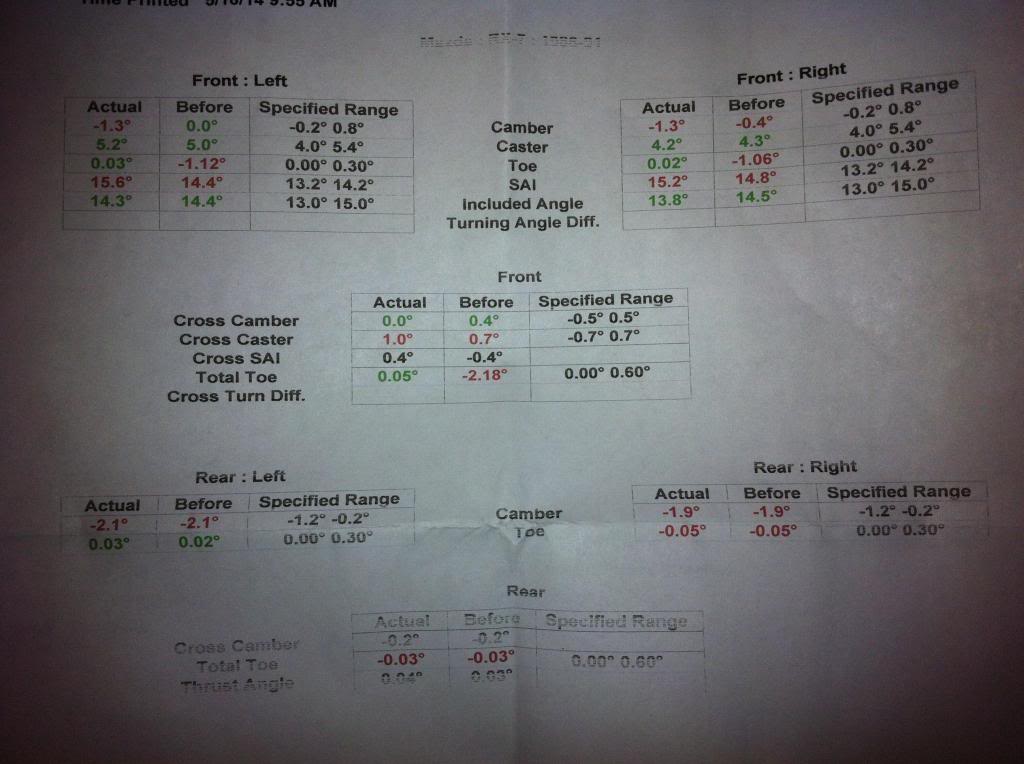

Alignment

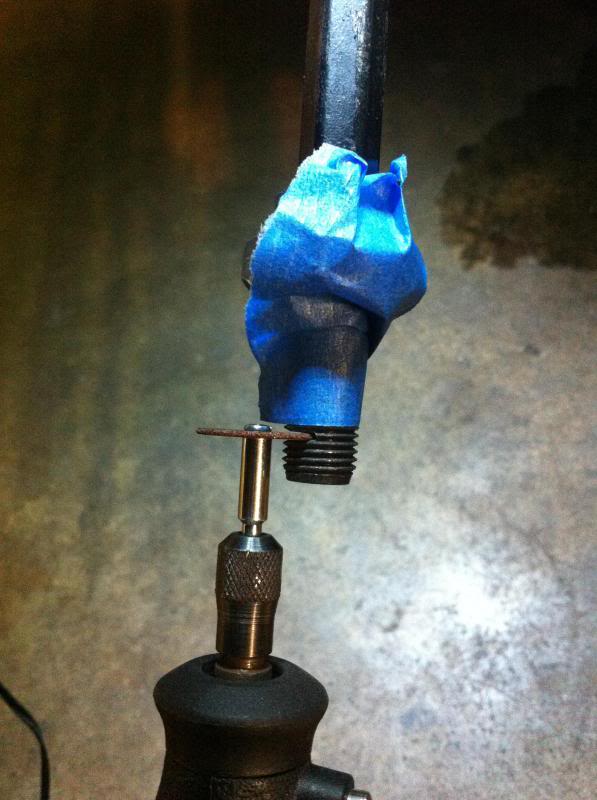

First I had to recenter the rack making sure from center it's 1 1/2 turns left and right. Then remove/reinstall steering wheel so it's straight and adjust tie rods. In order to get a 0 toe angle I cut off 1/4 from each end of the inner tie rod.

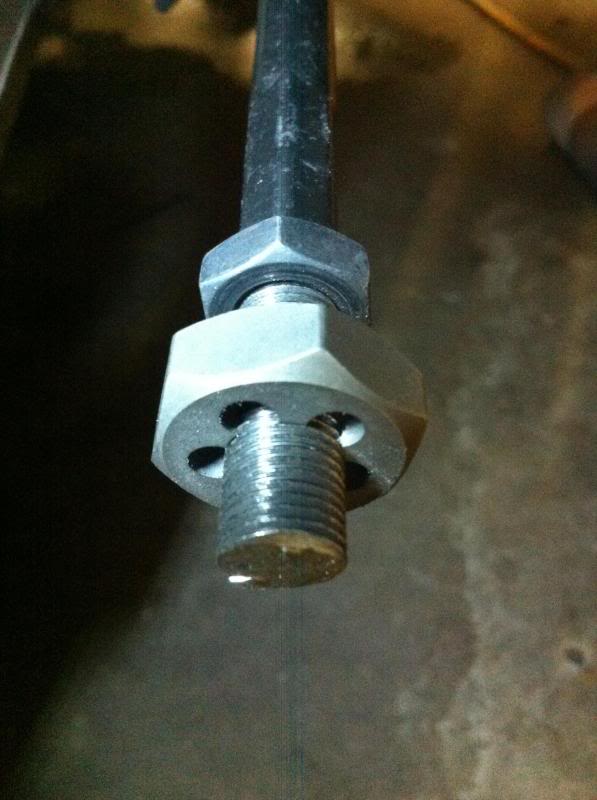

Before tie rod cut (toe maxed out)


After
