Pics of OEM ECU mounted (removal/install)?
I was about to mount my PFC using the OEM brackets which requires drilling and tapping the frame but I have the tools for that. It's been so long I can't remember where the brackets go or the position of the ECU. Can someone post some pics that I can go by? thank you & merry new year.
#2
Eats, Sleeps, Dreams Rotary
iTrader: (14)
I don't recall any drilling or tapping. You can Velcro the PFC to the top and bottom stock ECU brackets.
I have pictures here (third and fourth from the top). You can optionally cut the top bracket around the PFC boost kit socket but that is all the hacking I recall.
I have pictures here (third and fourth from the top). You can optionally cut the top bracket around the PFC boost kit socket but that is all the hacking I recall.
#3
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
oh cool, now I know what that that curved metal part is (wire loom cover). I didn't want to velcro. I wanted to screw it on just like stock. I just realized it will take some cutting for 2-bar map sensor and drilling for the commander on the top bracket. Thanks for the pics!
#4
Eats, Sleeps, Dreams Rotary
iTrader: (14)
Originally Posted by GoRacer
oh cool, now I know what that that curved metal part is (wire loom cover). I didn't want to velcro. I wanted to screw it on just like stock. I just realized it will take some cutting for 2-bar map sensor and drilling for the commander on the top bracket. Thanks for the pics!
#5
RX-7 Bad Ass
iTrader: (55)
Yeah, just use the supplied Velcro to attach to the stock ECU mount. I just used the lower one - I wasn't sure about it at first, but it works great, and it's SO much easier to get the ECU out of the way when I need to do wiring work.
Dale
Dale
#6
Living the dream...
iTrader: (7)

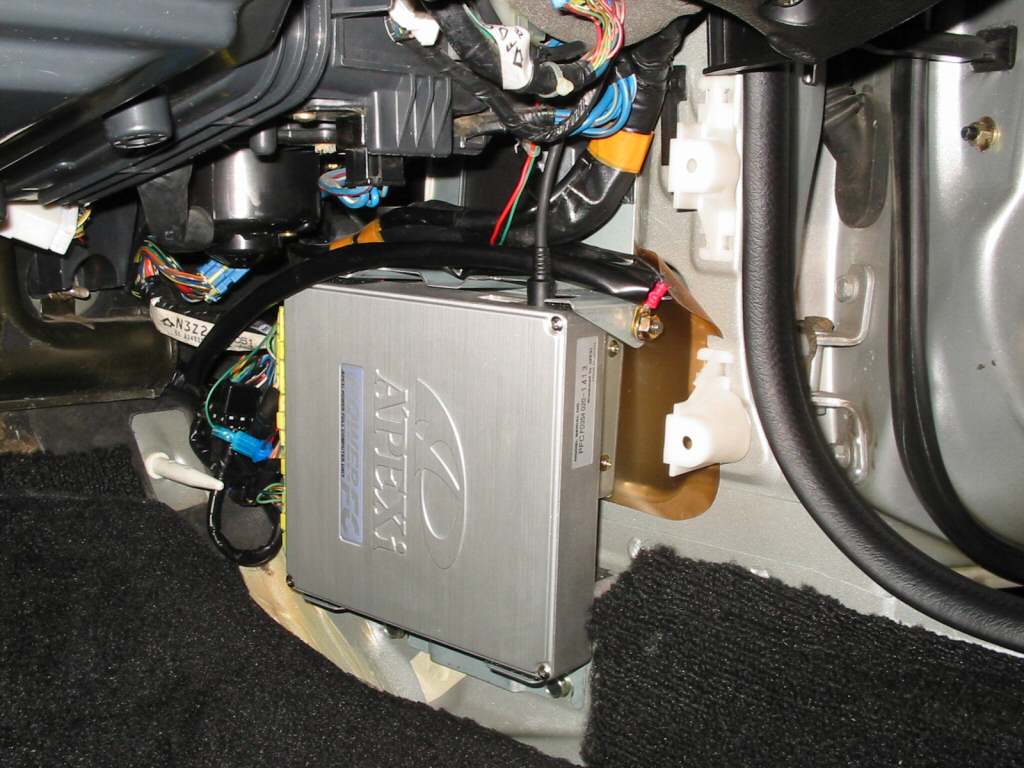

I used Velcro to mount mine. Very solid (meaning no issues). Just make sure you clean the area where the Velcro is mounted with alcohol. I also cut out a small piece of the top bracket (in pic) to be able to plug in the Commander. See attached pic. Good luck!
Last edited by 93silverbullet; 01-01-07 at 01:07 PM.
