Hello wiring jedi,

I'm looking for the X-06 connector that has in it, among other things, the low oil warning switch wire. I know that X-06 is in the footwell, but I'm not sure where. It's a blue plug, but there are quite a few of those in that area. I'm hoping one of you have actually worked on this connector and can tell me where it is.

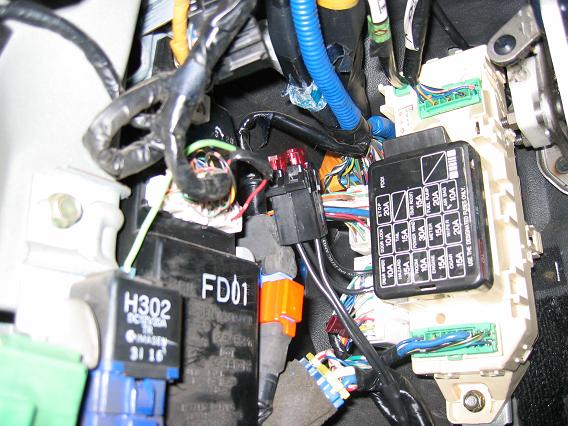

I've attached a shot of the footwell for reference.

Thanks!

-ch

badddrx7

iTrader: (7)

X06 blue connector is stacked below another connector ( x19 ) to the corner of the dash in the upper left hand side of your picture. You cannot see it in the picture, but look on up under the dash a little further.
tom

hyperion

iTrader: (2)

Hey, thanks for the tip. Those connectors are almost impossible to get to...it was easier for me to remove the gauge cluster and tap into the wire I needed from the connectors that go into the back of the gauges.

Thanks!

-ch
