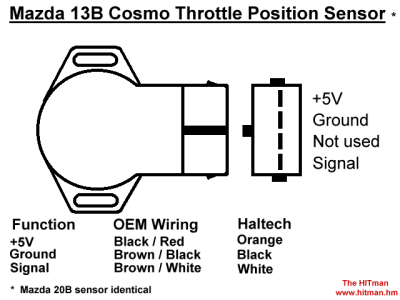

Cosmo TPS to Haltech Pinouts
08-22-02, 10:32 AM
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
you dont really need it for the cas, its super easy to figure out. the tps wasn't that hard i used a mulitmeter, and an edumicated guess.
mike
mike
08-22-02, 01:52 PM
#4
Gaijin Racing
Thread Starter
Join Date: Feb 2001
Location: Normal, IL
Posts: 1,117
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Jeff20B
Does he have more of those, like for the CAS etc?
Does he have more of those, like for the CAS etc?
Borrowed from BDC's Haltech installation writeup:
---------------------------------------------------------------
Mazda Cas - Haltech Shielded Trigger cable
RED - White (or Yellow)
WHITE - Red
GREEN - Green
White/black - Black (or Blue)
Here's a crummy pic of my CAS wiring:
