Ford Coyote Swaps? Do they fit?

Old 09-19-13, 09:09 PM
  #1
Junior Member
Thread Starter

Join Date: Jul 2013
Location: Tacoma, WA
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Ford Coyote Swaps? Do they fit?

I've been doing a lot of research before I start an FD. Ls engine is the obvious choice but theres a lot of hype about the Ford Coyote 5.0 L engines. I've seen the dyno sheets and the powerband is quite impressive. I'm sure someone may have done it but google isn't providing the results for me. Would the dual over head cam fit in an FD? :-/
dgfab is offline
Old 09-20-13, 02:33 PM
  #2
Junior Member

Join Date: Sep 2013
Location: Florida
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
I cannot directly answer your question but I can give a little info on dimensions.

5.0L DOHC Coyote
28" Length
26" Height
27.5" Wide

4.6L DOHC
28" Length
29.8" Height
30" Wide

4.6L SOHC
28" Length
26" Height
28.6" Wide

LS1/LS6
28.75" Length
28.25" Height
24.75" Wide

Ford's newest modular is the smallest of the bunch but it is still considerably wider that the LS series. I can measure the width between the shock towers and frame rails in my 2011 mustang is that is any benefit.
Tackass is offline
Old 09-20-13, 03:28 PM
  #3
Rare for a Reason
iTrader: (13)

Narfle's Avatar

Join Date: Nov 2002
Location: Dagobah
Posts: 5,585
Received 118 Likes on 84 Posts
Seen a couple in FC's.
Never seen one in an FD.
Narfle is offline
Old 09-20-13, 03:32 PM
  #4
Mostly stock
iTrader: (5)

Mr3plus1's Avatar

Join Date: Dec 2005
Location: Houston
Posts: 379
Likes: 0
Received 0 Likes on 0 Posts
I know this isnt the new coyote motor and an older 4.6L, but consider the new 5.0 is OHC just like the 4.6.

Name:  IMG_5356.jpg
Views: 12412
Size:  140.9 KB

4.6 on the Left. older push rod 302 on the right.
Mr3plus1 is offline
Old 09-20-13, 07:53 PM
  #5
Junior Member
Thread Starter

Join Date: Jul 2013
Location: Tacoma, WA
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Tackass View Post
I cannot directly answer your question but I can give a little info on dimensions.

5.0L DOHC Coyote
28" Length
26" Height
27.5" Wide

4.6L DOHC
28" Length
29.8" Height
30" Wide

4.6L SOHC
28" Length
26" Height
28.6" Wide

LS1/LS6
28.75" Length
28.25" Height
24.75" Wide

Ford's newest modular is the smallest of the bunch but it is still considerably wider that the LS series. I can measure the width between the shock towers and frame rails in my 2011 mustang is that is any benefit.
Amazing tid bit of Info you've provided. only 2.75" inches wider. Thats amazing. Seems like It would fit.
dgfab is offline
Old 09-20-13, 10:12 PM
  #6
Will TIG for 20b
5 Year Member
iTrader: (1)

jaggermouth's Avatar

Join Date: Mar 2008
Location: Nanaimo
Posts: 1,422
Likes: 0
Received 0 Likes on 0 Posts
Saw a guy on no rotors with a Cobra 4.6 supercharged in his FC, was huge
jaggermouth is offline
Old 09-21-13, 09:03 AM
  #7
Junior Member

Join Date: Sep 2013
Location: Florida
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Just for grins I measured the width between the shock towers on my cars. On the 2011 it is ~36" and on my fox mustang it is ~34". Plenty of coyotes have been swapped into fox mustangs. However, they have to switch to a hydroboost brake setup or just run manual brakes. I don't know the clearance between the LS1 and brake booster on an FD, but I suspect it is pretty tight. I doubt there is room there for the added width of the coyote.
Tackass is offline
Old 09-22-13, 09:41 AM
  #8
Junior Member

Join Date: Sep 2013
Location: Florida
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
I would love to see one in an FD. I am impressed with the performance in a ~3600lb mustang. It would be a blast in a car 800lbs less.
Tackass is offline
Old 09-22-13, 10:00 AM
  #9
Piston Head
iTrader: (5)

Littleguy's Avatar

Join Date: Nov 2004
Location: Houston, TX
Posts: 501
Received 6 Likes on 6 Posts
Originally Posted by dgfab View Post
Amazing tid bit of Info you've provided. only 2.75" inches wider. Thats amazing. Seems like It would fit.
Looking at everything, I'm thinking the 2.75" is the differences in sizes of the block. I'm thinking it would be really really hard to fit those massive *** dohc heads on the motor and still close the hood.
Littleguy is offline
Old 09-22-13, 12:59 PM
  #10
Senior Member

Exidous's Avatar

Join Date: Jul 2004
Location: San Antonio
Posts: 442
Likes: 0
Received 0 Likes on 0 Posts
Will not happen if you plan on keeping the vacuum assisted brakes. There are also oil pan issues that interfere with the steering rack. Not to mention the weight.

Those numbers HAVE to be bare block. If you look at those pics and pull the heads the 2" difference is believable. Add heads and not a chance.
Exidous is offline
Old 09-22-13, 06:35 PM
  #11
Junior Member

Join Date: Sep 2013
Location: Florida
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Those number for the Coyote width are from the external edge of the valve covers. I just measured mine, as best I can since it is in the car, and it looks like 28" wide. That picture is a little deceiving since it is comparing one of the older wider DOHCs with a ford 302. The 302s are only ~20" wide depending on valve covers.

http://www.fordracingparts.com/downl...Dimensions.pdf

Some dimension info.

Losing the booster would be a must with the brakes.
Tackass is offline
Old 09-22-13, 06:39 PM
  #12
Junior Member

Join Date: Sep 2013
Location: Florida
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Of course one downside of the Coyote is the MT-82 roulette. Mine is a piece of ****, and all of Ford's TSB have done nothing to improve its shifting. Some people get good ones, but many don't. IMHO you would be better off sourcing a T-56 and a bellhousing from termi cobra.

Well that and the used coyotes are still pretty expensive compared to the LS1/6s.
Tackass is offline
Old 09-28-13, 09:35 PM
  #13
Junior Member
5 Year Member
iTrader: (1)

Join Date: May 2007
Location: Scott AFB, IL
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
I have the page saved. I was just looking at it last night....... Sorry for the enlarged pic though. The pic was copies from this thread: http://www.norotors.com/index.php?topic=14854.60

Yes, it's an FC but wanted to copy it here for reference sake.



And here's a 2011 coyote engine

Attached Thumbnails Ford Coyote Swaps? Do they fit?-cobra-top.jpg
Mr Hyde is offline
Old 10-03-13, 12:11 PM
  #14
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,150
Received 9 Likes on 9 Posts
You can get a Coyote to work in an FC, probably not in an FD. They are gigantic, and the intake may not clear the hood. You have a hard time making FAST intakes on LS1s fit.
LargeOrangeFont is offline
Old 10-23-13, 03:39 AM
  #15
Full Member

Join Date: Sep 2013
Location: fraser valley british columbia , Canada
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mr Hyde View Post
I have the page saved. I was just looking at it last night....... Sorry for the enlarged pic though. The pic was copies from this thread: http://www.norotors.com/index.php?topic=14854.60 Yes, it's an FC but wanted to copy it here for reference sake. And here's a 2011 coyote engine
The super charged engine is not a coyote, thats a terminator . Coyotes have 2 vct solenoids per head . That is what really makes them special the dual vct allows them to not only advance and retard the cam but overlap as well .
79v8fb is offline
Old 10-28-13, 03:21 AM
  #16
Junior Member

Join Date: Oct 2013
Location: ohio
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
i dont see a coyote fitting in a fd without some really extensive fab
greedygenius is offline
Old 08-01-15, 07:45 PM
  #17
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Likes: 0
Received 0 Likes on 0 Posts
Any one do this yet?
Grinch is offline
Old 08-02-15, 06:49 PM
  #18
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,150
Received 9 Likes on 9 Posts
Nope.
LargeOrangeFont is offline
Old 09-11-15, 05:07 PM
  #19
Junior Member
5 Year Member

Join Date: Jan 2010
Location: Atlanta
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts



Unfortunately, I don't think these will ever fit. It's not so much the height, but you have roughly 30.5 inches between the towers. Given the width of the Coyote, I think you'd have to go with a tubular front end to make it work properly.

I wish I could get one of the flat plane crank 5.2s ;-)

Danny-
DannyS is offline
Old 09-11-15, 10:15 PM
  #20
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,080
Received 145 Likes on 128 Posts
Coyote is surprisingly not much wider or taller than LS engine and its a couple inches shorter.

It would be tight in the FD and you would have to run a custom oil pan and intake to clear the hood.

This PDF shows Coyote dimensions with a sidebar for other Ford engines.


Attached Thumbnails Ford Coyote Swaps? Do they fit?-hrdp-1306-02-ford-coyote-engine-swap-guide-how-coyote-measures-up-graph.jpg

Last edited by BLUE TII; 09-11-15 at 10:18 PM.
BLUE TII is offline
Old 10-16-15, 10:02 AM
  #21
Junior Member
5 Year Member

Join Date: Feb 2010
Location: Michigan
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
^ Wow thats a really helpful chart. Do they publish those for other engines?
wa11yba11s is offline
Old 10-17-15, 03:28 AM
  #22
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,080
Received 145 Likes on 128 Posts
I didn't find anything that specific for other engines.

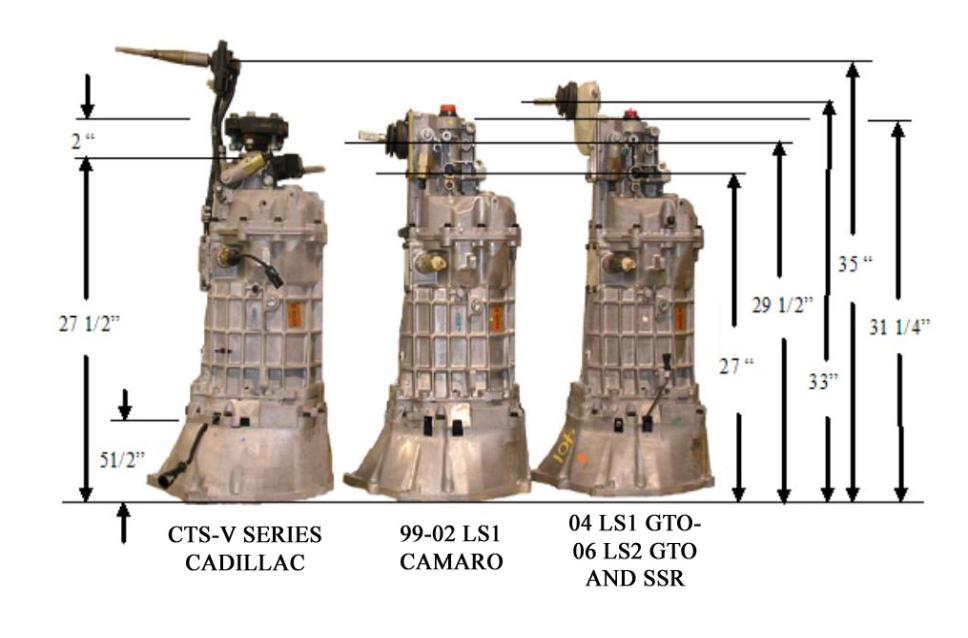

Here are some LS related specs I found on the same search.
Attached Thumbnails Ford Coyote Swaps? Do they fit?-chevy_ls1_measurements_side.jpg   Ford Coyote Swaps? Do they fit?-ls6_dim_frt.jpg   Ford Coyote Swaps? Do they fit?-lsadims.jpg   Ford Coyote Swaps? Do they fit?-tremac_dims-968x638.jpg
BLUE TII is offline
Old 12-26-15, 03:29 PM
  #23
Junior Member
5 Year Member

Join Date: May 2011
Location: lanlgey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by greedygenius View Post
i dont see a coyote fitting in a fd without some really extensive fab
You are correct. It was my parts car turned into a project car.
https://youtu.be/HTp6Y4jrUvA
heith is offline
Old 12-26-15, 03:59 PM
  #24
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,080
Received 145 Likes on 128 Posts
Cool project.

Did you have to cut any sheet metal at the shock tower area to get the heads to fit in there?

Will you have to cut any to get exhaust manifolds/headers on?
BLUE TII is offline
Old 12-26-15, 06:27 PM
  #25
Junior Member
5 Year Member

Join Date: May 2011
Location: lanlgey
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by BLUE TII View Post
Cool project.

Did you have to cut any sheet metal at the shock tower area to get the heads to fit in there?

Will you have to cut any to get exhaust manifolds/headers on?
Yes there was a lot of cutting and welding around the shock tower. Mainly near the base where it connects to the frame rail. I am on my third attempt of exhaust manifolds. I tried to make long tube headers but fitting the four 1-7/8th tubes through the small gap where the steering column and starter are is a little tight. Could be done but looked like the header would have to snake around both side of the steering column and don't like the idea of it. I made a set of log manifolds that worked but they there pretty ugly so I am using a set of factory mustang headers that are modified. It is a motor swap of if you need to do engine work the motor has to be pulled.
heith is offline
