guys
i have been trying to learn and pick up axle related parts
running into a problem
i want both rear tires driven so is a locker or a lsd needed?
also will any listed for the 8.8 work?
as in any year truck or car housing
or is there truck units and car units
sorry for such green horn question
but this is my first rear axle build as well
i will not be track or street racing however i do
want both tires driven for performance times as needed
winter is finally going after one of the worst in history. january gave us a ice storm for 38 hours knocking power out for 5 days , hit aprox 130,000 homes. so much ice ran down the hood that it pulled off the bumper rubber trim.
glad to see it out of hibernation. Stock LSD would probably be fine for you. how soon till you fire it up?
thanks
i found a new lsd on 3,73 gears locally for $350 so i think i will go with that.
as for first fireup well i will tell you that the day last fall when i finally got it mounted,seeing it sitting there burned in me all winter. over the winter i got the blockoff plate and found the right flywheel so i need to pull the engine again to mount the flywheel clutch and come up with another clutch release . that one i had fabed up will not fit the tunnel ,
and i need to remove the hood to clear the carb as it sits about 2 or 2 1/2 " too high so need good weather.
lots of work needs to be done and it's getting close , i moved my prelude out of the back yard last weekend so work will resume.
also over the winter i got the other tecno toys front suspension parts top hats 300lb 10" springs and there billet adjusters.
so i have to strip the front end again

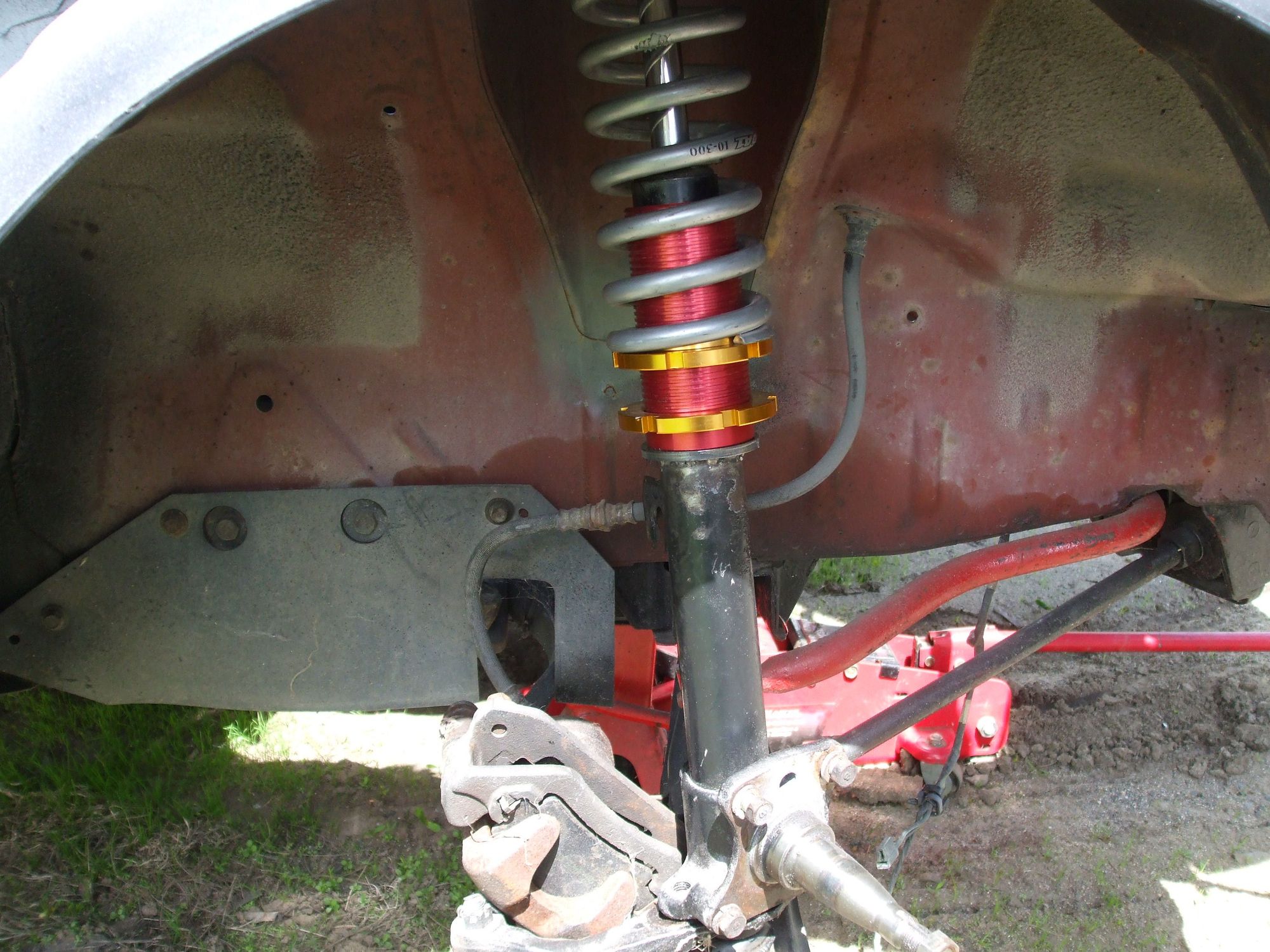

today i got the front spring on the car.

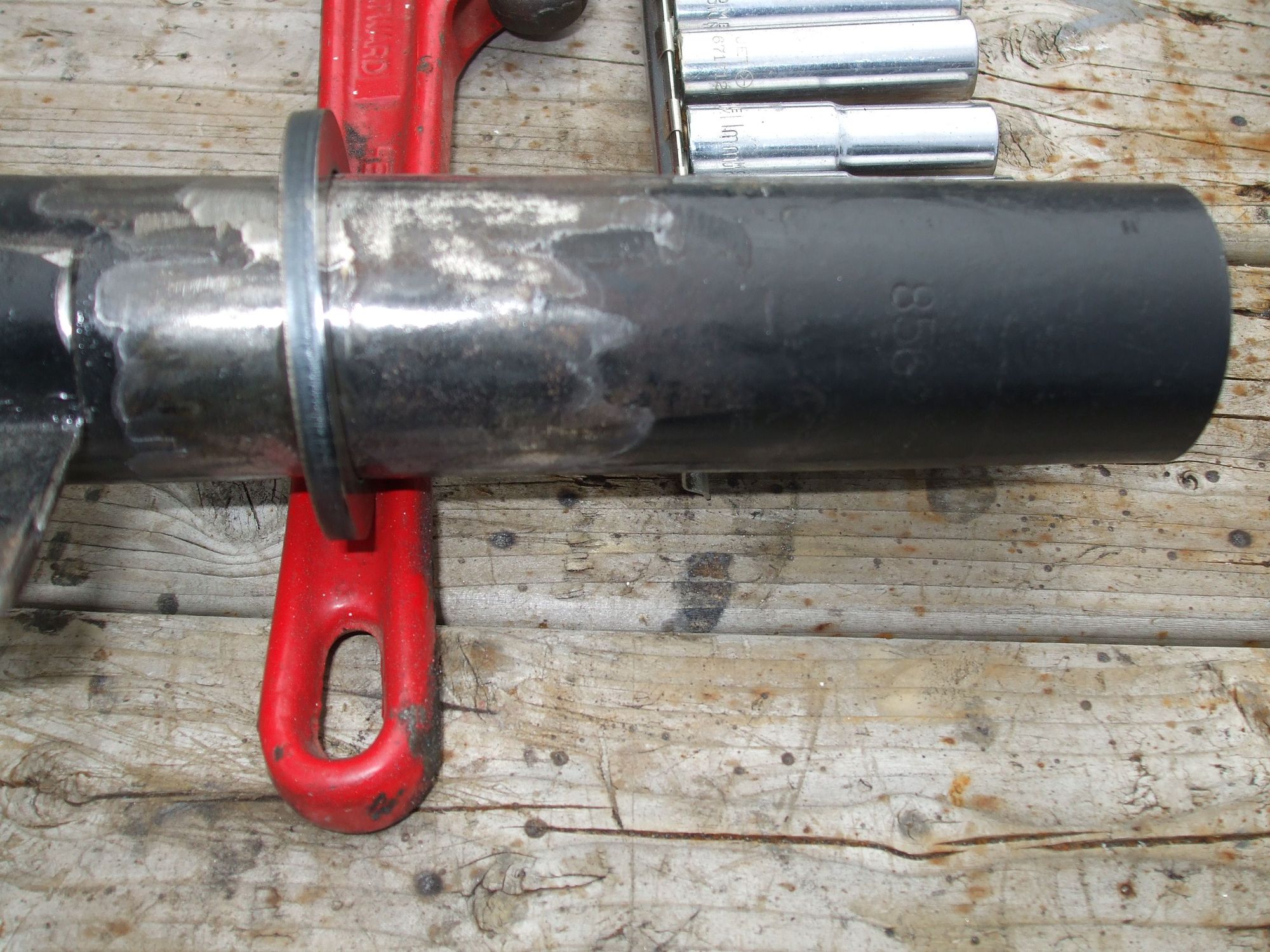

cut the spring cup off weld on the 45mm rings from techno toys and the adj setters with the new spring
300lb per inch and car sits a tick high , ran out of time but just needs to be down about 1 inch
Guys
Working on the rx7 goes on
Any of you know how wide the rear end should be?
I would like to start building the axle but can't seem to find any info at all
Thanks
Guys
Working on the rx7 goes on
Any of you know how wide the rear end should be?
I would like to start building the axle but can't seem to find any info at all
Thanks
I will measure mine, Glad you are still working on yours. I just put my motor back in a couple weeks ago
Have you finished up your front suspension or accomplished anything else lately?
front suspension is all done with the springs seat and 300lb springs
it sits perfect
but i really need to pull the engine for some clearance issues i have with headers.
i haven't had much free time this summer and i am not where i wanted to be .
hope to get to it later this month,
parts are comming for the rear axle
moser ends and a lsd diff with 3.73 gearing
It sounds like I'm in a similar boat to you in regards to working out some clearance issue for the headers.
What headers are you using and are they contact the steering box?
the headers i found are from a 65-74 mustang , bought them on ebay cheap as i thought i was going to destory them to fit.
to my surprise they fit perfectly on the passenger side but off just a little on the drivers side .
both sides seem to contact the floor area at the fire wall bottom curve into the floor area . once i get the engine out i can either bend in the floor or cut out for clearance.
i did not want to but i think i going to remove the steering box for a manual steering rack
the headers i found are from a 65-74 mustang , bought them on ebay cheap as i thought i was going to destory them to fit.
to my surprise they fit perfectly on the passenger side but off just a little on the drivers side .
both sides seem to contact the floor area at the fire wall bottom curve into the floor area . once i get the engine out i can either bend in the floor or cut out for clearance.
i did not want to but i think i going to remove the steering box for a manual steering rack
any of you do this before?
I have thought about it before, blacktie motors has a very poorly designed kit out now. I do not think it would be a lot of work to make something
I have thought about it before, blacktie motors has a very poorly designed kit out now. I do not think it would be a lot of work to make something
guys i decided to go another route
keep the steer box and build a header kit that i weld myself
i found that the tranny mount i made last summer is in the way. i forgot about where the pipes need to go.

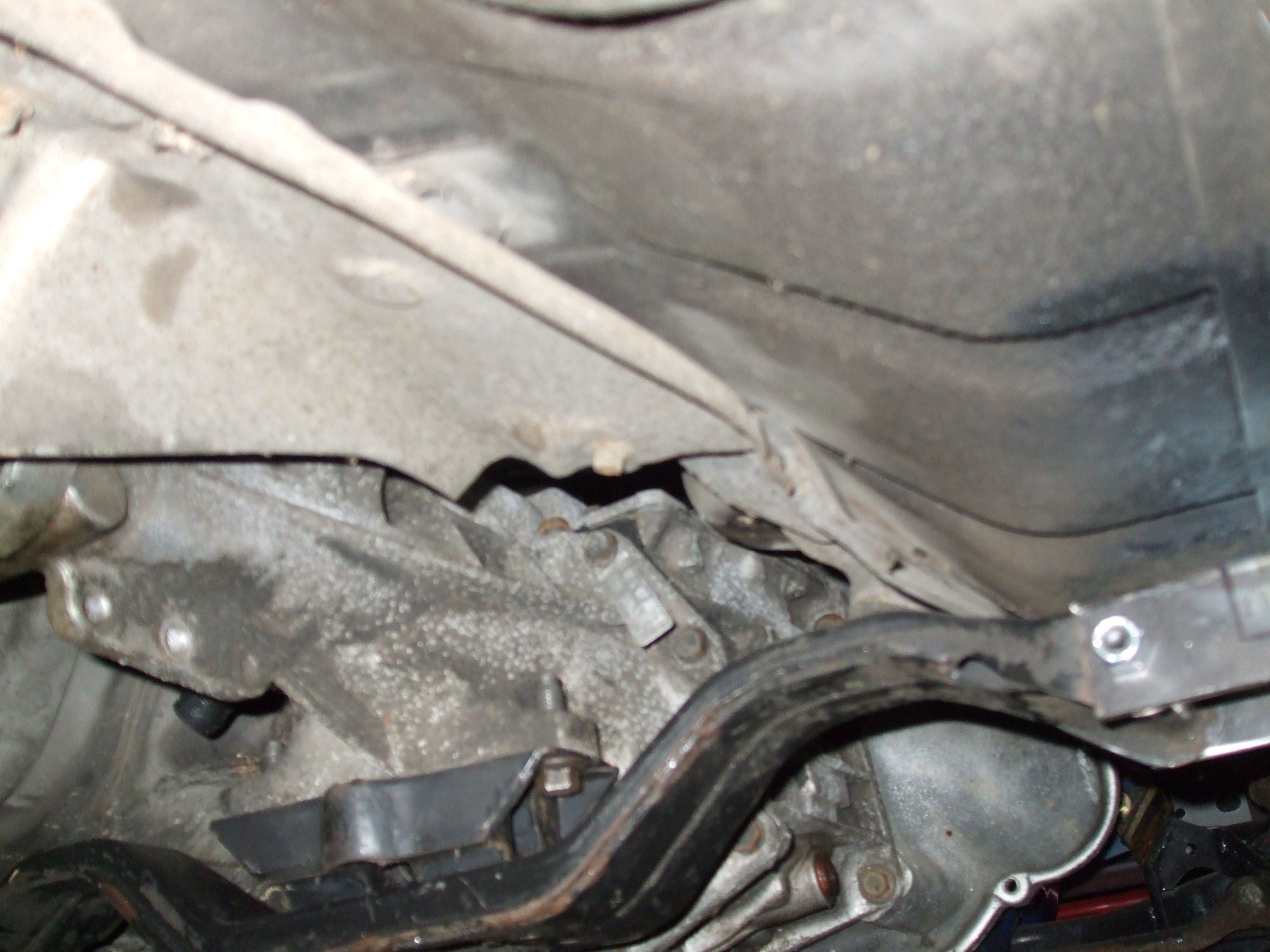

so last night i cut off the mount tabs and starting with a mustang crossmember i made some new brackets and welded them in
and as it happens engine clears the fire wall fine and carb mount is level as this tips the engine back the right amount
the raised parts of this crossmember, are they for the exhaust pipes on a mustang?
I like the idea of using the Mustang cross member, it looks good. I wish I could remember if that raised area is for the exhaust but I can't. I would run the exhaust through there though. Just try and build a heat shield under the floor boards so you don't cook your ***** off.
I like the idea of using the Mustang cross member, it looks good. I wish I could remember if that raised area is for the exhaust but I can't. I would run the exhaust through there though. Just try and build a heat shield under the floor boards so you don't cook your ***** off.
thanks
i thought about this all day and it hit me tonight aim the collectors at these raised portions of the cross member . weld on some hangers for the exhaust.
i want to remove all parts and maybe lizard skin coat the entire floor area.
this car is the cleanest underside i have ever seen in a 37 year old anything. all who see this in person can't understand that it is untouched and this clean.
i want to ensure that it is protected .
i see lizard skin have a thermal coat as well as sound dampening, this should make the best heat shield as well as protect the underbody.
the deeper i get into this rx7 the more i love it. at first it was just to get it running and now it is changed to what ever it needs to make it perfect.
this cross member also alows me to use a x pipe
what are any of you out there using x or h pipe?
It's funny how we start these projects with lower standard and as we go we set our goals become higher. I still laugh at myself when I told my wife it would get it done with a $3K budget, including buying the RX-7. Now 3 years later and probably have $6K into it and I have still never driven and RX-7, including mine. But I love that POS LoL.
I plan on running a single exhaust down the right side. I'll run two 2.5" pipes into a y-pipe with 3.5" out.
I would have loved to run an X pipe but I really don't have room. I have dual 2.5 inch with a Y pipe to 3 inch up and over the axle. The y pipe is right at the end of the tailshaft. I can take some pictures. I settled with a 3 inch out because 2.5 to 3.5 y pipes are hard to find and way expensive
It's funny how we start these projects with lower standard and as we go we set our goals become higher. I still laugh at myself when I told my wife it would get it done with a $3K budget, including buying the RX-7. Now 3 years later and probably have $6K into it and I have still never driven and RX-7, including mine. But I love that POS LoL.
I plan on running a single exhaust down the right side. I'll run two 2.5" pipes into a y-pipe with 3.5" out.
Originally Posted by Freeskier7791
I would have loved to run an X pipe but I really don't have room. I have dual 2.5 inch with a Y pipe to 3 inch up and over the axle. The y pipe is right at the end of the tailshaft. I can take some pictures. I settled with a 3 inch out because 2.5 to 3.5 y pipes are hard to find and way expensive
thanks guys
i saw on grannys mule car something like yours but i can't seem to find a y pipe any where. at first i was going this way and bought a flowmaster 40 in 3".
i don't have any other parts just yet but not settled on a x pipe .
one thing that is bothering me is the you weld header kit i'm looking at has a 3" collector
does it hurt any for 3" all the way back?
