thought i might post pics of another turbo killer i encountered firsthand, boost surge. caused by your BOV's not venting enough pressure when you let off the gas, all the pressurized air backs up and rapidly slows the impeller wheel while the turbine still has exhaust pressure pushing against it. this causes a twisting motion of the shaft and eventually, it will snap. mine was due to a vacuum line popping off of the BOV without me knowing
first picture was the primary of the stock twins

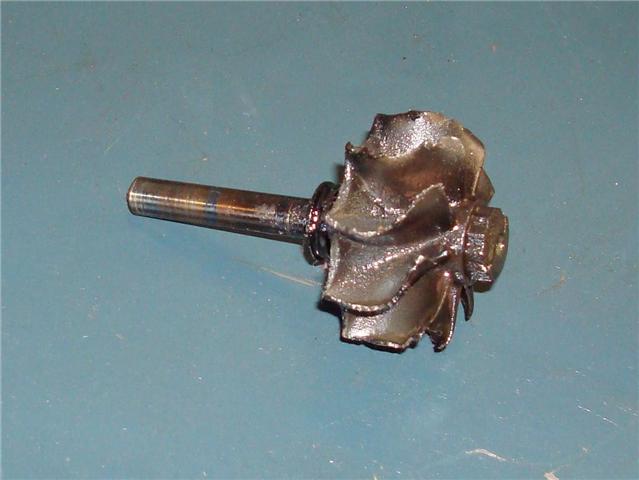

second is the turbine wheel and shaft banzai found in my midpipe
third is them flushing out my intercooler

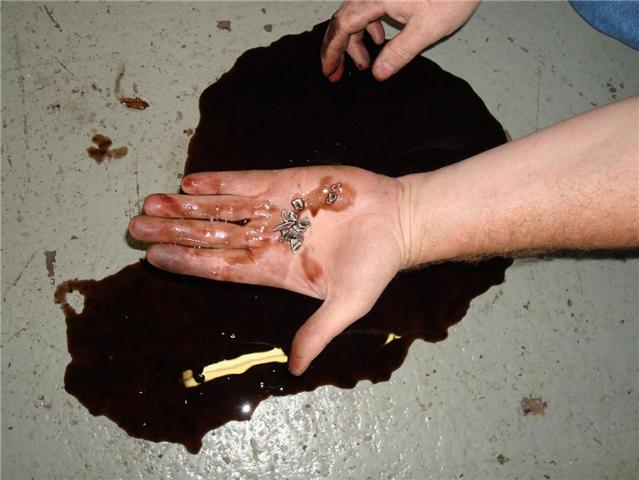

fourth is the pieces of my impeller wheel that made it into the intercooler
thought i might post pics of another turbo killer i encountered firsthand, boost surge. caused by your BOV's not venting enough pressure when you let off the gas, all the pressurized air backs up and rapidly slows the impeller wheel while the turbine still has exhaust pressure pushing against it. this causes a twisting motion of the shaft and eventually, it will snap. mine was due to a vacuum line popping off of the BOV without me knowing
first picture was the primary of the stock twins
second is the turbine wheel and shaft banzai found in my midpipe
third is them flushing out my intercooler
fourth is the pieces of my impeller wheel that made it into the intercooler
The following users liked this post:
ZekeO (09-18-19)
#28
Full Member
on my FD, i replaced engine. and reused my known good turbos. it was smoking, and leaking oil bad enough that oil was dripping from turbos waste gate cover. So i though my turbos got bad from previous engine blowing apex seal. when i replaced the turbos, it was smoking a lot less, on a first test drive. second day i had it running, at idle, it started to smoke just like it was with the first set of turbos i had, and again dripping from waste gate cover. What would that mean? Could it be from vacuum lines being rerouted wrong way, passably?
#30
bad ju ju man, it doesn't take too long to swap out the turbos. make sure you have something to crimp the coolant lines though so you don't have to drain and refill your coolant system. I used needlenose vise grips
#32
Sharp Claws
iTrader: (30)
glad someone posted this, im getting tired of seeing people toss turbos onto their cars with no oil line restrictors and wondering why there are no mosquitos for miles. and also why i hate that those same shops also sell oil pressure mod upgrades to those same customers and send them on their way billowing clouds of smoke under boost.
#33
Garage Hero
iTrader: (93)
^ Very true.. my car had a Gt 40R dual b/b turbo when I bought it... NO Oil RESTRICTOR!!!! and a bloody kinked oil drain.. I immediately re did my drain line and put a restrictor in...but despite my efforts..The turbo went out yesterday in the canyon..Billowing smoke..and oil all over my exhuast mani. Can't complain though.. put 8k on it after It finally went out. Time for an upgrade!!!
#37
#38
Junior Member
good info....i saw smoke coming up where the turbo is located...now i want to see if its a line or a leak from the turbo itself..gots some work ahead of me..i bought the car a year ago...88trubo II, and took intercooler off and almost everything to see if maybe the car didnt trun on becuase of a wire that wasnt conected..found the problem.. and finally got it running.. changed the fuel pump and cut the wire that goes to the injectors and turned on my rx7 after 5 yrs of just setting in someones back yard..i cant wait to register the car and take it for a spin....=D
#40
Full Member
iTrader: (1)
Join Date: Feb 2009
Location: UK
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
hey guys.

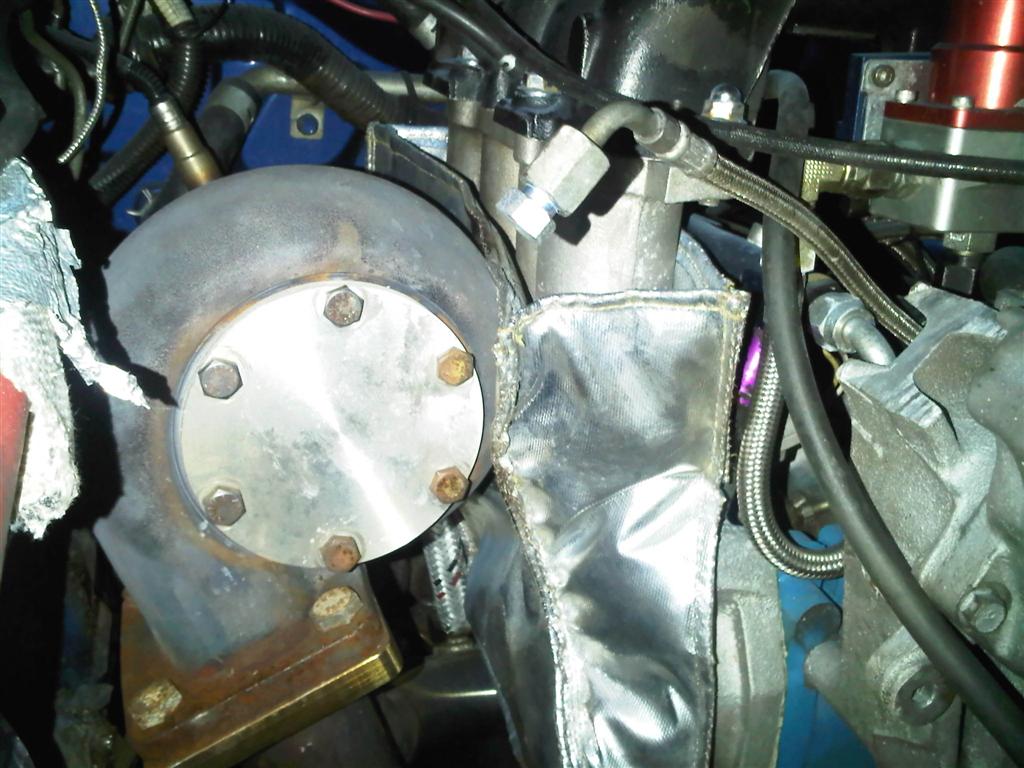

ive got a issue here with my newly lapped, ported and dowelled 12a large extend port. The car is running a TO4R with 1.15 rear a/r and has approx 1500 miles from new.
The car was running fine a few weeks ago when i found a short in under the dash from old head unit wiring..
I sorted that out and withing 10min of firing it back up the car was chugging white oily/ fuely smoke out the tail pipe and had lots of oil in the rear muffler.. The plugs seem clean (pic below).
So today i decided to do some analysis and i removed the oil feed from the turbo and ran it back into a can and let the car run - it was running and wasnt running the best - but didnt seem overly clean.
Shaft play on the turbo seems minimal and i dont know what else to do..
http://s1017.photobucket.com/albums/...t=IMG_1285.mp4
Any advice guys??
ive got a issue here with my newly lapped, ported and dowelled 12a large extend port. The car is running a TO4R with 1.15 rear a/r and has approx 1500 miles from new.
The car was running fine a few weeks ago when i found a short in under the dash from old head unit wiring..
I sorted that out and withing 10min of firing it back up the car was chugging white oily/ fuely smoke out the tail pipe and had lots of oil in the rear muffler.. The plugs seem clean (pic below).
So today i decided to do some analysis and i removed the oil feed from the turbo and ran it back into a can and let the car run - it was running and wasnt running the best - but didnt seem overly clean.
Shaft play on the turbo seems minimal and i dont know what else to do..
http://s1017.photobucket.com/albums/...t=IMG_1285.mp4
Any advice guys??
Last edited by bo0557; 09-04-11 at 04:06 PM.
#42
Full Member
iTrader: (1)
Join Date: Feb 2009
Location: UK
Posts: 141
Likes: 0
Received 0 Likes
on
0 Posts
hahahah ^^^
this is exactly going to be my next step.. I want to pull the wastegate off to check and see if there is oil on the valve - if not then i guess im clear on the oil control rings and turbo related..
keep you's posted.

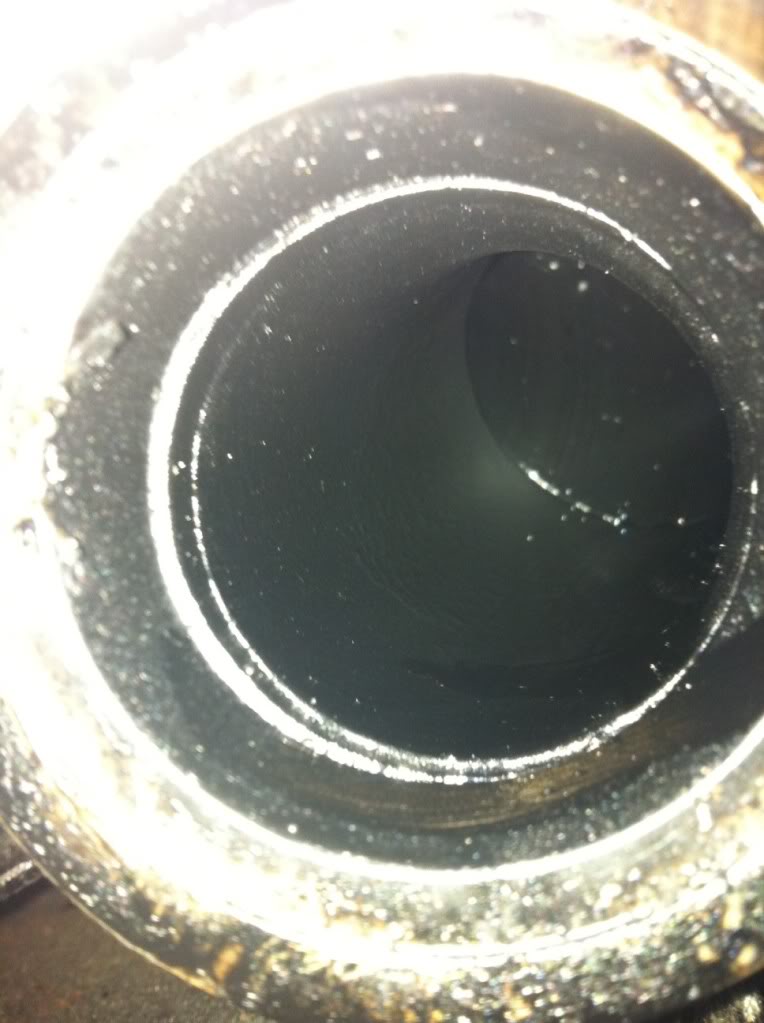

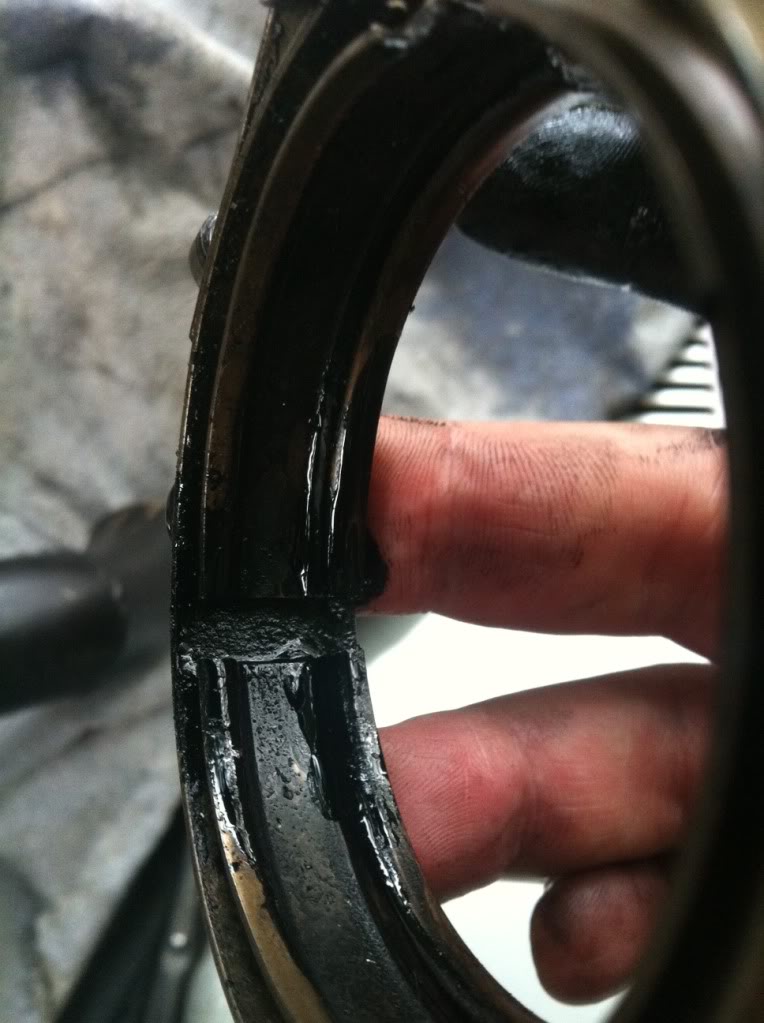

this is exactly going to be my next step.. I want to pull the wastegate off to check and see if there is oil on the valve - if not then i guess im clear on the oil control rings and turbo related..
keep you's posted.
#45
Sharp Claws
iTrader: (30)
pull the turbo off and see if there is any oil in the manifold or if the oil trail starts directly after the turbine wheel.
oil in the manifold leading to the turbo = bad oil control rings or poor port work into the oil seal tract.
oil just past the turbine wheel into the exhaust = bad turbo turbine carbon seal.
oil in the manifold leading to the turbo = bad oil control rings or poor port work into the oil seal tract.
oil just past the turbine wheel into the exhaust = bad turbo turbine carbon seal.
#46
sounds lika Jet
I have an oil issue on my single turbo FD, I have a 60-1 turbo /journal bearing/ with .84 hotside. what would be the proper restrictor size for this turbo or if I wanted to replace this turbo and go for ball bearing what would be the closest turbo to this one? I have to rebuild the turbo again due to bearing failure. It might have to do with crankcase pressure being to high but I have a atmospheric vent on the oil filler neck cap on my car so I don't think that is the issue. Any thoughts anyone?
#47
talking head
thoughts = needs vacuum.. i keep typing it,, and those that ignore it keep on burning up turbos
what is so abhorant to all of you who keep on persisting with only a vented system or catch can ?
the factory puts a vac on it .. with stock blowby
/// you have more boost and more blowby .. so why do you think you now magically dont need a vac to pull it out ?
its fu%*& simple to add the vac line.. or to simply not delete the one you was given from factory
when you get bigger boosts,, its also not hard to tap a 5/16 or 3/8 fitting into the filler cap and use the larger diameter hose that common sense tells you you will need
what is so abhorant to all of you who keep on persisting with only a vented system or catch can ?
the factory puts a vac on it .. with stock blowby
/// you have more boost and more blowby .. so why do you think you now magically dont need a vac to pull it out ?
its fu%*& simple to add the vac line.. or to simply not delete the one you was given from factory
when you get bigger boosts,, its also not hard to tap a 5/16 or 3/8 fitting into the filler cap and use the larger diameter hose that common sense tells you you will need
#48
sounds lika Jet
From the neck the vacuum comes from the upper intake manifold and the primary turbo on twin turbo cars. the primary turbo is constantly providing vacuum. when you go to a big single turbo is a different story. that vacuum is not as constant as the primary stock turbo from the twins. since when you are on boost the pcv valve going to the upper intake manifold closes and all the vapors are getting sucked up by the turbo's intake side. Also, 95 RX7s don't the vacuum set up to the upper intake manifold since the primary turbo is in constant vacuum. I had set up a system like that before where I had both the uim vacuum and also a line going to the intake of the turbo. Since the turbo was pulling more boost that stock it was basically pulling oil into the turbo due to the fact that oil tends to creep up the oil filler neck on FDs. the vent I had installed had a check valve which vented when pressure was too much and then it returned to normal when the UIM was doing all the vacuum once pressure was down.
#49
Lives on the Forum
iTrader: (8)
The correct way to vent a single setup is with a port on the oil filler neck and the twin turbo OEM oil drain on the rear of the engine to a catch-can with a breather filter on it. If you don't want to empty the oil, you can put a drain back into the oil pan via a port on the front cover.
thewird
thewird
The following users liked this post:
ZekeO (09-18-19)
#50
sounds lika Jet
@thewird-the set up that you just mentioned is the set up that I'm currently gathering the parts for. I'm actually purchasing RE-Speed oil neck with -10an fitting, remote oil breather tank, secondary turbo drain fitting, and lines.
