Post Your Single Turbo Setup.
#704
Braaaap Tshhhh!
Really fun to drive, much better than when it was on twins. I can't notice a difference in terms of response, it makes positive boost pressure instantly and more power everywhere. Doesn't matter what rpm, gear or throttle position - you have power to go go go!
#706
Rotary Enthusiast

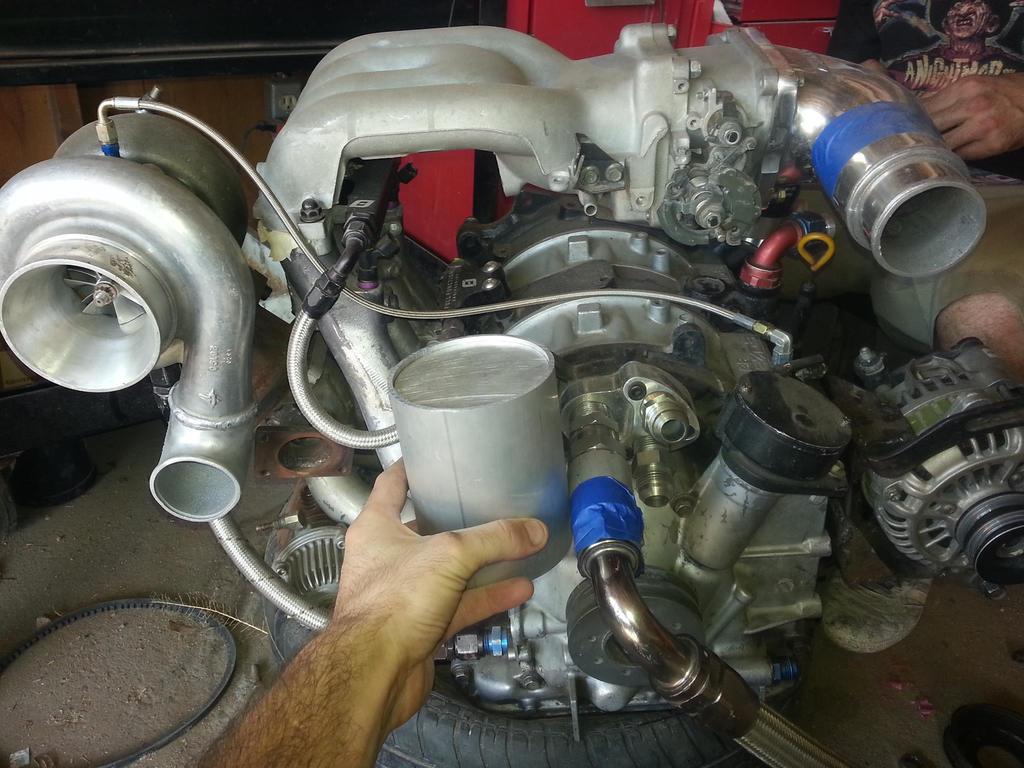

My setup...almost done.
I hope to finish everything up ready for the dyno in a couple of weeks.
The above should be finished over the next couple of days. Then I just need to block the old turbo coolant feed/return nipples, do something about the oil return to block, plumb everything up & fill with fluids.
setup is BW S360
twin tial 38mm gates
stock primaries
ID2000 secondaries / FFE rail
Fuelab FPR
Walbro 400lph pump
Link G4+ ECU
Big front mount intercooler
still need to decide on a BOV, im thinking the tial recirculating one?
I hope to finish everything up ready for the dyno in a couple of weeks.
The above should be finished over the next couple of days. Then I just need to block the old turbo coolant feed/return nipples, do something about the oil return to block, plumb everything up & fill with fluids.
setup is BW S360
twin tial 38mm gates
stock primaries
ID2000 secondaries / FFE rail
Fuelab FPR
Walbro 400lph pump
Link G4+ ECU
Big front mount intercooler
still need to decide on a BOV, im thinking the tial recirculating one?
#707
Junior Member
iTrader: (1)
Join Date: Jul 2015
Location: chicago
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
banzai streetported rebulit engine
to4e 1.15 hotside
tial 44mm wastegate
ebay manifold (had to modify it to make it fit good)
fmic
hks twin power
tial 50mm bov
act clutch and flywheel
to4e 1.15 hotside
tial 44mm wastegate
ebay manifold (had to modify it to make it fit good)
fmic
hks twin power
tial 50mm bov
act clutch and flywheel
#709
Junior Member
iTrader: (1)
Join Date: Jul 2015
Location: chicago
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Im still in the process of putting it all together. Forgot to say i have the power fc and the super seals were put in for higher hp applications. I got the aem fpr and gonna run id2000 secondaries with stock primaries. Me and banzai were thinking around 400. Id switch to gt35r if im not happy with my turbo.
#710
Full Member
Join Date: Apr 2014
Location: Southern Maryland
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
94 Montego Blue Touring model
Engine
Rebuilt at IRP
IRP BW S360 turbo kit
Dual Tial Wastegate
Greddy V mount Intercooler, Tial BOV, Greddy Elbow
3" midpipe
Racing Beat exhaust
Ignition
stock coils
HKS twin power amplifier + harness
ECU
Apexi Power FC
3 bar GM map sensor
Tuned
At IRP
Engine
Rebuilt at IRP
IRP BW S360 turbo kit
Dual Tial Wastegate
Greddy V mount Intercooler, Tial BOV, Greddy Elbow
3" midpipe
Racing Beat exhaust
Ignition
stock coils
HKS twin power amplifier + harness
ECU
Apexi Power FC
3 bar GM map sensor
Tuned
At IRP
#712
Full Member
Join Date: Apr 2014
Location: Southern Maryland
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
Thank you 7 Heaven. No numbers yet since i am deployed im looking to swapping to the AEM infinty and then its going up on the Dyno! Stay tuned for numbers this summer when i get back.
#717
Can Post Only in New Member Section
Join Date: Dec 2016
Location: Tooele, Ut
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car- base chaste white 94 rx7
turbo- borgwarner s366 .91
manifold- hks cast manifold, hks 44mm gate to follow
boost- 1 bar, 14.5psi
ems- apexi pfc
also is for sale😉
turbo- borgwarner s366 .91
manifold- hks cast manifold, hks 44mm gate to follow
boost- 1 bar, 14.5psi
ems- apexi pfc
also is for sale😉
#719
Full Member
iTrader: (3)
Join Date: Jan 2014
Location: California
Posts: 99
Likes: 0
Received 0 Likes
on
0 Posts
okay well here it is

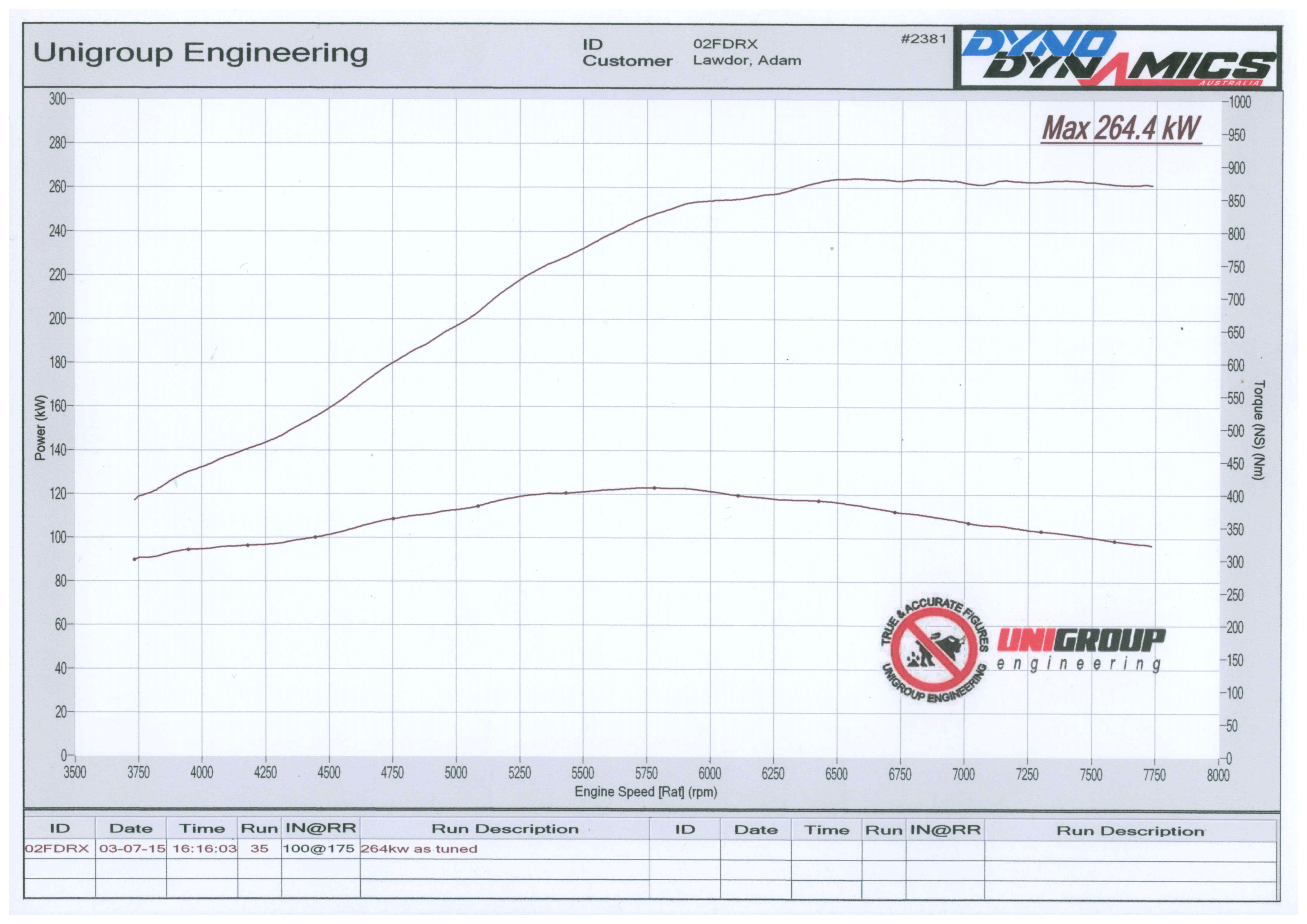

This is what a dyno graph looks like if the clutch slipping only 10-11psi ( Gate spring) .... Its actually making way more hp at that boost... Engine runs cold all day making good hp, and we are not behind on hp against competitors in fd pro am... This was almost 1 1/2 years ago, the car is even faster now, but I am in need of a new clutch before the next dyno sesh...
Well since Im here Il share some customer's dyno sheets we have dyno tuned... if anyone needs a tune in socal area hit me up...
Angry Earls fd tune 313whp @10psi 91 octane
550cc/ 2200 ID
Fuel labs fpr
-6an, aem 320lph
Apexi power fc
Stock port 13brew built by Roarks rotary
cx racing manifold
CX gate 10psi spring
3" downpipe
hks exhaus
fmic
greddy elbow
Daaangs fd 325whp@10psi
Streetport 13brew
t67 GSP turbo
Microtech lt8s wires with stock fd igniter/coils
vmount
3" dp, exhaust
stock injectors
Thatkid in fd 471whp @16psi
91 octane + aem 50/50 meth/water inj
aem smart coils
power fc
forgot injector size
jrx streetport
vmount
cosmot2 640whp @29psi
91 octane no auxillary inj
microtech lt10s
full bridgeport
750/2200
walbro 450ph
a1000 fpr
This is what a dyno graph looks like if the clutch slipping only 10-11psi ( Gate spring) .... Its actually making way more hp at that boost... Engine runs cold all day making good hp, and we are not behind on hp against competitors in fd pro am... This was almost 1 1/2 years ago, the car is even faster now, but I am in need of a new clutch before the next dyno sesh...
Well since Im here Il share some customer's dyno sheets we have dyno tuned... if anyone needs a tune in socal area hit me up...
Angry Earls fd tune 313whp @10psi 91 octane
550cc/ 2200 ID
Fuel labs fpr
-6an, aem 320lph
Apexi power fc
Stock port 13brew built by Roarks rotary
cx racing manifold
CX gate 10psi spring
3" downpipe
hks exhaus
fmic
greddy elbow
Daaangs fd 325whp@10psi
Streetport 13brew
t67 GSP turbo
Microtech lt8s wires with stock fd igniter/coils
vmount
3" dp, exhaust
stock injectors
Thatkid in fd 471whp @16psi
91 octane + aem 50/50 meth/water inj
aem smart coils
power fc
forgot injector size
jrx streetport
vmount
cosmot2 640whp @29psi
91 octane no auxillary inj
microtech lt10s
full bridgeport
750/2200
walbro 450ph
a1000 fpr
#720
86 S4 N/A Car with
90 S5 T2 Engine/Drivetrain
Rebuilt with RB Rebuild Kit and Goopy Seals
Street Ported
Some oil mods, 2 extra oil coolers
Garrett GTX35R
750/1600 Injectors
Custom intercooler piping and
exhaust manifold/exhaust 3,5"
Fuelab fpr
Walbro fuelpump
Tial ext. wastegate/Tial bov
Ms3 Pro Ecu
Will premix
Will be tuned on 98oct.
Still in progress with the whole project
but i want it to shoot around 450hp
90 S5 T2 Engine/Drivetrain
Rebuilt with RB Rebuild Kit and Goopy Seals
Street Ported
Some oil mods, 2 extra oil coolers
Garrett GTX35R
750/1600 Injectors
Custom intercooler piping and
exhaust manifold/exhaust 3,5"
Fuelab fpr
Walbro fuelpump
Tial ext. wastegate/Tial bov
Ms3 Pro Ecu
Will premix
Will be tuned on 98oct.
Still in progress with the whole project
but i want it to shoot around 450hp
Last edited by Nico89; 03-04-18 at 03:57 PM.
The following users liked this post:
Craig King (07-30-18)
