How to: Pinion snubber install

Rationale:
I got tired of the clunking coming from the rear end of my car. Last year I replaced the front differential mount with the Mazda Comp version. My mount wasn't broken and it didn't help. What I saw was that since my car was lowered a lot, my rear suspension would hit the underbody at times. I think this is due the aftermarket one piece rear-link (camber link) design used to correct rear camber I have installed. It brings the sub-frame and front of the differential closer to the body. A pinion snubber is cheap at less than $10 dollars, and the job is pretty easy to do. There wasn't a good write up on the forum so here you go. The pictures are gathered from other posts and from the service manual.

Tools needed:
Hydraulic jack
Jack stands
17mm wrench
Various sockets 10mm, 17mm, 20mm (maybe it was 21mm?)
Ratchet
Torque wrench
Phillips head screwdriver
Drill and bits up to 3/8"


Parts needed:
Pinion snubber (came with locknut) http://www.summitracing.com/parts/ENS-9-9101G/
3/8" x 2" fender washers


Installation:
1. Remove the rear bins.

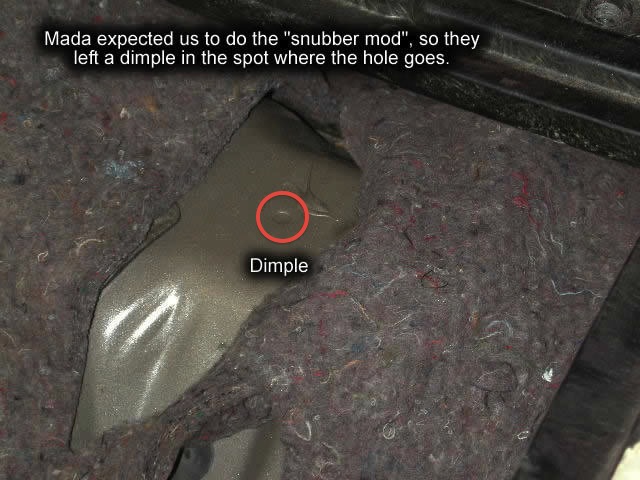

2. Drill a 3/8" hole in the dimpled area on the tunnel. The dimple is underneath the sound deadening mat in between the recessed bin areas.


3. Jack up the car enough to comfortably work under the diff area. Be safe and use jack stands. You'll need to use the jack to assist in adjusting snubber preload later; so you can't skip this.

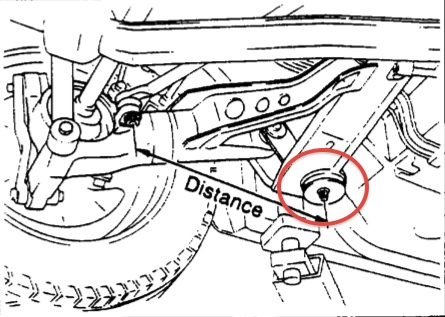

4. Loosen the front mounts on the rear subframe. Only loosen the large nuts attaching the subframe to the mount bracket. Do not loosen mount bracket from the body. These mounts are on either side of the body just in front of the rear wheel well.

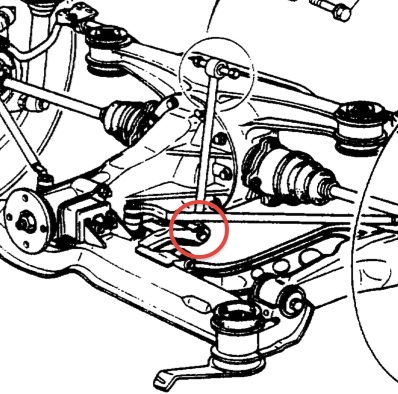

5. Remove the lower bolt from the rear link.


6. Install the pinion snubber in the hole you drilled earlier. It should be visible above the front differential mount area right in between the parking brake cables. Pull down on the front of the differential housing to create clearance to install the snubber.

7. Reinstall the bottom bolt in the sub-link.

8. Jack up the subframe to its normal position.

9. Check to make sure that your snubber is slightly preloaded. If there is a gap, lower the subframe, the revert back to step 5. Add fender washers in between the snubber and bottom of the body to space it out. I added two fender 3/8" x 2" fender washers to mine to get the preload just where I wanted.

10. Tighten up the pinion snubber. I used another fender washer up top as well to tighten on a flat surface.

11. Tighten the subframe nuts to 74-87 ft/lbs.

12. Tighten the sub-link nut to 54-69 ft/lbs.

13. Install the rear bins.

14. Lower the car off of the jacks.

14. Go test drive and enjoy your non-wheel hopping, non-clunking rear end!




Josh
This ad is not displayed to registered or logged-in members.
Register your free account today and become a member on RX7Club.com!
Attached Thumbnails
Click image for larger version

Name:	dimple.jpg
Views:	882
Size:	86.9 KB
ID:	362724   Click image for larger version

Name:	subframeMount.jpg
Views:	850
Size:	69.0 KB
ID:	362725   Click image for larger version

Name:	subLink.jpg
Views:	849
Size:	78.8 KB
ID:	362726
__________________
13BRE, Streetport, Wolf3D V4, Garrett T04R .70/1.00, HKS 50MM wastegate, 850/1600, Coolingmist AI

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
coxxoc is offline   Reply With Quote
Old 10-06-09, 11:49 PM   #2
KhanArtisT
Homeland or death!

KhanArtisT's Avatar

Trader Score: (2)

Join Date: Dec 2004
Location: Northern VA
Posts: 2,807
Can you explain why the subframe has to be lowered? On my install I just jacked the car up and installed the snubber b/w the diff and chassis and adjusted preload as necessary.

Also remember that most advance and autozone stores should carry the pinion snubber! Its made by energy suspension and its called a bump stop or something.
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"We don't do politics, we do guerrilla warfare"

-Sect of Revolutionaries
KhanArtisT is offline   Reply With Quote
Old 10-07-09, 12:36 AM   #3
dkwasherexd
Blown Apex Seal !

dkwasherexd's Avatar

Trader Score: (6)

Join Date: Jun 2006
Location: CA
Posts: 2,357
Send a message via AIM to dkwasherexd Send a message via MSN to dkwasherexd
great writeup! I have gone through like 3 diff mounts and 2 rear subframes. If I dont break a diff mount, the subframes diff mount will break instead -_- Getting sick of going under and replacing the subframe and diff over and over... I shall do this mod haha
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
dkwasherexd is offline   Reply With Quote
Old 10-07-09, 06:22 AM   #4
coxxoc
Shooting for 500

coxxoc's Avatar

Trader Score: (1)

Join Date: Jan 2006
Location: Bentonville, AR
Posts: 598
I had to loosen the subframe for clearance. I couldn't fit my hands up there without loosening and pulling subframe and front of the differential down some.
__________________
13BRE, Streetport, Wolf3D V4, Garrett T04R .70/1.00, HKS 50MM wastegate, 850/1600, Coolingmist AI

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
coxxoc is offline   Reply With Quote
Old 10-07-09, 06:59 AM   #5
arghx
fast car=no money

arghx's Avatar

Trader Score: (1)

Join Date: Aug 2004
Location: Raleigh, NC
Posts: 10,610
Good writeup. Maybe I should do this to my car, I still have stock diff mount and I'm worried about breaking something. So can this install be done without loosening the subframe bolts then, depending on how much the car has been lowered? Also, did you remove your exhaust for this?
__________________
-- 1988 Rx-7 Turbo II, T04R
-- 1997 Infiniti Q45 Touring

-- RIP: 1988 Rx-7 GTU, 172rwhp all motor
-- RIP: 1989 Supra
arghx is offline   Reply With Quote
Old 10-07-09, 11:26 AM   #6
MaczPayne
Dirty Harry

MaczPayne's Avatar

Trader Score: (3)

Join Date: Dec 2005
Location: Riverside, SoCal
Posts: 4,593
Send a message via AIM to MaczPayne
Finally, a write up! This mod is very common among v8 FC owners, and it works!

Pinion snubber + MMR diff bushings + comp. front mount = Bulletproof

My sub-link camber adjuster is practically useless now since the diff is so firmly mounted and "snubbed".

It's possible to install this with your exhaust on, but the job is just so much simpler with it out of the way.
__________________
Johnson


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
RIP 1/16/10
89 GXL/Turbo - Microtech LT8s, Stance GR+ Pro, Mandeville Big Brakes, Corbeau Buckets, Etc.
89 Jeep Comanche - Goes where the 7 can't
MaczPayne is online now   Reply With Quote
Old 10-07-09, 02:32 PM   #7
coxxoc
Shooting for 500

coxxoc's Avatar

Trader Score: (1)

Join Date: Jan 2006
Location: Bentonville, AR
Posts: 598
Quote:
Originally Posted by arghx View Post
Good writeup. Maybe I should do this to my car, I still have stock diff mount and I'm worried about breaking something. So can this install be done without loosening the subframe bolts then, depending on how much the car has been lowered? Also, did you remove your exhaust for this?
I did it with the exhaust on. My car is very low and probably directly attributed to my need to lower the subframe. Only part of the sidewall is visible on my rear tires. You can't really tell how low it is because I have a stock body.
__________________
13BRE, Streetport, Wolf3D V4, Garrett T04R .70/1.00, HKS 50MM wastegate, 850/1600, Coolingmist AI

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
coxxoc is offline   Reply With Quote
Old 10-07-09, 06:35 PM   #8
Hypertek
Me against the club

Hypertek's Avatar

Trader Score: (1)

Join Date: Jun 2006
Location: Socal
Posts: 4,125
i did mine without touching the subframe. What helps is using a dremel to make a "slot" in the stub for the bumpstop so when you have it in the hole, from the inside, you can use a flathead screwdriver to keep the stud from spinning while you tighten the bolt.
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
My car gets nervous if I take it near a junkyard...
Hypertek is offline   Reply With Quote
Old 10-07-09, 07:06 PM   #9
arghx
fast car=no money

arghx's Avatar

Trader Score: (1)

Join Date: Aug 2004
Location: Raleigh, NC
Posts: 10,610
Quote:
Originally Posted by Hypertek View Post
What helps is using a dremel to make a "slot" in the stub for the bumpstop so when you have it in the hole, from the inside, you can use a flathead screwdriver to keep the stud from spinning while you tighten the bolt.
Could you elaborate a little further? Maybe post a crude MS Paint diagram or something?
__________________
-- 1988 Rx-7 Turbo II, T04R
-- 1997 Infiniti Q45 Touring

-- RIP: 1988 Rx-7 GTU, 172rwhp all motor
-- RIP: 1989 Supra
arghx is offline   Reply With Quote
Old 10-07-09, 07:15 PM   #10
ifryrice
Sequentially broken

ifryrice's Avatar

Trader Score: (0)

Join Date: Apr 2003
Location: Wisconsin
Posts: 450
I believe he's saying to dremel a channel in the threaded stud coming out of the snubber. When you have it in the hole you drilled while tightening you can use a flat-head in the channel to keep it from rotating while tightening the nut.
ifryrice is offline   Reply With Quote
Old 10-26-09, 01:04 AM   #11
hiroichi1515
Insane Burnout

Trader Score: (9)

Join Date: Dec 2007
Location: Texas
Posts: 391
Since the pinion snubber goes over the little block on the front diff mount, it should be possible for me to install that with a broken diff mount (Rubber separated from mount) or do I have to replace the diff mount before I put that on?
hiroichi1515 is online now   Reply With Quote
Old 10-26-09, 01:23 AM   #12
SmogSUX
No money. No love.

SmogSUX's Avatar

Trader Score: (6)

Join Date: Jul 2004
Location: Chico
Posts: 2,577
Send a message via AIM to SmogSUX Send a message via MSN to SmogSUX
I had Rotary Evolution install mine..WORLD of difference. Sliding, drag racing, and even just cornering. Pretty much got rid of ALL my wheel hop. Best mod EVAR
__________________
1988 Mazda RX-7 Turbo II Anniversary Edition- HOLSET HX40 POWA!

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Zilvia=bunch of crybabies.
SmogSUX is offline   Reply With Quote
Old 10-26-09, 02:22 AM   #13
VividMP5
Spinner

VividMP5's Avatar

Trader Score: (24)

Join Date: Jan 2007
Location: Sunny Florida
Posts: 201
Nice! This is going to be on the list of things to do!
VividMP5 is offline   Reply With Quote
Old 10-26-09, 12:12 PM   #14
MaczPayne
Dirty Harry

MaczPayne's Avatar

Trader Score: (3)

Join Date: Dec 2005
Location: Riverside, SoCal
Posts: 4,593
Send a message via AIM to MaczPayne
If your rear diff bushings are worn out, be sure to replace those too.
__________________
Johnson


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
RIP 1/16/10
89 GXL/Turbo - Microtech LT8s, Stance GR+ Pro, Mandeville Big Brakes, Corbeau Buckets, Etc.
89 Jeep Comanche - Goes where the 7 can't
MaczPayne is online now   Reply With Quote
Old 10-26-09, 01:24 PM   #15
KhanArtisT
Homeland or death!

KhanArtisT's Avatar

Trader Score: (2)

Join Date: Dec 2004
Location: Northern VA
Posts: 2,807
Quote:
Originally Posted by hiroichi1515 View Post
Since the pinion snubber goes over the little block on the front diff mount, it should be possible for me to install that with a broken diff mount (Rubber separated from mount) or do I have to replace the diff mount before I put that on?
Yup, thats part of the reason why this mod is so popular. I'm running mine with a broken front diff mount (but new rear mounts) and it feels waaay better. Not perfect though, you still hear a light thud when shifting but way better than a clunk.
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"We don't do politics, we do guerrilla warfare"

-Sect of Revolutionaries
KhanArtisT is offline   Reply With Quote
Old 10-26-09, 02:16 PM   #16
fc3schick87
girls can too

fc3schick87's Avatar

Trader Score: (1)

Join Date: Jun 2007
Location: san antonio TX
Posts: 481
Send a message via AIM to fc3schick87
good post. i use this , but remember if your driving hard u may bend the metal under the bins like i did
__________________

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Quote:
"Girls can too - And Often do it better" Is far, far more accurate!

Last edited by fc3schick87; 10-26-09 at 02:33 PM.
fc3schick87 is offline   Reply With Quote
Old 10-27-09, 02:28 PM   #17
lonewolfrx
Insane Burnout

lonewolfrx's Avatar

Trader Score: (0)

Join Date: Mar 2003
Location: New Jersey
Posts: 611
Send a message via AIM to lonewolfrx
nice post.. im planning on doing this when i have free time
__________________
Projects:
87 full na bridgeport
91 t2 swap- bnr stage 1, rtek, full super now suspension, tien drift spec coilovers etc
87 t2 - future shop track car
88 t2 - build up still unknown lol
91 mr2 - beams 3sge or 3rd gen 3sgte in works - sold =(
lonewolfrx is offline   Reply With Quote
Old 10-27-09, 03:42 PM   #18
staticguitar313
R.I.P. Icemark

staticguitar313's Avatar

Trader Score: (2)

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,176
Send a message via AIM to staticguitar313
good post, did this myself about 2 years ago when i still had my FC, saved me quite a bit of agony
__________________
1993 Touring: Tan to Black interior conversion, AZRR Streetport motor, non-sequential twins, Tuned by UMS. Daily driven.
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

WTB: DS A-pillar, working gauge cluster, black plastic hardware for sunvisors.
staticguitar313 is offline   Reply With Quote
Old 11-09-09, 12:42 AM   #19
nightridaz777
Welded Ass Hell

nightridaz777's Avatar

Trader Score: (1)

Join Date: Feb 2008
Location: Where Gangbangers Reside, CA
Posts: 365
Send a message via AIM to nightridaz777
yeah just did this mod myself. feels wayy better. took away all wheel hop.
__________________
1987 GXL (Drift Machine!)
1989 GTU (Daily Driver)
1986 Base Model (Stripped And Junked)


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
nightridaz777 is online now   Reply With Quote
Old 11-09-09, 08:12 AM   #20
arghx
fast car=no money

arghx's Avatar

Trader Score: (1)

Join Date: Aug 2004
Location: Raleigh, NC
Posts: 10,610
I'm having trouble motivating myself to get started on this. I just did a bunch of work to my interior and I don't want to pull those storage bins out and risk braking more plastic.
__________________
-- 1988 Rx-7 Turbo II, T04R
-- 1997 Infiniti Q45 Touring

-- RIP: 1988 Rx-7 GTU, 172rwhp all motor
-- RIP: 1989 Supra
arghx is offline   Reply With Quote
Old 11-09-09, 09:36 AM   #21
solareon
No Life.

Trader Score: (1)

Join Date: Mar 2008
Location: VA Beach
Posts: 758
removing the storage bins won't break any plastic. it's all screws and no snap fit crap
__________________
87 T2 - Streetport, BNR Stage 2, RB Rev TII, Rtek 2.1, 720/1000 Injectors - 323hp/294tq - SOLD
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


90 GXL - Streetported. RB headers, presilencer, and cat back. Rtek 2.0 and HKS air filter.
solareon is offline   Reply With Quote
Old 11-09-09, 07:27 PM   #22
tigerbite
Haltech Sprint RE soon!

tigerbite's Avatar

Trader Score: (0)

Join Date: Jul 2007
Location: Sweetness, MN
Posts: 76
I am going to do this mod soon. What is the estimated time to do this mod? Maybe 3 hours?
tigerbite is offline   Reply With Quote
Old 11-09-09, 09:58 PM   #23
ForsakenRX7
zoom zoom go boom

ForsakenRX7's Avatar

Trader Score: (0)

Join Date: Oct 2001
Location: Ft Walton Bch, FL
Posts: 919
Send a message via AIM to ForsakenRX7
If that. With everything laid out it should be a quick job. This is a necessary mod though.
__________________
1996 Mustang GT
ForsakenRX7 is offline   Reply With Quote
Old 11-09-09, 10:23 PM   #24
turboIIrotary
All out Freak!

Trader Score: (2)

Join Date: Feb 2007
Location: dayton,ohio
Posts: 1,572
is this the same on a vert?
turboIIrotary is offline   Reply With Quote
Old 11-10-09, 12:21 AM   #25
nightridaz777
Welded Ass Hell

nightridaz777's Avatar

Trader Score: (1)

Join Date: Feb 2008
Location: Where Gangbangers Reside, CA
Posts: 365
Send a message via AIM to nightridaz777
took me less than a hour to do the mod.(most of the time it was finding the right size spacer)
__________________
1987 GXL (Drift Machine!)
1989 GTU (Daily Driver)
1986 Base Model (Stripped And Junked)


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
nightridaz777 is online now   Reply With Quote


Reply

Tags
aim9, bump, drag, energy, fc3s, installation, installed, photo, pictures, pinion, racing, snub, snubber, stop, suspension

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Forum Jump


All times are GMT -5. The time now is 01:01 AM.
All content Copyright © 2007 by Internet Brands, Inc.

Contact Us - RX7Club.com - Archive - Advertising - Privacy Policy - Terms of Use - Jobs -
Top
