Stock chassis FB Street Machine
04-23-11, 04:53 PM
#27
brappppp brappppp
iTrader: (4)
Join Date: Oct 2009
Location: everwet washington
Posts: 347
Likes: 0
Received 0 Likes
on
0 Posts
second run today sorry, for the sound clip cheap camera http://www.youtube.com/watch?v=jND-kzwKPDA
04-23-11, 05:03 PM
#29
Rotary Freak
04-23-11, 08:23 PM
#30
brappppp brappppp
iTrader: (4)
Join Date: Oct 2009
Location: everwet washington
Posts: 347
Likes: 0
Received 0 Likes
on
0 Posts
mid 14 smoking the tires to half track and having a lot of problems with the trans. not shifting well at 11k.......gonna have to modify that to shift good at high rpm's
04-24-11, 02:35 AM
#31
Rotary Freak
Before doing anything to the trans he needs to stop spinning. Once he hooks up, then it will be easier to shift.
04-24-11, 11:45 AM
#32
Thanks for thie tips Judge Ito. I think the next step will have to be a wider tire at lower pressure. The tires right now are M/T 26x8. I was also experiencing some right side wheel hop on the burnout. I'll try the eibachs on the rear as they have a stiffer spring rate.
Here is another view...
http://www.facebook.com/video/video....50170563794266
Here is another view...
http://www.facebook.com/video/video....50170563794266
05-07-11, 06:43 PM
#33
Today I installed a gilmer drive belt to take care of the belt slippage, and ordered 1/2" Heim joints to build the lower links to adjust pinion angle. Tomorrow its off with the rubber bushings on the upper links.
I think that will be it for this weekend.
I think that will be it for this weekend.
09-26-11, 11:03 AM
#34
SOrry for the delay but the Army has me kind of busy lately. Everything hs been installed and beefed up. Trans is behaving better with help from Judge Ito and we finally got it on the dyno before I deploy next month.
Here is the run, The car made 160 @ 10K with perfectly linear output, so we took it to 11,200 and saw that it made 180 with no signs of dropping off. Now it's time to work intake and exhaust to bring the "curve" into the useable range.
https://www.rx7club.com/showpost.php...7&postcount=52
send comments of suggestions please as I don't have much time left.
Here is the run, The car made 160 @ 10K with perfectly linear output, so we took it to 11,200 and saw that it made 180 with no signs of dropping off. Now it's time to work intake and exhaust to bring the "curve" into the useable range.
https://www.rx7club.com/showpost.php...7&postcount=52
send comments of suggestions please as I don't have much time left.
09-26-11, 04:37 PM
#35
Rotary Freak
SOrry for the delay but the Army has me kind of busy lately. Everything hs been installed and beefed up. Trans is behaving better with help from Judge Ito and we finally got it on the dyno before I deploy next month.
Here is the run, The car made 160 @ 10K with perfectly linear output, so we took it to 11,200 and saw that it made 180 with no signs of dropping off. Now it's time to work intake and exhaust to bring the "curve" into the useable range.
https://www.rx7club.com/showpost.php...7&postcount=52
send comments of suggestions please as I don't have much time left.
Here is the run, The car made 160 @ 10K with perfectly linear output, so we took it to 11,200 and saw that it made 180 with no signs of dropping off. Now it's time to work intake and exhaust to bring the "curve" into the useable range.
https://www.rx7club.com/showpost.php...7&postcount=52
send comments of suggestions please as I don't have much time left.
09-27-11, 03:09 PM
#38
13B
Join Date: Dec 2006
Location: cali/kansas
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
06-03-13, 09:15 AM
#41
Car is running 12psi on a hybrid S5 turbo.
AFR was 12.1 crossed the line in 4th gear @ 10,100RPM
I speced it out and there is no way these guys put the right gear in this diff when I ordered it. I asked for 5.13:1 but It is more like a 7.00:1
AFR was 12.1 crossed the line in 4th gear @ 10,100RPM
I speced it out and there is no way these guys put the right gear in this diff when I ordered it. I asked for 5.13:1 but It is more like a 7.00:1
Last edited by ArmyOfOne; 06-03-13 at 09:15 AM. Reason: spelling...lol.
06-05-13, 09:01 AM
#42
Pop the cover off and count the teeth on the ring gear and pinion. Then you'll know for sure. But the last time i checked,. 6.3 is the lowest ratio they make for the 8.8 and it takes modification.
Planning on going back to all motor? What's the car weigh race ready?
Planning on going back to all motor? What's the car weigh race ready?
06-09-13, 12:13 PM
#43
Sticking with Turbo for now, the N/A thing was so frustrating I just needed a break. This thing is my personal test mule so I will just build it so it is certified to run 10s and we can just swap setups around in there as we see the need for testing.
Next setup is GT35, 50mm WG, just need a better fuel pump for this carbed setup since the Holley Blue maxes out at 17-19psi. I need something that will hit at least 32 to keep up with the larger turbo.
Race weight is 2250, 3/4 tank of gas, with me in it.
Next setup is GT35, 50mm WG, just need a better fuel pump for this carbed setup since the Holley Blue maxes out at 17-19psi. I need something that will hit at least 32 to keep up with the larger turbo.
Race weight is 2250, 3/4 tank of gas, with me in it.
08-19-13, 10:51 AM
#45
Gears installed, Turbo installed, recieved Aeromotive A1000, Waiting for fuel Cell, Filter and -10 AN Filter Feed and Fuel Cell hardware. Roll bar is going in in the next couple of weeks. Not sure If I should just clear coat the metal or paint metallic black.

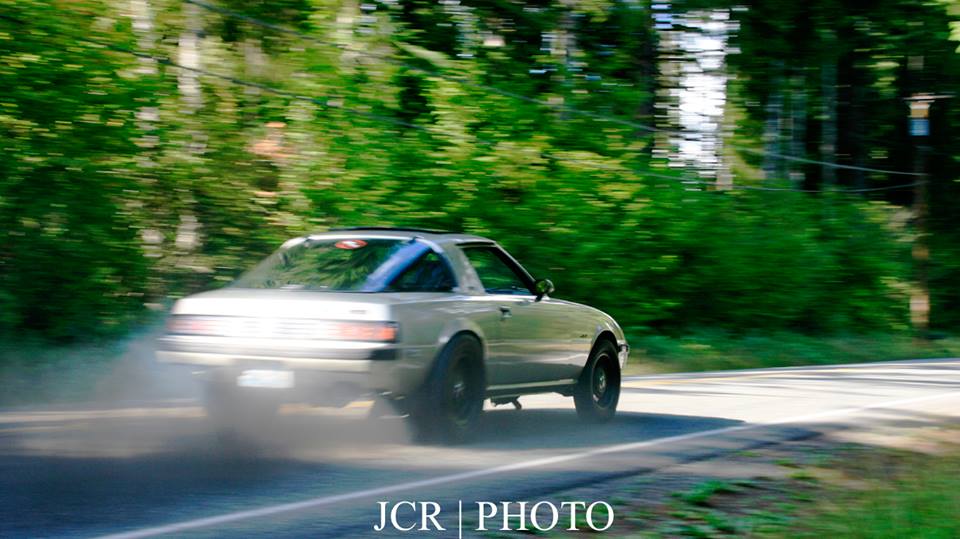

Here is a pic my son shot up at Lloyd's meet in Carnation, WA this weekend. It will be on the track next month for sure...
BTW is that much dark smoke normal on launch, the car left no tire marks but a heavy fuel streak!
Here is a pic my son shot up at Lloyd's meet in Carnation, WA this weekend. It will be on the track next month for sure...
BTW is that much dark smoke normal on launch, the car left no tire marks but a heavy fuel streak!
09-01-13, 02:10 PM
#46
I will be working on installing the fuel system this week, 12 Gallon fuel cell, -10 AN fed 100 micron filter, A1000 fuel pump, down to -8 AN hardline, 4309 low pressure regulator (will swap in Aeromotive HP with fuel injection later) and return is 1/2" hardline.
Smoke under load is dark gray, can it be too rich or is that premix?
Smoke under load is dark gray, can it be too rich or is that premix?
12-17-13, 11:31 PM
#47

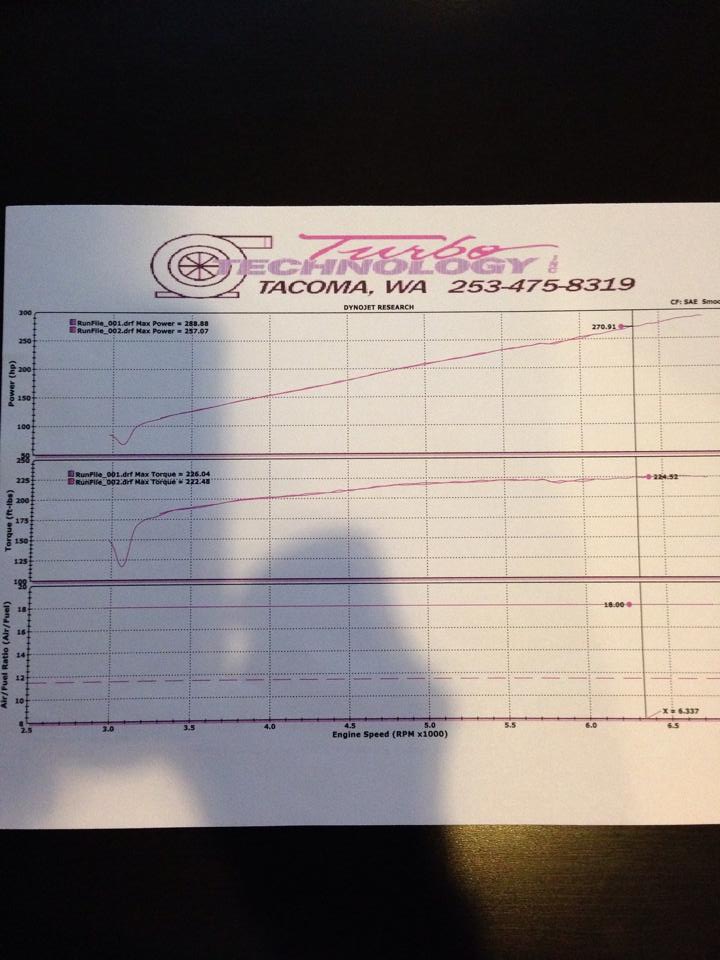

Dyno baseline before going fuel injection
Car made 288hp and 225 tq @ 6800 RPM.
On the first run we stopped because the 02 sensor was not picking up AFR, I still had another 2000RPM to go. As linear as the graph was it would have gone over 300. Aborted the second run at 6K because oil started spraying out from the oil pedestal sandwich plate!
On the first run we stopped because the 02 sensor was not picking up AFR, I still had another 2000RPM to go. As linear as the graph was it would have gone over 300. Aborted the second run at 6K because oil started spraying out from the oil pedestal sandwich plate!
12-18-13, 05:47 AM
#48
pushing s##t up hill
It does look like fuel smoke , mine blows twice as much though haha , what were your temps like when that pic was taken , as mine made a massive difference when it was fully warm , compared to fired up and idling for a short time .
The dyno runs sound like they would have been the expected result for that boost level and setup , shame about the little dramas but best it was found on the dyno and not at a event !
The dyno runs sound like they would have been the expected result for that boost level and setup , shame about the little dramas but best it was found on the dyno and not at a event !
12-18-13, 12:39 PM
#49
Proof!
I know we don't believe word of mouth around here so here you go...
Link to the video
https://www.facebook.com/photo.php?v=10151624606039159
Link to the video
https://www.facebook.com/photo.php?v=10151624606039159
