ultimatejay

iTrader: (1)

[QUOTE=MOBEONER;10411897]I will be using all FD engine parts, except the rotors and e-shaft.

Trots*88TII-AE*

iTrader: (11)

machined 2mm Renesis maybe?

tearbo2

iTrader: (2)

Understatement

r100 repu

iTrader: (1)

nice carb what size chocks are you going with thinking about the same carb for my r1 13bpp im also running 51ida think its too small though ok for the bridge that i ran b4

Judge Ito

Jay, there is nothing like fuel injection. chuck that webber and get a 62mm TWM THROTTLE BODY..

sen2two

iTrader: (10)

Or a set of slide throttle bodies... No butterfly in the way

Pure uninterupted air flow.

ultimatejay

iTrader: (1)

I'm not sure yet. I will start with a smaller one and go from there.


I know, but like I said, I'm already set up for this carb and I got a killer deal. Plus I want to prove that you can still go fast with a carb. I will eventually go to fuel injection, but we'll see.

I got my own ideas, but I can't share yet.

sen2two

iTrader: (10)

uh oh... You know your going "Pro" when everything becomes a secret...lol

I have a sneak peak at a set of slide TB's that are purpose built for peripheral motors.

CBR

Looks cool jay, we just got bro inlaws meth inj 13b going the other night so now have a bit of a bug for this na stuffhave any you guys run them with plenium and big single throttle? Thats what we put on Pauls as cheap for us to make over buying itb'ssound beutiful tho which surprised me, be on dyno in couple of weeks be interested to see what others have found doing it this way?
What does your car weigh?

brent

enzo250

Brent. Thats cool that you are doing that. It'll be interesting to see how you make out..

I believe you should make good HP with a single throttle body. I remember testing the mopar all motor drag car years ago and overall HP was pretty much the same between itb's and plenum..

CBR

thats what Im hoping Enzo,figure at wide open throttle is the same bar has no shaft interupting ****.Just see everyone using big $ itb's and thought there must be a reason?I havent played much na stuff,I meen I have done heaps of 240-250whp weber/small efi stuff but nothing cool apart from big revver track car not long ago.never done the na meth thing too,but already seeing good things,whole plenium and runners are frozen
Im interested to see how you go with that big carb Jay,how much are they?and do they take the wbere jets?
brent

ultimatejay

iTrader: (1)

Now who would wan't to do that.....

Right now with the 12a and me in the car it weighs 1910lbs



Here's my new flywheel and clutch setup. The guy who makes the Terminator II carbs also makes these bitchin flywheel clutch setups. www.geersengineering.com
Call him for prices on both. He has N/A and TII flywheels and has single and dual clutch setups to your specs. This setup is very similar to the Mcleod setup but is more reasonable. He actually uses the Mcleod diaphrams as you can see. And Brent yes, the TII uses all Weber IDA jets and emulsion tubes.

natothegreato

iTrader: (1)

o wow... good luck man. keep us all up to date on the build and hope u crack open the single digits!

ultimatejay

iTrader: (1)

Ok small update. I had a little set back because whoever had the car before me butchered the front subframe motor mount plates. There was a 2"x2" hole for the motor mount bolt! So I removed the subframe and welded on two new plates and moved the engine back as far as I could for weight transfer and clearance of the oil pan and re drilled the holes. She's tight as a virgin now. Also, the rubber crap between the subframe and body of the car was wasted so I tossed that crap and made some aluminum one's. This took alot of time becasue the studs on the body were not square.

On top of all that the adaptor plate that Liberty sent back with the new re drilled holes for a TII bellhousing is ify. The new holes that they re drilled are very very close to the old one's and my father being an engineer and all said he doesn't like it and want's Liberty to make a new one. So we'll see how that flies- Enzo, I may end up buying yours-check your pm.

So now I will be starting to cut the trans tunnel out so this beast of a trans. will fit.

ultimatejay

iTrader: (1)

Ok, I got the trans. tunnel cut out for the new Liberty. Wish I had a plasma cutter instead of my cuttoff wheel. This would have saved me about 3 hours! It's hard to see from the pic but you can see all the holes in the adaptor plate. There are several holes that are really close to one anther. One was .020" from the other.


And here's the picture of my motor mounts and if you look closely the aluminum spacers between the subframe and body. All in all I got alot done this weekend. Should have the trans. installed next weekend. Then I have to make a new transmission crossmember, tans. tunnel cover and shorten the driveshaft and then finally I will be ready to hit the track.

datsun1200

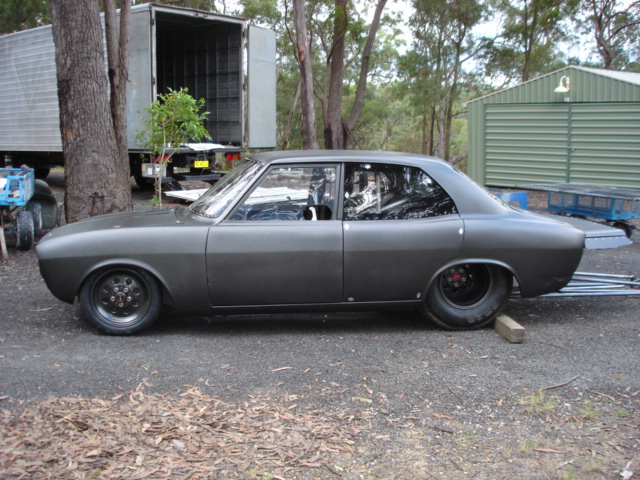

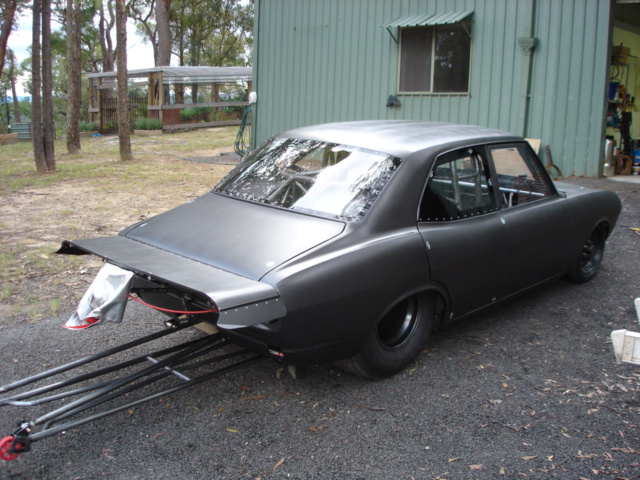

hay when is you car going to look like this????

ultimatejay

iTrader: (1)

Probably never because I run in a stock chassis all motor class. That is a very nice looking RX2 though. Do you have any info on it? And what's wrong with the way my RX2 looks?

teddyrx2

iTrader: (33)

nice and good luck this year bro

ultimatejay

iTrader: (1)

Thanks Teddy you too.

Update- I finally got my second adaptor plate yesterday and my new motor mount so the transmission will be installed this weekend. Then I have to make a crossmember and then get my driveshaft shortened with the new yoke and them I'm ready to hit the pavement again finally.

Judge Ito

ur ahead of the game as far as this season already..

C. Ludwig

iTrader: (27)

Sent you a PM with some clutch/flywheel questions, Jay.

rXc3|\|tR1c

Looking good mate, keep up the good work

The Grey RX2 is a Sydney car, 13BPPT from memory. Can't remember the blokes name offhand (Michael ...) but he owned another car that was in the SDR stable before this one.

Also on the carb front (for everyone else as I'm sure I spotted you in the thread Jay), Axe Racing ran a 10.4 something a few weeks ago with a TII carb, not stock chassis though but the fastest NA 13B pass in Oz.

Tone

n0ferz

iTrader: (4)

Wow Jay, you are going to run some serious #'s now

Good luck bro and keep giving em hell!!!

ultimatejay

iTrader: (1)

I hope so because I feel like I'm behind.

Yeah, but I thought the Axe car ran a 10.29?

Thanks and I will for sure!

rXc3|\|tR1c

Yeah, 10.2 forgot about that pass later in the vid.

Tone
