Purchase a new clutch for my fd????
09-07-13, 01:39 PM
#1
Purchase a new clutch for my fd????

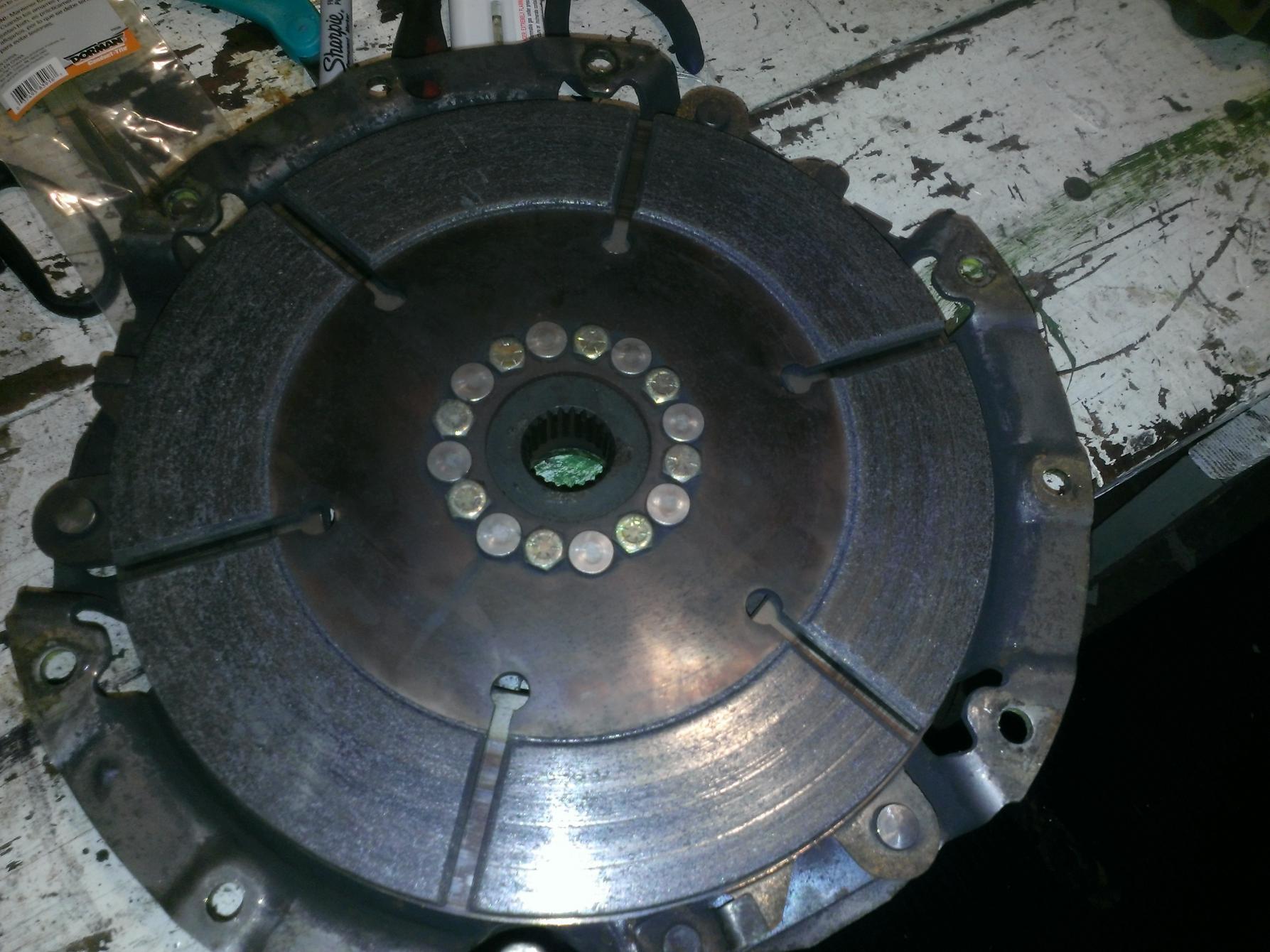

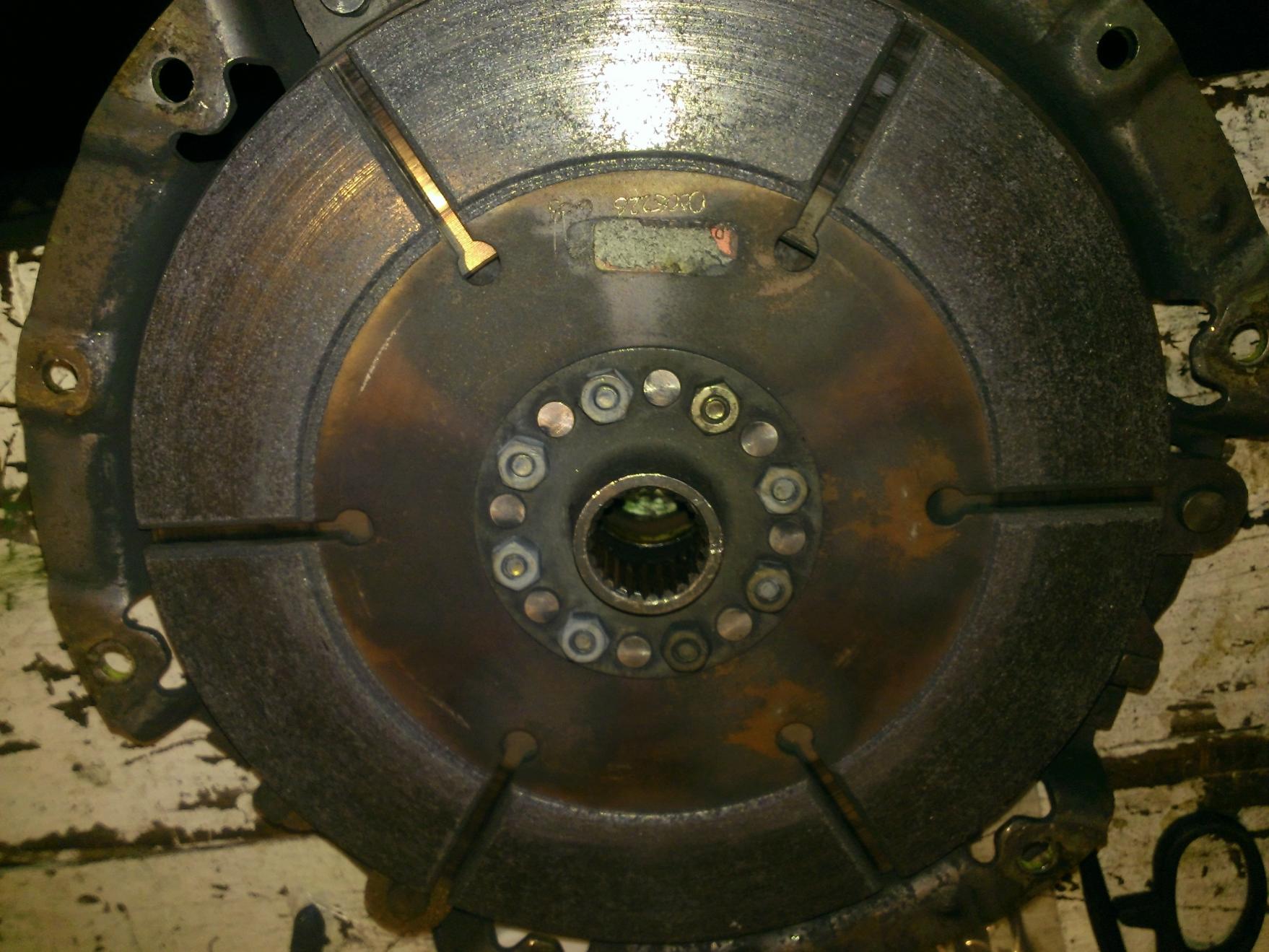

Well I just bought a Act pressure plate with a solid full ceramic disk clutch and have never seen this clutch before. Thought Id ask you guys first since it was used for drag racing? This clutch is pretty beefy and heavy as well. The part numbers is very hard to read so I'm stumped. Regardless its in great shape and I plan to use it for my FD since I'm into bracket racing need something that can hold up to the task. Any input will be appreciated.
09-07-13, 02:07 PM
#2
May actually be a RAM disk. Do you see the numbers 5135 on it? If so, it's a RAM. This thread outlines the differences pretty well. https://www.rx7club.com/rotary-drag-...sk-fd-1008973/
We just got a new RAM. They don't list a 9.5" disk on their site, but they put one together for us with a Chevy 26-spline. No additional cost for the non-off-the-shelf part. It was $190 to our door.
We just got a new RAM. They don't list a 9.5" disk on their site, but they put one together for us with a Chevy 26-spline. No additional cost for the non-off-the-shelf part. It was $190 to our door.
09-07-13, 03:46 PM
#5
Well doing some research looks like this is a overkill for my car. Since I'm using a stock synchro tranny it sounds like these clutches don't help with fast shifting. They also need to be shimmed since the pad is thicker might just sell the clutch and down grade not sure.
09-07-13, 04:10 PM
#6
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
Yep that looks like a ram (I've had 2)

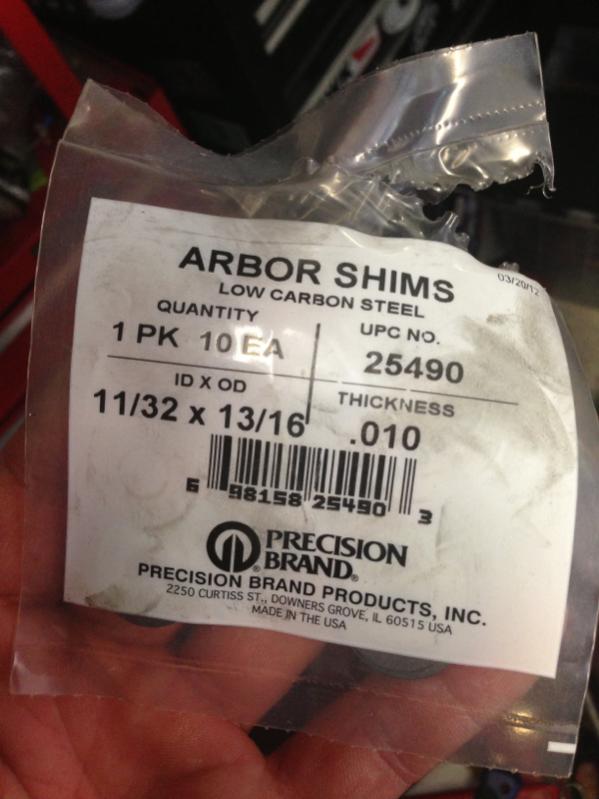

On brand new press plate yea you will need to shim, to much thickness = too much preload and takes clutch out of sweet spot for peak pressure, mc master car sells shins, think .065 was correct thickness to shim off the bat.
I just went all new this year with clutch and to get the diaphr to sit correct it needed .080
But the beauty is now that it all worn in, I can start stepping down shims and have full clutch life to wear down (compared to act/stock thickness)
Easy to change through clutch window
But if your using a used pp/ not resurfed fw chances are you don't need to shim, last year my end of season disk replacement didn't need any shims
Will shift fine on syncros, it's not the clutch but the syncro's that limit you
On brand new press plate yea you will need to shim, to much thickness = too much preload and takes clutch out of sweet spot for peak pressure, mc master car sells shins, think .065 was correct thickness to shim off the bat.
I just went all new this year with clutch and to get the diaphr to sit correct it needed .080
But the beauty is now that it all worn in, I can start stepping down shims and have full clutch life to wear down (compared to act/stock thickness)
Easy to change through clutch window
But if your using a used pp/ not resurfed fw chances are you don't need to shim, last year my end of season disk replacement didn't need any shims
Will shift fine on syncros, it's not the clutch but the syncro's that limit you
09-07-13, 04:31 PM
#7
Yep that looks like a ram (I've had 2)
On brand new press plate yea you will need to shim, to much thickness = too much preload and takes clutch out of sweet spot for peak pressure, mc master car sells shins, think .065 was correct thickness to shim off the bat.
I just went all new this year with clutch and to get the diaphr to sit correct it needed .080
But the beauty is now that it all worn in, I can start stepping down shims and have full clutch life to wear down (compared to act/stock thickness)
Easy to change through clutch window
But if your using a used pp/ not resurfed fw chances are you don't need to shim, last year my end of season disk replacement didn't need any shims
Will shift fine on syncros, it's not the clutch but the syncro's that limit you
On brand new press plate yea you will need to shim, to much thickness = too much preload and takes clutch out of sweet spot for peak pressure, mc master car sells shins, think .065 was correct thickness to shim off the bat.
I just went all new this year with clutch and to get the diaphr to sit correct it needed .080
But the beauty is now that it all worn in, I can start stepping down shims and have full clutch life to wear down (compared to act/stock thickness)
Easy to change through clutch window
But if your using a used pp/ not resurfed fw chances are you don't need to shim, last year my end of season disk replacement didn't need any shims
Will shift fine on syncros, it's not the clutch but the syncro's that limit you
Trending Topics
09-08-13, 11:05 AM
#8
IRS 4 Life
iTrader: (12)
Join Date: Feb 2001
Location: Sicklerville, South Jersey!!
Posts: 2,634
Likes: 0
Received 2 Likes
on
2 Posts
ok, so when you see .062- .065 your gonna be like really, that makes a difference
heres my clutch setup 201, its all about the fins of the diaphram, they should be perpendicularly flat, not in not out
if you install all new stuff the fins will be pushed out, (throw out retainer) , if its right it the fins will sit flat
tough to describe typing, but if the disk is thicker than the sweet spot of the clutch (.315 new to .270 replace) so the sweet spot is .045 of a inch, so now that .062 shim can make the world of difference
so it depends how worn flywheel is, and how worn pressure plate is,but once you install it without shims, the fins will tell you if you need shims, theoretically once you have the math really the disk thickness can give you your base line for shim setup.
all i shim is the bolts, not the pins, this way you don't have to fully remove clutch to change shims down the road. like you can loosen all 6 bolts through inspection window, then remove one bolt at a time and change shims.
but initall setup not as hard as it sounds, just buy a few thicknesses so you can make a few thicknesses
heres my clutch setup 201, its all about the fins of the diaphram, they should be perpendicularly flat, not in not out
if you install all new stuff the fins will be pushed out, (throw out retainer) , if its right it the fins will sit flat
tough to describe typing, but if the disk is thicker than the sweet spot of the clutch (.315 new to .270 replace) so the sweet spot is .045 of a inch, so now that .062 shim can make the world of difference
so it depends how worn flywheel is, and how worn pressure plate is,but once you install it without shims, the fins will tell you if you need shims, theoretically once you have the math really the disk thickness can give you your base line for shim setup.
all i shim is the bolts, not the pins, this way you don't have to fully remove clutch to change shims down the road. like you can loosen all 6 bolts through inspection window, then remove one bolt at a time and change shims.
but initall setup not as hard as it sounds, just buy a few thicknesses so you can make a few thicknesses
09-08-13, 12:40 PM
#9
ok, so when you see .062- .065 your gonna be like really, that makes a difference
heres my clutch setup 201, its all about the fins of the diaphram, they should be perpendicularly flat, not in not out
if you install all new stuff the fins will be pushed out, (throw out retainer) , if its right it the fins will sit flat
tough to describe typing, but if the disk is thicker than the sweet spot of the clutch (.315 new to .270 replace) so the sweet spot is .045 of a inch, so now that .062 shim can make the world of difference
so it depends how worn flywheel is, and how worn pressure plate is,but once you install it without shims, the fins will tell you if you need shims, theoretically once you have the math really the disk thickness can give you your base line for shim setup.
all i shim is the bolts, not the pins, this way you don't have to fully remove clutch to change shims down the road. like you can loosen all 6 bolts through inspection window, then remove one bolt at a time and change shims.
but initall setup not as hard as it sounds, just buy a few thicknesses so you can make a few thicknesses
heres my clutch setup 201, its all about the fins of the diaphram, they should be perpendicularly flat, not in not out
if you install all new stuff the fins will be pushed out, (throw out retainer) , if its right it the fins will sit flat
tough to describe typing, but if the disk is thicker than the sweet spot of the clutch (.315 new to .270 replace) so the sweet spot is .045 of a inch, so now that .062 shim can make the world of difference
so it depends how worn flywheel is, and how worn pressure plate is,but once you install it without shims, the fins will tell you if you need shims, theoretically once you have the math really the disk thickness can give you your base line for shim setup.
all i shim is the bolts, not the pins, this way you don't have to fully remove clutch to change shims down the road. like you can loosen all 6 bolts through inspection window, then remove one bolt at a time and change shims.
but initall setup not as hard as it sounds, just buy a few thicknesses so you can make a few thicknesses
