Talking Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing

Has anyone tried the fitment for the three different tires?

I know for certain the 255/50/16 Mickey Thompson ET Street II Radials fit the stock wheels and rear quarters with no modification on a lowered car but will rub the top of the wheel well if too low.

I want to know if the 26x11.5-16 ET Street bias-ply tires will fit under the quarters as well. The dimensions are very similar to the 255/50/16 Radials and are even the same model# under Mickey Thompson's site but just have a R designating the radial tire.

The dimensions are posted below. What do you guys think? Does anyone have experience with it? Maybe some pictures? Thanks a ton guys. Oh and sorry if this is a repost, I haven't found anything (maybe bad searching).

Model# 3792
Tire Size 26 x 10.50-16
Wheel Diameter 16 in.
Sidewall Style Blackwall
Tire Construction Bias-ply
Directional No
Tire Diameter 25.90 in.
Section Width 10.30 in.
Tread Width 8.40 in.
Technically a 255/50/16

Model# 3793
Tire Size 26 x 11.50-16
Wheel Diameter 16 in.
Sidewall Style Blackwall
Tire Construction Bias-ply
Directional No
Tire Diameter 26.20 in.
Section Width 10.80 in.
Tread Width 9.70 in.
Technically a 275/50/16 although they're similar in size as the radials 255/50/16

Model# 3793R
Tire Size 255/50-16
Wheel Diameter 16 in.
Sidewall Style Blackwall
Tire Construction Radial
Directional Yes
Tire Diameter 26.00 in.
Section Width 10.50 in.
Tread Width 9.60 in.
__________________
Aaron - E85 GTX42R @ 28psi street driven FD
Copeland is offline   Reply With Quote
Old 11-10-11, 02:56 PM   #2
4th string e-armchair QB
5 Year Member

Trots*88TII-AE*'s Avatar

Trader Score: (11)

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,748
FD or FC?

I have the 26x11.5x16 ET streets mounted to FD rims on the back of my FC with a spacer. All they needed was a pull/roll on the fender. I'm quite sure others have had them on an FD without a problem. The 26x11.5x16 measure just aroud 10" in tread, and fit pretty much identically as my 275/40r17 street tires (not DR's though). Never tried the 255 DR's, but I'd go with the 275's if you want to go radials. However, if you are using stock FD wheels, go with the ET Streets, not only are they better for launching at the track, but I'm not sure DR's would maintain a nice flat contact patch on an under-sized wheel vs. the bias-ply tires.
__________________
Quote:
Originally Posted by beefcake View Post
she said the flames were up the wall in the kitchen , i **** me dacks
Trots*88TII-AE* is offline   Reply With Quote
Old 11-10-11, 03:52 PM   #3
Obsessed?
5 Year Member

Copeland's Avatar

Trader Score: (35)

Join Date: Sep 2006
Location: Raleigh, NC
Posts: 1,056
Yeah it's for a FD. I'm using stock wheels as well. Thanks for your reply, I found a set of used 11.5's so I just wanted to be sure they would fit.
__________________
Aaron - E85 GTX42R @ 28psi street driven FD
Copeland is offline   Reply With Quote
Old 11-11-11, 11:18 AM   #4
No Life.
5 Year Member

tom94RX-7's Avatar

Trader Score: (5)

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,476
Send a message via Yahoo to tom94RX-7
I've ran the radials, they are really heavy and slowed my car down, then the 10.5s which are a much better choice of those two. I should have bought the 11.5s when I had to buy another set recently, I've read they do fit.
__________________
10.39 @ 131.9 mph 1.39 60ft. 133.5 best mph. T04R 528 HP 428 ft/lbs 23-24 psi.
10.87 @ 128.90 mph record on non seq. stock twin turbos with 411 HP at 18 psi and 386 ft/lbs at 21 psi. streetported motor by djseven. 2560 lbs.
MODS LIST, Pics, videos, time slips & dyno sheet
tom94RX-7 is offline   Reply With Quote
Old 11-11-11, 11:37 AM   #5
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
The 11.5s will fit. Required some careful choice of wheels. That said, this car is in the 700hp range and I feel that the 11.5 is too much tire for it.


Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 11:51 AM   #6
No Life.
5 Year Member

tom94RX-7's Avatar

Trader Score: (5)

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,476
Send a message via Yahoo to tom94RX-7
Too much tire for 700hp?
__________________
10.39 @ 131.9 mph 1.39 60ft. 133.5 best mph. T04R 528 HP 428 ft/lbs 23-24 psi.
10.87 @ 128.90 mph record on non seq. stock twin turbos with 411 HP at 18 psi and 386 ft/lbs at 21 psi. streetported motor by djseven. 2560 lbs.
MODS LIST, Pics, videos, time slips & dyno sheet
tom94RX-7 is offline   Reply With Quote
Old 11-11-11, 12:26 PM   #7
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
The long story...

The car is using an ACT light flywheel. The heavier of the two they offer. We've launched the car at 8k with 18psi and it either bites and goes (decently) or bogs. Even when it does not completely bog, the best 60 ft times are 1.6s. Nothing to write home about. From discussions I've had with a few people, it seems the inertia of a much heavier flywheel would help us here. Either that, or a smaller tire (less bite). Once it's passed 60 ft, that big, heavy tire is pretty much along for the ride anyway.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 12:39 PM   #8
No Life.
5 Year Member

tom94RX-7's Avatar

Trader Score: (5)

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,476
Send a message via Yahoo to tom94RX-7
Or maybe more tire pressure to get a little tire spin? What tire pressures?
__________________
10.39 @ 131.9 mph 1.39 60ft. 133.5 best mph. T04R 528 HP 428 ft/lbs 23-24 psi.
10.87 @ 128.90 mph record on non seq. stock twin turbos with 411 HP at 18 psi and 386 ft/lbs at 21 psi. streetported motor by djseven. 2560 lbs.
MODS LIST, Pics, videos, time slips & dyno sheet
tom94RX-7 is offline   Reply With Quote
Old 11-11-11, 01:03 PM   #9
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Think we've run them as high as 15 or 16 psi. Car never made it to the track this year, so I'm a bit sketchy on the details. I know we pumped them up enough where I started saying it's just too much tire.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 01:34 PM   #10
4th string e-armchair QB
5 Year Member

Trots*88TII-AE*'s Avatar

Trader Score: (11)

Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,748
You guys are 2-stepping it at 8K/18psi and it's still bogging?
__________________
Quote:
Originally Posted by beefcake View Post
she said the flames were up the wall in the kitchen , i **** me dacks
Trots*88TII-AE* is offline   Reply With Quote
Old 11-11-11, 01:46 PM   #11
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Quote:
Originally Posted by Trots*88TII-AE* View Post
You guys are 2-stepping it at 8K/18psi and it's still bogging?

Yep.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 01:59 PM   #12
No Life.
5 Year Member

tom94RX-7's Avatar

Trader Score: (5)

Join Date: Apr 2005
Location: Pittsburgh, PA
Posts: 1,476
Send a message via Yahoo to tom94RX-7
There is an old thread about Ernie overpowering the 10.5s with about 700 hp and people suggested the 11.5s . Were you slipping the clutch a little? That always worked better, or tilton flow control valve.
__________________
10.39 @ 131.9 mph 1.39 60ft. 133.5 best mph. T04R 528 HP 428 ft/lbs 23-24 psi.
10.87 @ 128.90 mph record on non seq. stock twin turbos with 411 HP at 18 psi and 386 ft/lbs at 21 psi. streetported motor by djseven. 2560 lbs.
MODS LIST, Pics, videos, time slips & dyno sheet
tom94RX-7 is offline   Reply With Quote
Old 11-11-11, 02:33 PM   #13
All out Freak!
10 Year Member

papsmagu's Avatar

Trader Score: (16)

Join Date: Sep 2004
Location: South Florida
Posts: 2,884
i would go with 10.5's. i run them and have pretty consistent 60' times. i have talked to people that have run them both and unless your car has alot of power, you should stay away from the 11.5's. many have reported slower 60' times with the 11.5's but again it depends on your set up.
papsmagu is offline   Reply With Quote
Old 11-11-11, 02:56 PM   #14
Insane Burnout
5 Year Member

MR.45's Avatar

Trader Score: (0)

Join Date: Jan 2005
Location: Orlando
Posts: 294
Quote:
Originally Posted by C. Ludwig View Post
Think we've run them as high as 15 or 16 psi. Car never made it to the track this year, so I'm a bit sketchy on the details. I know we pumped them up enough where I started saying it's just too much tire.
8k 2step 11.5 M/T E.T. streets No Bog



http://youtu.be/hWV05U5SYYQ?t=1m8s
MR.45 is offline   Reply With Quote
Old 11-11-11, 04:35 PM   #15
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Quote:
Originally Posted by tom94RX-7 View Post
There is an old thread about Ernie overpowering the 10.5s with about 700 hp and people suggested the 11.5s . Were you slipping the clutch a little? That always worked better, or tilton flow control valve.
We've been side stepping the clutch. Car has only made maybe a dozen passes, so there's still a learning curve going on. But the situation is pretty obvious. I added a Tilton valve this year, but we haven't had a chance to test. Should be back out next spring to give it a try. I'm hopeful that it will help alot. I think a different flywheel, the Titlton valve, and the 11.5s will ultimately be a good combo. But what we have now is just not working.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 04:36 PM   #16
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Quote:
Originally Posted by MR.45 View Post
8k 2step 11.5 M/T E.T. streets No Bog

Care to share your setup? Clutch, flywheel, etc. Also a break down of that run and what the car typically runs? Thanks for any info!!!
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 04:59 PM   #17
Chasing numbers
10 Year Member

sk8world's Avatar

Trader Score: (3)

Join Date: Apr 2001
Location: Alabama
Posts: 4,998
I would just stay with the 10.5's. I was able to cut a best of 1.36 on them and that was free revs, no 2 step. Stock springs/struts, stock axles, TII diff. I am very confident they have much more in them.

Also dont be fooled.. A 11.5 tire on a 15 inch wheel (pic above) is differant than a 11.5 on a 16 wheel. Way more side wall!


By the way, nice pics C. Ludwig!
__________________
BW S482 FMW
sk8world is offline   Reply With Quote
Old 11-11-11, 06:24 PM   #18
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Quote:
Originally Posted by sk8world View Post
I would just stay with the 10.5's. I was able to cut a best of 1.36 on them and that was free revs, no 2 step. Stock springs/struts, stock axles, TII diff. I am very confident they have much more in them.

Also dont be fooled.. A 11.5 tire on a 15 inch wheel (pic above) is differant than a 11.5 on a 16 wheel. Way more side wall!


By the way, nice pics C. Ludwig!

Thanks. Wish it was my car. It looks the part. Just need to make it go like it should. Not quite the sum of it's parts yet.
C. Ludwig is online now   Reply With Quote
Old 11-11-11, 09:46 PM   #19
950@52psi
5 Year Member

JdmRX's Avatar

Trader Score: (7)

Join Date: Dec 2008
Location: Philadelphia
Posts: 194
http://www.facebook.com/#!/profile.php?id=1788164057
[QUOTE=C. Ludwig;10858116]The 11.5s will fit. Required some careful choice of wheels. That said, this car is in the 700hp range and I feel that the 11.5 is too much tire for it.


Click the image to open in full size.
QUOTE]

Could i ask whats the width and backspacing of those wheels, Im looking for a set of rear wheels for my fd
JdmRX is offline   Reply With Quote
Old 11-12-11, 02:20 AM   #20
www.lms-efi.com
10 Year Member

C. Ludwig's Avatar

Trader Score: (27)

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 4,562
Send a message via Yahoo to C. Ludwig
Quote:
Originally Posted by JdmRX View Post

Could i ask whats the width and backspacing of those wheels, Im looking for a set of rear wheels for my fd

Off the top of my head I have no idea. The owner of the car lurks the forums. Maybe he can give us a heads up. I'll ask him next time I see him.
C. Ludwig is online now   Reply With Quote
Old 11-16-11, 05:01 PM   #21
Obsessed?
5 Year Member

Copeland's Avatar

Trader Score: (35)

Join Date: Sep 2006
Location: Raleigh, NC
Posts: 1,056
I figured I would post a follow-up now that I have some tires. The 11.5's fit on stock wheels almost exactly like the 255/50R16 Street Radials do. They don't leave much room for expansion but they fit great. I attached some fitment pictures. It's a dark cloudy day so it's kind of hard to get a good shot with my phone.

Looks like they are too big...
Click the image to open in full size.

Side by side reference with the 255/50R16 (Right) and the 26x11.5x16 (Left).
Click the image to open in full size.

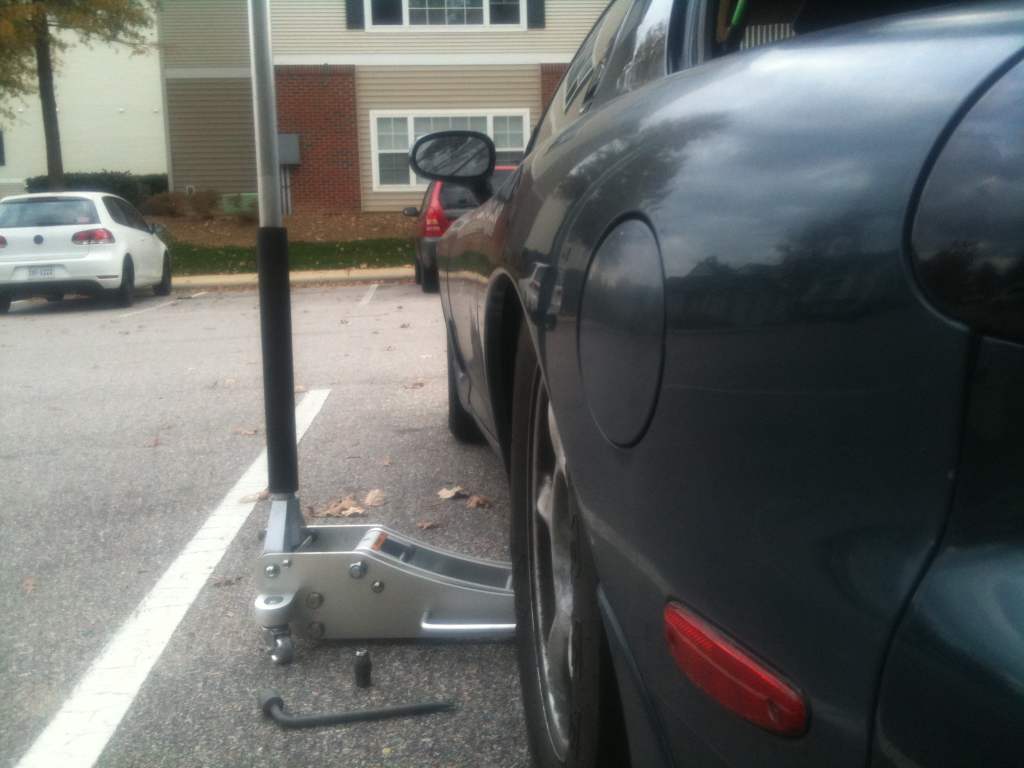

Fitment is close but it works.
Click the image to open in full size.

This is what happened to my old tires. Blew out at around 80mph, still no idea why.
Click the image to open in full size.
Attached Thumbnails
Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing-img_1638.jpg   Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing-img_1640.jpg   Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing-img_1641.jpg   Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing-img_1642.jpg   Mickey Thompson 26x11.5-16 & 26x10.5-16 ET Streets vs 255/50R16 ET Radials sizing-img_1645.jpg

__________________
Aaron - E85 GTX42R @ 28psi street driven FD
Copeland is offline   Reply With Quote
Old 08-10-14, 12:53 AM   #22
Bands will make her Dance
10 Year Member

MOBEONER's Avatar

Trader Score: (18)

Join Date: May 2004
Location: NEW YORK CITY
Posts: 3,406
Jason Perez Jason Perez Mobeoner
Send a message via AIM to MOBEONER
^^^^ because your fender cut them from the squats..
Old thread but still good one. Good info Bump
MOBEONER is offline   Reply With Quote
Old 08-15-14, 02:10 PM   #23
Committee Member #2
5 Year Member

NoPis10's Avatar

Trader Score: (27)

Join Date: Jan 2005
Location: Committe Chambers
Posts: 4,261
^^ LOL...almost 3 yrs old but like you said definitely good info......

Here is my input....

I run the 11.5's and I have cut a best 60 foot of 1.5. They helped my launch and my trap speeds.
__________________
"Driving a V8 FD is like masturbation. Feels pretty good but your definitely missing out on the best part... The Real Thing". by Red95FD
NoPis10 is offline   Reply With Quote
Old 08-15-14, 02:10 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
100, 16, 2555016, 26, 26x10516, 26x11516, 275, 50, biasply, drags, measurements, mickey, street, tall, thompson, tire

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On



All times are GMT -5. The time now is 03:41 PM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts
