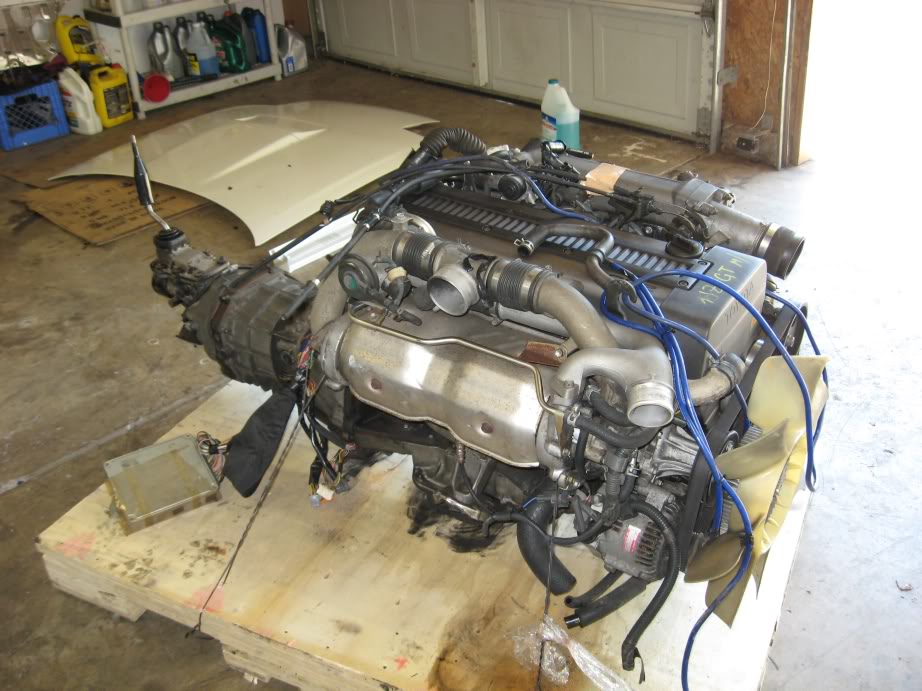

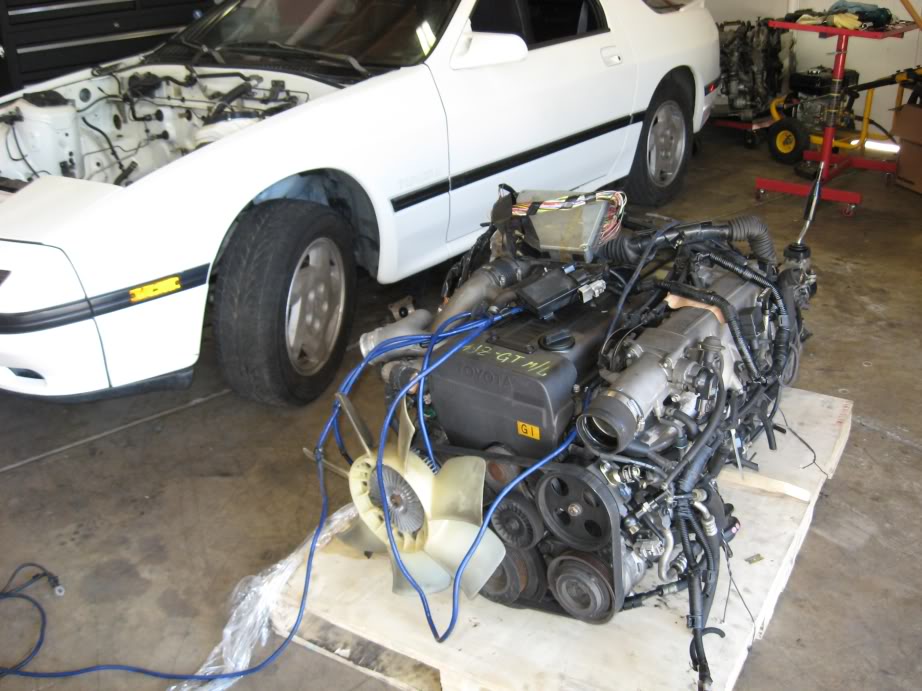

Overnight parts from japan!
Actually took about a month :/
Motor looks very good no broken sensors or shipping damage. Very complete.
Guess I wont know for sure till i start her up but compression feels great turning it over by hand
Actually took about a month :/
Motor looks very good no broken sensors or shipping damage. Very complete.
Guess I wont know for sure till i start her up but compression feels great turning it over by hand
06-19-09, 09:31 AM
#32
Senior Member
Thread Starter
Today im going to try and fab up the mounts.
Basically you need to position the motor perfectly and just make them! But getting the motor to the exact right spot can be pretty hard!
The absolute key to this step is taking your time and getting it right the first time.
On an interesting note, the way the oil pan (rear sump) fits with the subframe of the FC is beautiful. Almost like it was meant to be
Tight fit about everywhere though!
There will be more pics and a progress report later.
Basically you need to position the motor perfectly and just make them! But getting the motor to the exact right spot can be pretty hard!
The absolute key to this step is taking your time and getting it right the first time.
On an interesting note, the way the oil pan (rear sump) fits with the subframe of the FC is beautiful. Almost like it was meant to be
Tight fit about everywhere though!
There will be more pics and a progress report later.
06-20-09, 05:11 PM
#34
Senior Member
Thread Starter
Quote:
Originally Posted by rogue420 View Post
Are you gonna try to get the a/c working?
Yes, but there isn't much room.

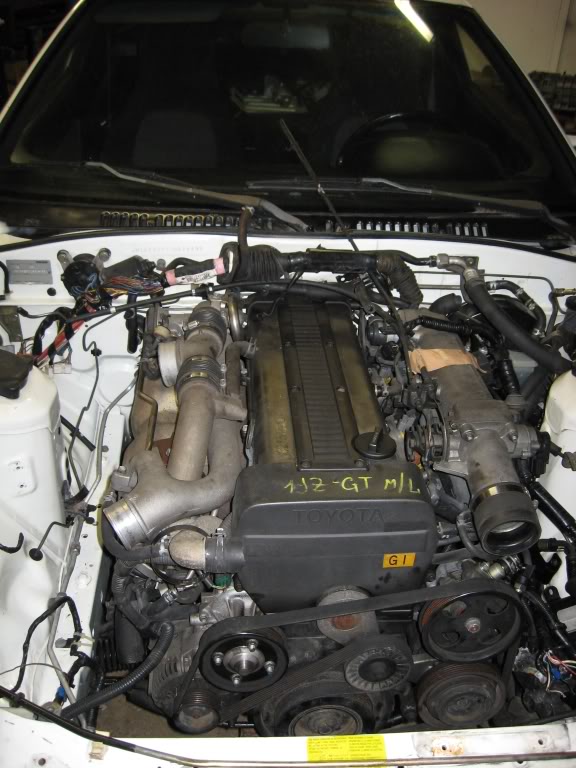

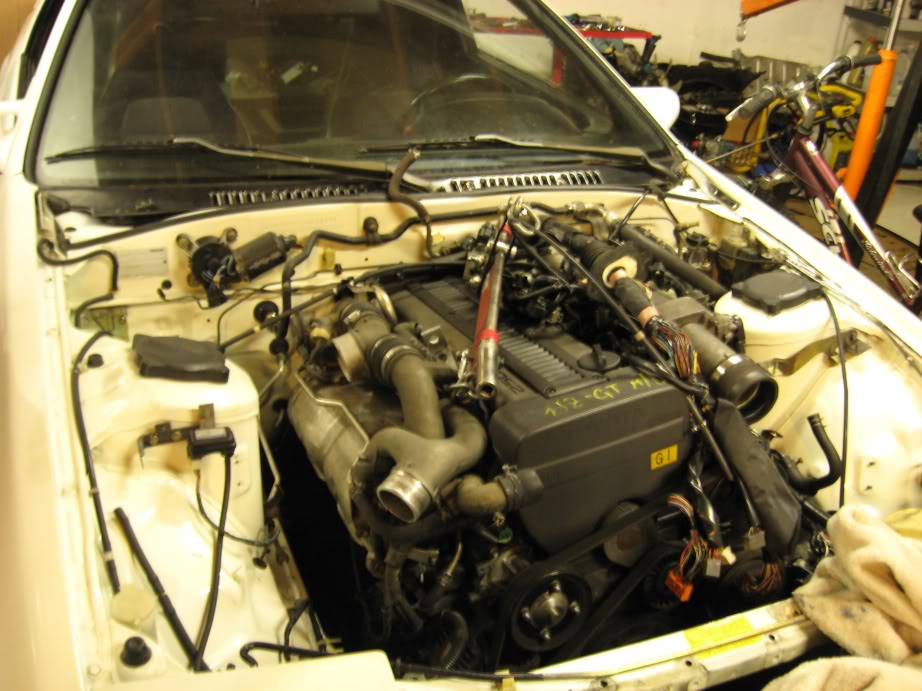

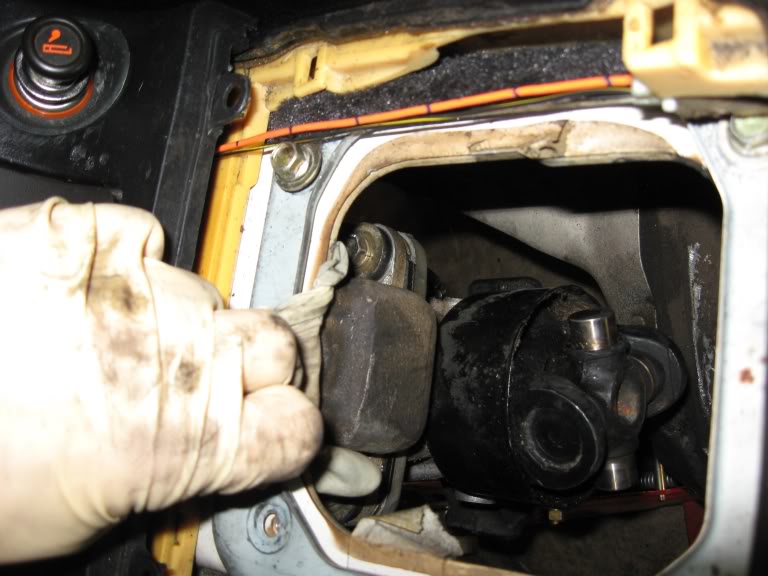

*Mounts are mostly done. Motor is in the car and perfectly centered/aligned!
Transmission mount was pretty easy. The engine mounts are a little harder.
The current problem I have is that the FC rx7 mounts are too weak and soft for the bigger massively more torquey motor.
I can literally flex the rx7 mounts in my hands! JUNK!
This leaves the motor too loose when installed. I can actually shake it back and forth a small amount. Unacceptable.
So the FC rx7 mounts are very simple. Basically a hockey puck shape with two studs. Im going to have to fab up something more solid (but not so much as the interior gets rattled apart at idle!)
MOAR LATER!
Originally Posted by rogue420 View Post
Are you gonna try to get the a/c working?
Yes, but there isn't much room.
*Mounts are mostly done. Motor is in the car and perfectly centered/aligned!
Transmission mount was pretty easy. The engine mounts are a little harder.
The current problem I have is that the FC rx7 mounts are too weak and soft for the bigger massively more torquey motor.
I can literally flex the rx7 mounts in my hands! JUNK!
This leaves the motor too loose when installed. I can actually shake it back and forth a small amount. Unacceptable.
So the FC rx7 mounts are very simple. Basically a hockey puck shape with two studs. Im going to have to fab up something more solid (but not so much as the interior gets rattled apart at idle!)
MOAR LATER!
06-20-09, 06:07 PM
#35
just needing a few things
Join Date: Sep 2006
Location: GARLAND
Posts: 288
Likes: 0
Received 0 Likes
on
0 Posts
one question...... I've been looking into the radiator i mean fabing mounts are fine but what fan are you going to use? I've been hearing that the stock fan works better than the aftermarkets on jz motors. the question well, request, is if you could put on the stock fan and measure how much room is left. would be greatly appreciated!
THANKS
THANKS
06-20-09, 07:47 PM
#36
Senior Member
Thread Starter
All in place!
Used some random polyurethane parts I had and made the engine mounts nice and stiff!

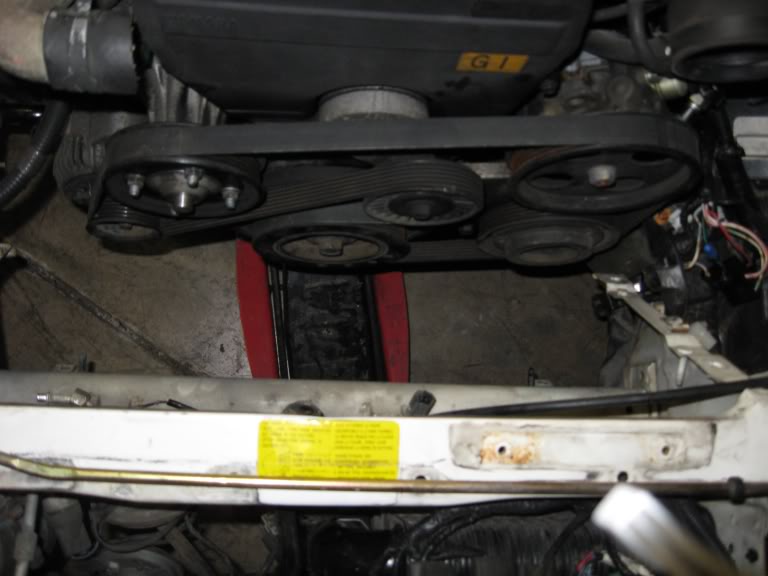

Radiator mounting needs to change:
Shifter needs to extend 3-4 inch
Making the mounts was time consuming... I need to buy a plasma cutter ASAP!
More later. It's too hot to keep working today.
Used some random polyurethane parts I had and made the engine mounts nice and stiff!
Radiator mounting needs to change:
Shifter needs to extend 3-4 inch
Making the mounts was time consuming... I need to buy a plasma cutter ASAP!
More later. It's too hot to keep working today.
06-20-09, 07:48 PM
#37
Senior Member
Thread Starter
one question...... I've been looking into the radiator i mean fabing mounts are fine but what fan are you going to use? I've been hearing that the stock fan works better than the aftermarkets on jz motors. the question well, request, is if you could put on the stock fan and measure how much room is left. would be greatly appreciated!
THANKS
THANKS
No room for stock fan or even stock radiator mounting. It needs to be moved.
I'm using a slim 2800 CFM FAN
06-21-09, 03:48 AM
#38
Dustin Becktold
iTrader: (17)
Join Date: Oct 2007
Location: Salem Or
Posts: 674
Likes: 0
Received 0 Likes
on
0 Posts
looks like your swap is coming along nicely. you'll have to come to a meet when it actually drives. don't pop your hood though, wouldn't wanna make anyone cry lol.
06-21-09, 04:28 PM
#39
Senior Member
Thread Starter

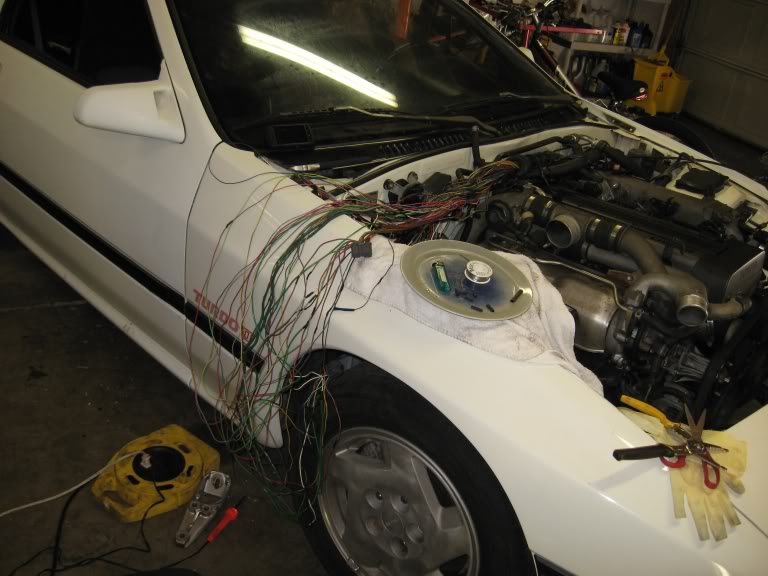

Extending the harness, about 3.5 feet. Lots more wires left! About 100 total :/
Notice the OCD here. I'm soldering and heak shrinking everything (of course!)
i'm also cannibalizing a 2jzgte JDM harness I got with another motor. It was already cut and the ecu connectors were smashed so i'm putting the wires to good use.
i'm also using the same color wires to extend the harness, taking the OCD to a whole new level
Should be done with extending the harness in about 3-4 hours :|
Notice the OCD here. I'm soldering and heak shrinking everything (of course!)
i'm also cannibalizing a 2jzgte JDM harness I got with another motor. It was already cut and the ecu connectors were smashed so i'm putting the wires to good use.
i'm also using the same color wires to extend the harness, taking the OCD to a whole new level
Should be done with extending the harness in about 3-4 hours :|
06-21-09, 06:10 PM
#41
Post count is over rated
your doing a couple things wrong but i'll help
your don't need to cut the harness!! it will actually leave the ecu in the right location. you just need 5 wires off the 1jz ecu to splice into. the ground, the 2 batt powers(ig power), the battery constant(memory), and start signal if you really want to. evrything else you can use off the 1jz harness is already where it needs to be. email me at condolence187@aol.com formore in depth info. i hope you just built pedastils off of the rx7 subrame and didn't mount the 1jz mounts on an angle. anyways the build looks good keep up the good work.
06-21-09, 08:31 PM
#42
Senior Member
Thread Starter
your don't need to cut the harness!! it will actually leave the ecu in the right location. you just need 5 wires off the 1jz ecu to splice into. the ground, the 2 batt powers(ig power), the battery constant(memory), and start signal if you really want to. evrything else you can use off the 1jz harness is already where it needs to be. email me at condolence187@aol.com formore in depth info. i hope you just built pedastils off of the rx7 subrame and didn't mount the 1jz mounts on an angle. anyways the build looks good keep up the good work.
besides i'm almost done.
06-22-09, 12:27 AM
#43
Senior Member
Thread Starter

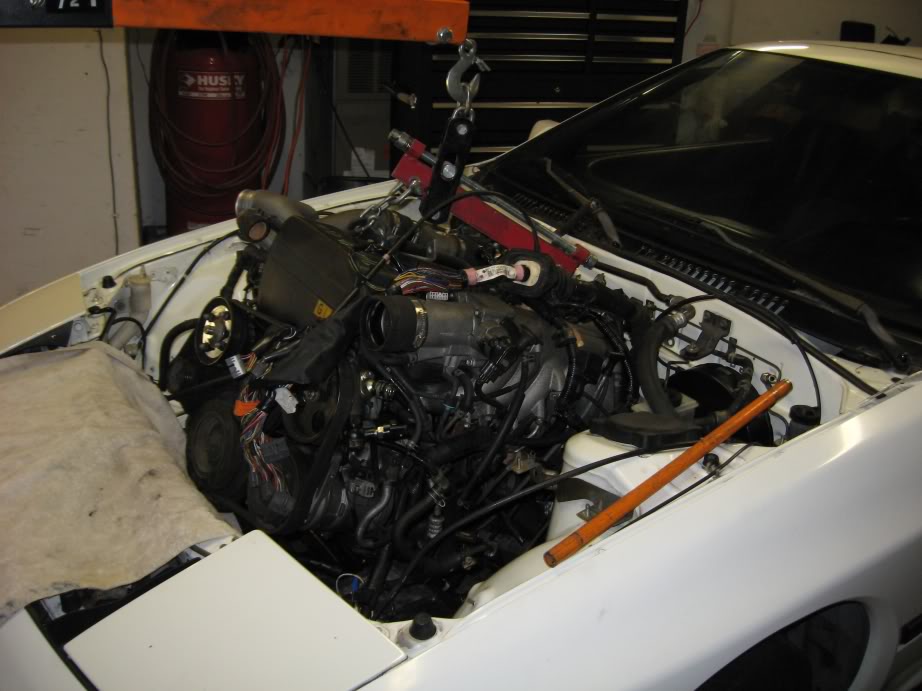

next i need to take the engine back out, finish and paint the mounts then:
* install my shifter extension
* thoroughly clean engine
* remove oil pan and bang out the dents (yay shipping)
* join RX7 charging and starting harness to 1jz motor
* Separate cruise and window wiper harness from rx7 harness and run it
* modify heater core outlet and inlet to fit
* mount radiator + fan and fan wiring
* run cooling system, fuel system, intake and charge lines
* make custom down pipe to fit stock RX7 exhaust system
* have custom drive shaft made
* custom clutch hydraulic line
* custom power steering lines
Probably more i'm forgetting!
* install my shifter extension
* thoroughly clean engine
* remove oil pan and bang out the dents (yay shipping)
* join RX7 charging and starting harness to 1jz motor
* Separate cruise and window wiper harness from rx7 harness and run it
* modify heater core outlet and inlet to fit
* mount radiator + fan and fan wiring
* run cooling system, fuel system, intake and charge lines
* make custom down pipe to fit stock RX7 exhaust system
* have custom drive shaft made
* custom clutch hydraulic line
* custom power steering lines
Probably more i'm forgetting!
06-23-09, 09:13 PM
#45
Junior Member
Join Date: Sep 2008
Location: killa kali/san jose
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts

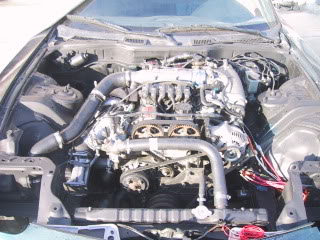

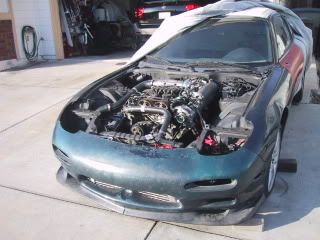

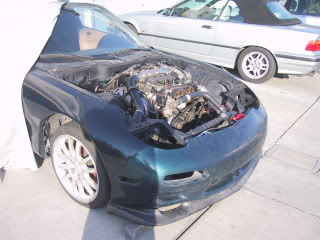

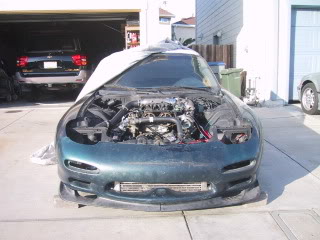

just saw your thread and i just want to share to you what i have done something diffent from the rest on an FD swap. enjoy
