amemiya rules

iTrader: (2)

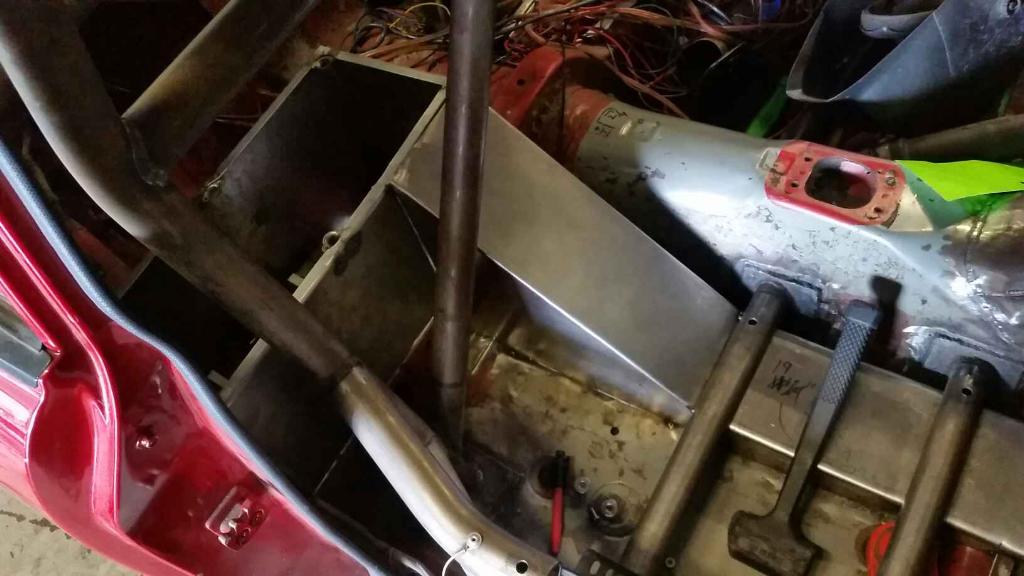

It has been months since i started this project, i sold my renesis and got a 20b. Full roll cage has been welded in, Lucky 7 built 20b na semi p port, MFR dry sump, defined autoworks intake manifold, brand new rx8 6 speed trans and grannys ford 8.8 rear end. Exhaust is a 3" stainless steel oval going under the passenger side and exiting just before the rear tire thru the body. Car is getting interior paint right now, then back to Lucky 7 to get wired up with a haltech then back to paint to finish it off.

chino_rx3

iTrader: (3)

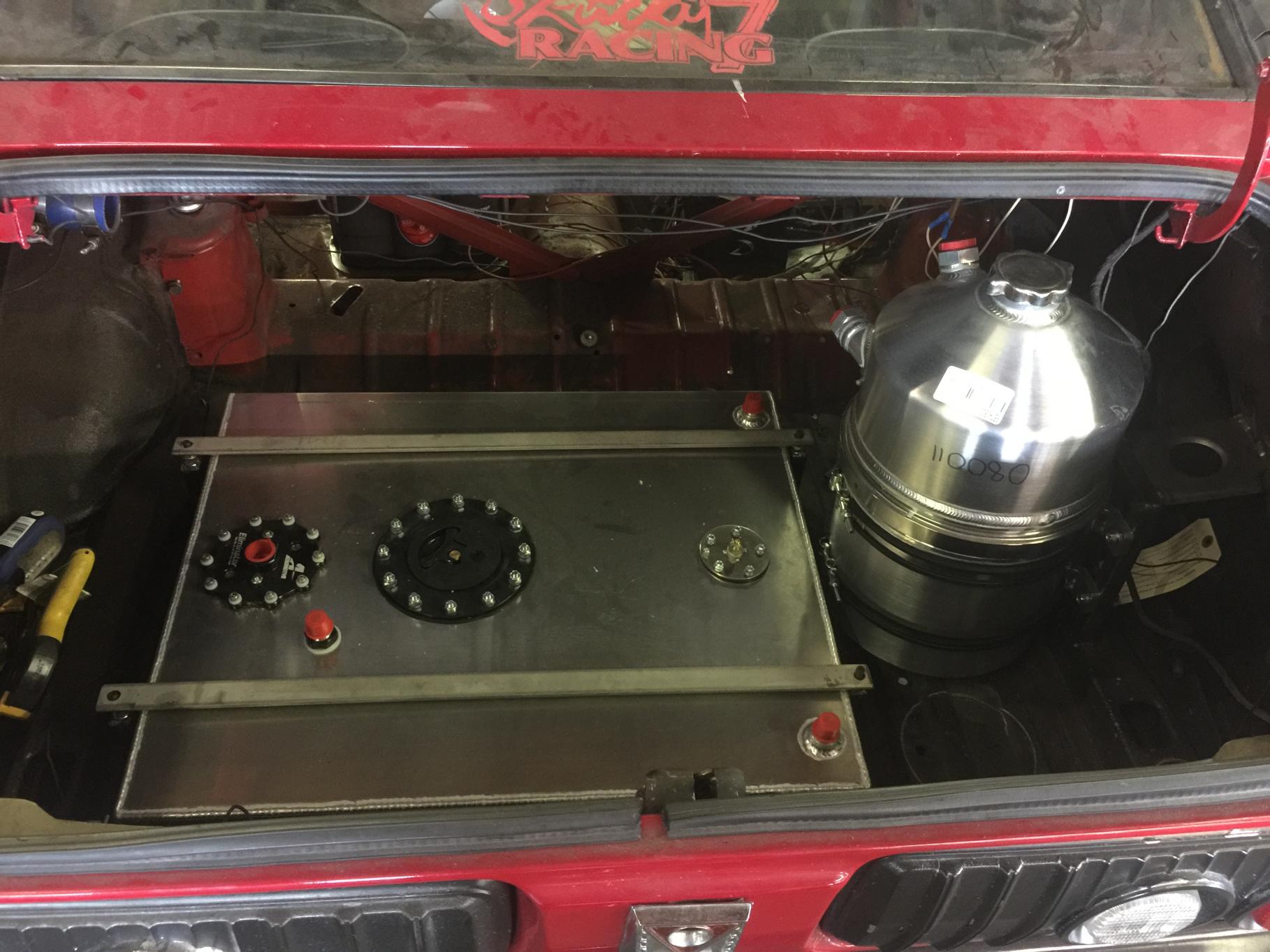

Wow looks good really Good . What's the Keg in the trunk for ? coronas 😁

amemiya rules

iTrader: (2)

barrel is the oil tank for the dry sump

amemiya rules

iTrader: (2)

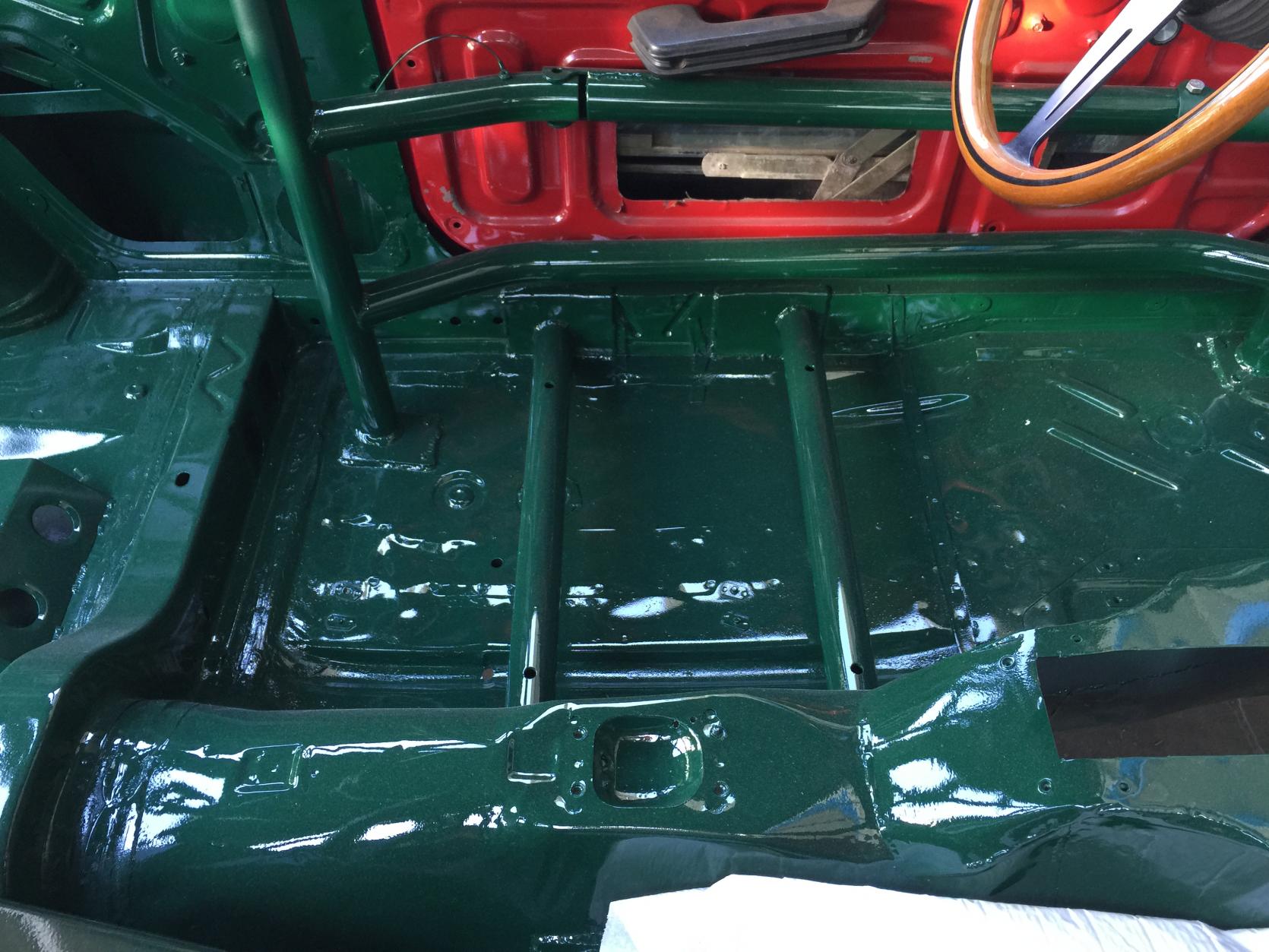

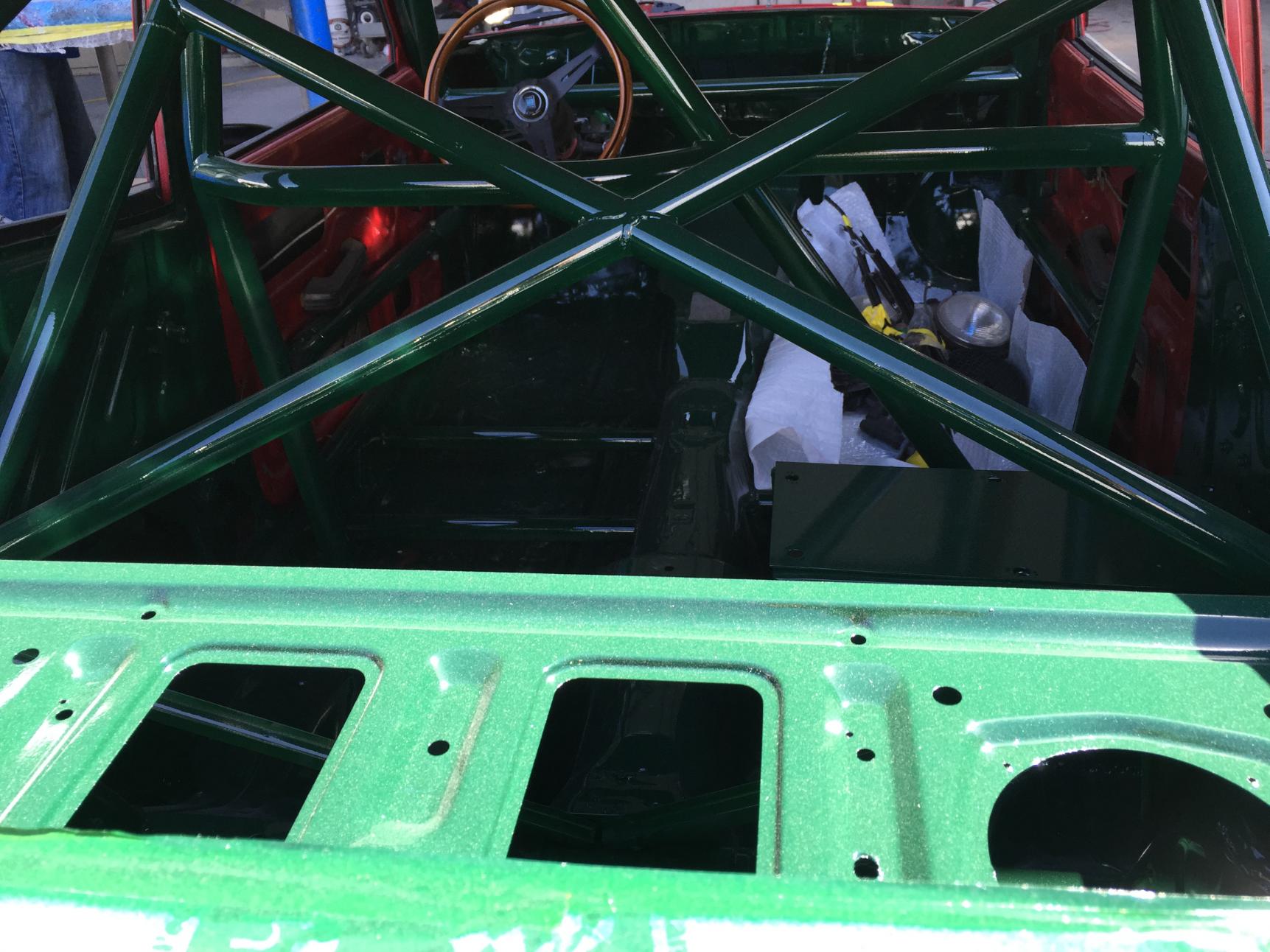

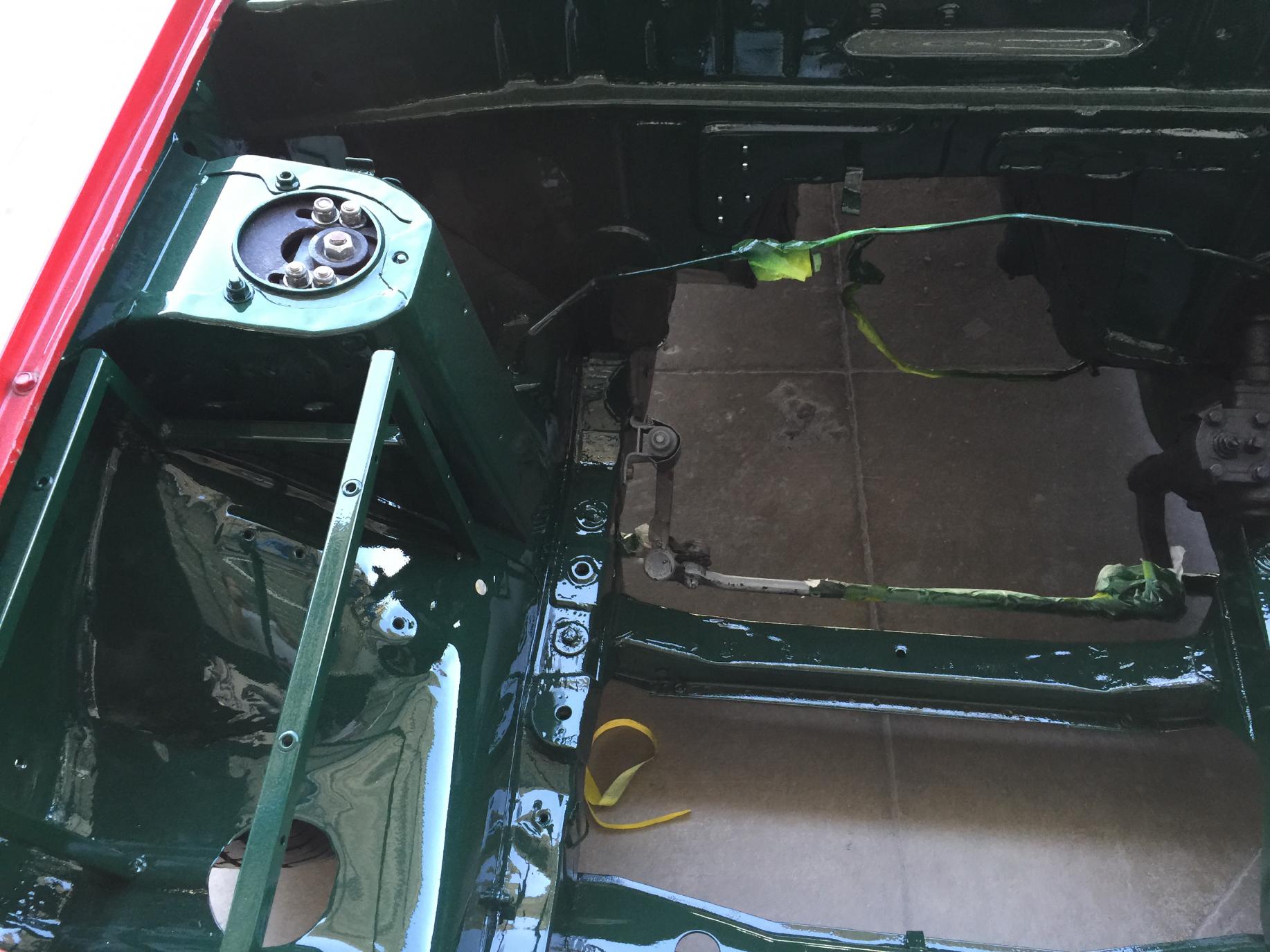

Here are a few pics just out of paint. Just the interior, engine bay and trunk are painted. It goes back to lucky 7 on monday to re-install motor and wire everything up.

TypeRx

Didn't see this thread.

Looking good man! Nice interior color too.

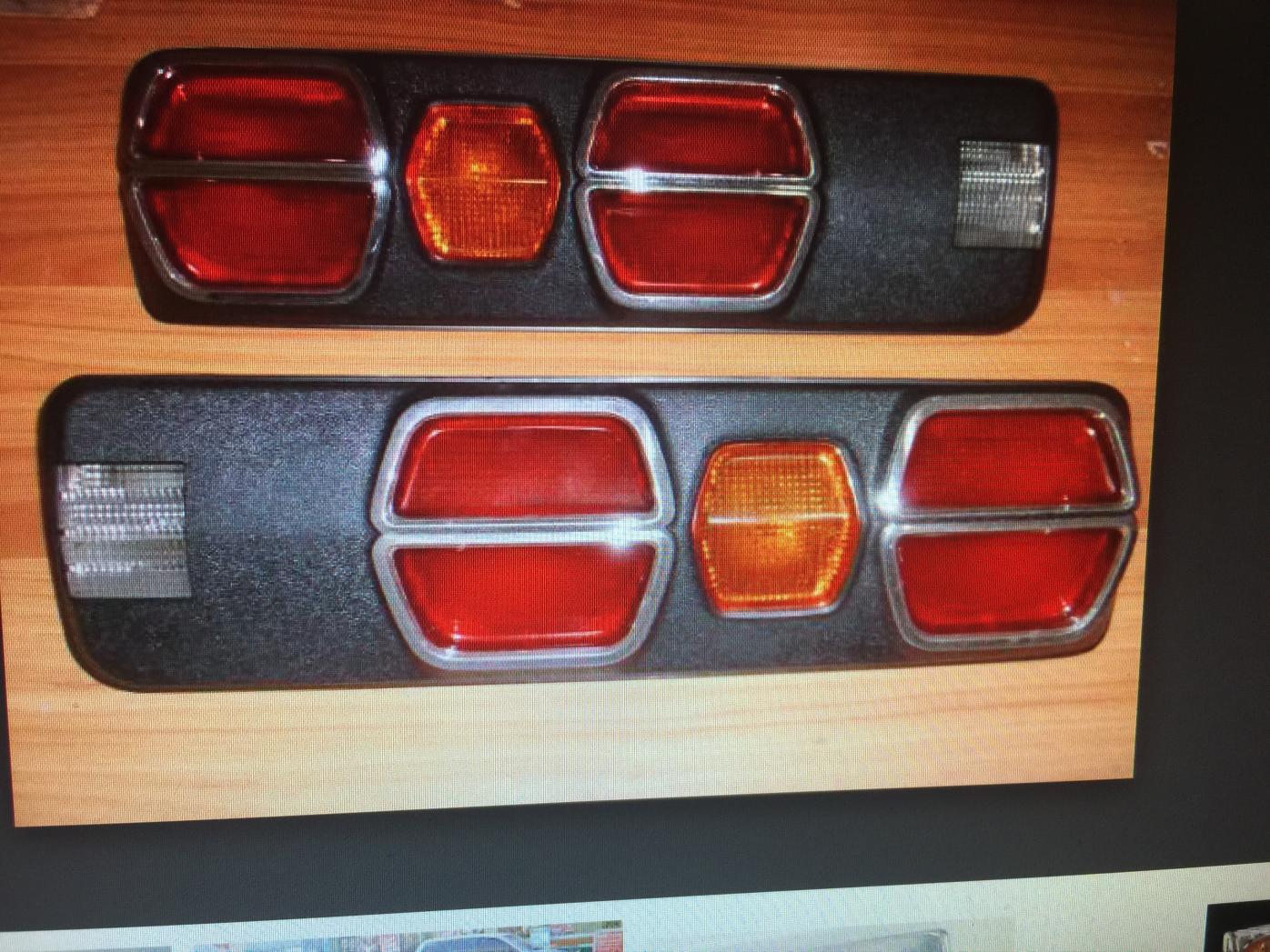

I love those tails!

amemiya rules

iTrader: (2)

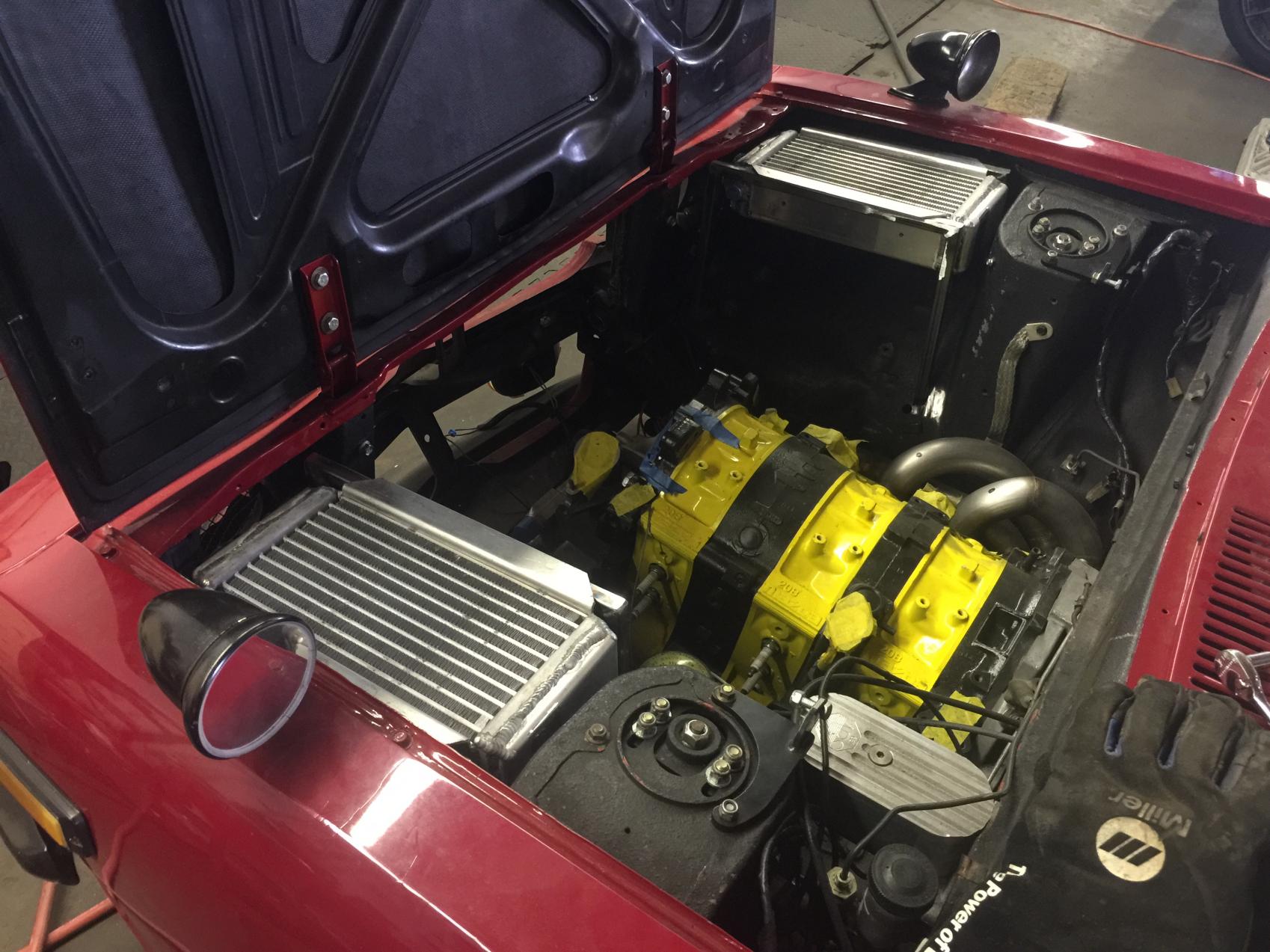

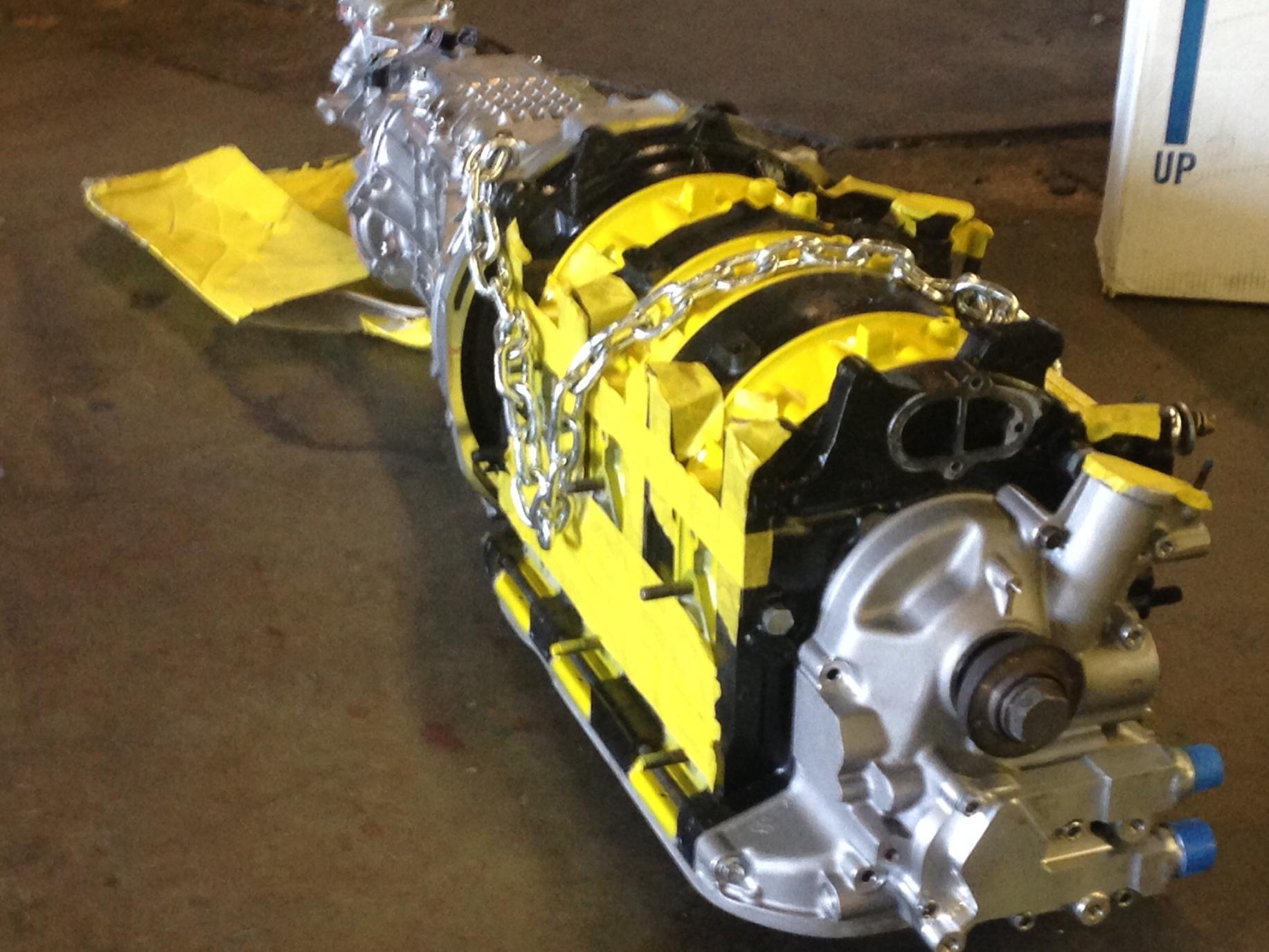

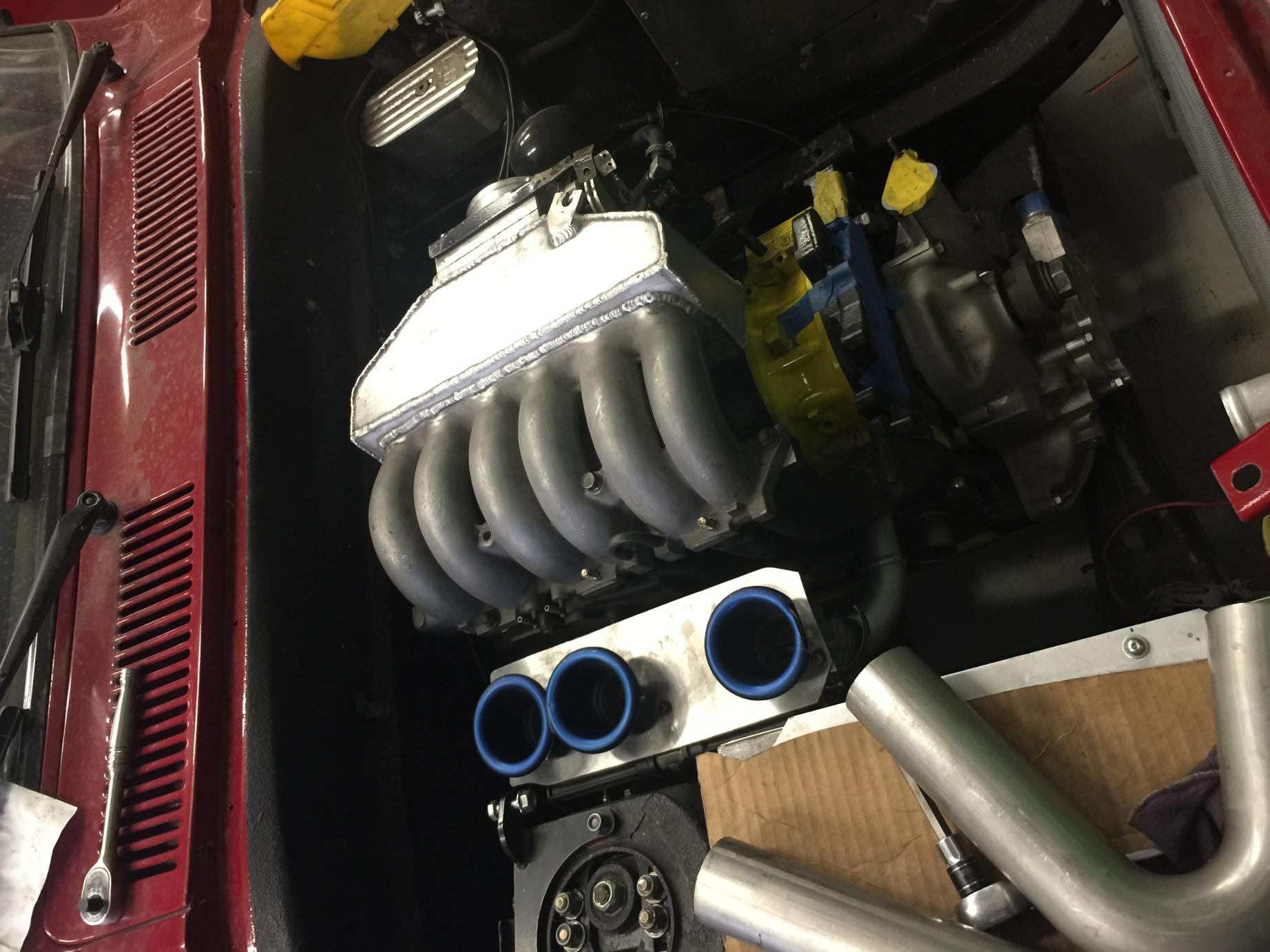

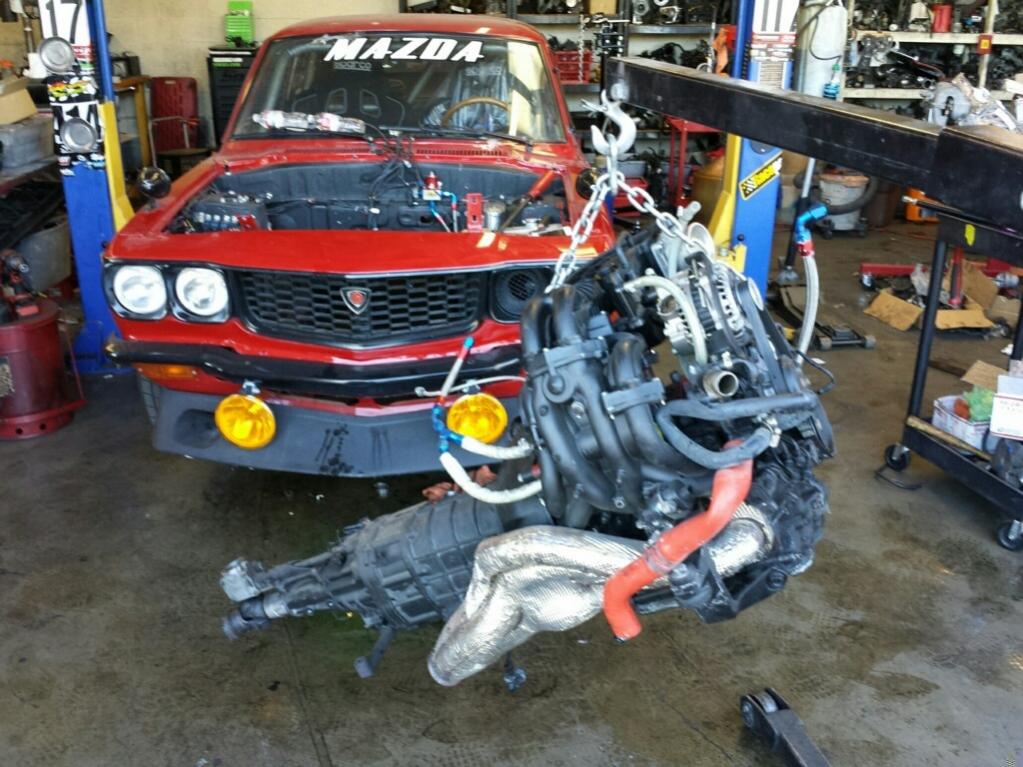

here are a few pics of the new motor with dry sump and the old renesis they took out

tinytyrant

iTrader: (3)

well this looks interesting... "upgrade" you reckon? just a bit.

any idea on what the semi PP will put out power wise?

i'm guessing the 'box will have a hard time surviving.

also, great colour. i'm partial to a flat, dark green myself.

amemiya rules

iTrader: (2)

I'M HOPING FOR 425-450 AT THE WHEELS. It will run 9 injectors, 3 on primary, 3 on secondary and 3 on the semi p ports. I have a brand new 09 and up rx8 6 speed tranny so lets see how long it lasts.

papsmagu

iTrader: (19)

besides all the other great upgrades.....that exhaust going out the side is SEXY as hell! Keep us posted on your progress. looking forward to hearing this thing run. what haltech are you going with? PS2000 or Elite? I heard the elite is awesome

tinytyrant

iTrader: (3)

from the sounds of those numbers the box will last probably about as long as your run in period haha.

amemiya rules

iTrader: (2)

Does any one know how much torque a rx6 6 speed can handle?

boostdtalon

The S1 RX8 trans are good for about 400ish. The S2 are supposed to be better but I don't know an exact figure. If i can find the thread on RX8club, I'll send you the link.

amemiya rules

iTrader: (2)

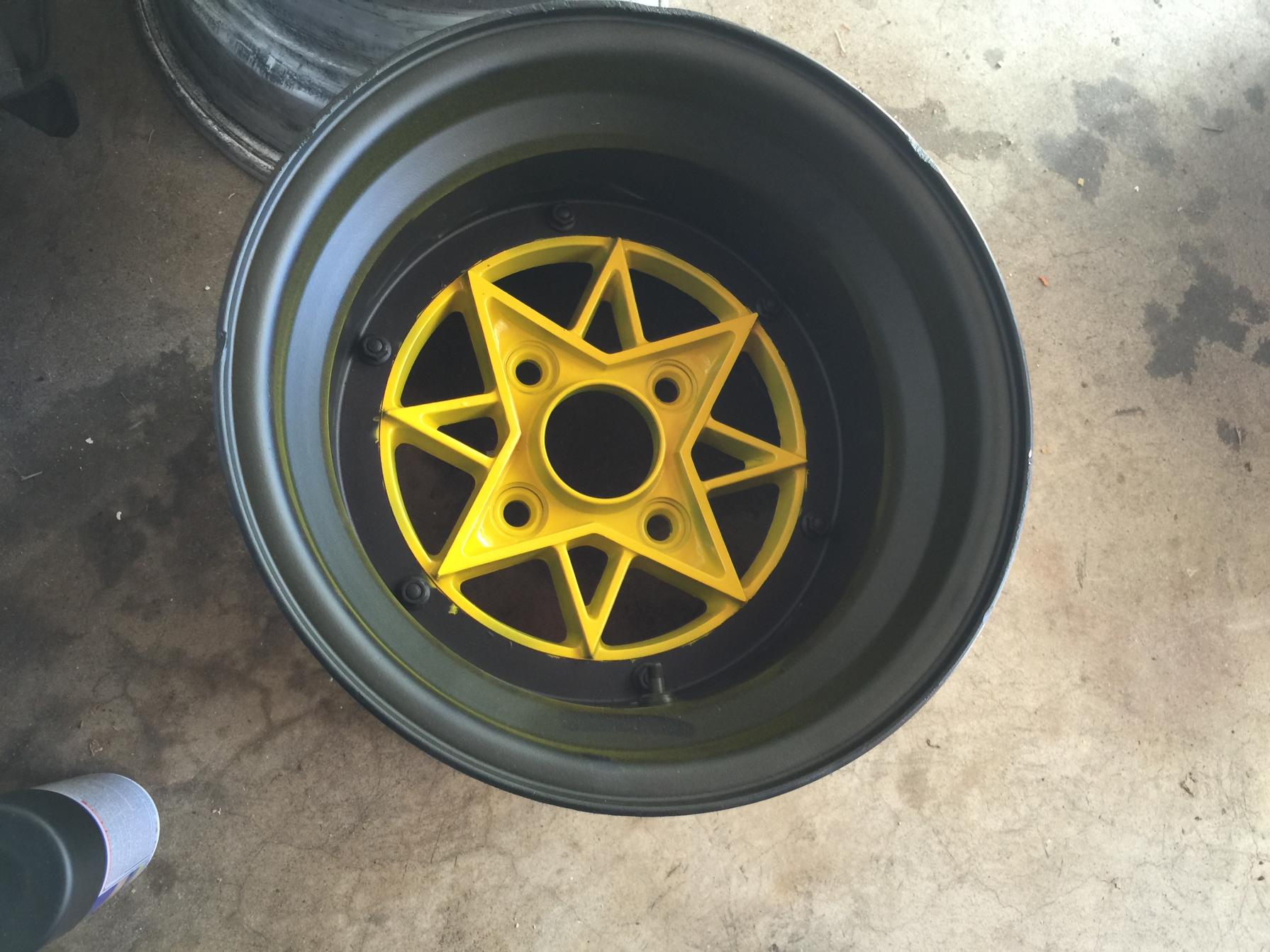

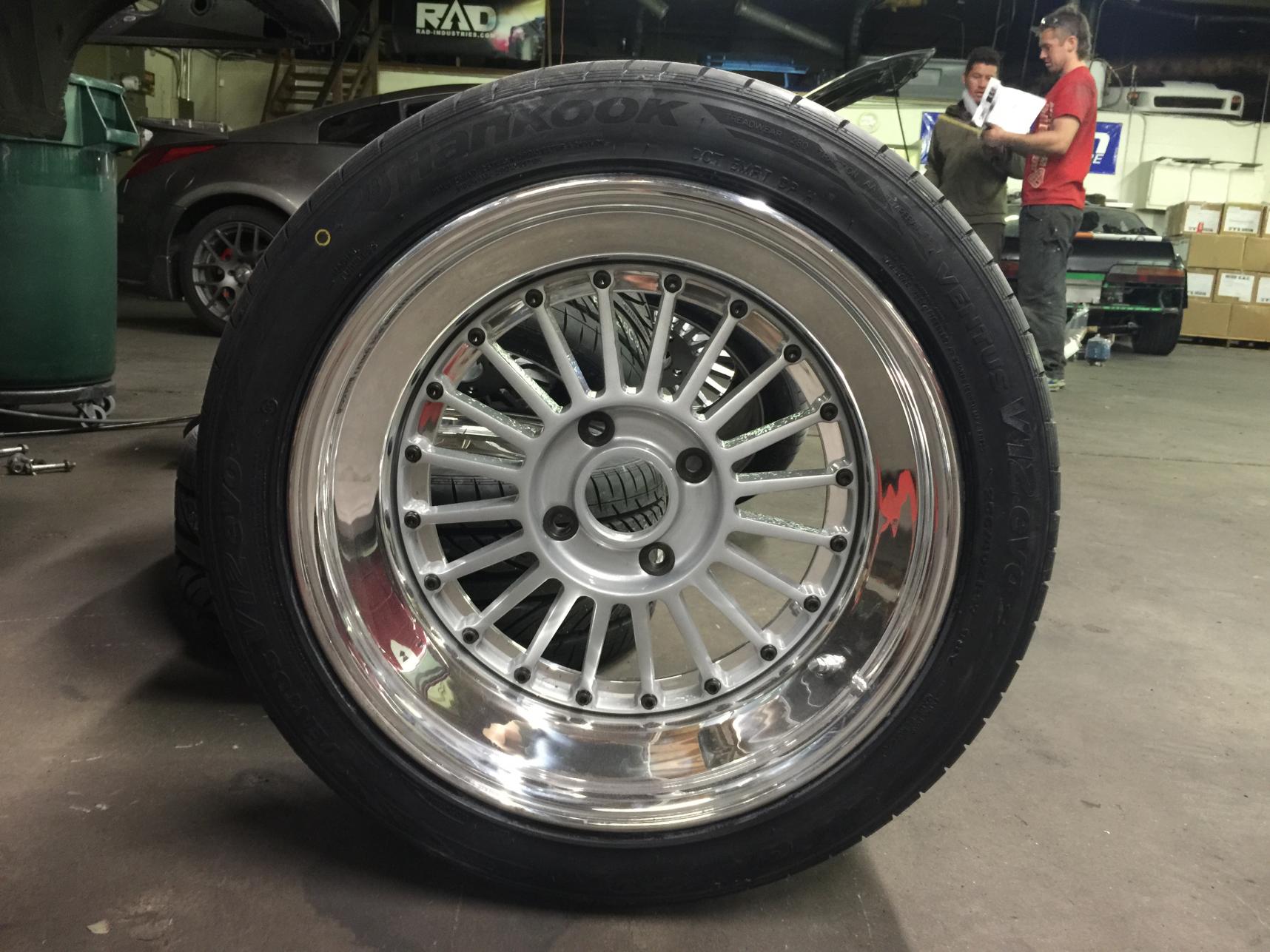

here are some of the wheels i plan to run. I have ssr starsharks 13x10 and a set of volk artisan fins 16x9. I will have to wait until i get the fender flares from NZ to see which one fits and looks better. If i go with the 16's then i will go with a bigger brake kit or T2 brakes

amemiya rules

iTrader: (2)

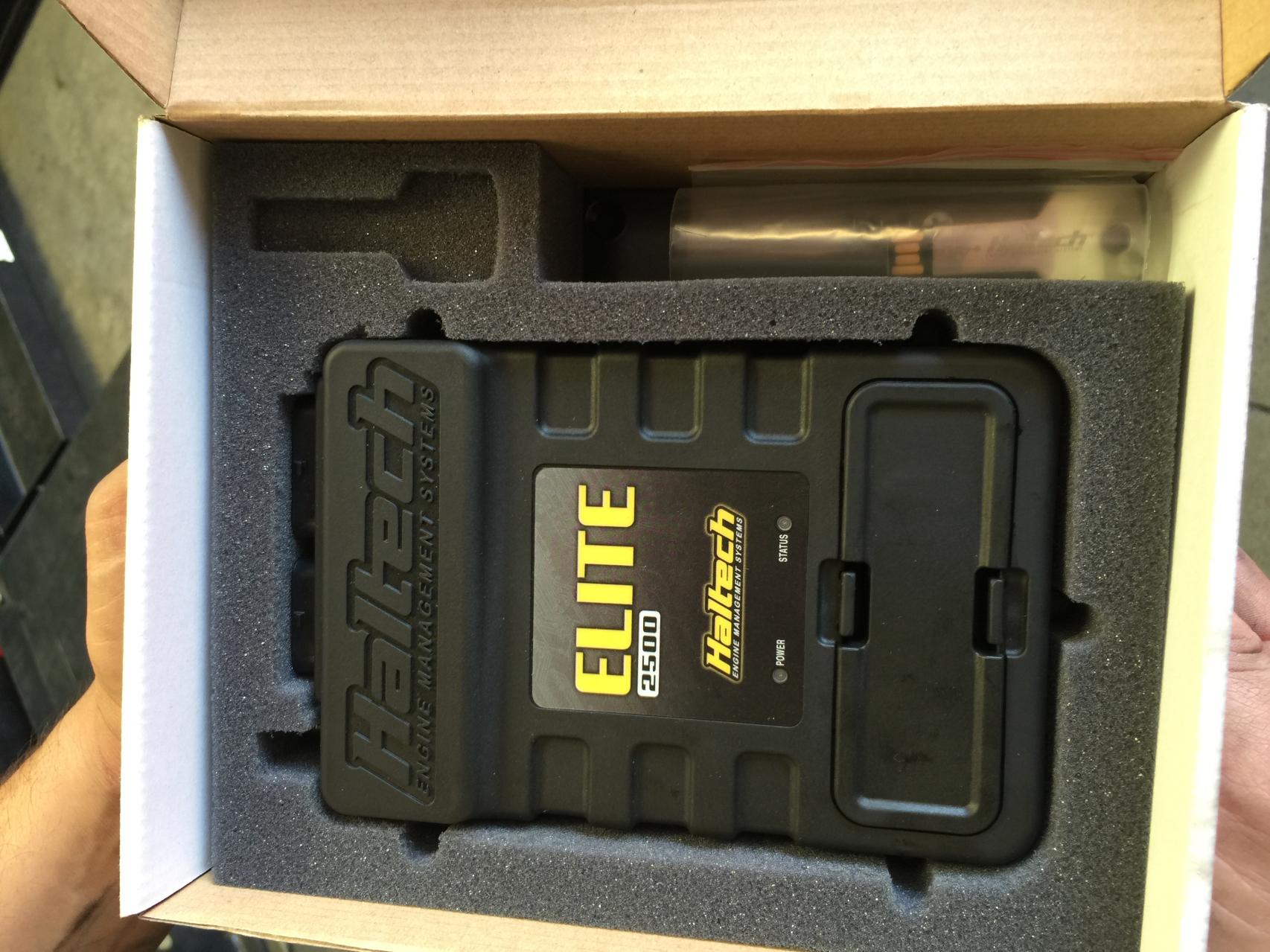

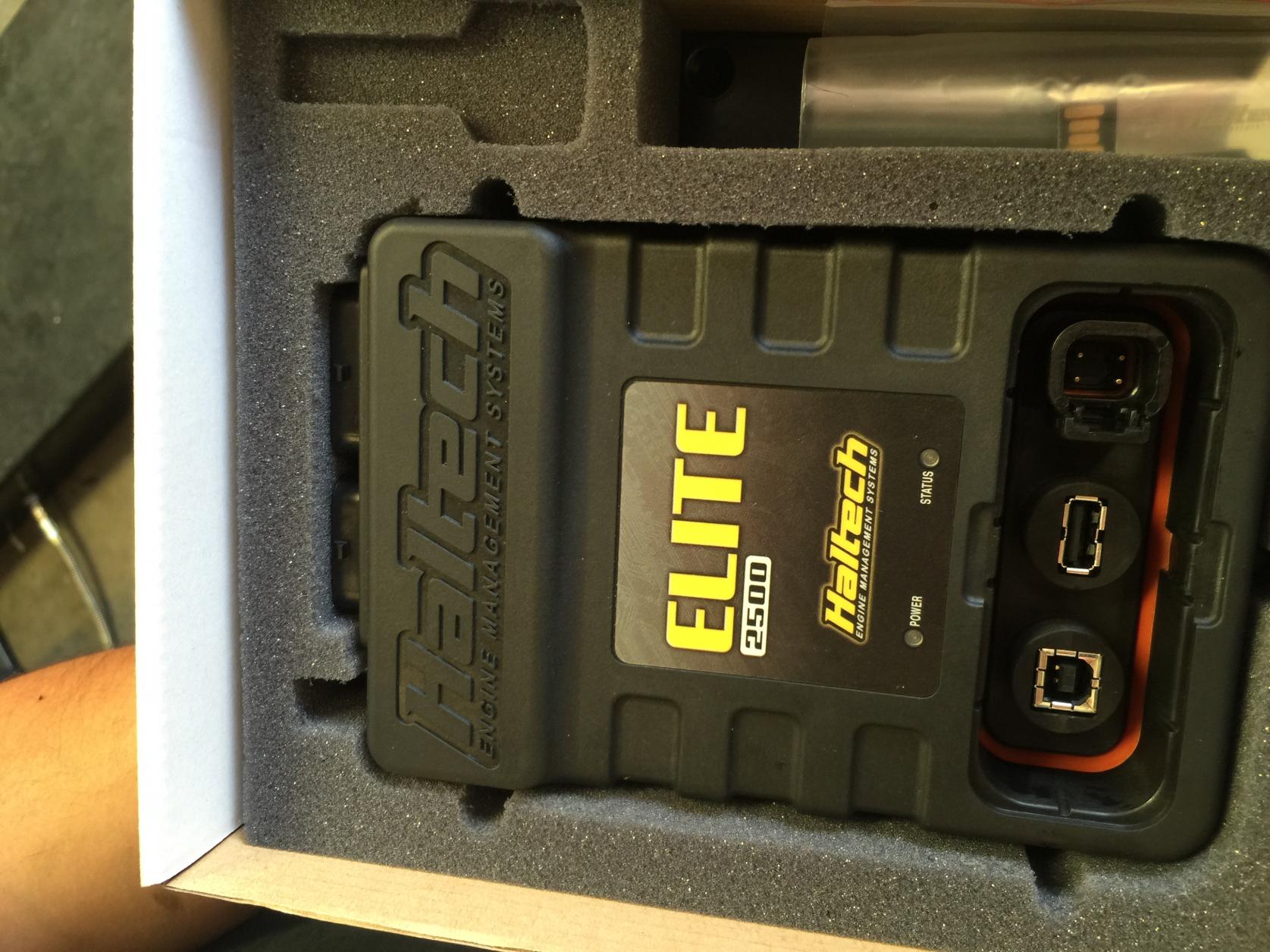

new haltech elite 2500 is in.

amemiya rules

iTrader: (2)

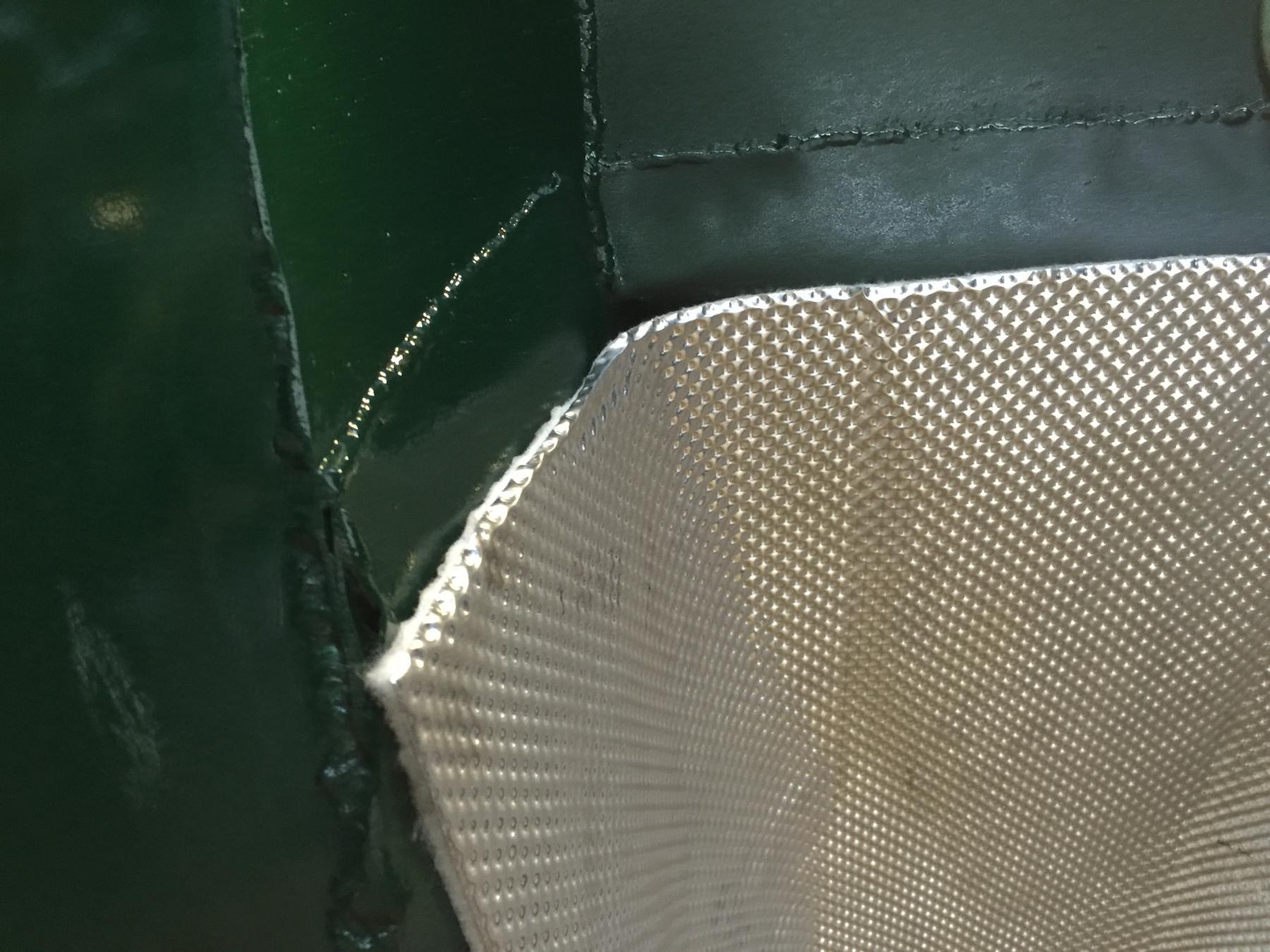

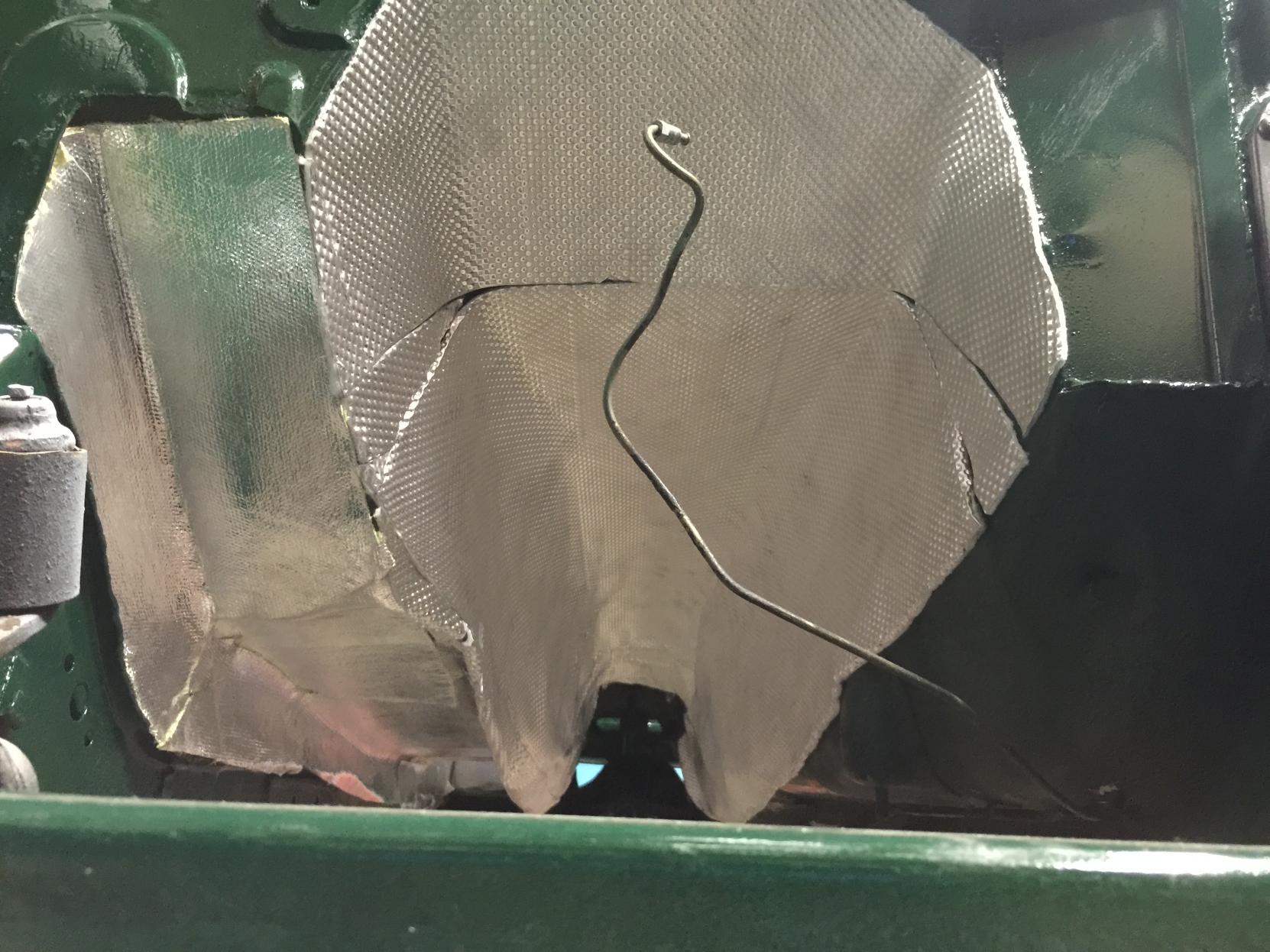

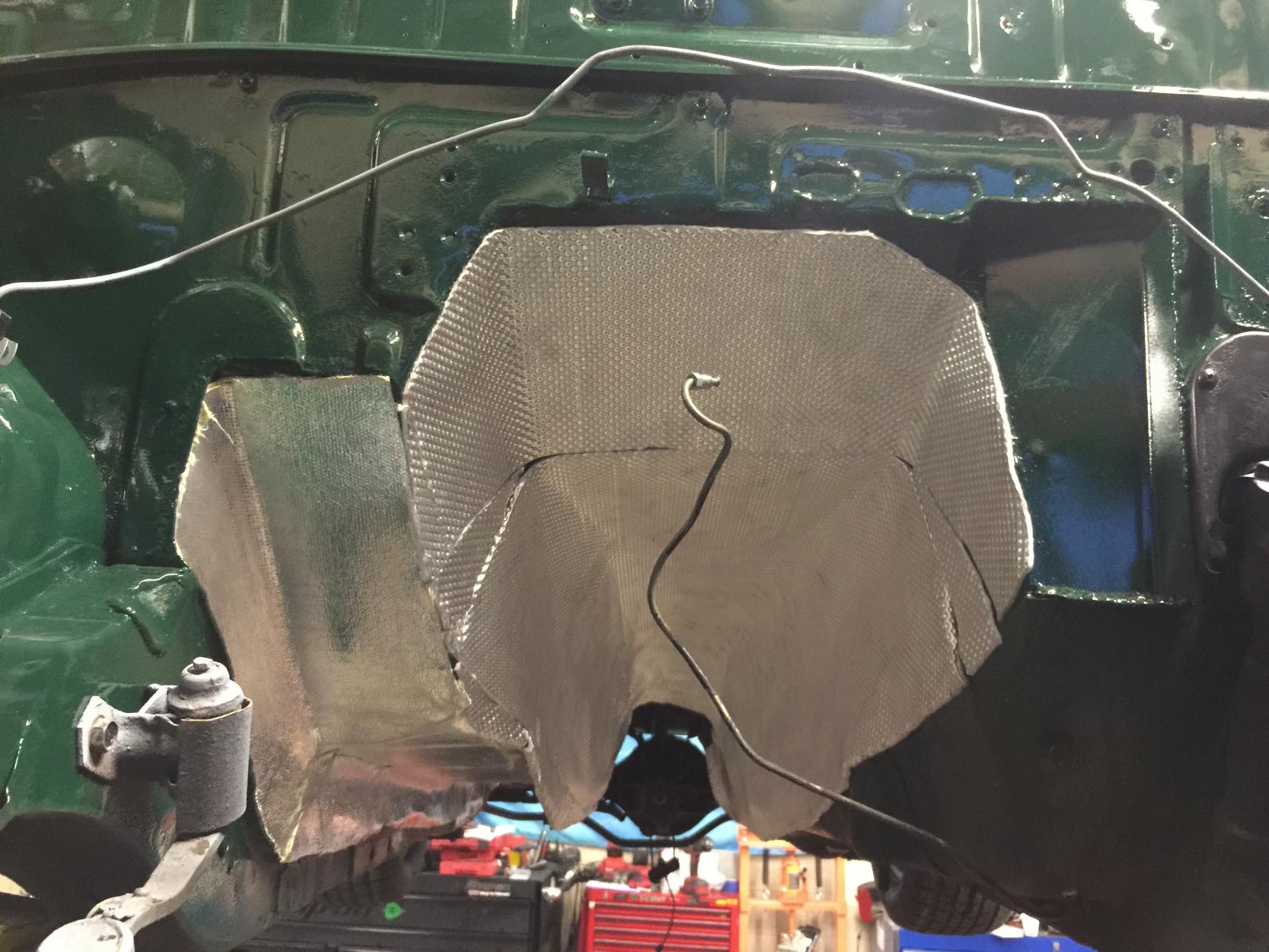

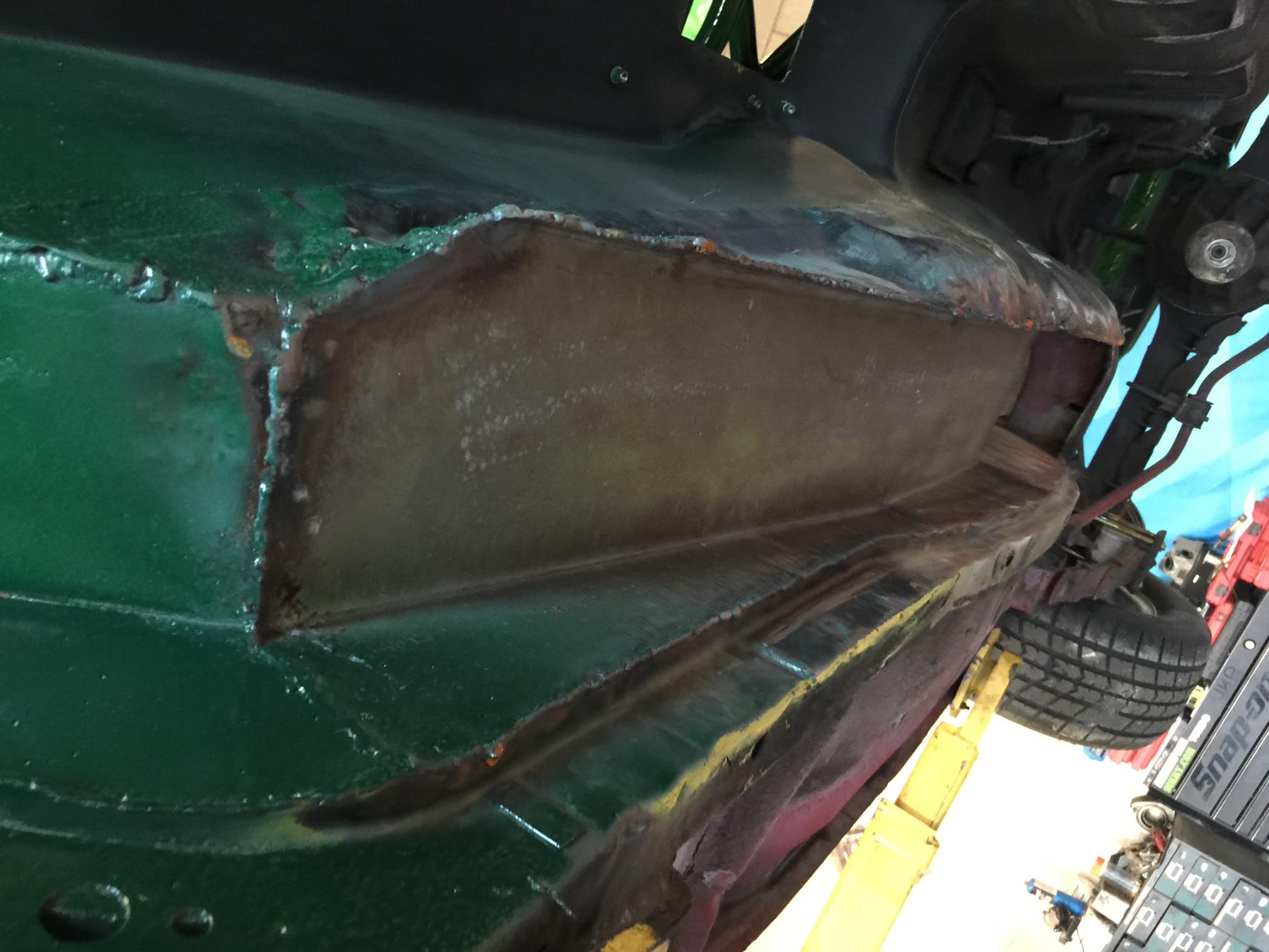

more updates, installing the heat shielding

amemiya rules

iTrader: (2)

more pics

amemiya rules

iTrader: (2)

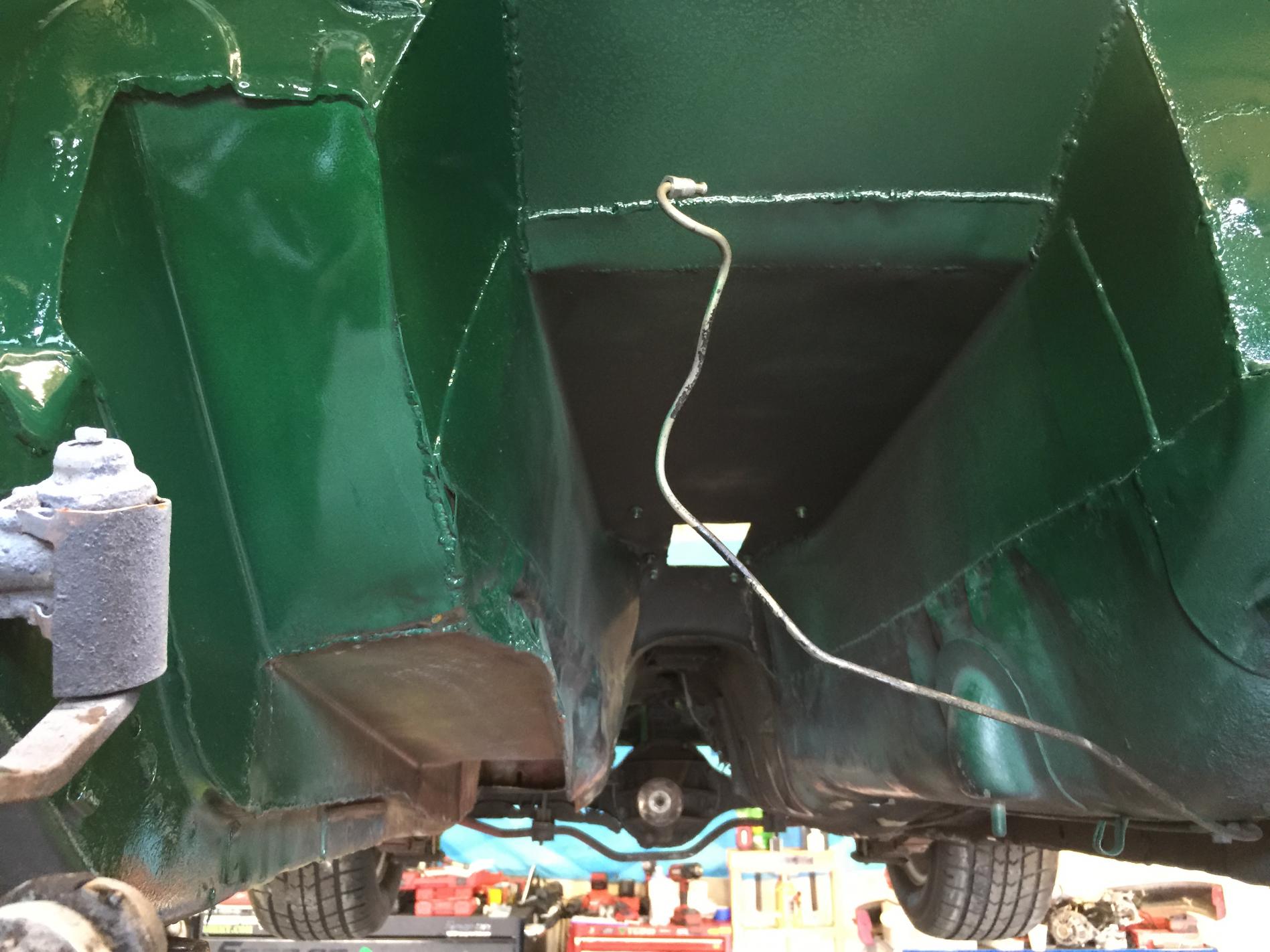

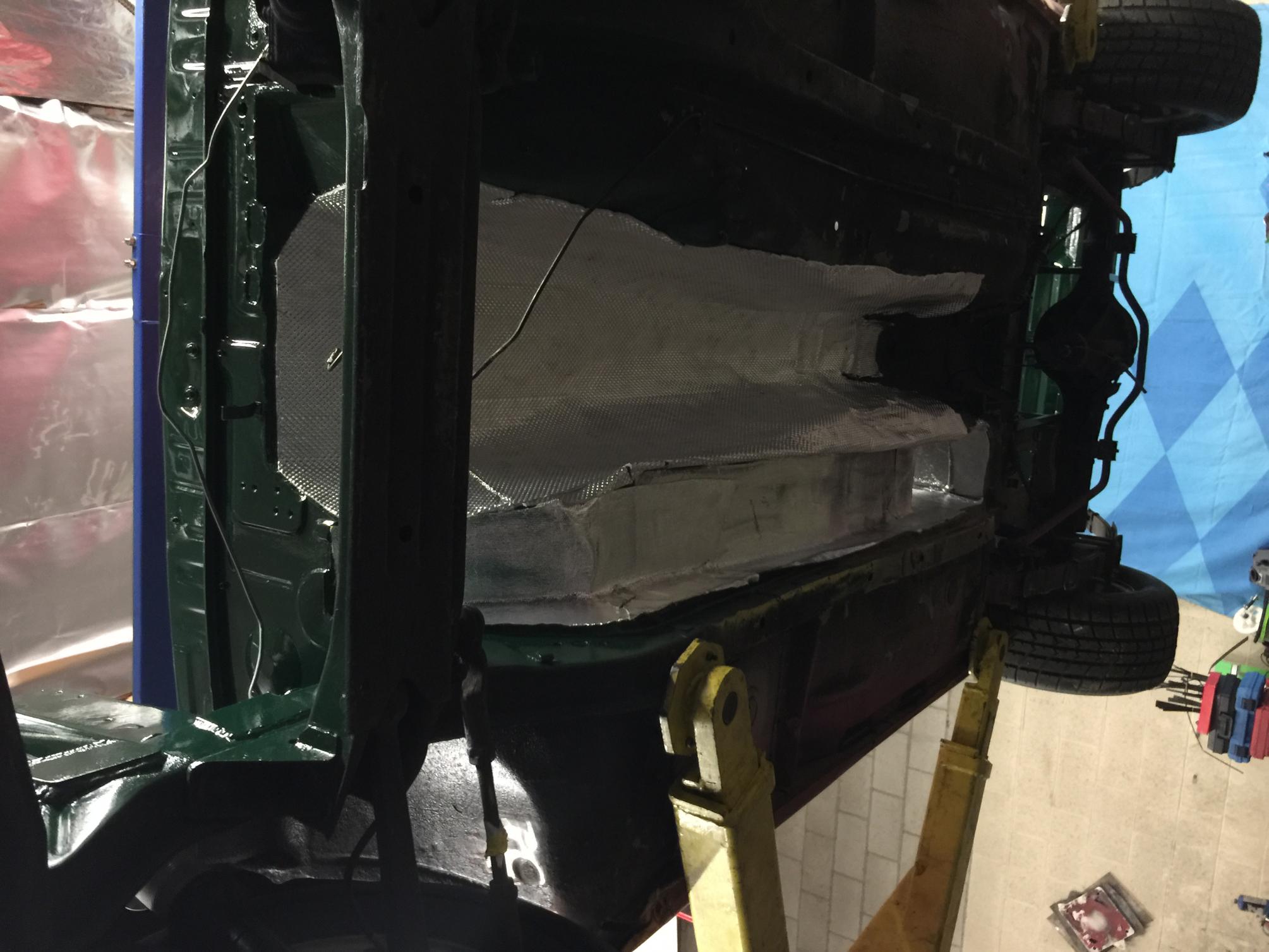

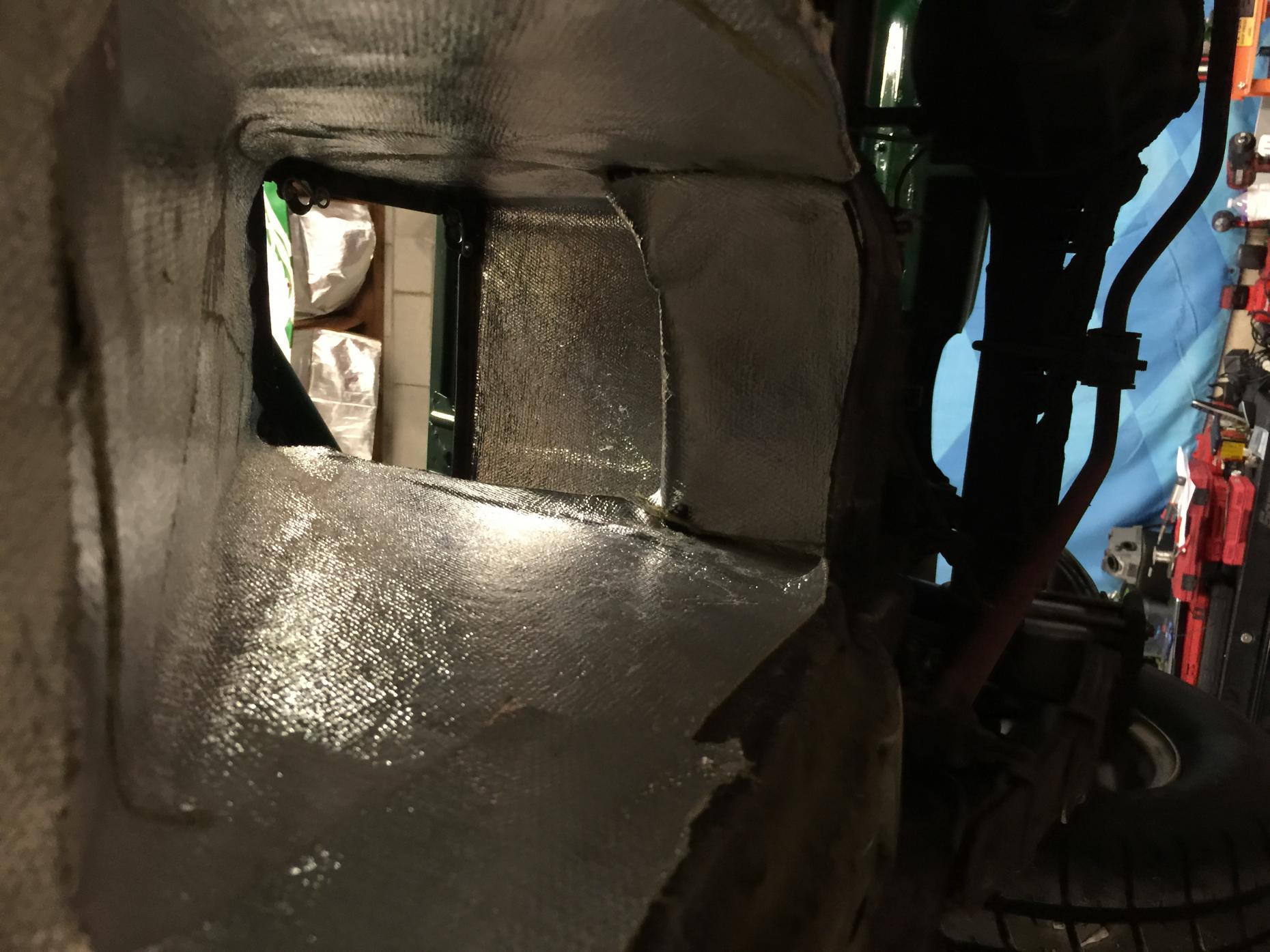

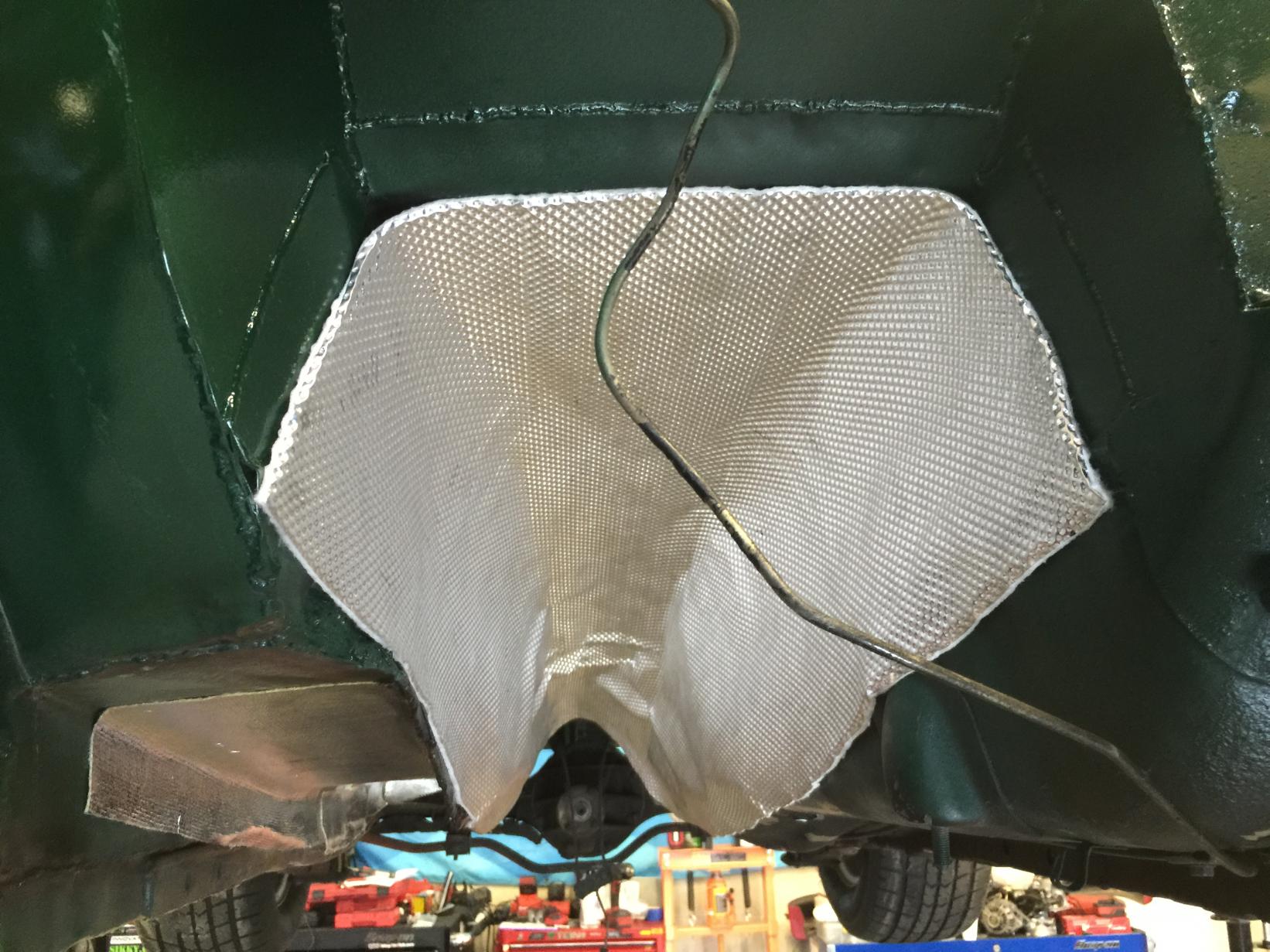

more heat shield pics, up the exhaust tunnel into the cab behind the passenger seat

amemiya rules

iTrader: (2)

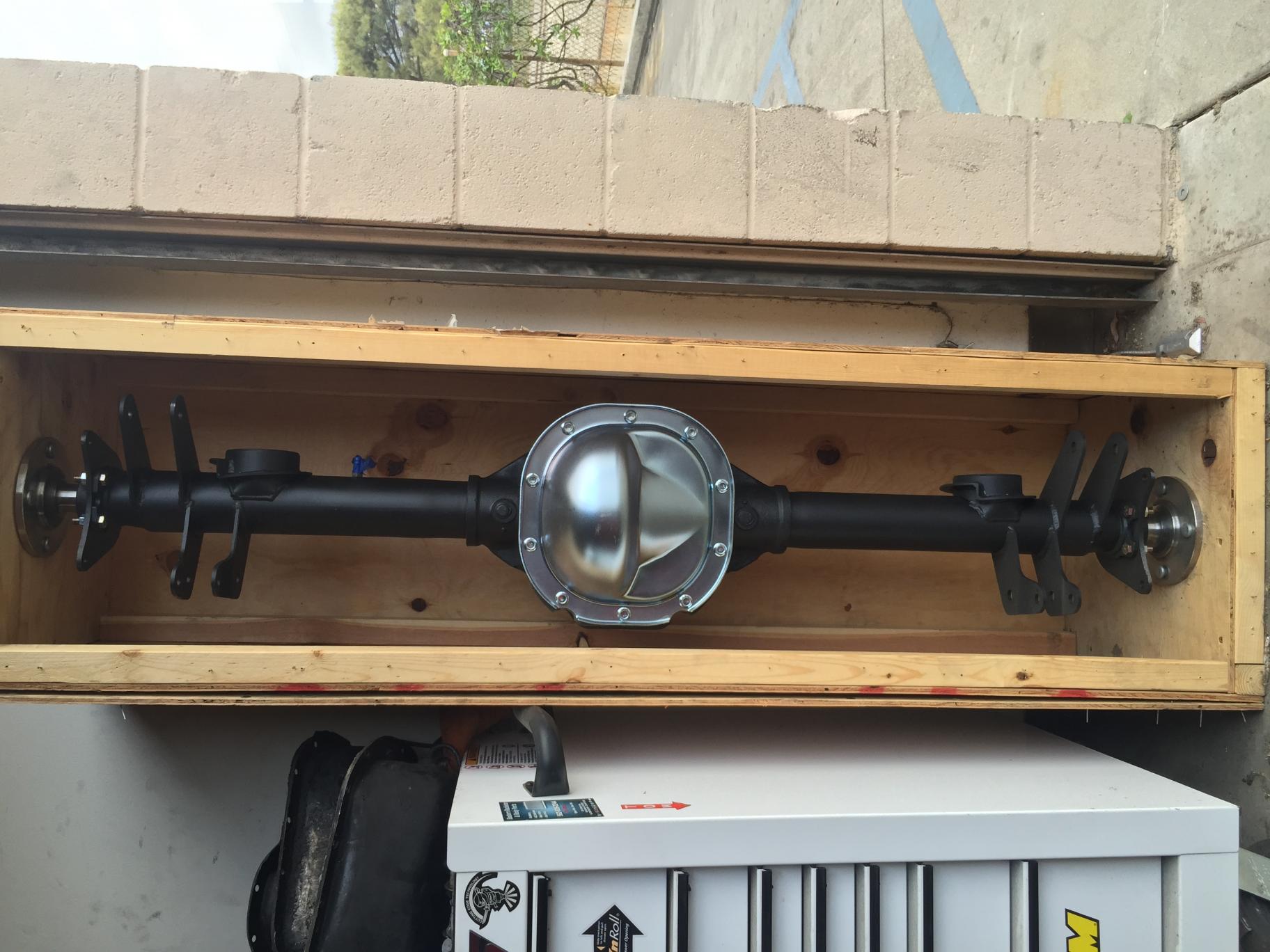

new rear end, grannys speed ship 1st gen , 31 spline forged axles, eaton true trac diff, 5:13 gears

RobRX

Awesome

jozeyrx7

iTrader: (2)

wicked build up, why not go with the fc or fd turbo 5 speed trans? the rx8 trans won't last long if you plan to drive this car, t56 6 spd might be a good option too with an adapter,
Any photos of the flares? i've been wanting some good ones for a long time, any info on where to get them would be great

amemiya rules

iTrader: (2)

I thought about a turbo 2 trans but i like the close gear ratio of the 6 speed. The shop building my car runs a FD race car with a 3 rotor full p port and the same rx8 trans, and it has not broken yet. My thinking is that my car is 1300 lbs lighter than a rx8 and with the 5:13 gears in the rear it shold not be too much strain on the trans. Hopeflly i am right.

R-X-R

iTrader: (9)

what kind of yellow paint r u using for the engine?

amemiya rules

iTrader: (2)

VHT high temp. gloss yellow paint

amemiya rules

iTrader: (2)

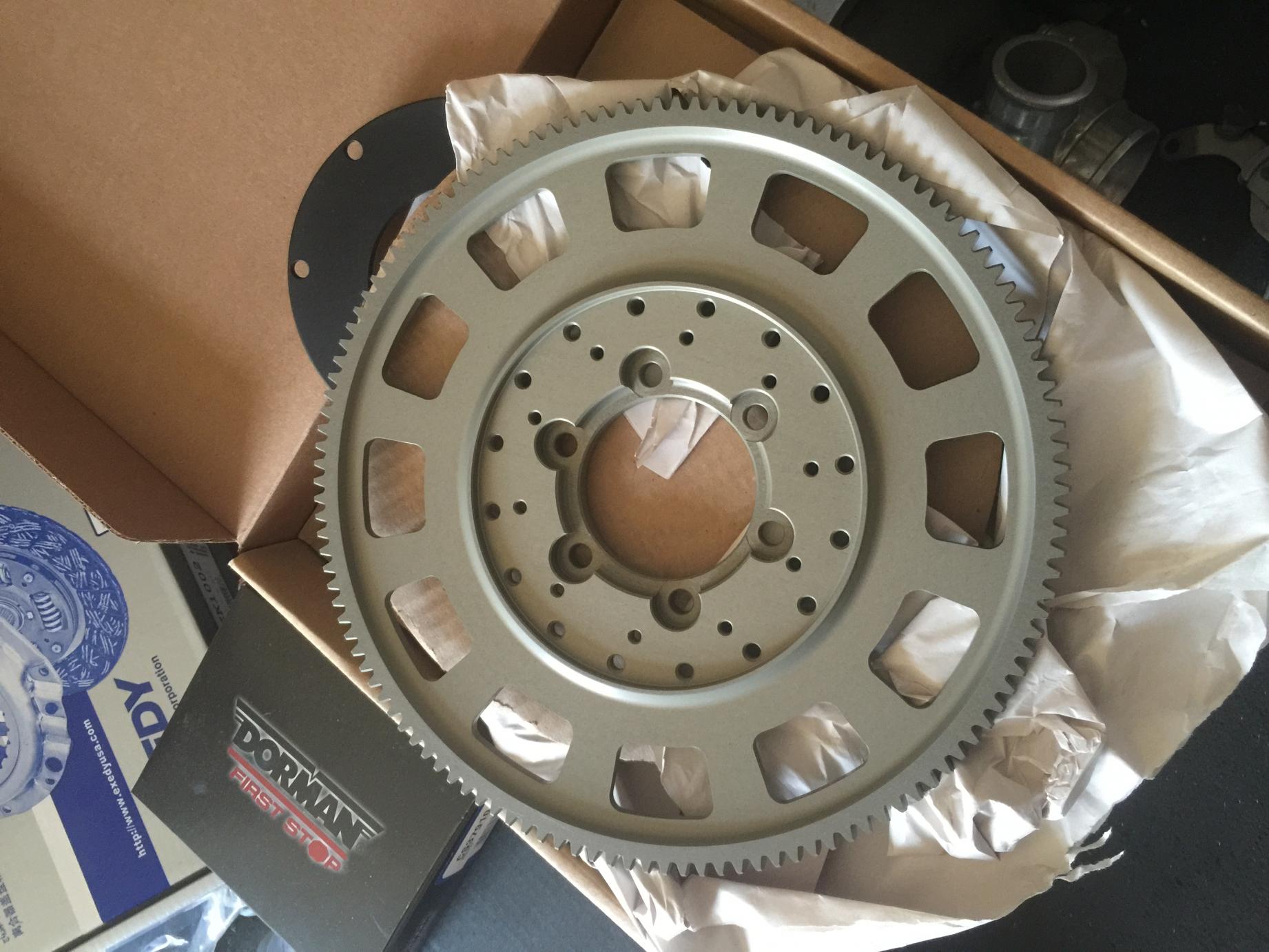

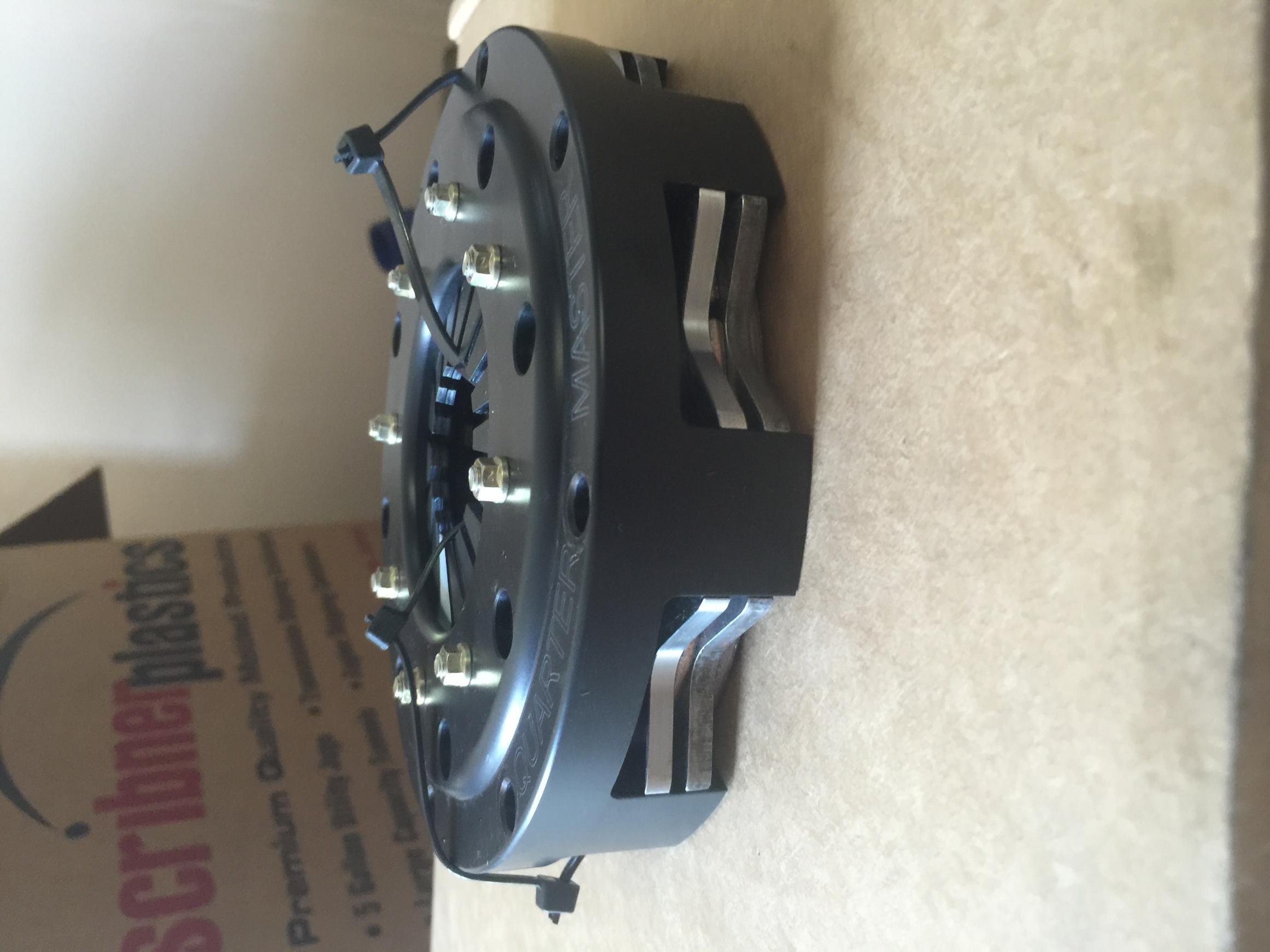

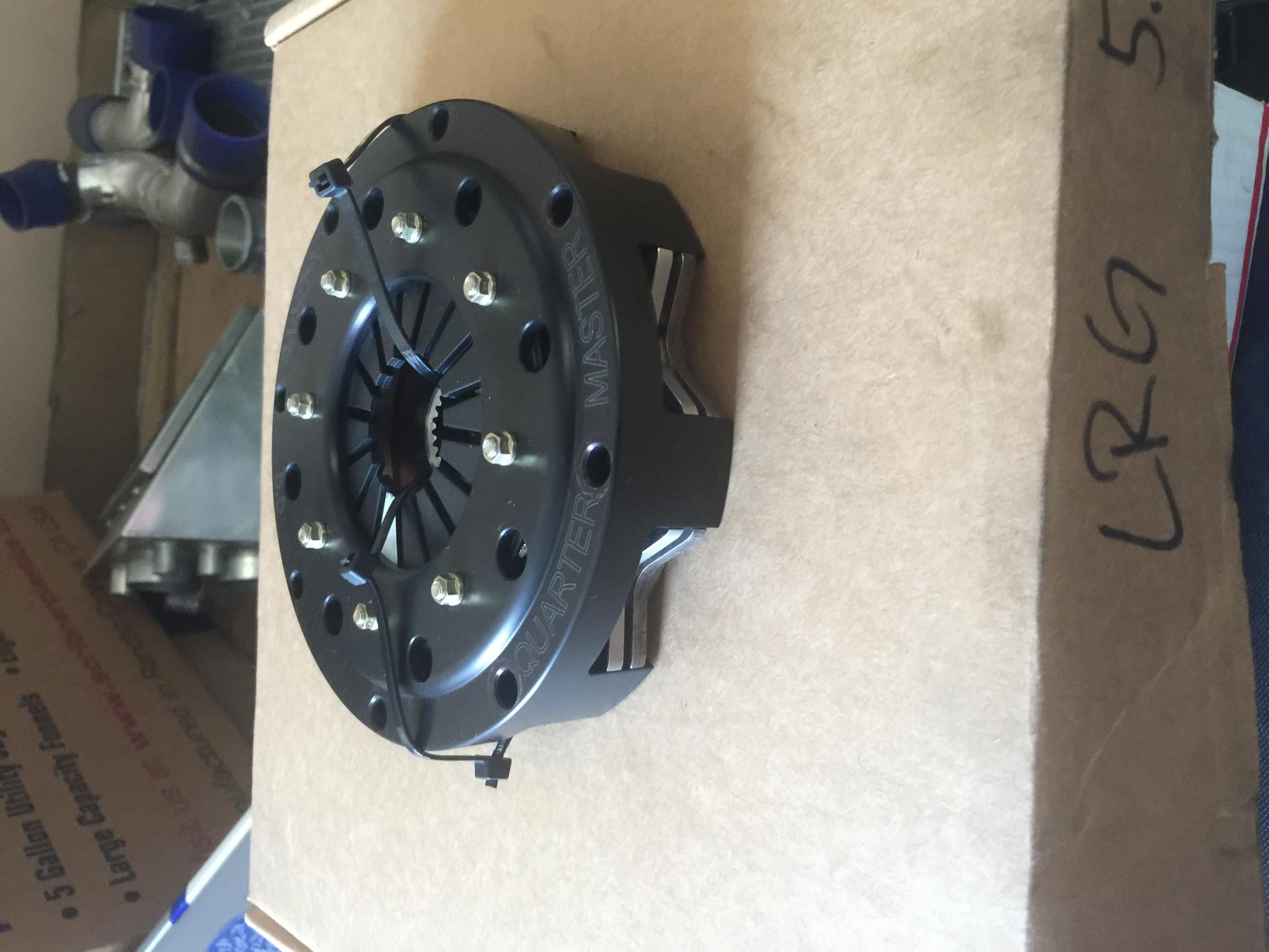

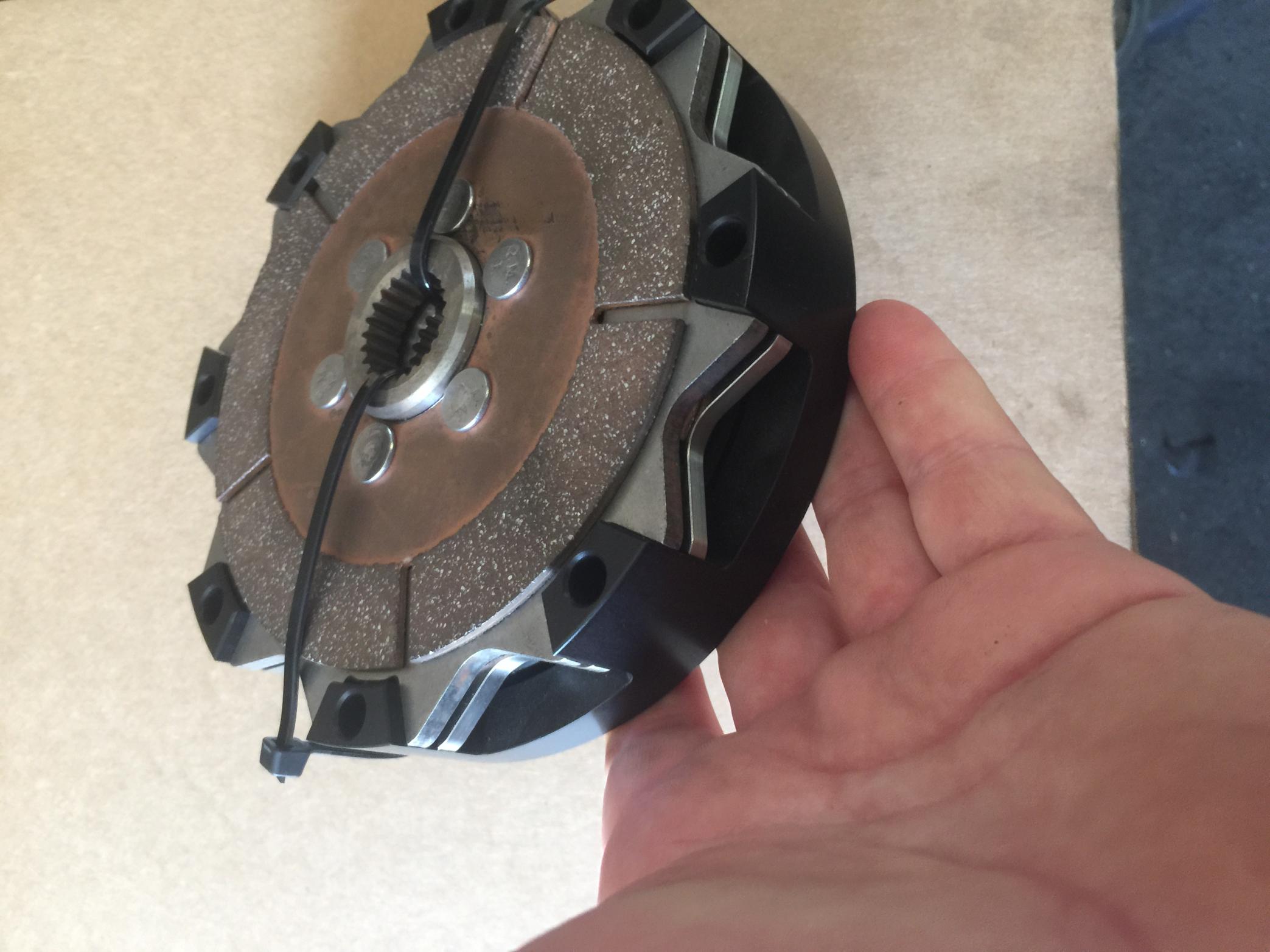

new flywheel and clutch

amemiya rules

iTrader: (2)

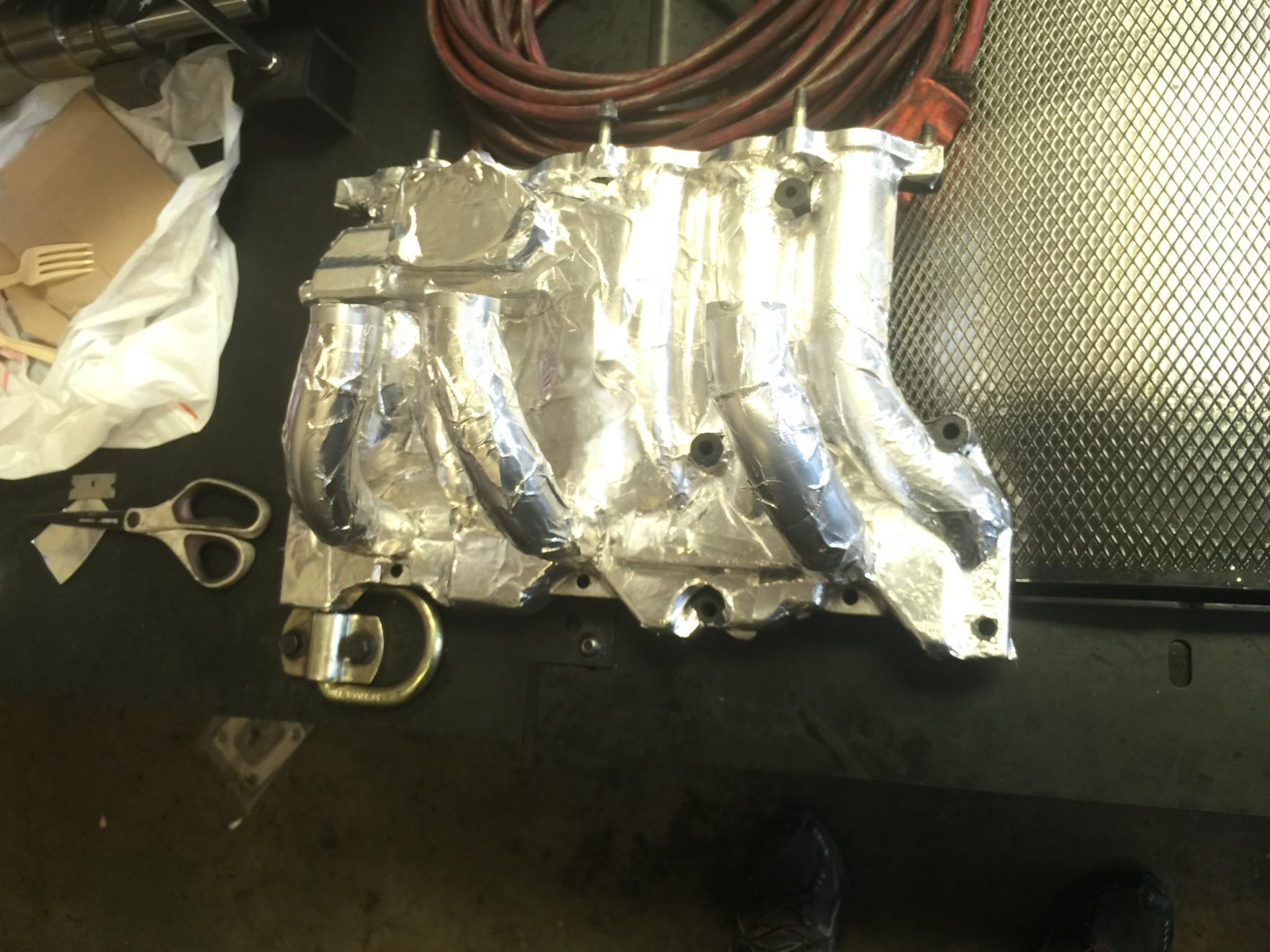

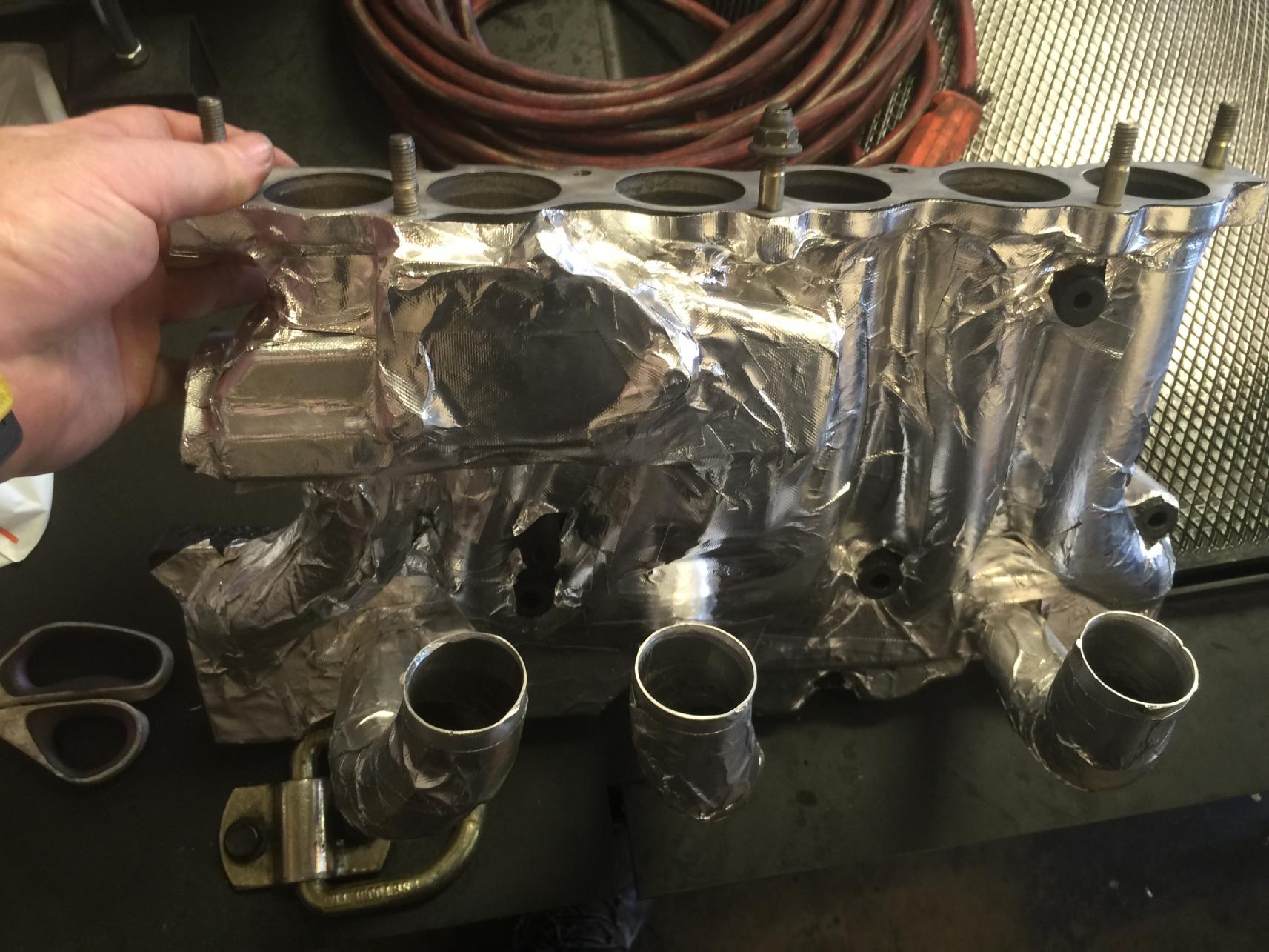

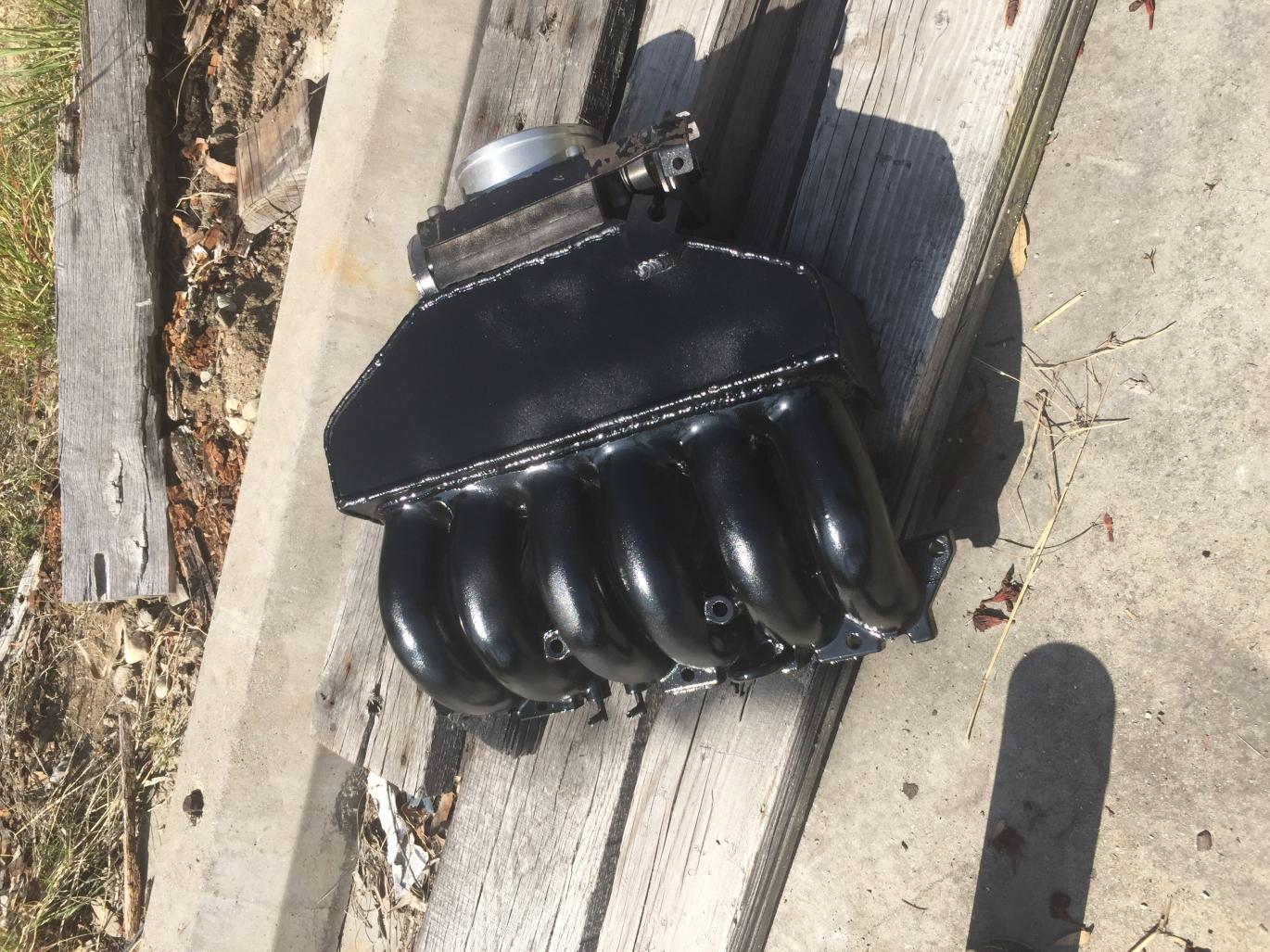

painted the intake black, and i am going to wrap the underside with reflective heat tape. also wrapped the semi p port intakes and the hot side of the lower intake manifold. Not easy to wrap and not pretty, but it should do the job
