Old 01-06-10, 09:11 PM   #1
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508
MI My Project Impreza AWD Rotary

I like to compete in the SCCA rallycross events here in Michigan because it is something to do during the cold icy winter when autocross doesn't exist. My winter/rallycross car is an '82 Rx-7 and while this is good when there is traction it is terrible slow in the snow and ice.
Click the image to open in full size.
Being a devote rotorhead I hated seeing how slow the Rx-7 was and so after a year of thinking what to do, considering whether to convert the Rx7 like the Rod Millen cars or swap rotaries into an Audi Quattro, Geo Tracker, or Impreza. The Impreza looked to have the most potential and after taking many measurements at junk yards I bought a high mileage 1998 Impreza L AWD at an auction. The best thing about it is the body is in very good condition meaning very little corrosion.
So this is where I'm at with it at this time:
Click the image to open in full size.
This shows S4 13B housings bolted to the oil pan with a turbo on for good measure! The more I get into this the better this installation looks. There is room in front of the standard radiator for the oil cooler, exhaust routing looks easy, no clearance issues if I run a turbo, and the standard S4 oil pan fits perfectly. I will need to modify the Subaru cross member so the rear edge of the sump can sit about half an inch lower. In addition engine mounts will need to be fabbed up to this cross member.
Click the image to open in full size.
There will be issues with the S4 waterpump nose fouling the radiator but I wonder whether an FD pump would help because it is shorter. Also not sure if the alternator would clear the hood. Fabbing the trans/engine adapter plate and mounting the starter motor are going to be challenging.
Click the image to open in full size.
This shows a 12A on the left and the 2,2L Impreza boxer engine side by side. Interestingly these engines are exactly the same length from transmission face to front pulley! Initially I thought only the 12A would fit but now with the 13B mocked up in position it also fits. Rather have the 13B for extra torque, parts availability, and ease of turbo installation.
Bruceman is offline   Reply With Quote
Old 01-06-10, 09:51 PM   #2
kiwi from downunder..
5 Year Member

blwfly's Avatar

Trader Score: (4)

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,374
Send a message via MSN to blwfly
so your gonna make a adapter plater for the subie tranny and hook it to a 13b?
this looks like a awsome idea..
all the best with the project
__________________
74 repu sporting a s4t2 engine
73 rx2 12a dual diz holly,rb exhaust.
blwfly is offline   Reply With Quote
Old 01-06-10, 10:07 PM   #3
Fway-ming dwagen
5 Year Member

sinned2545's Avatar

Trader Score: (7)

Join Date: May 2008
Location: New york
Posts: 1,580
Send a message via AIM to sinned2545
it seems like a cool project...
Ill like to see how this ends up..

good luck
__________________
"Some people only have Park & Reverse..... No Drive"
Quote:
Originally Posted by Andrizzanizz View Post
I had to get these things overnighted from japan, sent back to japan then overnighted again in the same night. its ultra jdm.
sinned2545 is offline   Reply With Quote
Old 01-07-10, 06:09 AM   #4
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508
Quote:
Originally Posted by blwfly View Post
so your gonna make a adapter plater for the subie tranny and hook it to a 13b?
this looks like a awsome idea..
all the best with the project
Yes 13B with Subaru AWD trans.
Bruceman is offline   Reply With Quote
Old 01-07-10, 08:30 AM   #5
RX for fun
10 Year Member

Siraniko's Avatar

Trader Score: (12)

Join Date: Aug 2001
Location: Socal
Posts: 15,665
GL with this project...cant wait to see it on dirt road
__________________
RX-7 owners come and go, but ol' schoolers last a lifetime.
75 RX-3 = small bumpers and SP tailights (sold!)
73 RX-3 = brap brap and away
73 RX-3 = done but took longer than expected to complete
SA and S3 RX-7 = on the sideline collecting dust
RIP Goofyrotor/Sidepex Norman
Siraniko is offline   Reply With Quote
Old 01-07-10, 08:40 AM   #6
That's MINT!
5 Year Member

Buggy's Avatar

Trader Score: (6)

Join Date: Jul 2007
Location: Mildmay, Ontario The Gateway to Bruce County!
Posts: 2,078
Good to see someone putting two great ideas together. Subaru AWD and a boosted rotary should make one hell of a weapon.
__________________
'88 TII Low km 300whp in the making '71 R100 Future life project '76 RX-4 Coupe Frankenrotor half bridge 13B 4 port, renesis e-shaft, stat gears and bearings, S5 NA rotors, Weber 48 IDF, gilmer drive... faster than the TII for now. 1973 Evinrude RC-35-Q Rotary Sled.
Buggy is offline   Reply With Quote
Old 01-07-10, 09:01 AM   #7
Exhaust Leak
5 Year Member

Trader Score: (0)

Join Date: Mar 2009
Location: Columbus, OH
Posts: 17
Great project. What is your timeline for getting it one the road?
BigSandwich is offline   Reply With Quote
Old 01-07-10, 10:41 AM   #8
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508
At the latest it has got to be on the road for next winter. So Nov. 2010.

Anyone know the height of a TII intake above the rotor housings? Need to know whether this it would clear the underside of the hood.
Bruceman is offline   Reply With Quote
Old 01-08-10, 09:09 PM   #9
kiwi from downunder..
5 Year Member

blwfly's Avatar

Trader Score: (4)

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,374
Send a message via MSN to blwfly
i messured off the top of the square on my rotor housing to the top of the manifold and got
7"1/4 camera angle makes it look like 1/2" but its not..

heres how i messured
Click the image to open in full size.

heres the square was talking about
Click the image to open in full size.

if the water pump is a real issue for clearence u can always to a electric one.

i really like your project i started to look for subies on craigslist lol..

cheers
chris
Attached Thumbnails
My Project Impreza AWD Rotary-cimg1815.jpg   My Project Impreza AWD Rotary-cimg0369.jpg
__________________
74 repu sporting a s4t2 engine
73 rx2 12a dual diz holly,rb exhaust.
blwfly is offline   Reply With Quote
Old 01-08-10, 10:45 PM   #10
Reliably broken
5 Year Member

Spirit-RE's Avatar

Trader Score: (23)

Join Date: Dec 2008
Location: Janesville, Wisconsin
Posts: 2,748
Awesome project.


Turbo AWD+Rotary=Win
__________________
'94 RX-7 Touring / '01 A4 quattro / '05 Lotus Elise
Spirit-RE is offline   Reply With Quote
Old 01-08-10, 10:49 PM   #11
No Life.
5 Year Member

Frostycrowd's Avatar

Trader Score: (9)

Join Date: Sep 2006
Location: Nashville, TN
Posts: 1,003
Send a message via AIM to Frostycrowd
Very original
Frostycrowd is offline   Reply With Quote
Old 01-08-10, 11:43 PM   #12
Turbo on the brain...
5 Year Member

Grappler's Avatar

Trader Score: (6)

Join Date: Aug 2008
Location: Minneapolis
Posts: 517
This looks awesome I can't wait to see how it all works
Grappler is offline   Reply With Quote
Old 01-09-10, 12:08 AM   #13
R.I.P. Icemark
5 Year Member

staticguitar313's Avatar

Trader Score: (2)

Join Date: Sep 2004
Location: gilbert, arizona
Posts: 4,229
Send a message via AIM to staticguitar313
Well this thread has my attention. I was expecting all talk no car, but your already working on it, sweet deal!
__________________
1993 Touring: Tan to Black interior conversion, AZRR Streetport motor, non-sequential twins, Tuned by UMS. thermostat stuck shut and she blew a coolant seal
BMW 325i E30, daily beater
staticguitar313 is offline   Reply With Quote
Old 01-09-10, 12:24 AM   #14
Likes to swear....alot
10 Year Member

R.P.M.'s Avatar

Trader Score: (3)

Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,767
haha awesome. I posted up about this years ago and everyone flamed the hell out of me. Nobody like the idea.

Keep up the good work! I'd love to see this happen.
__________________
2000 Volkswagon Jetta TDI, 1985 Mazda RX-7, 1972 Mazda 616, 1971 Mazda R100, 1971 Arctic Cat Panther 303 Rotary, 1969 Sno-Fury 303 Rotary

Check me out on Facebook now! www.facebook.com/rpmmotorsports1
R.P.M. is offline   Reply With Quote
Old 01-09-10, 08:31 AM   #15
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508
Thanks for all the encouraging responses and thanks BLWFLY for the intake height measurements.
I need to place the hood back on today and check the clearance to see if a standard TII intake fits. Will also start mocking up the trans adapter plate.
If someone has an FD waterpump could they measure the distance from the face where it bolts up to the housing and the hub face where the pulley bolts on? This I will compare to an S4/S5 waterpump length and determine whether it will interfere with the radiator fans.
Bruceman is offline   Reply With Quote
Old 01-09-10, 01:23 PM   #16
Progressive Rotorhead
10 Year Member

JDriftM's Avatar

Trader Score: (8)

Join Date: Jul 2003
Location: Cincinnati, OH
Posts: 593

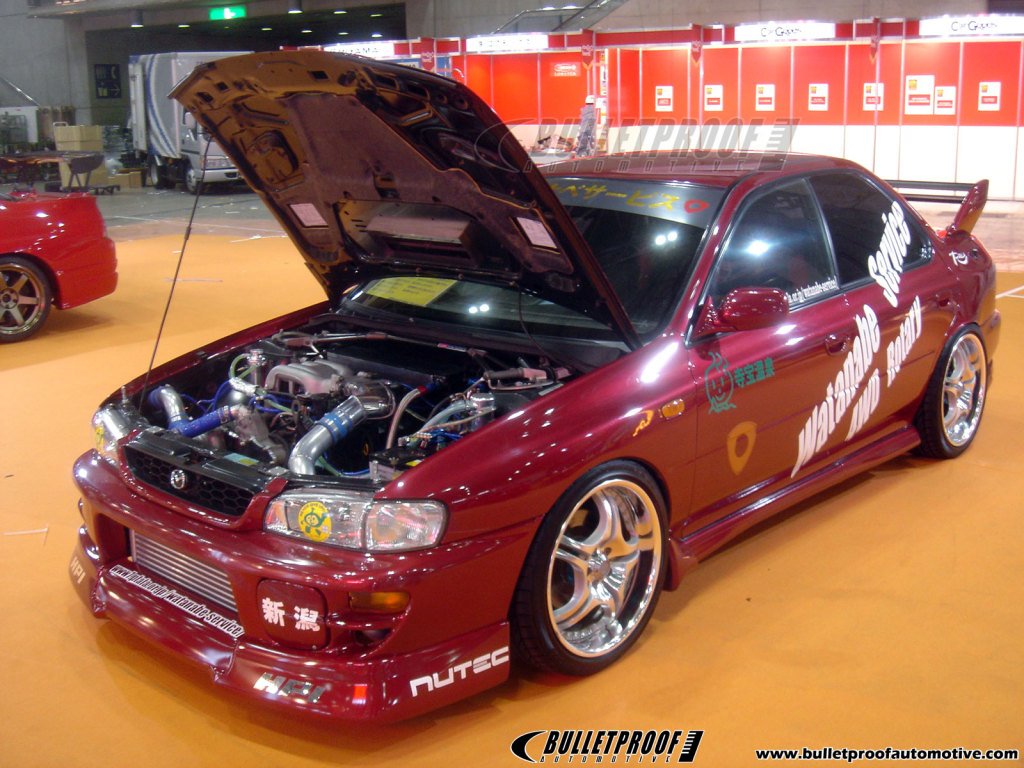

Been done...Tokyo Auto Salon...circa 2003ish...
Attached Thumbnails
My Project Impreza AWD Rotary-sendtocarseyawdrotary.jpg
JDriftM is offline   Reply With Quote
Old 01-09-10, 01:33 PM   #17
kiwi from downunder..
5 Year Member

blwfly's Avatar

Trader Score: (4)

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,374
Send a message via MSN to blwfly
that is a friggin awsome car..
__________________
74 repu sporting a s4t2 engine
73 rx2 12a dual diz holly,rb exhaust.
blwfly is offline   Reply With Quote
Old 01-09-10, 01:38 PM   #18
Progressive Rotorhead
10 Year Member

JDriftM's Avatar

Trader Score: (8)

Join Date: Jul 2003
Location: Cincinnati, OH
Posts: 593
Thought you all would like that..***NOTE OIL COOLER PLACEMENT****
JDriftM is offline   Reply With Quote
Old 01-09-10, 02:09 PM   #19
10a *****

Trader Score: (0)

Join Date: Jan 2004
Location: NZ
Posts: 306
Quote:
Originally Posted by JDriftM View Post
Been done...Tokyo Auto Salon...circa 2003ish...
There was one getting around New Zealand a few years back as well. Not sure what happened to it - someone might know?
__________________
Visit my 10aPP rx3 racer:

http://www.cardomain.com/ride/2209107/1
re10 is offline   Reply With Quote
Old 01-18-10, 06:39 PM   #20
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508

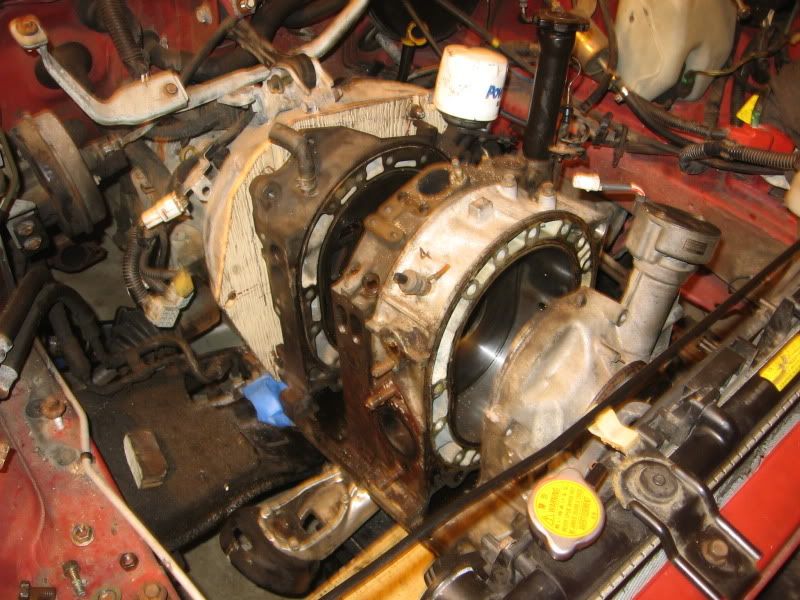

After mocking up an adapter plate out of wood and installing 13B dummy engine found there is about 7 inchs clearance under the hood for intake manifold. Elimination of one of the hood strengthening braces will give another 1/2" clearance.
Standard NA intake definately won't fit due to lack of hood clearance.
Click the image to open in full size.
Took a look at how the engine mounting might look for the 13B
Click the image to open in full size.

Next I'm going to install the adapter onto a half BP 12A and see how it looks in the engine bay. I think this engine would work well with a turbo and fuel injection. I like the idea of a top mount intercooler positioned in the std Subaru location with a WRX hood scoop.
Bruceman is offline   Reply With Quote
Old 01-18-10, 09:57 PM   #21
kiwi from downunder..
5 Year Member

blwfly's Avatar

Trader Score: (4)

Join Date: Nov 2005
Location: springfield,oregon
Posts: 3,374
Send a message via MSN to blwfly
i would think at least a 13b turbo engine for this car how much dose the car weigh?

whats the power out put of the subie engine?

12abp turbo should do tho.
__________________
74 repu sporting a s4t2 engine
73 rx2 12a dual diz holly,rb exhaust.
blwfly is offline   Reply With Quote
Old 01-21-10, 11:12 AM   #22
Rotor Power Rules
10 Year Member

Bruceman's Avatar

Trader Score: (5)

Join Date: Jul 2001
Location: Rochester Hills, MI
Posts: 508
1998 Impreza with 2.2L had 137hp and weighed 2700 lbs. To be competitive in M4 rallycross I'll need at least 200 - 250hp.
Bruceman is offline   Reply With Quote
Old 01-21-10, 08:10 PM   #23
$ ain't everything, rite?

Bugeye RX's Avatar

Trader Score: (0)

Join Date: Jun 2009
Location: CT
Posts: 468

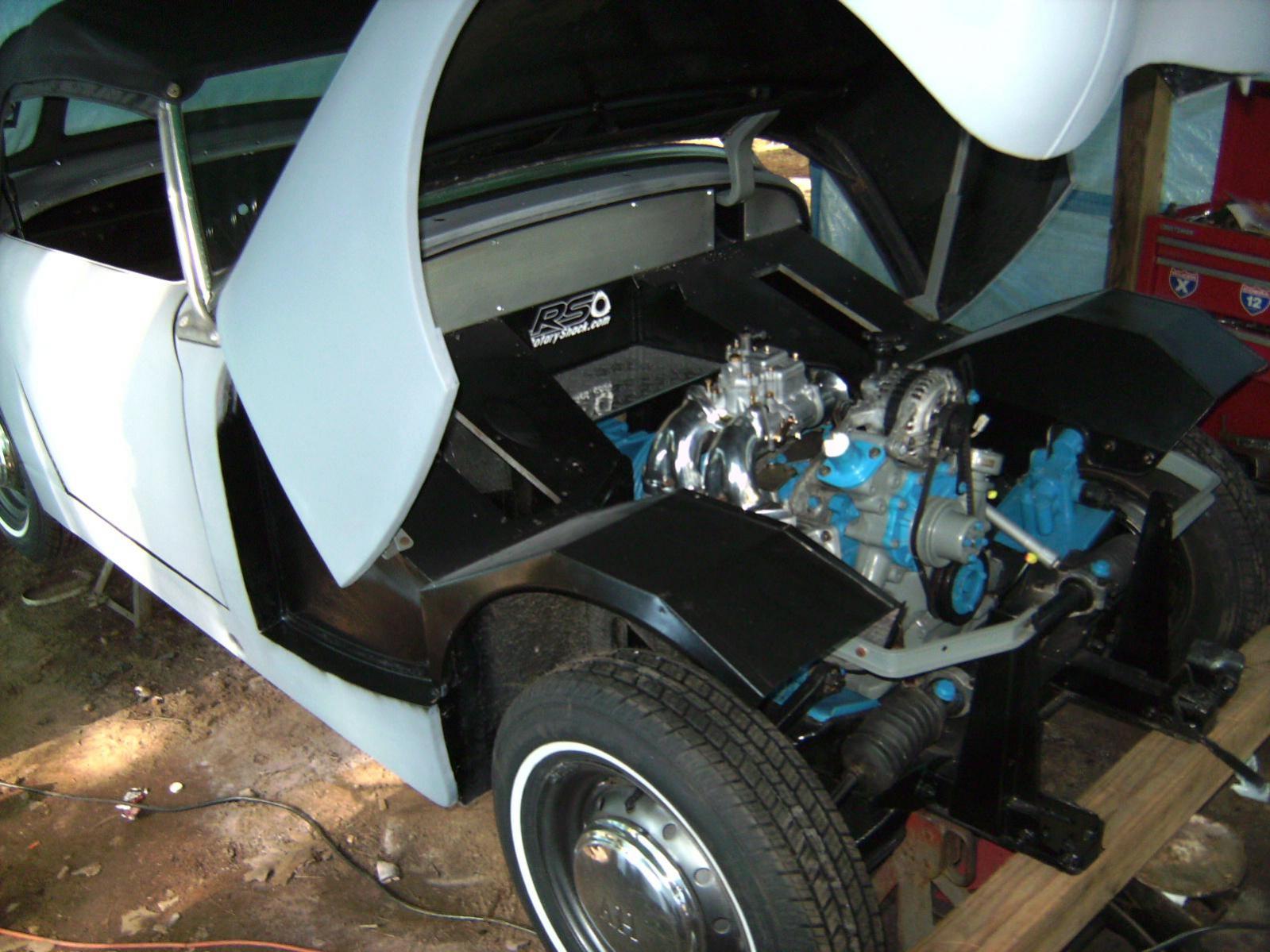

That's just an awesome project, I'm putting a 13B N/A in a 1300lbs 1959 Bugeye. If a 13B fits in here it will fit in anything! Good luck and Keep us posted. Dave
Attached Thumbnails
My Project Impreza AWD Rotary-guns004.jpg
Bugeye RX is offline   Reply With Quote
Old 01-22-10, 06:50 PM   #24
Rotorite

Trader Score: (0)

Join Date: Aug 2006
Location: Jacksonville, Fl.
Posts: 95
awesome project. cant wait to see the final product.

any more info on your 13b bug?^^
burT is offline   Reply With Quote
Old 01-22-10, 08:01 PM   #25
$ ain't everything, rite?

Bugeye RX's Avatar

Trader Score: (0)

Join Date: Jun 2009
Location: CT
Posts: 468
any more info on your 13b bug?^^[/quote]

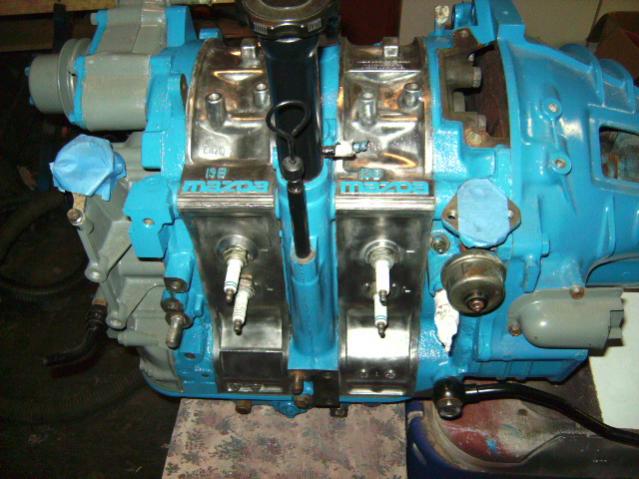

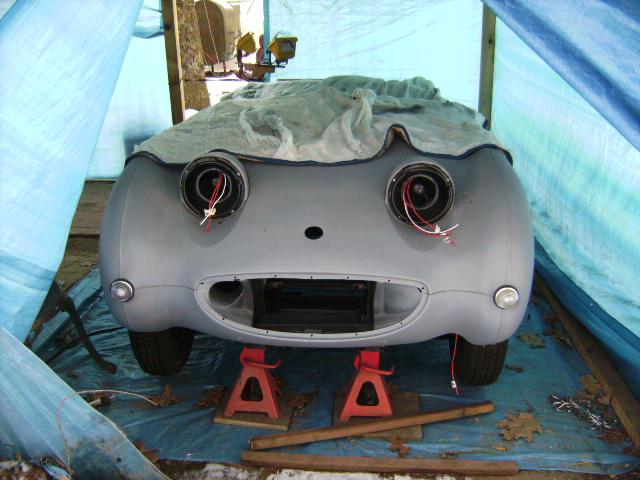

Bugeye is in hibernation till March 1st. But I have been busy polishing.

Has anyone even seen a AWD Rotary, just sounds cool! Can't wait to see a vid of this one!
Attached Thumbnails
My Project Impreza AWD Rotary-a1002.jpg   My Project Impreza AWD Rotary-motor002.jpg

Last edited by Bugeye RX; 01-22-10 at 08:09 PM.
Bugeye RX is offline   Reply With Quote
Old 01-22-10, 08:01 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
13b, 13brew, adapter, awd, exhaust, impreza, plate, plates, project, rotary, rotory, routing, subaru, tranny

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


All times are GMT -5. The time now is 04:33 AM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts
