Hi guys! So new here but not new to Miata's. I've been on Clubroadster for a number of years but have not been all that active.
Anyway, I've Been wanting to build a Rotary miata for as long as I've had one. I remember seeing threads on Clubroadster of people saying that's the engine that should have come in Miata's. So once I heard one. I knew In my mind I would build one.
So after getting a free shell, and finally being at a point in my life that I'm not living check to check. This is the time. As my favorite speaker says. "There is never the perfect time to do a great thing" So lets make it Happen.

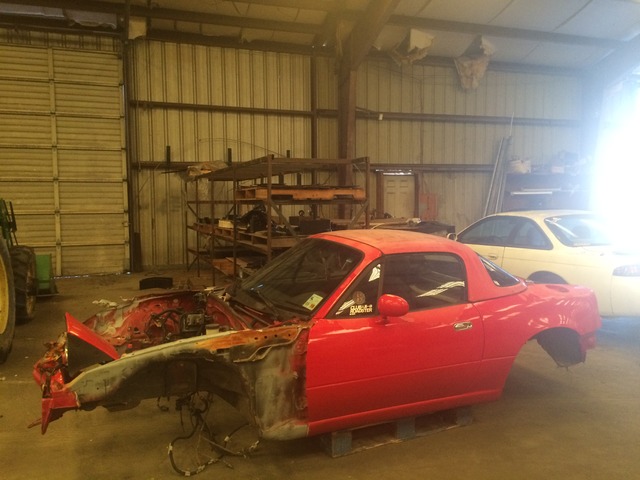

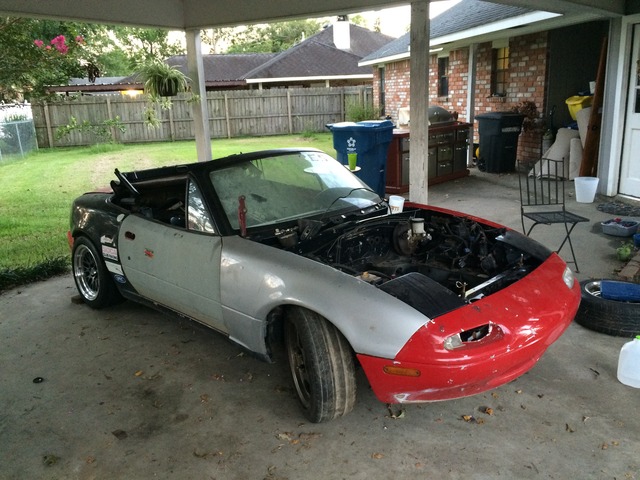

Said Shell.
It was a Ex Spec Miata that was left for dead. Asked the owner how much he wanted for it and he said "Free and I can deliver anywhere to get my wife off my back" haha so we loaded it up!
So next on the List was of course a engine. I used Tiger JDM out of Canada and yea BIG regret. Long story short. Horrible seller. Gave me Wrong parts, tried to Lie and say they didnt. Charged me for parts that were wrong and incomplete. Zabi is the worst human I've ever dealt with. So NEVER BUY FROM TIGER JDM EVER!!!!!!!!!!!!!!!

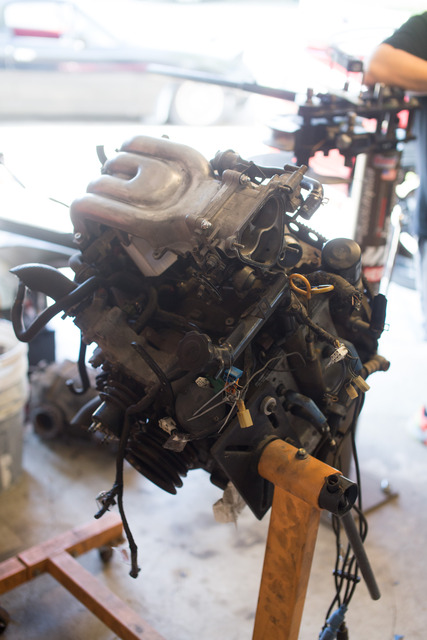

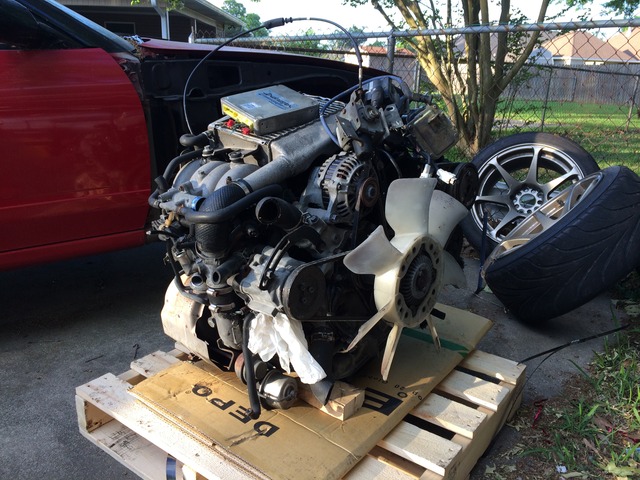

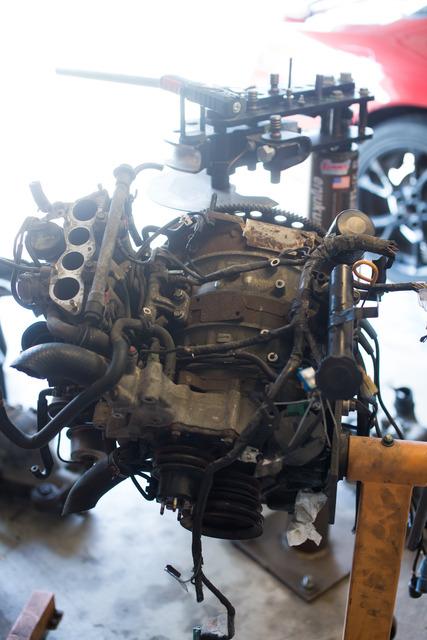

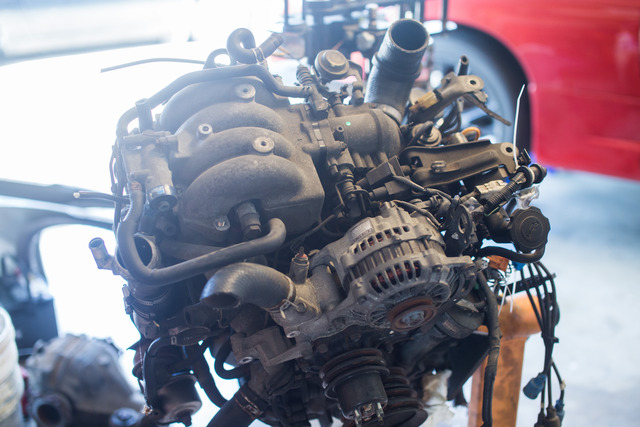

Said engine.
After that, reading a lot of 13B swap threads everyone said the part that they would have done different on almost all of them was getting a V8roadsters Tube Subframe. So i obliged. Fantastic Build quality, only 25lbs, and great customer service. They will have my business again.

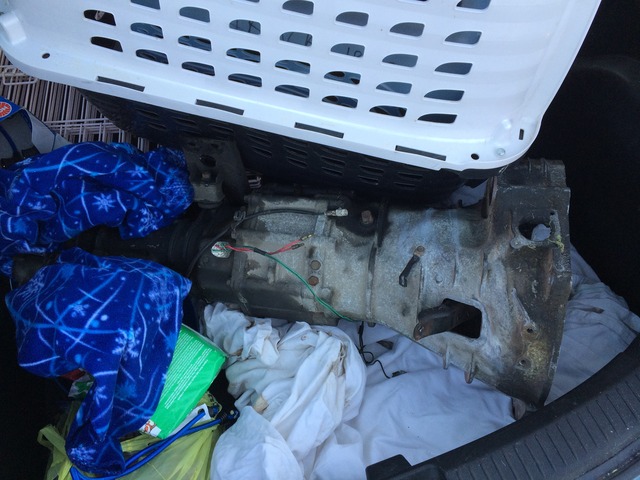

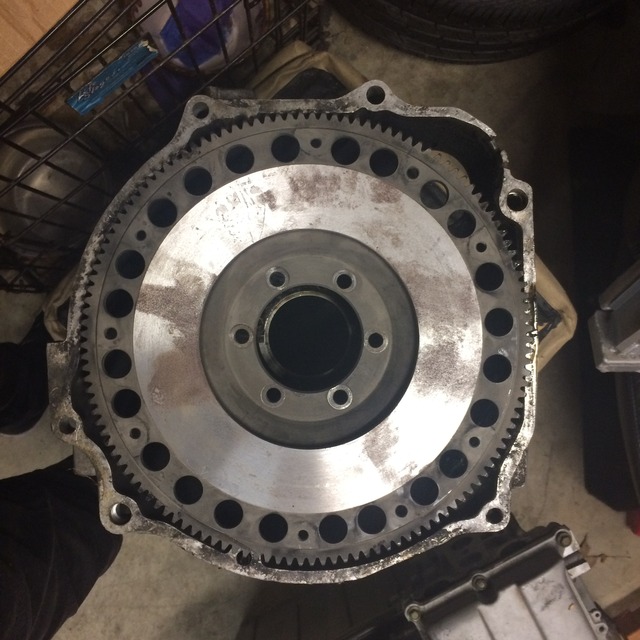

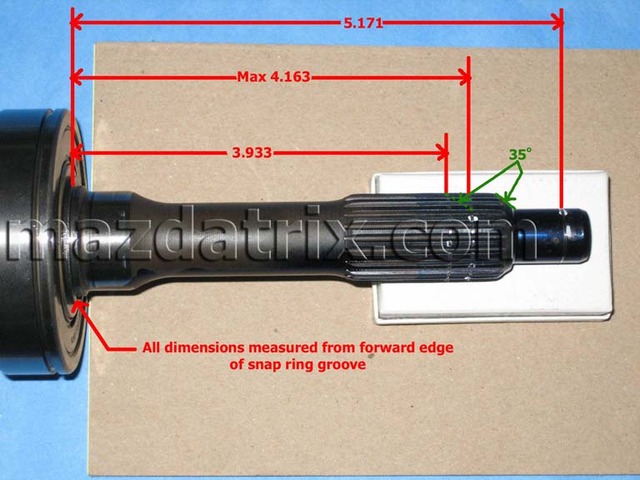

Then I had to look at the transmission side of things. I could have gone full FC drivetrain but given that I have a 1.8 diff and 05 axles and the fact that I wont be going over 250hp Stock miata stuff is fine. But in order to do that you need a FC bell housing and Shortening the output shaft. So found a guy local with one and snagged it for dirt cheap.
Ill be giving a machinist this for the measurements.
So the shell literally had nothing in it. Not a Nut or Bolt on it. So I snagged some parts from my old car to get it rolling. And bought another miata for parts from a buddy for next to nothing.
This thing is a heap. But still has great parts. Well Important parts haha
Lastly I need to wire it all up and Need a ECU and ignition. Found another guy that did the swap before and is parting it out. So I snagged a Apexi Power FC Ecu, and meshed miata to Rx7 Harness, and Ignition coils and associated stuff. Paypaling him as I type this and it should be shipped out tomorrow morning!
So this is where I am right now.
Next on the List is
Clutch
Flywheel
Need a 54mm socket.
Radiator + Fans
Intercooler setup.
Thanks For looking guys.
Anyway, I've Been wanting to build a Rotary miata for as long as I've had one. I remember seeing threads on Clubroadster of people saying that's the engine that should have come in Miata's. So once I heard one. I knew In my mind I would build one.
So after getting a free shell, and finally being at a point in my life that I'm not living check to check. This is the time. As my favorite speaker says. "There is never the perfect time to do a great thing" So lets make it Happen.
Said Shell.
It was a Ex Spec Miata that was left for dead. Asked the owner how much he wanted for it and he said "Free and I can deliver anywhere to get my wife off my back" haha so we loaded it up!
So next on the List was of course a engine. I used Tiger JDM out of Canada and yea BIG regret. Long story short. Horrible seller. Gave me Wrong parts, tried to Lie and say they didnt. Charged me for parts that were wrong and incomplete. Zabi is the worst human I've ever dealt with. So NEVER BUY FROM TIGER JDM EVER!!!!!!!!!!!!!!!
Said engine.
After that, reading a lot of 13B swap threads everyone said the part that they would have done different on almost all of them was getting a V8roadsters Tube Subframe. So i obliged. Fantastic Build quality, only 25lbs, and great customer service. They will have my business again.
Then I had to look at the transmission side of things. I could have gone full FC drivetrain but given that I have a 1.8 diff and 05 axles and the fact that I wont be going over 250hp Stock miata stuff is fine. But in order to do that you need a FC bell housing and Shortening the output shaft. So found a guy local with one and snagged it for dirt cheap.
Ill be giving a machinist this for the measurements.
So the shell literally had nothing in it. Not a Nut or Bolt on it. So I snagged some parts from my old car to get it rolling. And bought another miata for parts from a buddy for next to nothing.
This thing is a heap. But still has great parts. Well Important parts haha
Lastly I need to wire it all up and Need a ECU and ignition. Found another guy that did the swap before and is parting it out. So I snagged a Apexi Power FC Ecu, and meshed miata to Rx7 Harness, and Ignition coils and associated stuff. Paypaling him as I type this and it should be shipped out tomorrow morning!
So this is where I am right now.
Next on the List is
Clutch
Flywheel
Need a 54mm socket.
Radiator + Fans
Intercooler setup.
Thanks For looking guys.
#6
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
#7
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
So I took a afternoon, to start on the car.

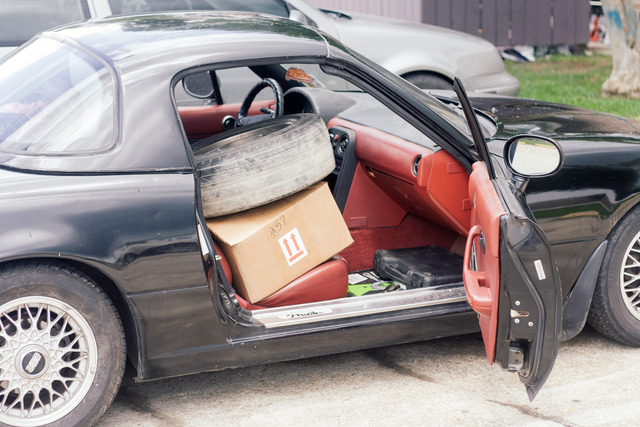

Loaded up with Wheels, wiring, New Clutch.

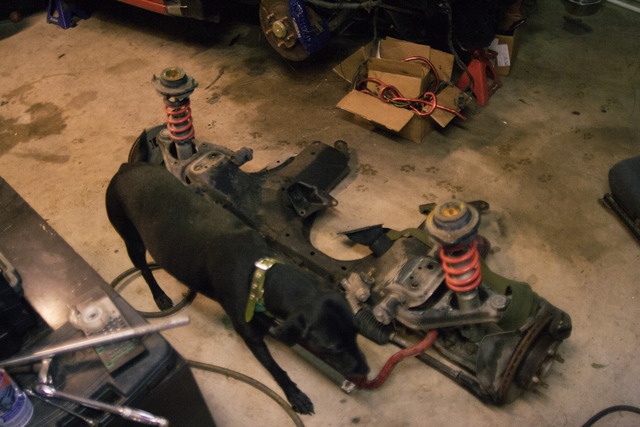

I decided to start on the front subframe. Needed to switch the control arms and put the new Poly bushings in. Sadly it started raining so I had to take it inside.
Had a little help from Veda

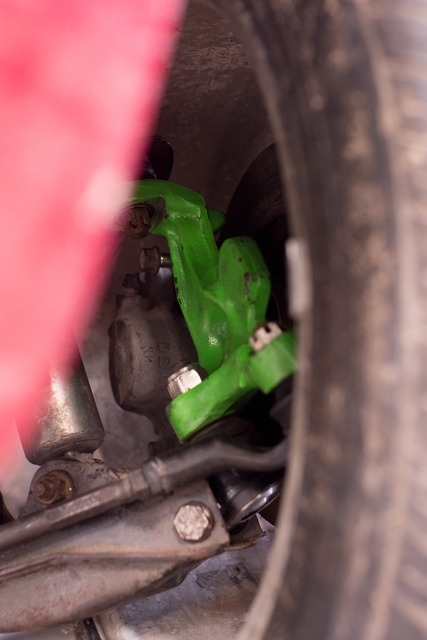

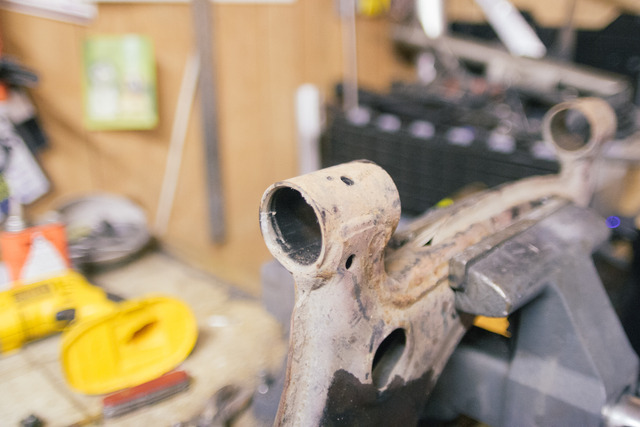

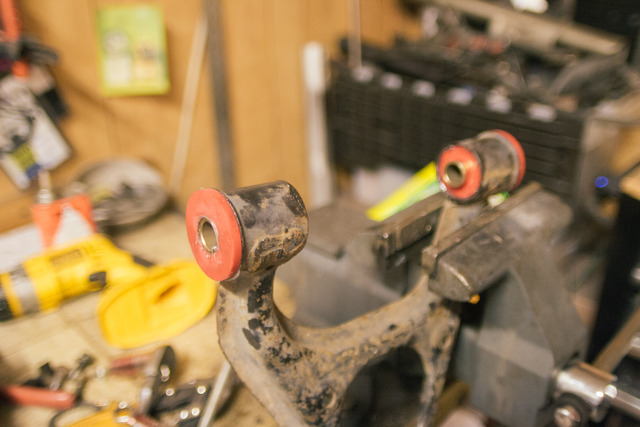

I ended up Bending two Upper control arms trying to take the bushings out but luckily the parts car came in handy.

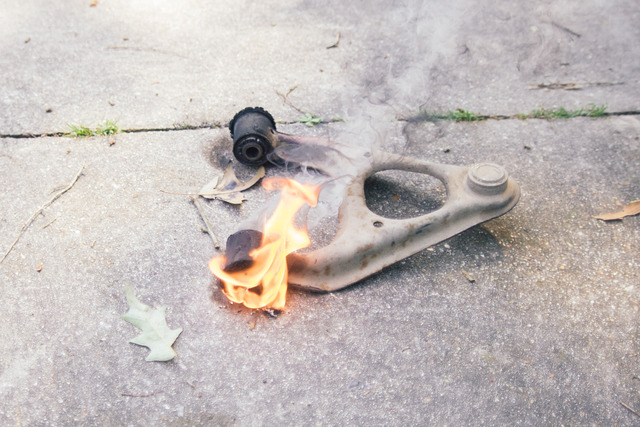

So Instead of the cheap Home Depot tool. Good ole fashion fire!

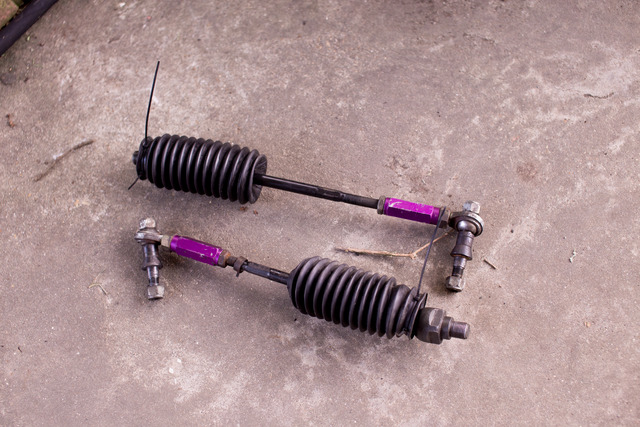

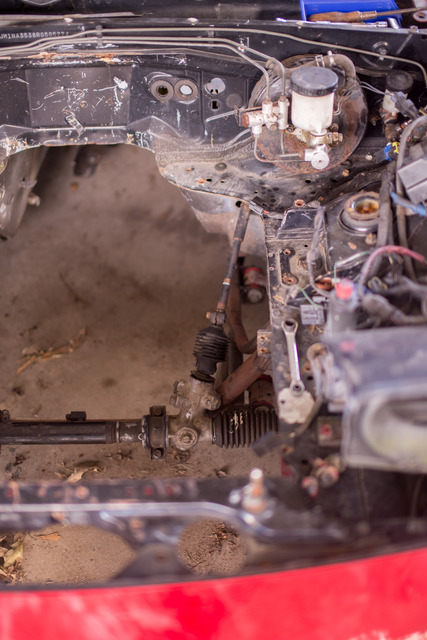

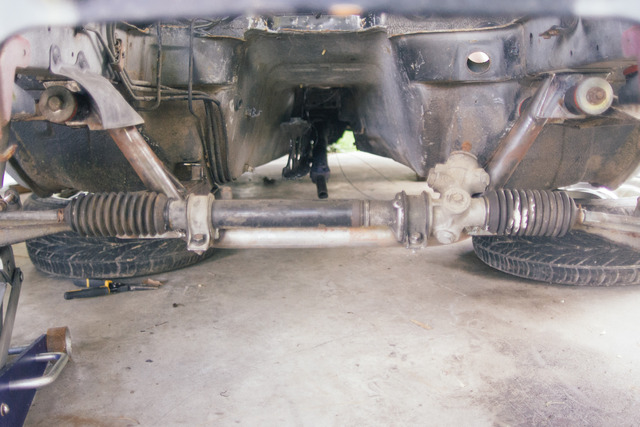

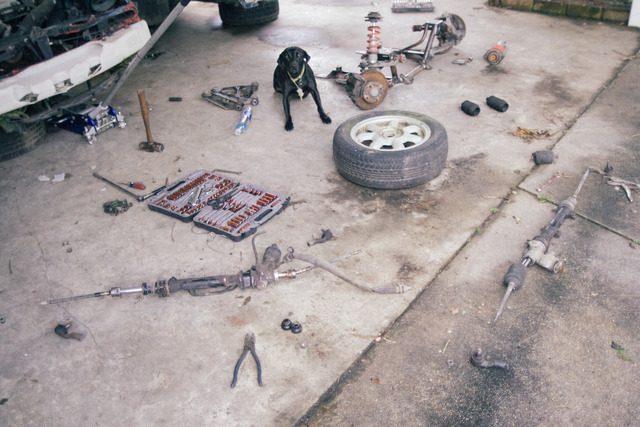

Then I pulled the Parts steering rack to use the boots that were still in great shape.

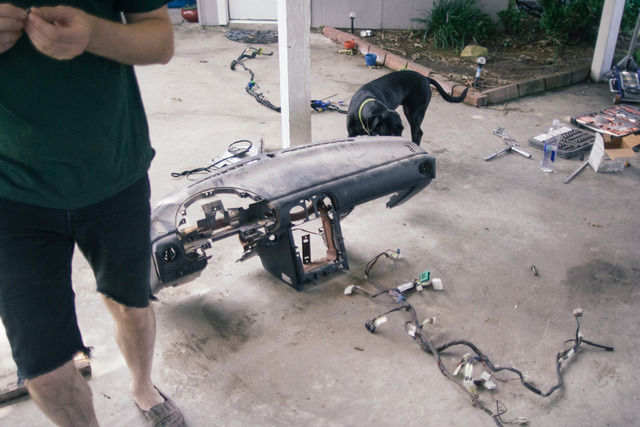

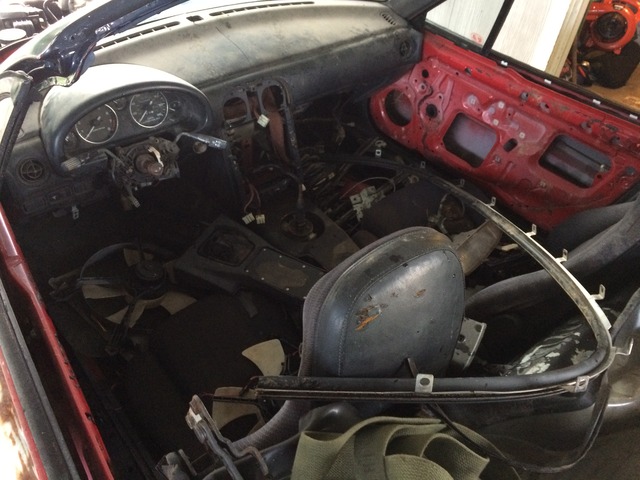

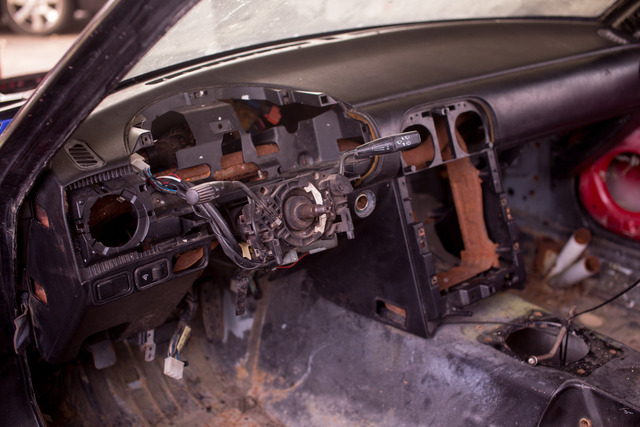

Next I pulled the dash and started labeling as Ill be using most or all of the body harnesses.

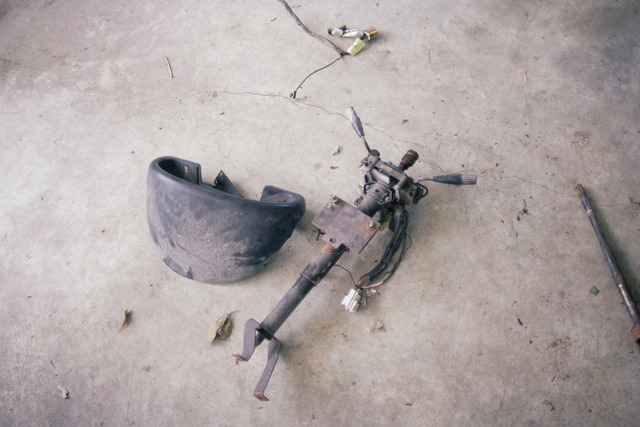

And I started to pull the Steering column
Loaded up with Wheels, wiring, New Clutch.
I decided to start on the front subframe. Needed to switch the control arms and put the new Poly bushings in. Sadly it started raining so I had to take it inside.
Had a little help from Veda
I ended up Bending two Upper control arms trying to take the bushings out but luckily the parts car came in handy.
So Instead of the cheap Home Depot tool. Good ole fashion fire!
Then I pulled the Parts steering rack to use the boots that were still in great shape.
Next I pulled the dash and started labeling as Ill be using most or all of the body harnesses.
And I started to pull the Steering column
Trending Topics
#9
Are you going to use the stock PPF or build mounts? I used the same subframe with stock PPF on mine. The driveline ends up angled to the point where I had to notch the firewall above the tunnel and the diff bushings are at an angle. I'm hoping to replace the bushing with spherical bearings as the rubber is going to get destroyed.
I think if I were to do it again I would replace the PPF with diff and tranny mounts and move the engine back an inch or two to clear the steering rack.
Good luck with the build. If you have any questions or want any pictures of how I did anything on mine let me know.
I think if I were to do it again I would replace the PPF with diff and tranny mounts and move the engine back an inch or two to clear the steering rack.
Good luck with the build. If you have any questions or want any pictures of how I did anything on mine let me know.
#10
Full Member
iTrader: (1)
Looking good! Subscribed to see how this build comes along. If you get stuck or looking for pointers post up. There's a few of us running around that have completed the swap. Also a Rotary Miata group on FB.
Going to be high points and low points of the build, don't let the low points get the better of you. So worth it once it's completed.
Going to be high points and low points of the build, don't let the low points get the better of you. So worth it once it's completed.
#11
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
So finally an update!
I've been ordering up parts for this and my daily and just trying to find time to get to the car since It's been raining really every single afternoon so cant really get to the car as its just under a carport and not the Garage yet as we still have another project 240 in there.
But here is my lunch and a few parts from the other day.

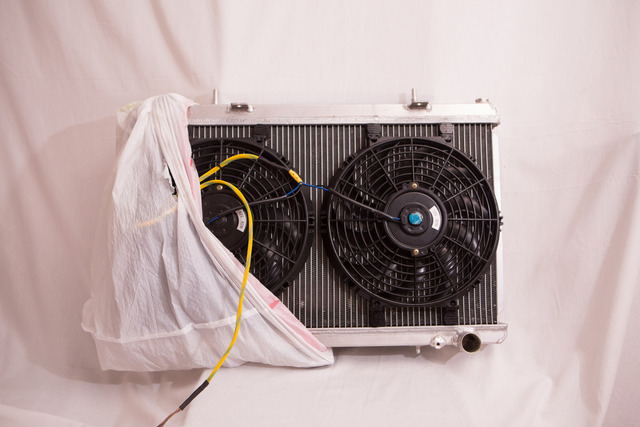

Got a ISIS radiator plus fans for dirt cheap

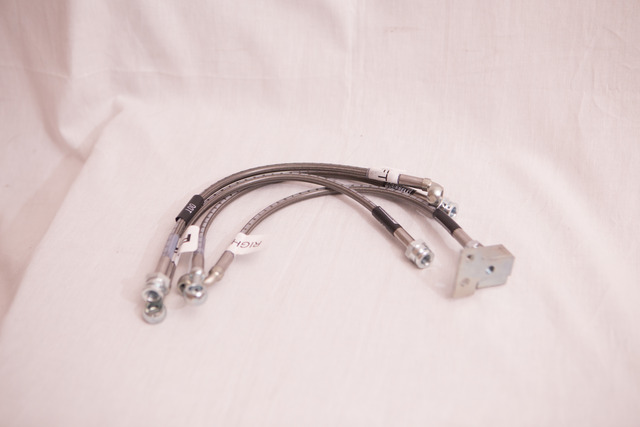

SS brake lines

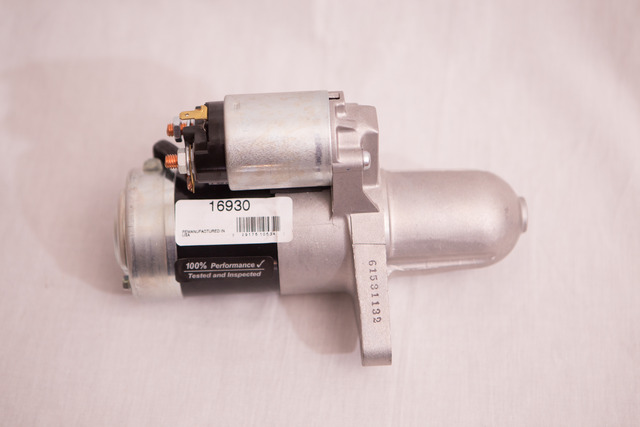

Brand New Starter.
And A new OEM intercooler
But i am super excited about my knuckles i just got from the same guy that I got the ECU from.
They should be here Tomorrow!
I've been ordering up parts for this and my daily and just trying to find time to get to the car since It's been raining really every single afternoon so cant really get to the car as its just under a carport and not the Garage yet as we still have another project 240 in there.
But here is my lunch and a few parts from the other day.
Got a ISIS radiator plus fans for dirt cheap
SS brake lines
Brand New Starter.
And A new OEM intercooler
But i am super excited about my knuckles i just got from the same guy that I got the ECU from.
They should be here Tomorrow!
#13
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
So I got to work on the car today! I got the knuckles in so got to instal them. I didn't do any measurements but Its a obvious difference.
But also got my dash in and all the steering together. The previous owner was a idiot and I almost couldn't save the shaft but I ended up being able too. Glad I could finally have the car start looking like a car.
Next up is changing the gas tank
also found out I got the wrong starter, so Ill have figure out if there are differences in years. Cause the rx7 bellhousing I've got, I don't have any info on the year.
But also got my dash in and all the steering together. The previous owner was a idiot and I almost couldn't save the shaft but I ended up being able too. Glad I could finally have the car start looking like a car.
Next up is changing the gas tank
also found out I got the wrong starter, so Ill have figure out if there are differences in years. Cause the rx7 bellhousing I've got, I don't have any info on the year.
#14
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Just a reminder before anyone says anything. This build is not to be Pretty in any way. Or be a 400hp insane bridgeport huge turbo. Stock motor should be just fine for me! I used to drift a Stock 1.6 perfectly fine, so 215+hp is going to be a treat! I'm building this to have loads of fun with my friends at our local drift events. The outside will be all one color but as for painting the bay, and prepping everything just so. That is not in this builds immediate future. I just want to have fun and shoot some flames.
#15
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Alright so more updates! Been slowly chipping away at the car. I started to tear into the transmission bellhousing swap I found out that the Rx7 turbo II and Na transmissions are a little different, 20mm different. So now in search for one of those.
Said issue. Its a setback but I also learned something. No big deal.

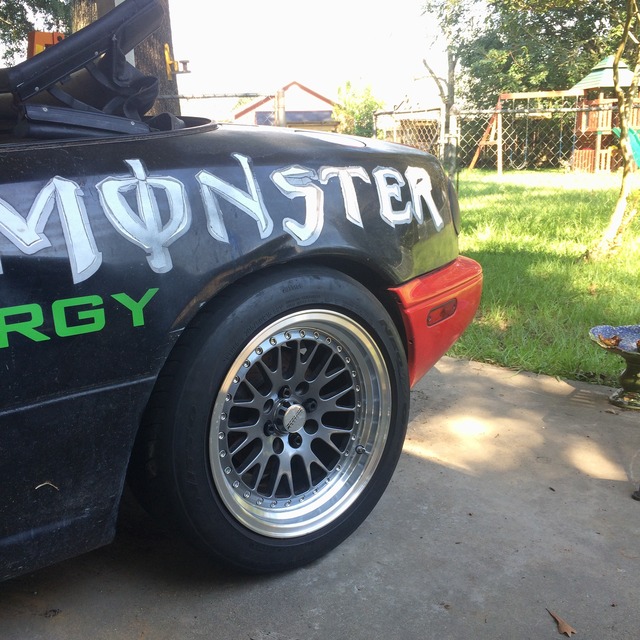

Then I got on the new rear wheels on as well!

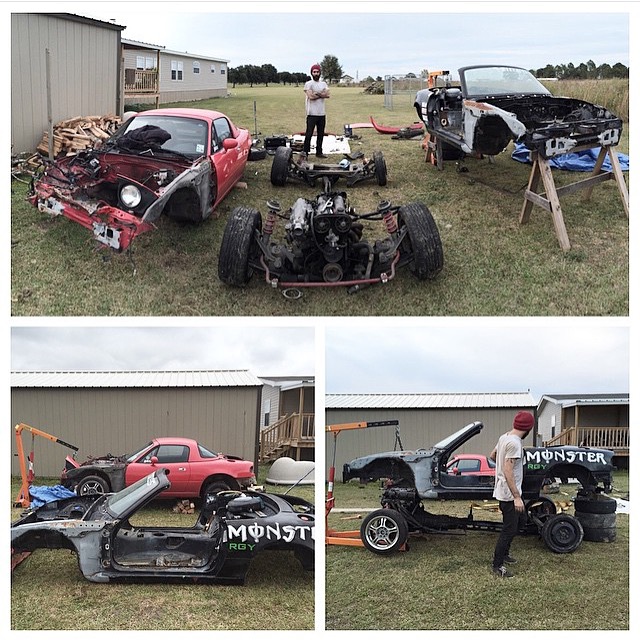

Today was super productive getting rid of the parts car. A buddy with a trailer came haul her off to the scrap yard!

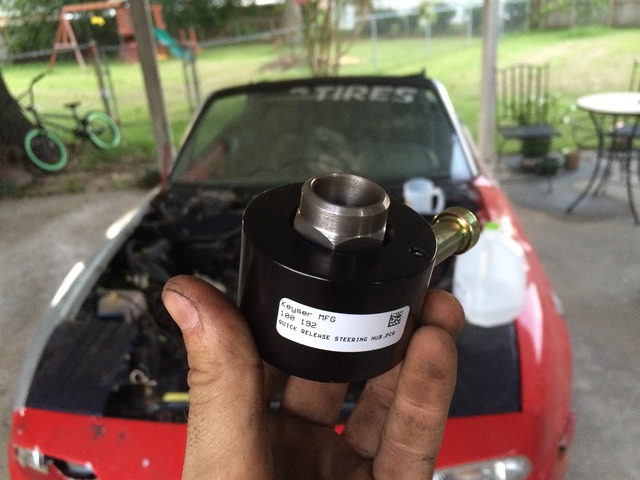

When I checked the mail I was greated with my new steering wheel hub, New Hardtop bolts and my fuel pump!
And I retapped all the fender bolts because they had alot of surface rust in them
HArdstyle for days.

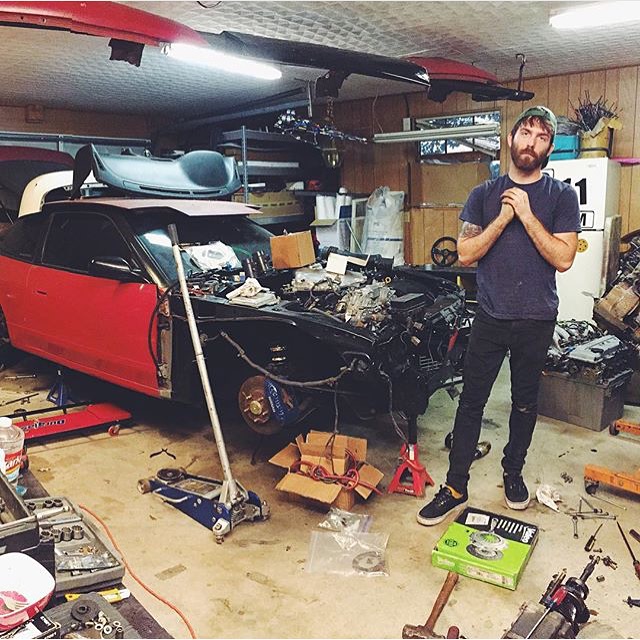

And a old photo of switching drivetrains.
Said issue. Its a setback but I also learned something. No big deal.
Then I got on the new rear wheels on as well!
Today was super productive getting rid of the parts car. A buddy with a trailer came haul her off to the scrap yard!
When I checked the mail I was greated with my new steering wheel hub, New Hardtop bolts and my fuel pump!
And I retapped all the fender bolts because they had alot of surface rust in them
HArdstyle for days.
And a old photo of switching drivetrains.
#16
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts

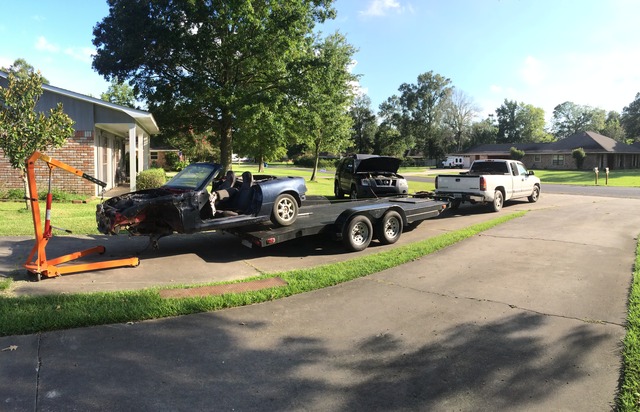

So I finally have my shell in town! Can't wait to get started on everything!

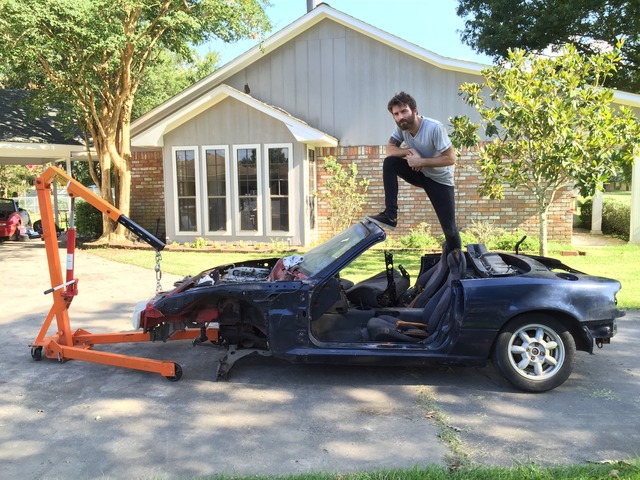

When we got it on the forklift i was having some anxiety. I DID not want it to fall.
But Its at my work, along with most of my parts so first things first is getting it rolling. The front will be cut off for the tube front and thinking of going full cage now. May as well at this point.
Still on the list is finding a FD intake Mani with Throttle body sensor. I found a few new sensors but they are running about $200 on atkins rotary.
When we got it on the forklift i was having some anxiety. I DID not want it to fall.
But Its at my work, along with most of my parts so first things first is getting it rolling. The front will be cut off for the tube front and thinking of going full cage now. May as well at this point.
Still on the list is finding a FD intake Mani with Throttle body sensor. I found a few new sensors but they are running about $200 on atkins rotary.
Last edited by Ethaniscool; 02-13-16 at 10:15 PM.
#17
Junior Member
Thread Starter
Join Date: May 2015
Location: Baton Rouge LA
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts

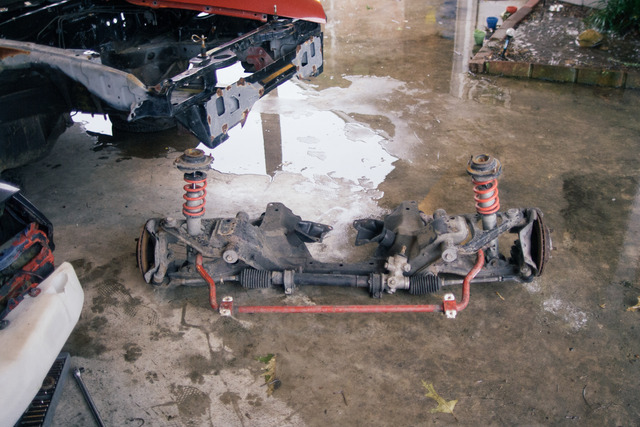

Got some more work done the last few days. Found a FD upper and lower intake manifold for a steal on a rx7 Facebook group so jumped on it quick!

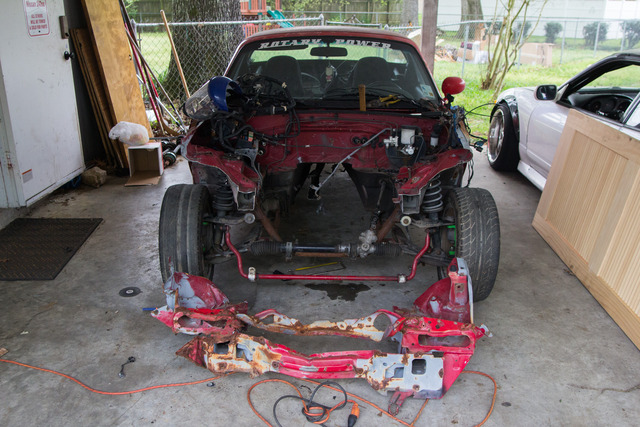

I have the subframes and wheels on the car now, and will be bringing it to the shop to start the tube front and mounts!
I'll have photos of the subframes going on soon.
Today I test fitted the intake manifold with the adapter and it looks good. Ill need to find a solution for the oil fill cap cause it wont clear the intake piping.

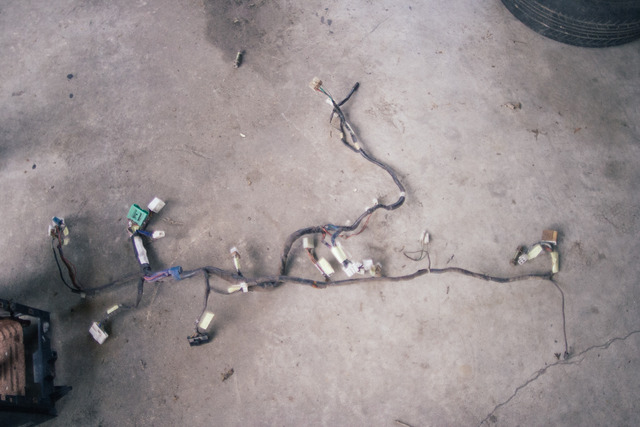

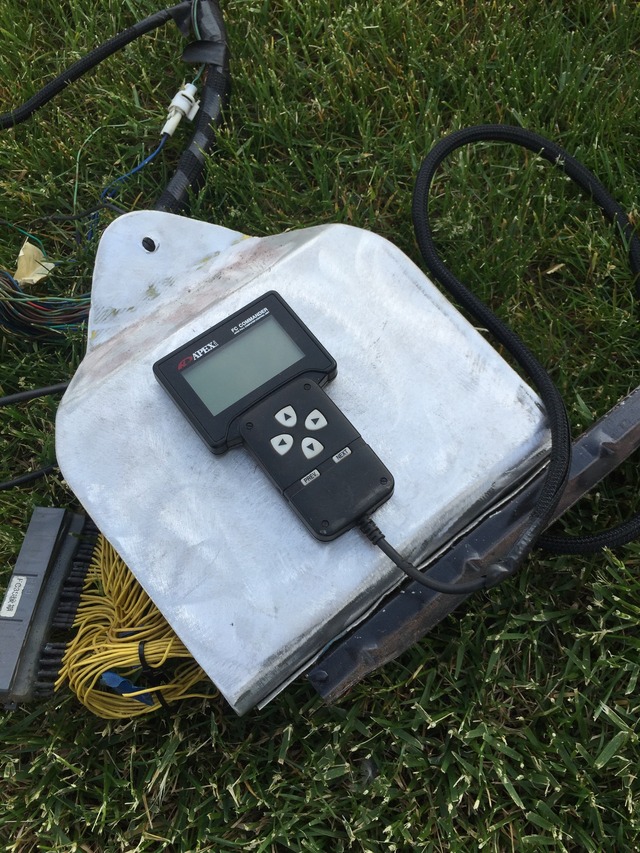

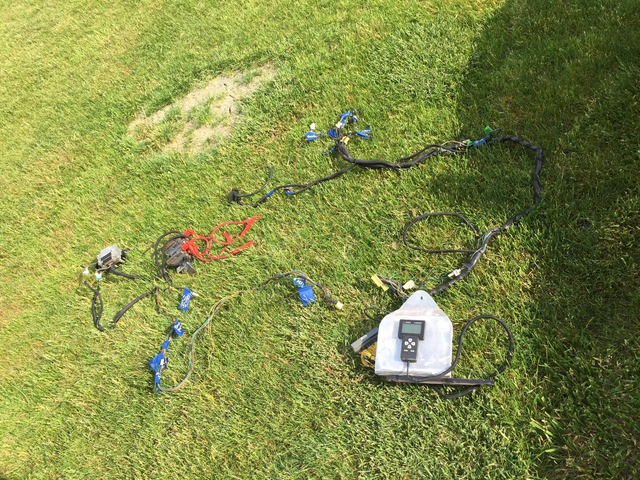

The Full "Wiring harness" that was claimed the engine came with.

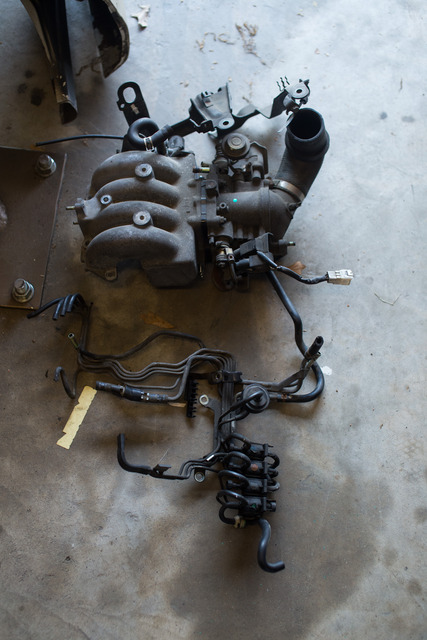

Emissions and old Upper Intake Manifold
