Wired Connection in Trunk
Anyone else have this connection in the truck? I have a 88 t2 and found this cleaning. What does it plug to?
Attached Thumbnails Wired Connection in Trunk-image-657156631.jpg
vzamah is offline
Reply Like
Old 06-23-16, 09:25 AM
  #2
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 11 Likes on 10 Posts
Are there two rows of wires or just one? If there are two rows of wires are the corner wires colored Yellow/Red, Yellow/Green, White/Red and White/Blue? If so, then it's for the auto adjusting suspension.
satch is offline
Reply Like
Old 06-23-16, 11:48 AM
  #3
Junior Member
Thread Starter

vzamah's Avatar

Join Date: Apr 2016
Location: Chicago, IL
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts

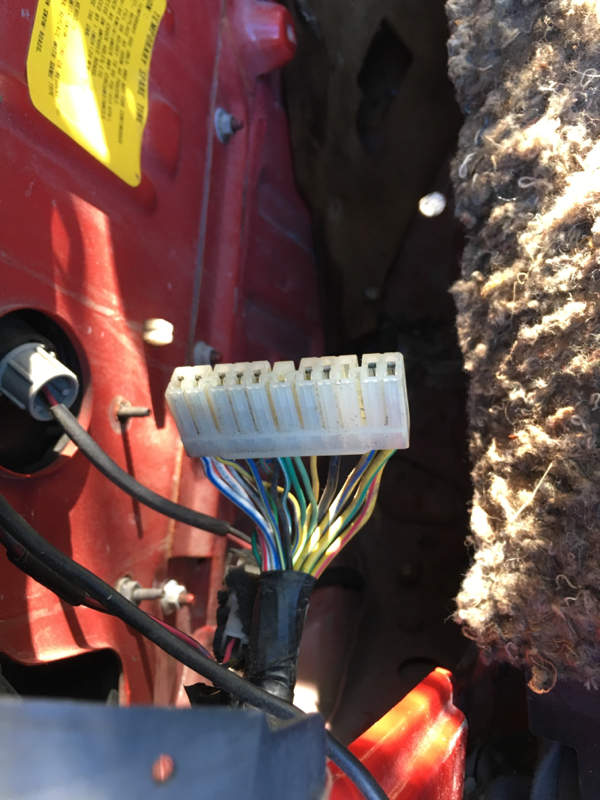

Might be a better picture
Attached Thumbnails Wired Connection in Trunk-image-1373318805.jpg
vzamah is offline
Reply Like
Old 06-23-16, 12:21 PM
  #4
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 11 Likes on 10 Posts
If what I stated about the plug and wire colors in post #2 are accurate then the rest of what was said in the same post would also be accurate too.
satch is offline
Reply Like
Old 06-28-16, 08:53 PM
  #5
Newbie

Xa3r0913's Avatar

Join Date: Mar 2012
Location: AR
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Satch got it. That is the plug for the AAS. It's there whether the car came with it or not. Also if its's been removed properly when replacing suspension bits.
