Where is theTransmission fill port?
Trying to be sure which one is the fill plug pictures would help?
Maaaaadchoochoo is offline
Reply Like
Old 11-08-15, 03:54 PM
  #2
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
it's the highest one on the driver's side.

State your car the next time you ask questions so people know what you have..ok?
Thanks.
misterstyx69 is offline
Reply Like
Old 11-08-15, 03:56 PM
  #3
Junior Member
Thread Starter

Maaaaadchoochoo's Avatar

Join Date: Nov 2015
Location: Colorado springs
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Oh yeah sorry about that 88 glx with a turbo 5 spd but thanks
Maaaaadchoochoo is offline
Reply Like
Old 11-08-15, 05:27 PM
  #4
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
ya it should be on the Driver's side and have a square head.
misterstyx69 is offline
Reply Like
Old 11-08-15, 05:36 PM
  #5
Junior Member
Thread Starter

Maaaaadchoochoo's Avatar

Join Date: Nov 2015
Location: Colorado springs
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Ahh okay that impossible bolt i cant get out gotcha thanks
Maaaaadchoochoo is offline
Reply Like
Old 11-15-15, 02:57 PM
  #6
Out In the Barn


iTrader: (9)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: KC
Posts: 6,050
Received 1,013 Likes on 799 Posts
One hint before draining the trans oil is to first remove the fill plug. This ensures that you can actually fill it and not end up with a trans that does not have oil and no way to fill it. Also, a cheap hand pump works really well since there isn't much room.

Multi-Use Transfer Pump
KansasCityREPU is offline
Reply Like
Old 11-16-15, 08:22 AM
  #7
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,012
Received 862 Likes on 611 Posts
^Good tip.
And most chain parts stores carry the hand-pumps for ~ $10 or so.

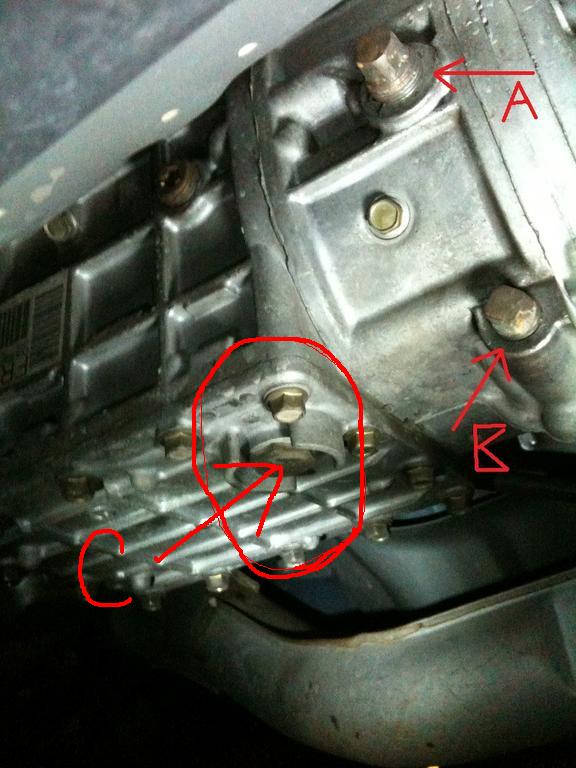

It may not apply to the FC, but FWIW the FD has one FILL plug and two DRAIN plugs (B and C)...

Name: FillAdrainBampC_zpscede246e.jpg Views: 24 Size: 65.2 KB
Sgtblue is offline
Reply Like

Trending Topics

Old 11-18-15, 06:03 PM
  #8
Full Member

Oilonly's Avatar

Join Date: Nov 2015
Location: New york
Posts: 52
Likes: 0
Received 0 Likes on 0 Posts
Really great info on this site can't wait to start working on my new '79.
Oilonly is offline
Reply Like
Old 11-18-15, 07:23 PM
  #9
It Just Feels Right

iTrader: (11)

TomU's Avatar

Join Date: Feb 2014
Location: Arlington, VA
Posts: 2,238
Received 346 Likes on 257 Posts
Originally Posted by KansasCityREPU
One hint before draining the CTtrans oil is to first remove the fill plug. This ensures that you can actually fill it and not end up with a trans that does not have oil and no way to fill it. Also, a cheap hand pump works really well since there isn't much room.

Multi-Use Transfer Pump
As for pumps, I use a syringe pump. Cheap and effective, but a little messy as you need to reload it

Great deal on Lincoln Lubrication 615 at ToolTopia.com

Even better

Motive Power Fill Fluid Transfer Pump and Container ? BimmerWorld Online Store
