GreenMachine

Can somebody please post a pic a 3rd gen water pump with housing and everything?
my question is can I replace my 90 turbo2 water pump for a 3rd gen one? The current 2nd gen one is giving me clearance issues with my new large turbo placement, purchased the turbo and manifold from turblown and it sets the turbo very high and forward, which means the top neck of the pump is right at the turbine housing pretty much. ive seen on the turblown website that they use a water pump housing that points straight out, is this a 3rd gen one?
Any help on this would be greatly appreciated
Thanks

misterstyx69

iTrader: (142)

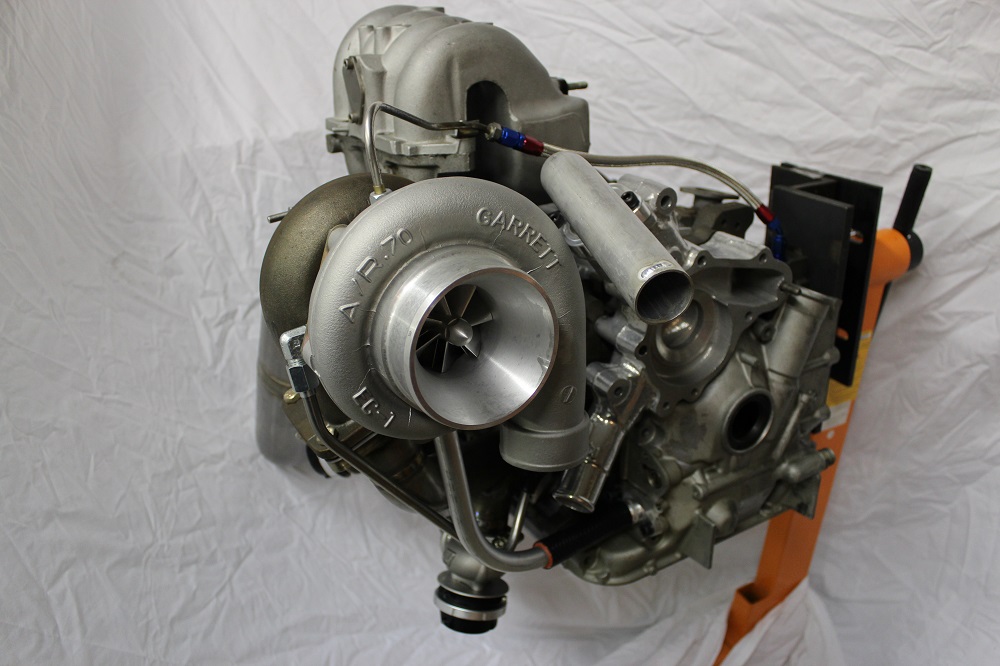

Post a pic of the Turblown setup if you can.
I just changed a S5 to an S4,but I did the cover too.
I am going to do an FD to FC front cover and waterpump swap soon also.

GreenMachine

I guess my simple question is can an FD waterpump and housing fit on an S5 FC?

Sgtblue

iTrader: (16)

Some pictures here:
https://www.rx7club.com/3rd-generati...low-hp-735888/
I don't know...but doubt it.

Turblown

iTrader: (12)

If you bought an FC manifold from us it should have come with a new thermostat neck. A 3rd gen water pump housing won't fit( would need a 3rd gen front cover, and oil pan, and motor mounts( and drilling into the rear iron).

misterstyx69

iTrader: (142)

Oh ya,I forgot about the front covers being different and the pan needing some love.

GreenMachine

Well I did buy my manifold and down pipe from turblown shipped it to canada and never received or knew about a new thermostat neck, not a big deal tho il email Elliot with some questions. Just curious why is the oil pan such a big deal? And need to be modified?

misterstyx69

iTrader: (142)

because the pan bolts are in a different location and the oil pan on the 13BT is shorter.
It is also missing a bolt location in the corner so you'd have to drill and tap a hole to get the Pan to seal.
The FC pan has holes for the passenger side motor mount so that the bolts can go through it and the FD motor mounts are on the rear iron.So it doesn't get any bolts put through the pan at all.

LINK with pics of pans:http://www.mazdatrix.com/boil1.htm

GreenMachine

here is another question just curious, can either an s4 or s5 water pump bolt into a s6 water pump housing?

misterstyx69

iTrader: (142)

s4 pump and s5 pump I know for a fact have different bolt patterns to mount onto their prospective water pump housing.So you can't put an s4 pump on an s5 waterpump housing and vice/versa..Sorry not sure about s6.
I'd wonder if the belts would actually align IF indeed you could get one of these pumps to mount though.
Then again the FD pump flows in reverse to an FC pump(impellers are different).I don't see that as a problem,I just wonder about how the belt routing would be established.

GreenMachine

actually in answer to my own question s4 s5 and s6 pumps can only fit and work in their own respective housings i could tell just by looking at the gaskets on mazdatrix

misterstyx69

iTrader: (142)

then let me know ahead of time as my typing sucks and takes time to answer..hahahaa!
