Unsure of sheild location fd

Hey guys, any one have any idea where this goes? Tabs may be bent wrong way. Cheers

Attached Thumbnails

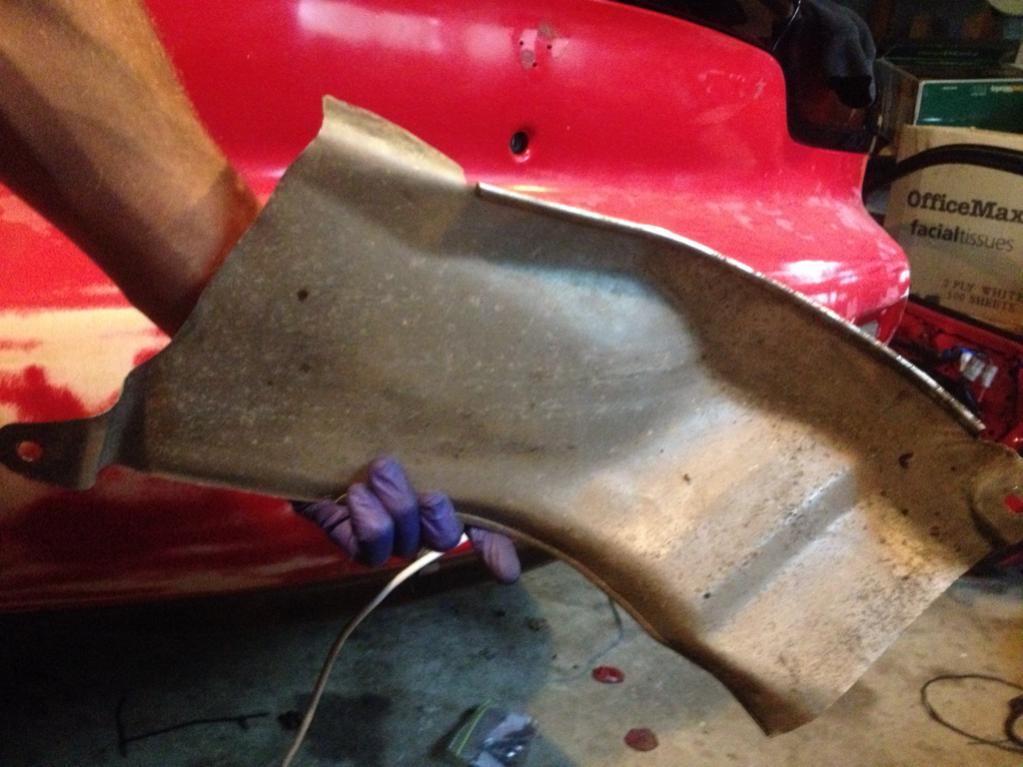

Unsure of sheild location fd-image-422391626.jpg

Reply Like

12-18-14, 02:09 AM

TheSquiid

Junior Member

Thread Starter

Join Date: Nov 2014

Location: New Zealand

Posts: 15

Likes: 0

Received 0 Likes on 0 Posts

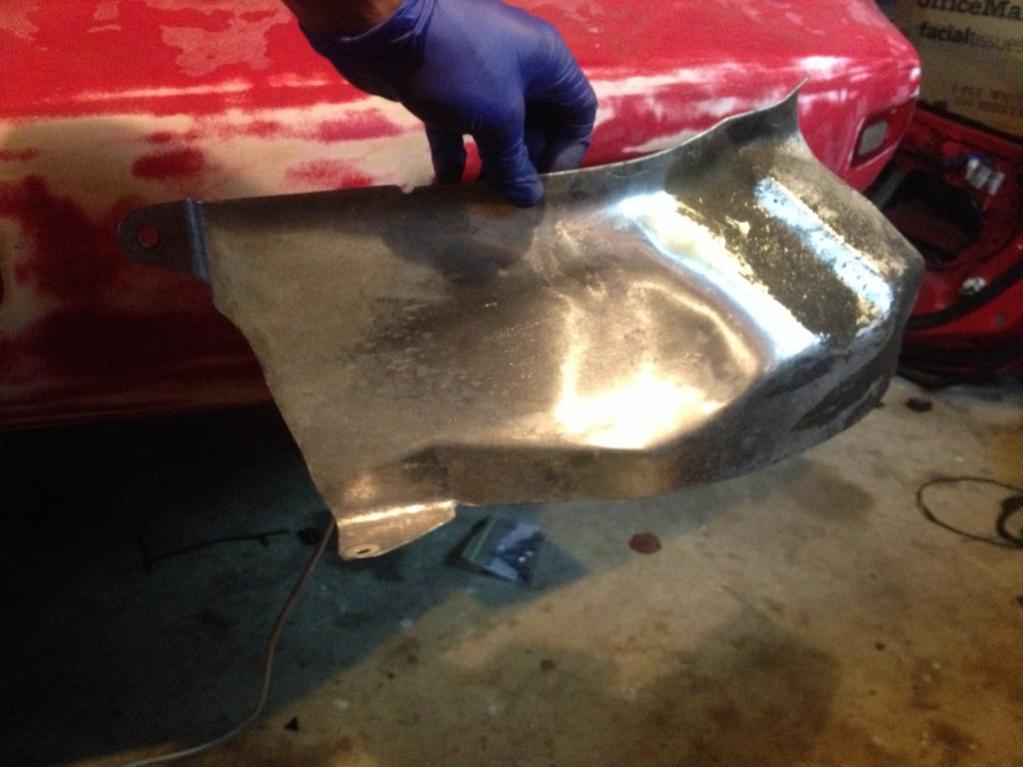

Unsure of sheild location fd-image-2319345599.jpg

Reply Like

12-18-14, 05:16 AM

Sgtblue

Urban Combat Vet

iTrader: (16)

Join Date: Oct 2003

Location: Mid-west

Posts: 12,012

Likes: 862

Received 862 Likes on 611 Posts

Transmission tunnel heat shielding. Not certain, but looks like right side of tunnel, just aft of the bell-housing. You should find some 10mm studs to correspond to those mounting tabs.

Reply Like

12-18-14, 05:19 PM

Sgtblue

Urban Combat Vet

iTrader: (16)

Join Date: Oct 2003

Location: Mid-west

Posts: 12,012

Likes: 862

Received 862 Likes on 611 Posts

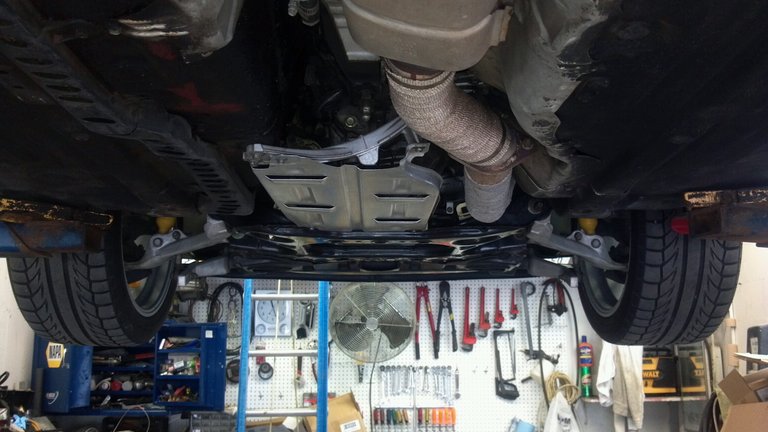

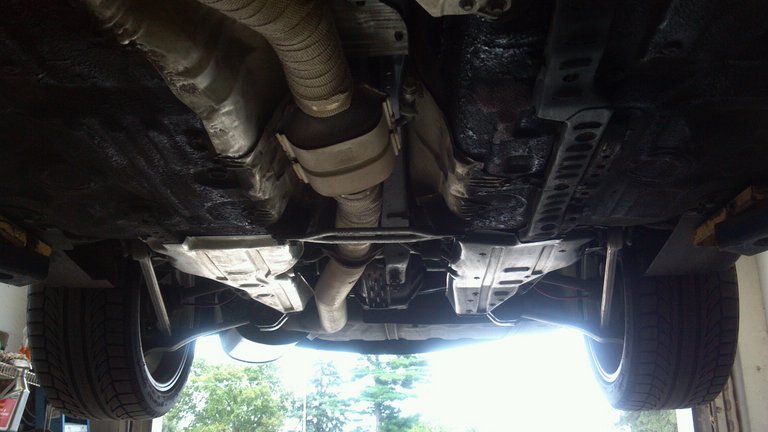

There's also the single piece of shielding on the left side toward the rear (visible in second picture)...maybe these will help:

Name: photobucket-6153-1377189227161_zps83fe1cfd.jpg
Views: 15
Size: 67.8 KB

Name: photobucket-6153-1377189227161_zps83fe1cfd.jpg
Views: 15
Size: 67.8 KB

Name: photobucket-6685-1377189182070_zps62e2c54b.jpg
Views: 12
Size: 55.2 KB

Reply Like

12-18-14, 05:24 PM

TonySeagle

You got beef?

iTrader: (8)

Join Date: Jul 2012

Location: Georgia

Posts: 282

Likes: 1

Received 2 Likes on 2 Posts

^^^^What he said. It is one of the metal shielding that lines the transmission tunnel. I need a transmission cover plate lol....looks like you have a new one on yours :P
