rx7 fc s5 turbo lines oil/water!
#1
Junior Member
Thread Starter
rx7 fc s5 turbo lines oil/water!
Hey there iv just recently just starting doing my turbo lines for the oil and water just want to know what people have being hooking up there oil feed and water feed and water return lines to the block! sorry noob question but first time building a rotary.

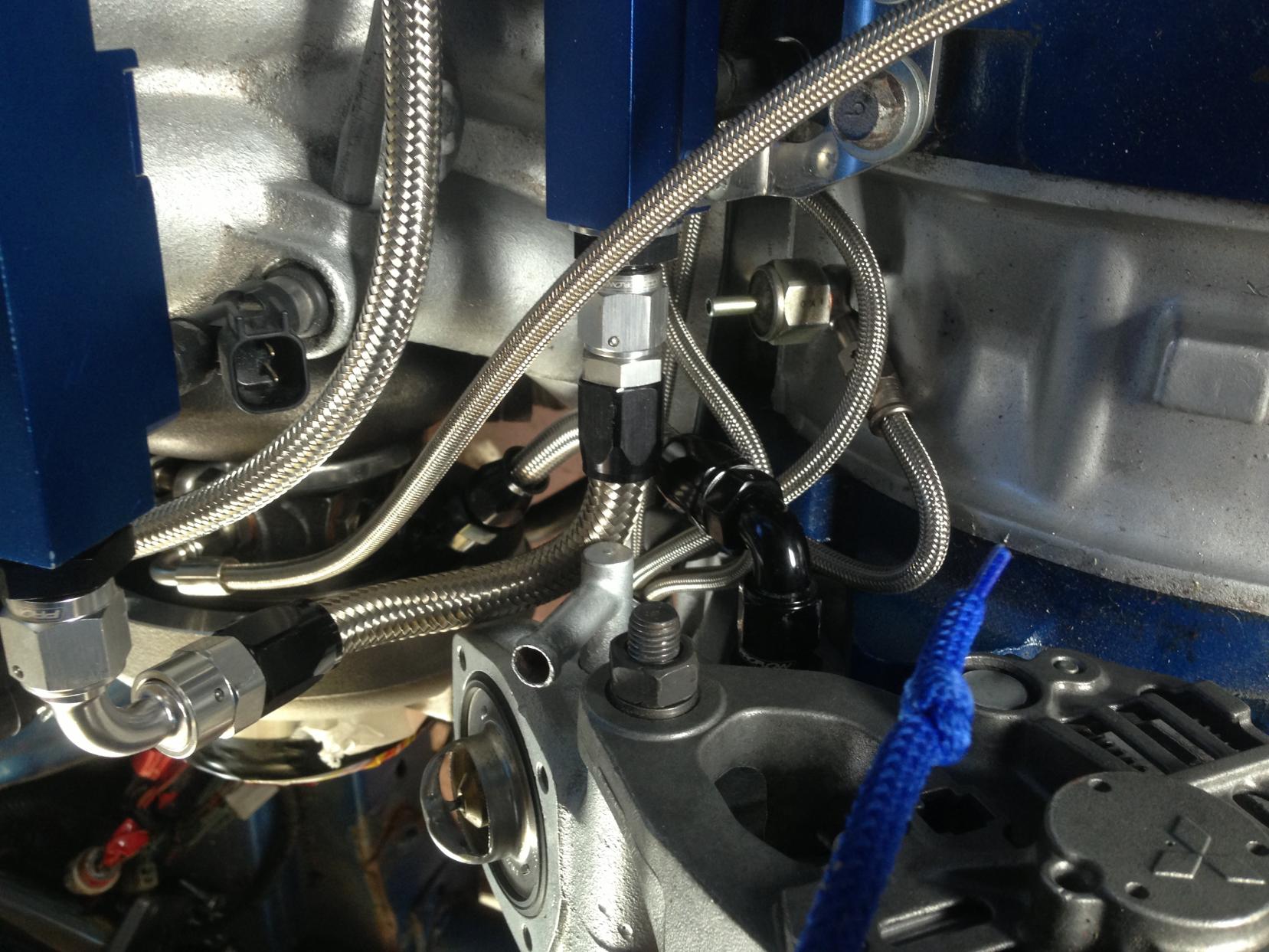

his some pictures of what iv done what iv found on the net with other peoples setups!
his some pictures of what iv done what iv found on the net with other peoples setups!
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

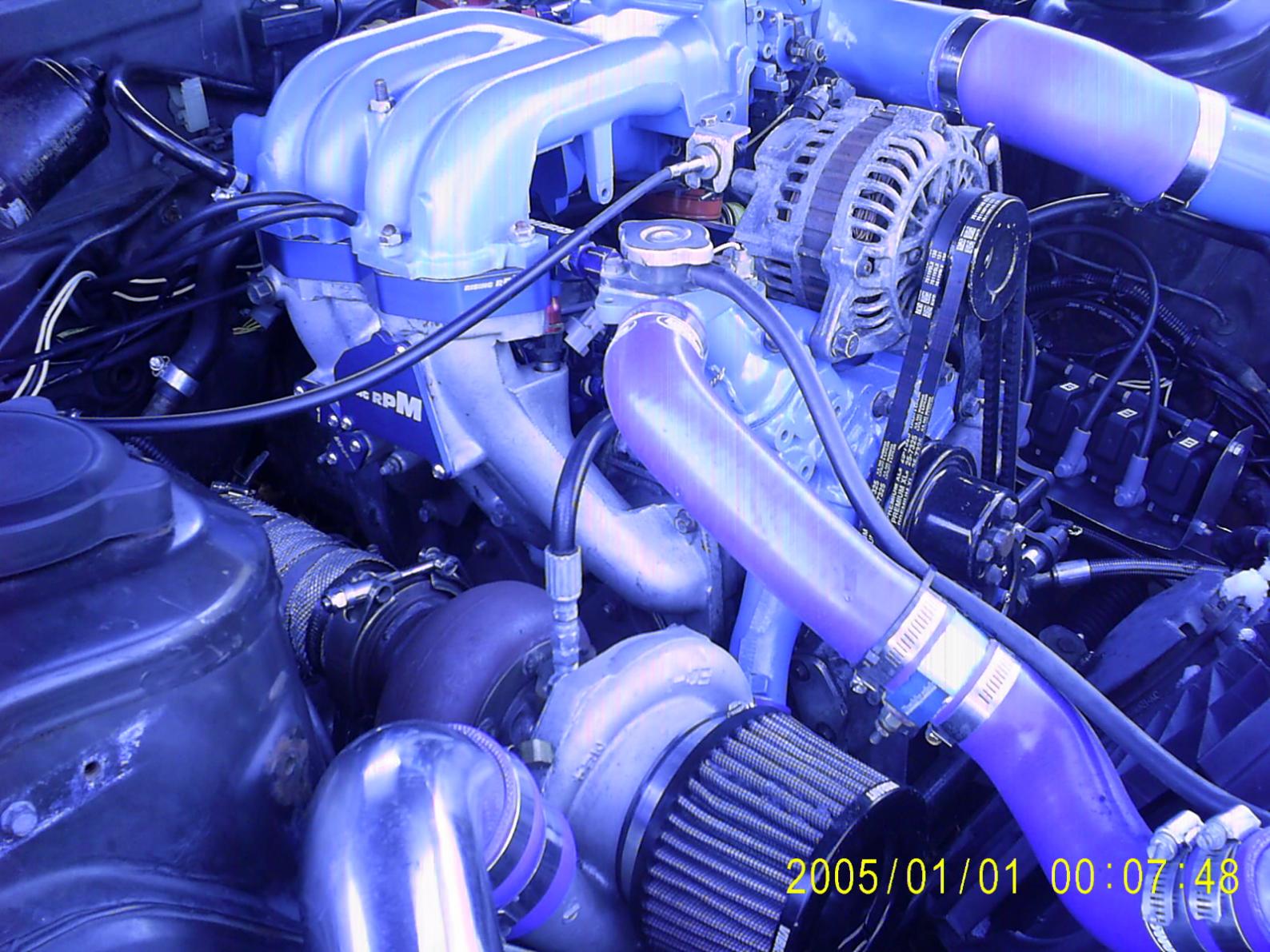

Sorry,crappy old pics.
If you look on the right..at the Red hose connector by the alternator you should just be able to see the Banjo bolt head of the Oil FEED at the top of the Front iron.That is the start of the hose.It ends up at that Bend on top of the Turbo..to feed the turbo.
Now the Oil RETURN is just below the bottom rad hose,it is braided.It accesses the piece where the Oil metering pump is/was located.
Water is from a nipple on the back of the water pump.There is also a access point on the Upper manifold for coolant to supply the Turbo.Located about second intake runner(rear) on the side.
If you look on the right..at the Red hose connector by the alternator you should just be able to see the Banjo bolt head of the Oil FEED at the top of the Front iron.That is the start of the hose.It ends up at that Bend on top of the Turbo..to feed the turbo.
Now the Oil RETURN is just below the bottom rad hose,it is braided.It accesses the piece where the Oil metering pump is/was located.
Water is from a nipple on the back of the water pump.There is also a access point on the Upper manifold for coolant to supply the Turbo.Located about second intake runner(rear) on the side.
#3
Junior Member
Thread Starter
so does my setup sorta look ok with the turbo lines or should i go a different route? i got the oil feed right and the return just water witch is anoying i got the return to the back of the water pump housing near the thermostat where iv taking out the wax thingo, and the feed is coming from the rear plate the the left side of the block if you look at my photo, thanks heaps for helping
