No start, no fuel pressure, weird button
#1
Junior Member
Thread Starter
No start, no fuel pressure, weird button

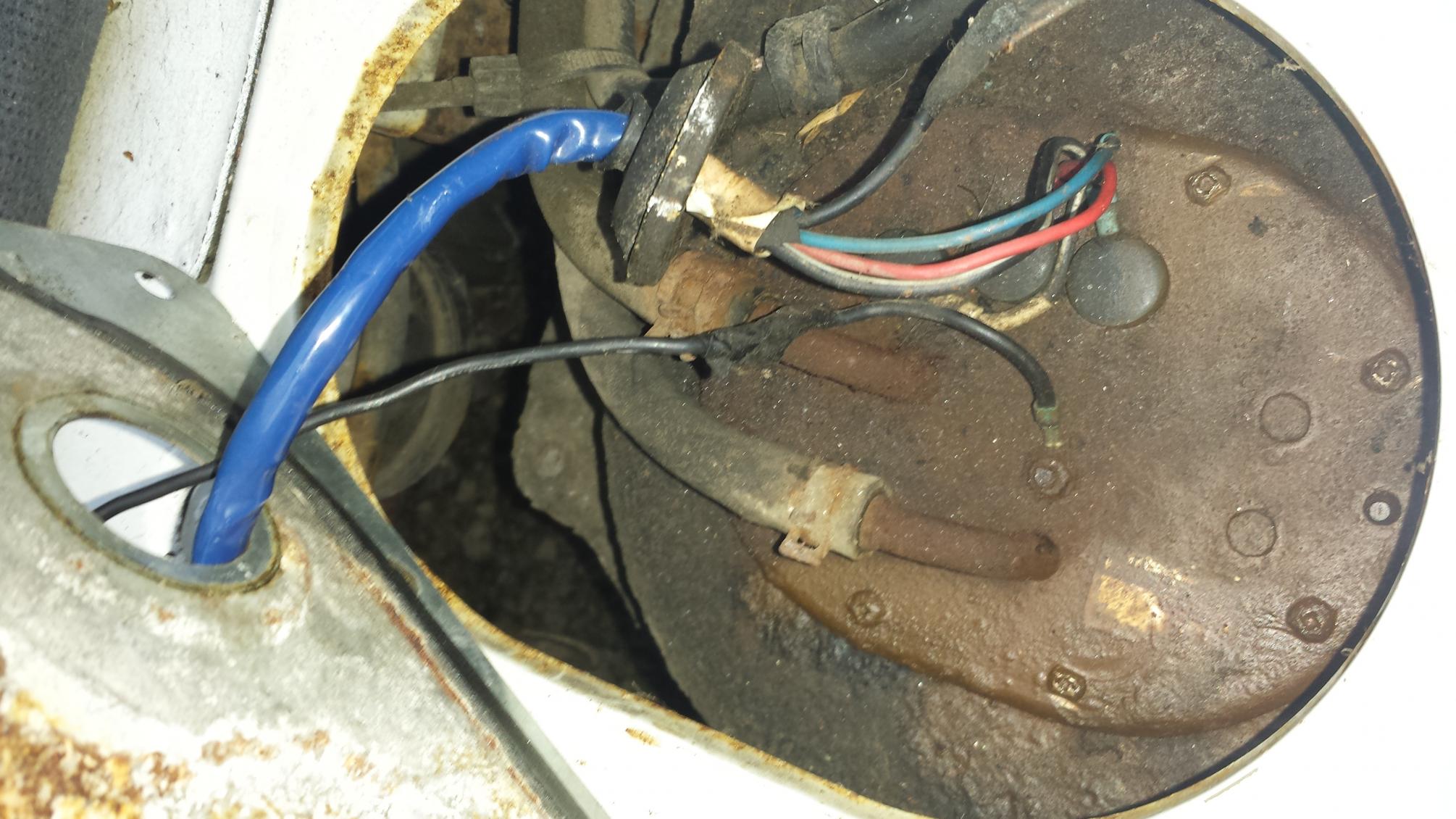

Some background: I have an 88 NA that doesn't start but cranks over and fires with ignition fluid. I have checked the power to the fuel pump and it's getting power. Here are some pictures of this weird button that I believe connects to the fuel pump housing, it is also grounded.
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
That fuel connector is at the front of the car..passenger side near the airbox.
it is a 2 wire connector..T type looking.. (looks like this sort of thing: [-- ).plastic and yellow,.
Here is Satch's previous description:
It's part of the emission harness and is between the engine and passenger fender well. The harness feeds the boost sensor. The connector is encased in a Black rubber boot. The plug is Yellow. It has two wires where one is Brown and the other is Black. The circuit opening relay has these two wires on the bottom row of the plug. These wires being jumpered achieves the same thing. The relay is Black and Yellow and located under the dash and to the right of the steering column. Has 5 wires in all (3 on the top row and 2 on the bottom row).
it is a 2 wire connector..T type looking.. (looks like this sort of thing: [-- ).plastic and yellow,.
Here is Satch's previous description:
It's part of the emission harness and is between the engine and passenger fender well. The harness feeds the boost sensor. The connector is encased in a Black rubber boot. The plug is Yellow. It has two wires where one is Brown and the other is Black. The circuit opening relay has these two wires on the bottom row of the plug. These wires being jumpered achieves the same thing. The relay is Black and Yellow and located under the dash and to the right of the steering column. Has 5 wires in all (3 on the top row and 2 on the bottom row).
