Gearbox oil change
#1
Junior Member
Thread Starter
Gearbox oil change
I figured this would belong in the new member... But I went to do my trans oil and I took off the filler cap first and a lot of oil came out. I'm thinking it is because I only have the front end jacked up. Am I missing something? Or can I jack the rear up and it will hold 2.6 quarts? Ive double checked the WS manual and pictures online, it is definitely the filler cap. Thanks, I'm pretty sure leveling the car will work, but my friend said he thought you had to pump fluid in with a machine and quickly plug it with the cap...
#2
Moderator
iTrader: (3)
try this: https://www.rx7club.com/2nd-generati...ar-oil-167630/
you'll see an example of the pump in Aaron's link to his page. it can be done without a pump, but it's your choice.
you'll see an example of the pump in Aaron's link to his page. it can be done without a pump, but it's your choice.
#3
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
Yup, you are missing "Caution - Park the vehicle on level ground."
and
"...add the specified oil through the filler plug port until the level rises to the bottom of the port."
^ Note that this thread is in reference to a 2nd Gen RX-7, not a 3rd Gen.
and
"...add the specified oil through the filler plug port until the level rises to the bottom of the port."
Last edited by Evil Aviator; 05-26-15 at 01:34 PM.
#4
Moderator
iTrader: (3)
it takes time to search for links and organize responses in a meaningful (and hopefully helpful) way. the onus of providing a helpful detail, like what car you have (or are working on) should be on the poster. actually, Styx made a sticky just for that. you can put it in the title, your signature or the body of the post.
(by the way, i'm sure you know this isn't directed at you, Evil, but just in case you don't, it's not )
on that note, i deliberately posted the Gen II thread because it basically covered all bases since there were cars with both Type M and Type R trannies. i figured the details couldn't wildly vary when it all came down to it and we saw which generation Rx-7 he has.
#5
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
It can't be directed at me because the abomination in my garage can only be described as a Frankenseven.
#6
Urban Combat Vet
iTrader: (16)
^lol

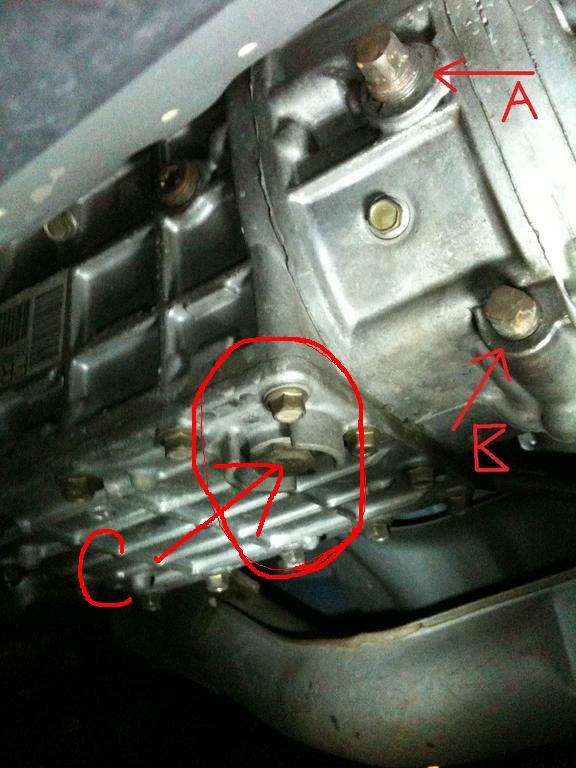

The OP's profile lists FD. In the event it's a little different from the FC in the link, the FD has TWO drain plugs (B & C) and ONE fill plug (A)...see below. I recommend he get it level, make sure the fill plug comes out and then drain from BOTH. And absolutely recommend he gets an inexpensive pump, especially if he's using synthetic gear oil which smells like I imagine Roseanne Barr's *** would smell like. A little Teflon tape on the plug threads can't hurt and don't go crazy tightening them. Snug is usually plenty. I've seen plugs practically drilled through the casing.
If the OP really likes to gain something, pull the shifter from above and re-grease the ball and lower bushing per the FSM before re-submerging it in what should be a full reservoir of gear oil. Note that this reservoir is separate from the rest of the transmission.
The OP's profile lists FD. In the event it's a little different from the FC in the link, the FD has TWO drain plugs (B & C) and ONE fill plug (A)...see below. I recommend he get it level, make sure the fill plug comes out and then drain from BOTH. And absolutely recommend he gets an inexpensive pump, especially if he's using synthetic gear oil which smells like I imagine Roseanne Barr's *** would smell like. A little Teflon tape on the plug threads can't hurt and don't go crazy tightening them. Snug is usually plenty. I've seen plugs practically drilled through the casing.
If the OP really likes to gain something, pull the shifter from above and re-grease the ball and lower bushing per the FSM before re-submerging it in what should be a full reservoir of gear oil. Note that this reservoir is separate from the rest of the transmission.
