Picture Game, What Is This?
Finished chasing engine compartment grounds. I now know why there are issues.

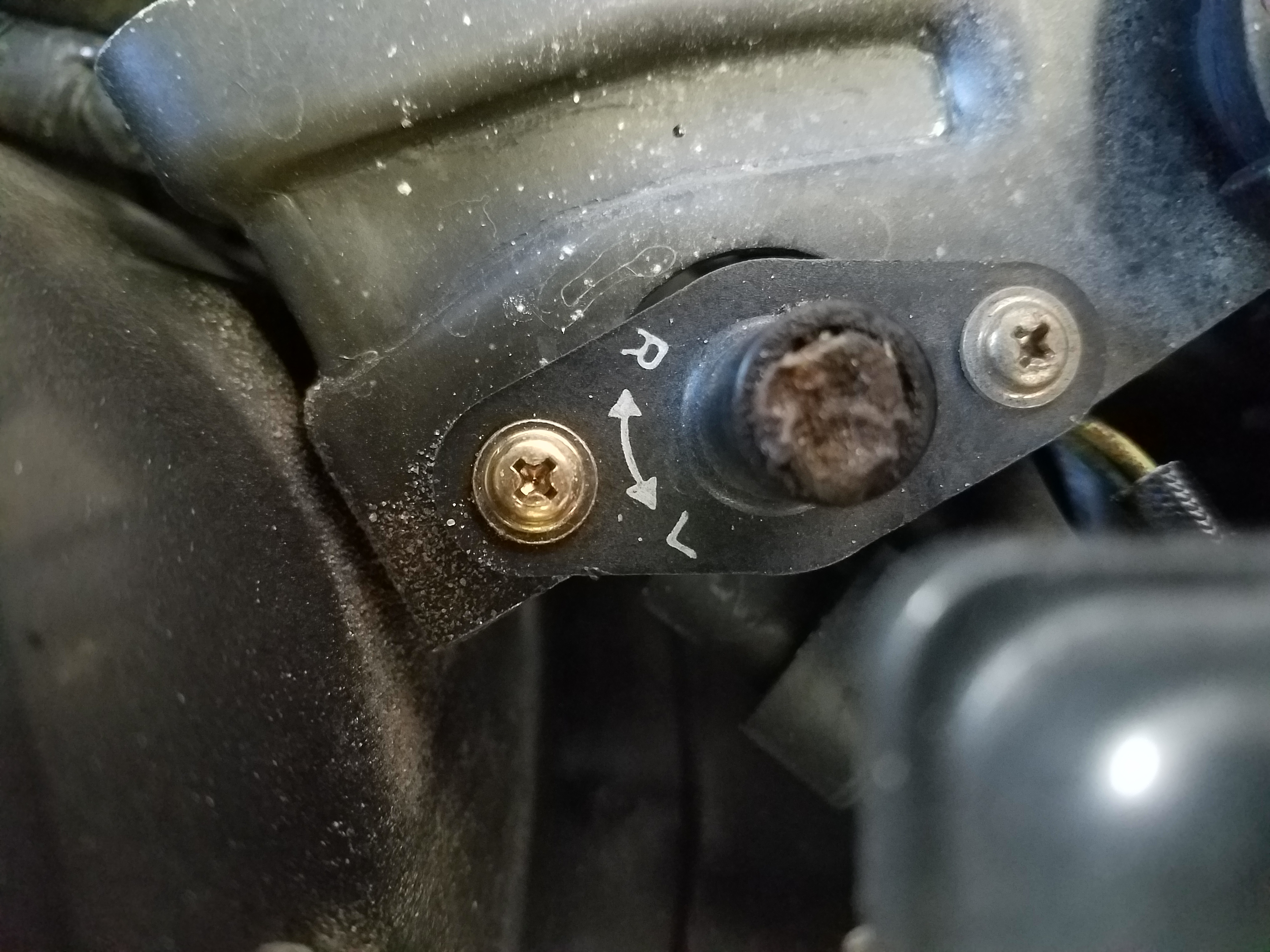

But, in the process I found an interesting piece of non-mazda looking equipment. I spent some time trying to figure out why there was a **** labeled Left and Right. I took a picture to post.
And, yeah, I figured it out later.
But, can anyone tell me what it is, who made it, and share what else it might be related to? Car runs fine. It appears that it was kind of set and forget (or set and rip **** off).
It is next to the right front shock tower. I did not trace the wires (was still thinking left and right).
Thanks
But, in the process I found an interesting piece of non-mazda looking equipment. I spent some time trying to figure out why there was a **** labeled Left and Right. I took a picture to post.
And, yeah, I figured it out later.
But, can anyone tell me what it is, who made it, and share what else it might be related to? Car runs fine. It appears that it was kind of set and forget (or set and rip **** off).
It is next to the right front shock tower. I did not trace the wires (was still thinking left and right).
Thanks
#29
Junior Member
Thread Starter
Join Date: Jul 2016
Location: Florida
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Huh,
That is the only piece under the hood that looked different. Was mounted upside down and does not seem to fit in the hole.
I believe you, just surprised.
Was not going to touch is, car runs very well.
Thanks,
That is the only piece under the hood that looked different. Was mounted upside down and does not seem to fit in the hole.
I believe you, just surprised.
Was not going to touch is, car runs very well.
Thanks,
#31
Junior Member
Thread Starter
Join Date: Jul 2016
Location: Florida
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Update,
Logicon is fixed. AC is charged with Duster (Thanks Guys), AC relay in ECU seems bad. All the right inputs, but it never was turning on the compressor. Wired up a small relay to feed off the pressure and temp switch circuit and I now have AC. 60 degree air from vents on a 90 degree day in the driveway. 55 degree air while moving.
Car looks wonderful inside and out. Still need polished. Need to do rear wheel bearings first. Kind of noisy over 45 mph.
I had no idea these cars could be this fun to drive!
Logicon is fixed. AC is charged with Duster (Thanks Guys), AC relay in ECU seems bad. All the right inputs, but it never was turning on the compressor. Wired up a small relay to feed off the pressure and temp switch circuit and I now have AC. 60 degree air from vents on a 90 degree day in the driveway. 55 degree air while moving.
Car looks wonderful inside and out. Still need polished. Need to do rear wheel bearings first. Kind of noisy over 45 mph.
I had no idea these cars could be this fun to drive!
#32
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Just to add that the part you posted in the pic is called a "variable resistor"..
the L & R are not Left and right..it is LEAN and RICH!
the L & R are not Left and right..it is LEAN and RICH!
#33
Junior Member
Thread Starter
Join Date: Jul 2016
Location: Florida
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, Got it. Leaving it alone, car runs great. If things change I have to figure out how to use it with the **** turned off.
I think that is only used for idle, right?
I think that is only used for idle, right?
#34
Junior Member
Thread Starter
Join Date: Jul 2016
Location: Florida
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Big Gap. Life got in the way.
Paint chips done, DR Color Chip, I NEVER want to paint another car, and it was easier. Needs wash, buff and wax.
Burned out dash lights replaced.
Cracked plastics repaired.
Fuel pump cleaned, sender repaired, dissolved (I hate E10) lines replaced.
All ports working
Last mechanical is a strange one. Car is great in the dry. In the rain, over a bump or rough pavement, the back turns kick to the right. Does not take much of a bump. From all I read, the 30 year old DTSS bushings are likely shot. My goal is to return the car to service as it was in 1987, that would mean those bushings stay, but it is dangerous in the rain. I even have the shocks working and all functional. I understand that there are no DTSS replacements, anywhere. So, the fix is a DTSS Delete (RB or MT).
Before I make the change, is there anything else I should look for? Alignment is good, tires are good, pressures are good, issue is at cruise (40 to 60 mph) on any bump or rough pavement in the rain. I am happy without the rear steer, kind of freaky if you ask me, but my goal was a cleaned up time capsule car.
Thoughts?
Paint chips done, DR Color Chip, I NEVER want to paint another car, and it was easier. Needs wash, buff and wax.
Burned out dash lights replaced.
Cracked plastics repaired.
Fuel pump cleaned, sender repaired, dissolved (I hate E10) lines replaced.
All ports working
Last mechanical is a strange one. Car is great in the dry. In the rain, over a bump or rough pavement, the back turns kick to the right. Does not take much of a bump. From all I read, the 30 year old DTSS bushings are likely shot. My goal is to return the car to service as it was in 1987, that would mean those bushings stay, but it is dangerous in the rain. I even have the shocks working and all functional. I understand that there are no DTSS replacements, anywhere. So, the fix is a DTSS Delete (RB or MT).
Before I make the change, is there anything else I should look for? Alignment is good, tires are good, pressures are good, issue is at cruise (40 to 60 mph) on any bump or rough pavement in the rain. I am happy without the rear steer, kind of freaky if you ask me, but my goal was a cleaned up time capsule car.
Thoughts?
