FD Fuel Line upgrade question
So here it goes. I'm looking into upgrading the stock rubber fuel lines in the engine bay and in the rear by the filter/charcoal canister. They are old and have seen better days. I would like to use AN fittings from the hard line to the upgraded stainless steel however, i can only find adapters that fit 5/16 to AN -6 (apparently an AN -5 is rare). Do you guys suppose using larger diameter "soft lines" would adversely effect the fuel system, recalling the fuel would "bottle neck" at the hard lines.
I cant really justify upgrading the stock hard lines to 3/8th as it doesn't meet my power goals.
Thanks in advance.
-Dave
I cant really justify upgrading the stock hard lines to 3/8th as it doesn't meet my power goals.
Thanks in advance.
-Dave
#2
Be careful about AN lines, I had my FC converted over to them and I had one split lenthwise (internal rubber) on me, got lucky it was when i was getting the car out of winter storage and i was watching stuff real close.
#4
Junior Member
Join Date: Sep 2015
Location: Christchurch
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
I just up graded a aftermarket fuel rail and injectors - etc using proflow AN fittings and braided lines - I would recommend asking a shop for help, If your running a aftermarket ECU this set up and maybe a larger intake pump would help you with giving you plenty of fuel - When using on the track i would even add a surge tank from Turblown.com
Fuel rails and braided lines just setting up
pro flow fittings before put on motor
Fuel rails and braided lines just setting up
pro flow fittings before put on motor
#5
Junior Member
Thread Starter
Join Date: Aug 2014
Location: Ohio
Posts: 20
Likes: 0
Received 0 Likes
on
0 Posts
How did you connect the hard lines to the SS braided lines on your set up? Ive seen guys use compression fittings but i think there only rated for 50 psi or something, and i feel like that's cutting it close.
Trending Topics
#10
2SoonJr
iTrader: (8)
Join Date: Mar 2008
Location: OrangeCounty-Santa Ana
Posts: 525
Likes: 0
Received 5 Likes
on
4 Posts

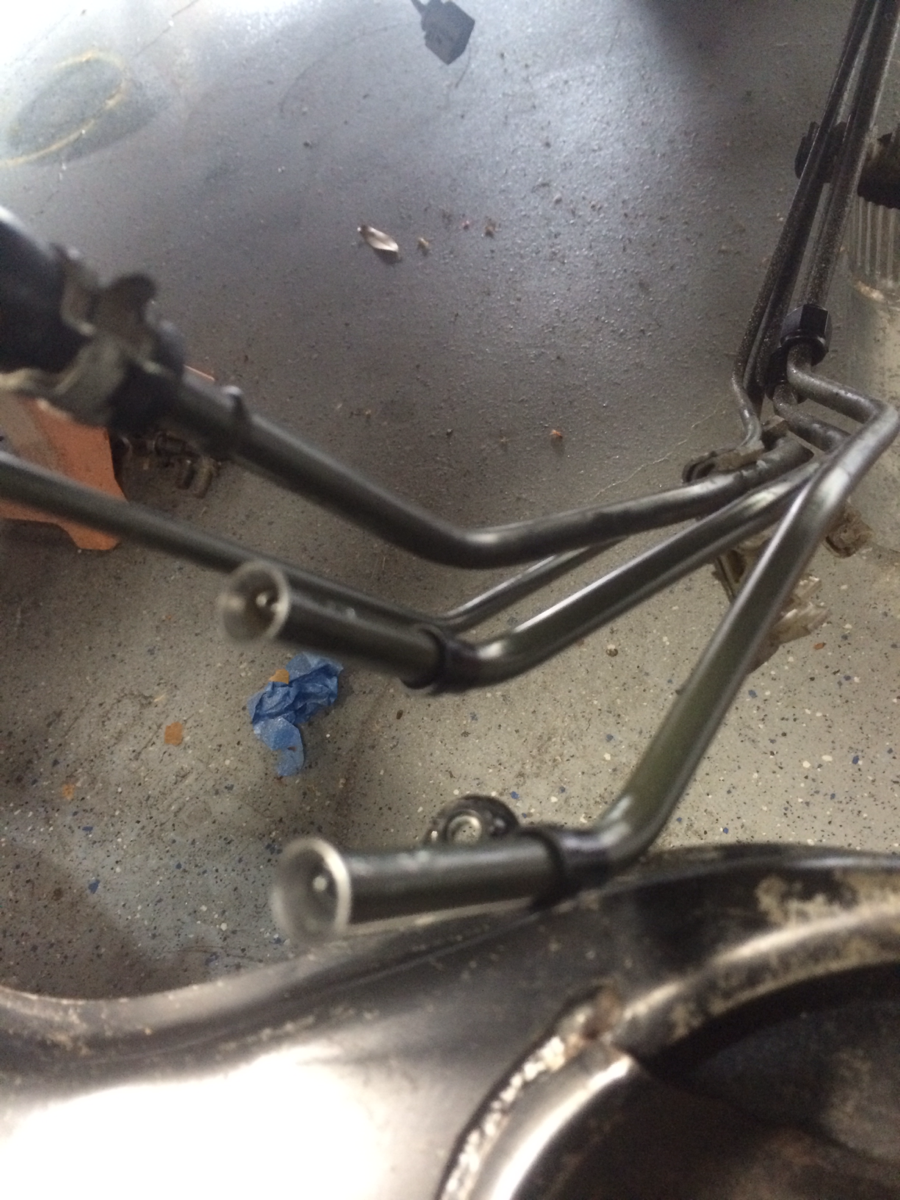

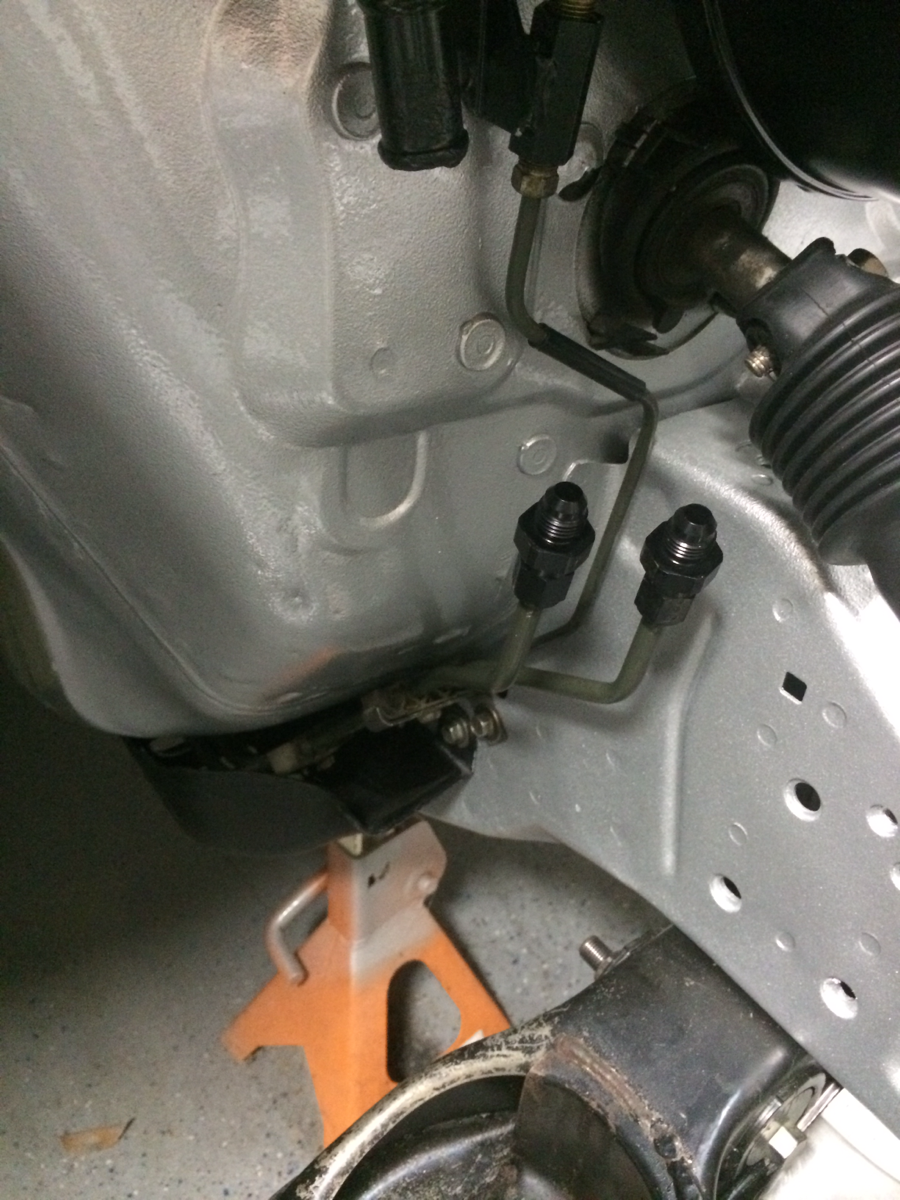

You can use 5an tube nuts and sleeves. The end of the hard line needs to be cut off and flared using a flare tool with 37* angle. Then you can use 5an to 6an adapters. It's a pretty common solution.
Attachment 566814
Attachment 566815
Attachment 566814
Attachment 566815
can anyone please point me into the right direction with regards to the 5an to 6an adapters
thank you in advance
