ericondazo

Hey guys, I got a defi boost gauge (no mechanical) and says that I have to make a 3 way joint between fuel regulator and surge tank! My q is where is the fuel regulator is? (If there is one)! Engine FD3S 93 efini

armans

iTrader: (2)

Fuel pressure regulator is under the UIM (upper intake manifold) near where your injectors are located.
But you don't need to use it! Just use a vacuum/pressure nipple on the UIM. Just search the forum.

ericondazo

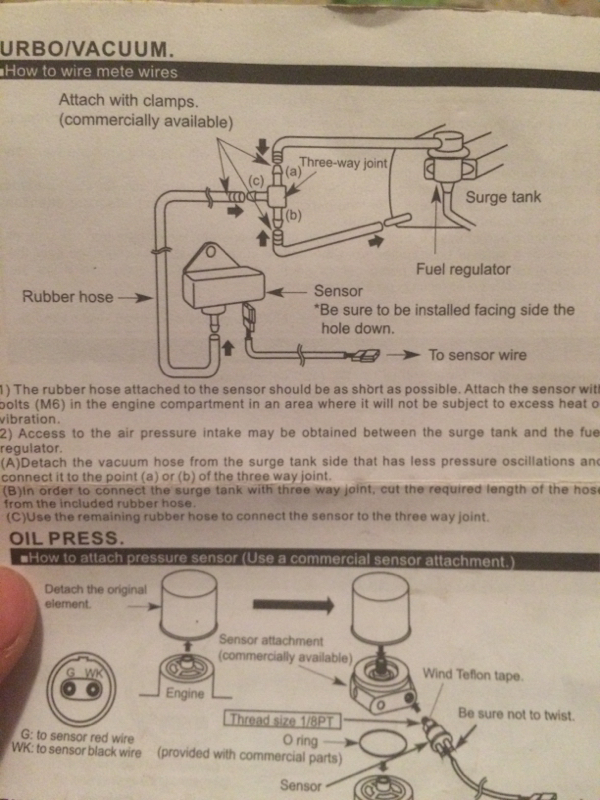

This is what is says! As its a non mechanical gauge I don't know if its necessary!

armans

iTrader: (2)

It is a very generalized description that suits some cars but unnecessary for FDs.

Sgtblue

iTrader: (16)

IIRC, DEFI instructions have different sections depending on the type of gauge you bought from them. I think you're looking at the wrong section.
As mentioned above, it only requires a source of vacuum/pressure from the upper intake manifold just above where it mates to the lower intake manifold. There are two nipples on the passenger side of the manifold. One nipple is running a vacuum line to the boost sensor mounted on the driver's side firewall. While a 'T' fitting will work in that line, I would suggest NOT to use it as you're just adding a point of possible leak and the boost sensor needs a good reading for the car to run properly.

ericondazo

Thanks a lot guys

ericondazo

Talking about this, I got a single bov and using a T I put the 2 vacumm hoses that were in the jdm bovs, in the single bov! Do you think that it could be a posible losing of preassure (that I actually have)?

Sgtblue

iTrader: (16)

Does your car have the stock twin turbos?

ericondazo

Knight sports! I gess they were stock for that time

Sgtblue

iTrader: (16)

T into the single vacuum line going to your BOV preferably near where it comes off the intake manifold. You have only one BOV.
