carjunkie12

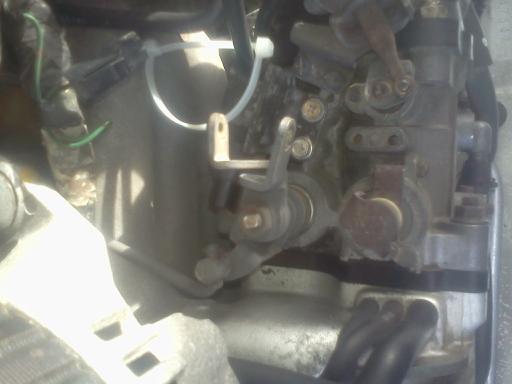

does anyone know what this is? i know its part of my throttle. but is there supposed to be something between the two levers?

RobbyWally

iTrader: (2)

As a general rule, a tight picture without any details about the car leads to lost time just figuring out what we are dealing with - especially when the pic is rotated 90 degrees from real orientation. However, in this case, it's pretty clear. Looks like the front of the throttle linkage in the neighborhood of the throttle position sensor (and rotated 90 deg clockwise).

There should be screw from the 'right' (top of the engine) side of the right lever that screws into the 'left' (bottom) lever. There should be a spring in between to keep tension on the screw threads. For S4 (86-88) this is shown on page 1-C5 of the parts fiche as component of the 'Lever Set, Throttle Body'. There are not individual part numbers listed for the screw or spring.

cab91089

iTrader: (3)

Looks like someone removed the throttle position sensor, unless it was you.

RobbyWally

iTrader: (2)

Don't think so. Photo is rotated 90 deg clockwise. Looks to me like the TPS is still there behind the white zip tie. I'll try to snag a photo of my linkage tomorrow.

cab91089

iTrader: (3)

Yes you are right. Since the picture is rotated it threw me off. I thought the 2 open 10mm holes were for the s4 TPS, after looking where you said I see the TPS. My mistake.

To the OP if you unplug your TPS the car should still run but it will run richer then normal since the sensor isn't plugged in but since you are missing the adjustment screw anyway I don't think you'll notice a difference. Just an option, I had to do that once for a week on my first FC until the new TPS came in the mail.

misterstyx69

iTrader: (142)

This is the second thread that I have noticed that you posted on the SAME subject in other sections.
https://www.rx7club.com/new-member-r...-help-1055646/
You have gotten answers.
Your Post count is now sufficient to post in the Main forum so any further inquiries in this section will not show up.Period.Time to move on.
You are a Big Boy now,so use the Forum to your benefit.
This section is to be used by NEW members to ask questions and then venture out to grasp more info.Your posting in other sections now proves you can Get your info in other sections and you are no longer "new".
Good luck.Thread closed.

Sgtblue

iTrader: (16)

Zip tie. A white one.

misterstyx69

iTrader: (142)

Zip tie used to close thread..It's a Duplicate in THIS section anyways.
