about to buy turbo 2 , what do i need to look out for

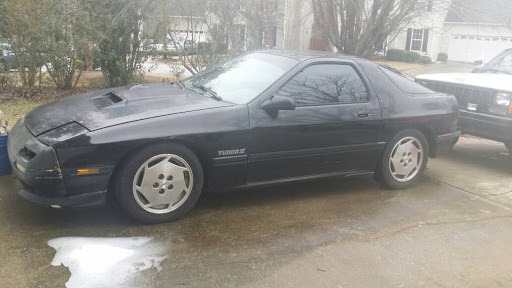

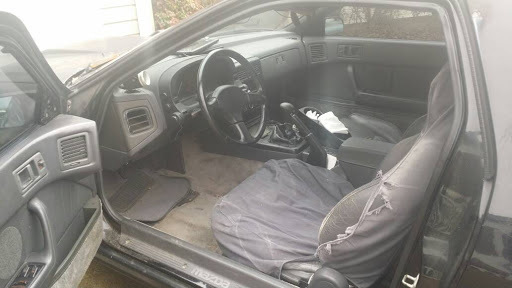

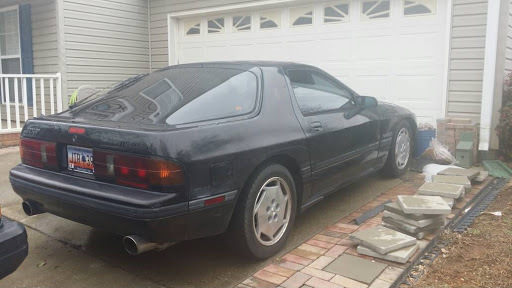

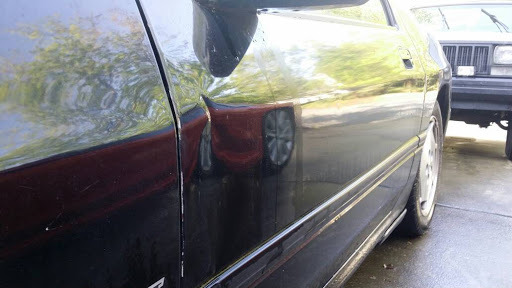

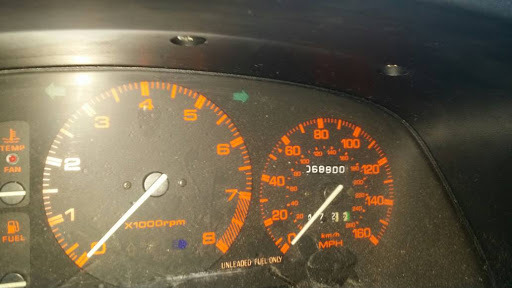

hey, im new here and i posted on craigslist that i wtb a rx7 and this guy messaged me with a 1988 turbo II, i know nothing about a rotary engine, i just want to know what are some things i need to look out for. the he is asking for 2500 dollars and it has "68000" original miles supposedly, the body and interior are alittle rough, i also want to know what a car like this in this condition would go for

Name:  8FD4FF42-E5D5-494D-AD44-F650DD55B4D8_zps1ygime2p.jpg
Views: 41
Size:  52.8 KB

Name:  999DC8B6-33AA-436D-BF83-B765890B0C86_zpszb0o89fx.jpg
Views: 50
Size:  53.3 KB

Name:  241937CE-9328-4CF0-BB15-5CE213841CE0_zpst8eia1ec.jpg
Views: 20
Size:  60.5 KB

Name:  5FD90F40-87C9-41A0-B9C2-F4D80F0368D9_zpsvyqdecip.jpg
Views: 40
Size:  58.7 KB

Name:  AC0CD5F6-72B5-491A-8E4E-62EA0024A679_zps75ggewp9.jpg
Views: 31
Size:  52.3 KB

Name:  A448B796-E6EF-483E-A700-E0BD44789196_zpsiubqs7xk.jpg
Views: 42
Size:  90.4 KB
Old 04-20-15, 04:34 PM
  #2
roTAR needz fundZ

iTrader: (1)

Join Date: Aug 2002
Location: Freeland, MI
Posts: 2,614
Likes: 0
Received 31 Likes on 31 Posts

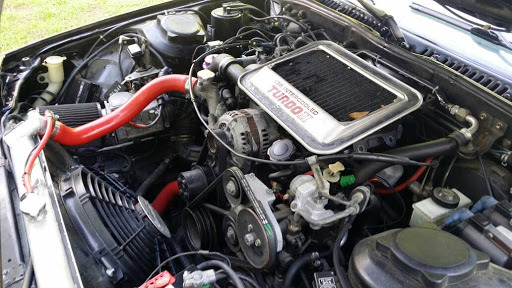

Going off the engine bay picture it "looks" like the guy knew what he was doing, silicone radiator hoses, efan, aluminum radiator.

Really the price isn't horrible IMO. My first step would be to go look at it, make sure it starts cold, take it for a drive, make sure everything works, then when done driving, shut it off, and make sure it starts right back up, then compression test it

I paid 3 grand for my 88 N/A with 88K on the clock
Old 04-22-15, 01:27 PM
  #3
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
anyone else have something that i should know and what about the price, would a turbo ii with68,000 miles go for 2500 in this condition
Old 04-23-15, 02:55 AM
  #4
Full Member

scott01hickey's Avatar

Join Date: May 2010
Location: rhode island
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
The price seems very reasonable assuming the engine is in good working order. This link is from a very knowledgeable rx7club member. How To Buy An '86-'92 Turbo RX-7

lots of good info on his site
Old 04-24-15, 09:34 PM
  #5
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
well, i ended up buying the car. the car runs and drives amazing. the interior is in good condition, i thought it was rough from the pics he sent me. only problems with the car is the lip on the bumper is cracked off, needs paint, and the passenger window will not roll up unless someone is there pushing it up when i press the button. im very happy with the car and i ended up paying $2000 for the car. it also has a full 3inch exhaust that is not that loud, i think it sounds amazing. also has a boost guage, greddy bov, efan, all hoses were replaced with silicone ones, he just had the brake pads and rotors replaced the day before i got the car, i even went to the shop he had it at and saw them changing them and there is a few other things that were done that i cant think of.
Old 04-25-15, 06:10 AM
  #6
Full Member

scott01hickey's Avatar

Join Date: May 2010
Location: rhode island
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
Good luck
Old 04-25-15, 07:02 AM
  #7
Full Member

iTrader: (9)

ForeignAsian's Avatar

Join Date: Jul 2013
Location: Michigan
Posts: 53
Likes: 0
Received 1 Like on 1 Post


Nice find!! Congrats!! I paid $2,500 for mine unmolested at 88k mile, so compared to yours I'm quite jealous!
Old 04-25-15, 10:29 AM
  #8
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
With that exhaust, you need to make sure that your boost is not exceeding your fuel capability!

There is factory fuel cut at 8.8 PSI. So if you can make more boost than that without the engine shutting down, then either the ECU has been replaced or there is an FCD. FCDs are dangerous, period. But less dangerous if the fuel system has been upgraded.
Old 04-25-15, 12:17 PM
  #9
Full Member

scott01hickey's Avatar

Join Date: May 2010
Location: rhode island
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Aaron Cake
With that exhaust, you need to make sure that your boost is not exceeding your fuel capability!

There is factory fuel cut at 8.8 PSI. So if you can make more boost than that without the engine shutting down, then either the ECU has been replaced or there is an FCD. FCDs are dangerous, period. But less dangerous if the fuel system has been upgraded.
In the picture it looks like there may be a fcd near the boost solenoid, but it is definitely something that needs to be looked into.
Old 04-25-15, 09:27 PM
  #10
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
where would i look to see if i have a FCD? and it doesnt have a boost controller so my guess is the boost is at stock level
Old 04-26-15, 09:52 AM
  #11
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Do you not have a boost gauge?

The S4 wastegate is very undersized. Most certainly upgrading the exhaust has caused the boost to raise.

As for an FCD, look for a small box near the boost sensor. Sometimes they are also installed at the ECU. Might even say FCD on it.
Old 04-26-15, 12:33 PM
  #12
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Aaron Cake
Do you not have a boost gauge?

The S4 wastegate is very undersized. Most certainly upgrading the exhaust has caused the boost to raise.

As for an FCD, look for a small box near the boost sensor. Sometimes they are also installed at the ECU. Might even say FCD on it.

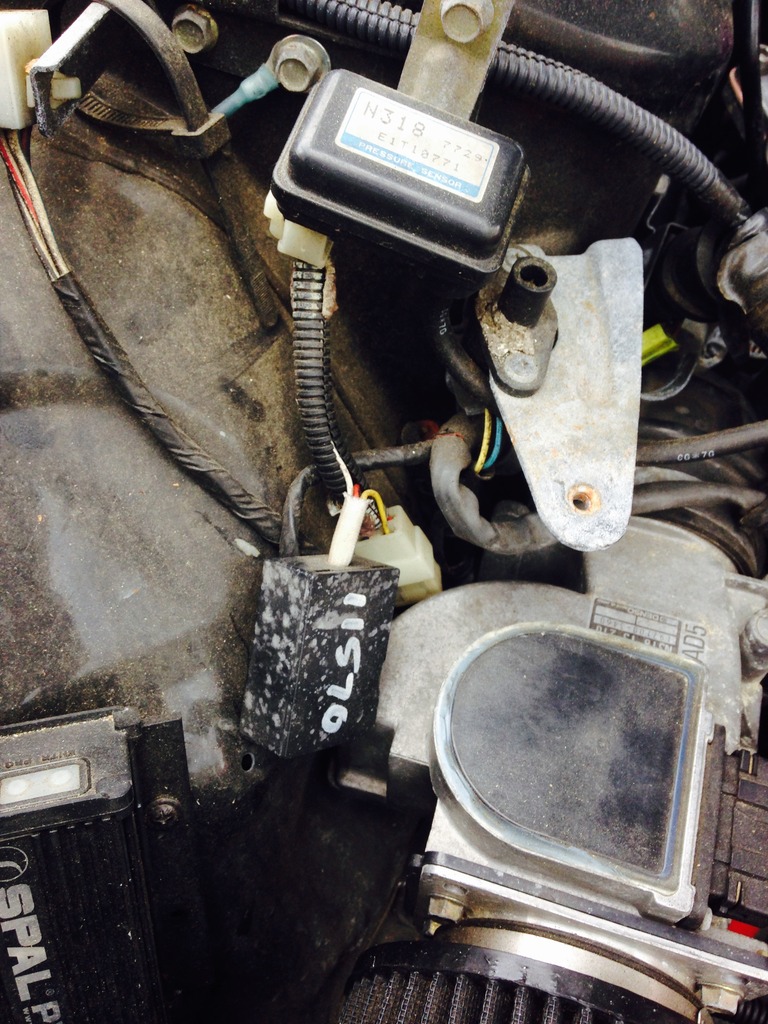

yea i have a boost guage , and is this the "FCD" that has 11570 written on it in the picture below?



Name:  34CF956A-EA8E-40BE-8319-3C11498B8692_zps3hh5xmxv.jpg
Views: 33
Size:  258.6 KB

Last edited by Devon300zx; 04-26-15 at 01:41 PM.
Old 04-27-15, 02:46 AM
  #13
Full Member

scott01hickey's Avatar

Join Date: May 2010
Location: rhode island
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
[QUOTE=Devon300zx;11906201]yea i have a boost guage , and is this the "FCD" that has 11570 written on it in the picture below?



Name:  34CF956A-EA8E-40BE-8319-3C11498B8692_zps3hh5xmxv.jpg
Views: 28
Size:  258.6 KB[/QUOT

Yes that's it
Old 04-27-15, 10:44 AM
  #14
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
Can I just unplug the fcd and everything will be fine or so I have to do more than just unplug it
Old 04-28-15, 05:07 AM
  #15
Full Member

scott01hickey's Avatar

Join Date: May 2010
Location: rhode island
Posts: 121
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Devon300zx
Can I just unplug the fcd and everything will be fine or so I have to do more than just unplug it
No DONT unplug it. The engine is much safer with it then without.
Old 04-29-15, 08:39 AM
  #16
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Actually, the engine is far safer WITH the factory fuel cut in place unless it can be confirmed the fuel system has been upgraded to handle the increased boost.

An FCD does not add fuel. In fact, it fools the ECU to think that boost is just below 8.8 PSI regardless of the pressure. While the ECU does add fuel according to the AFM, timing is still advanced as that is mainly a function of the pressure sensor.

FCDs are EVIL when used incorrectly. Thing is, how much boost does this car make? If it's right around 8 - 10 PSI, then it is likely safe. If any more, then either boost has to be lowered or fuel increased.
Old 04-29-15, 11:30 AM
  #17
Can Post Only in New Member Section

Curtisd03's Avatar

Join Date: Apr 2015
Location: New Hampshire
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
nice car for that price! is it a name brand exhaust or a custom? exhaust alone for these cars can run upwards of $800 for something nice ie: racing beat, ect

leave the fuel cut defender on and leave the boost alone.

if you feel you need to tinker start with fuel pump, injectors and RTek.

don't play with any stupid boost controllers
Old 04-29-15, 06:00 PM
  #18
Full Member
Thread Starter

Devon300zx's Avatar

Join Date: Apr 2015
Location: south carolina
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Aaron Cake
Actually, the engine is far safer WITH the factory fuel cut in place unless it can be confirmed the fuel system has been upgraded to handle the increased boost.

An FCD does not add fuel. In fact, it fools the ECU to think that boost is just below 8.8 PSI regardless of the pressure. While the ECU does add fuel according to the AFM, timing is still advanced as that is mainly a function of the pressure sensor.

FCDs are EVIL when used incorrectly. Thing is, how much boost does this car make? If it's right around 8 - 10 PSI, then it is likely safe. If any more, then either boost has to be lowered or fuel increased.
the guy i bought it from said it makes around 7psi
Old 04-30-15, 09:57 AM
  #19
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
Originally Posted by Devon300zx
the guy i bought it from said it makes around 7psi
Then once verified by the boost gauge, you are good to go.
Old 05-03-15, 09:49 PM
  #20
Junior Member
iTrader: (1)

InertiaFB's Avatar

Join Date: May 2015
Location: Washington
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
compression test for good measure
