Old 11-01-13, 11:53 AM   #1
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
83 12A wont start.

Hello, my 83 Rx-7 won't start. It was running rich for a while but now it won't turn over. I replaced all spark plugs/wires. Cleaned the Carb replaced the fuel filter. Occasionally it will turn over then shut off after two seconds. It has a aftermarket Holley Carb. Any ideas would be helpful.
IfIWasJamesDean is offline   Reply With Quote
Old 11-01-13, 02:45 PM   #2
'85 12a

Cookboy's Avatar

Trader Score: (9)

Join Date: Jun 2012
Location: Richmond VA
Posts: 1,318
Hmmmm. All I can recommend is a stock manifold and Nikki carb. Cuz I know they work. Better than Holley, which I had.
Cookboy is offline   Reply With Quote
Old 11-01-13, 03:53 PM   #3
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
welcome to the board.

you should provide more information on the carburetor itself and the fuel supply. any signs of flooding? also, you mentioned it ran rich, how was idle and driving?
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-02-13, 12:37 PM   #4
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by diabolical1 View Post
welcome to the board.

you should provide more information on the carburetor itself and the fuel supply. any signs of flooding? also, you mentioned it ran rich, how was idle and driving?
The Carb itself I have no idea. It reads Holley 6R. it has a fuel cell in the trunk and I've been trying to use 93 non ethanol, which in Iowa is really hard to get non ethanol, and it has been flooding about every other week. Idle was fine I got it to run steady at 800rpm. I read the it should be around 500-800 normally. As well as driving, it was a challenge. The car (I named Meg) either wants pedal to the floor to move or a light pressure but if I went in between she would shutter and she would die.
IfIWasJamesDean is offline   Reply With Quote
Old 11-02-13, 12:40 PM   #5
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by Cookboy View Post
Hmmmm. All I can recommend is a stock manifold and Nikki carb. Cuz I know they work. Better than Holley, which I had.
I would love to convert it back for various reasons, I would know what it is, plenty of information on them, easy to service for most the problem is I cannot find any. I have what I believed to be one but it looks different then what I've looked up.
IfIWasJamesDean is offline   Reply With Quote
Old 11-02-13, 01:00 PM   #6
Your brain on triangles..

Jingkun's Avatar

Trader Score: (2)

Join Date: Dec 2010
Location: Cedar Park, Texas
Posts: 341
Agitosan
Can you throw on a pic of the one that looks different? Worst case I can probably dig through my parts and find one for ya, but that's worst case.
__________________
Currently looking to buy a lsd rear end or just an lsd that will fit my open diff axles for an 83... I'll just leave this here, I'm flat broke at the moment but feel free to pm me if you got one
Jingkun is offline   Reply With Quote
Old 11-02-13, 05:15 PM   #7
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Here are some

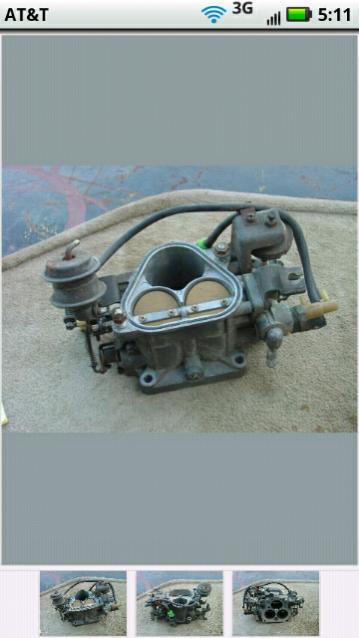

83 12A wont start.-forumrunner_20131102_171357.jpg

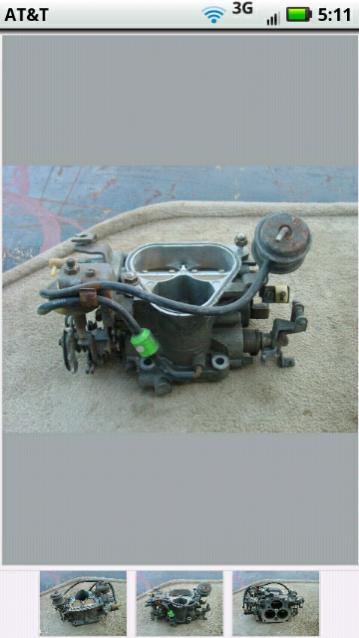

83 12A wont start.-forumrunner_20131102_171442.jpg

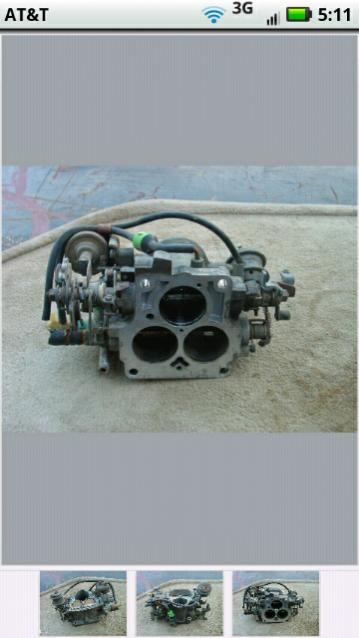

83 12A wont start.-forumrunner_20131102_171503.jpg
IfIWasJamesDean is offline   Reply With Quote
Old 11-02-13, 08:04 PM   #8
Exhaust Leak

Trader Score: (0)

Join Date: Aug 2013
Location: atlanta area
Posts: 16
Quote:
Originally Posted by IfIWasJamesDean View Post
The Carb itself I have no idea. It reads Holley 6R. it has a fuel cell in the trunk and I've been trying to use 93 non ethanol, which in Iowa is really hard to get non ethanol, and it has been flooding about every other week. Idle was fine I got it to run steady at 800rpm. I read the it should be around 500-800 normally. As well as driving, it was a challenge. The car (I named Meg) either wants pedal to the floor to move or a light pressure but if I went in between she would shutter and she would die.
I am having just about the same problem. At full throttle and around 40% and more, it runs good but, at part, but not light, it has just about no power as it, it just about comes to a stop, but, at light throttle, it does ok with some hiccuping though.

I was told that it may be a possible cracked apex seal.
clifffyyy is offline   Reply With Quote
Old 11-02-13, 08:14 PM   #9
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
Quote:
Originally Posted by IfIWasJamesDean View Post
Here are some
that's not a carburetor you posted. that's a Gen II throttle body.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-02-13, 08:15 PM   #10
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
Quote:
Originally Posted by clifffyyy View Post
I am having just about the same problem. At full throttle and around 40% and more, it runs good but, at part, but not light, it has just about no power as it, it just about comes to a stop, but, at light throttle, it does ok with some hiccuping though.

I was told that it may be a possible cracked apex seal.
check your timing.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-02-13, 09:37 PM   #11
Exhaust Leak

Trader Score: (0)

Join Date: Aug 2013
Location: atlanta area
Posts: 16
Quote:
Originally Posted by diabolical1 View Post
check your timing.
will do. replaced hoses to carb too.

Thanks!
__________________
Common sense goes a long way, just not as common as it used/ should be anymore
clifffyyy is offline   Reply With Quote
Old 11-03-13, 05:55 AM   #12
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by diabolical1 View Post

that's not a carburetor you posted. that's a Gen II throttle body.
Is that even possible to put on my car?
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 06:01 AM   #13
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
So possible cracked apex seal, timing, replace Carb hoses. I will look into that today. Random question. What is the best gas to use? Im using 93 octane without ethanol but that's hard to find in Iowa. Only two locations sell it without. Will ethanol hurt a motor this old/style?
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 08:14 AM   #14
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
Quote:
Originally Posted by IfIWasJamesDean View Post
Is that even possible to put on my car?
unless you plan to go EFI, forget about using it.

Quote:
Originally Posted by IfIWasJamesDean View Post
So possible cracked apex seal, timing, replace Carb hoses. I will look into that today. Random question. What is the best gas to use? Im using 93 octane without ethanol but that's hard to find in Iowa. Only two locations sell it without. Will ethanol hurt a motor this old/style?
not sure where/why we're considering cracked apex seal, but you can use a compression test if you wish.

use the regular 87. no need for 93. as for the ethanol content, as long as it's not high, you should be just fine.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-03-13, 08:17 AM   #15
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by diabolical1 View Post

unless you plan to go EFI, forget about using it.

not sure where/why we're considering cracked apex seal, but you can use a compression test if you wish.

use the regular 87. no need for 93. as for the ethanol content, as long as it's not high, you should be just fine.
As for the gas, we have anywhere from 10%-20% and when I used it, the smell was horrible.
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 12:37 PM   #16
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Good news! Got it running. Bad news. If I go on hills the power just cuts out. It also cuts around 3.1/2 -4 thousand rpm. Or at 30-40% throttle.
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 12:39 PM   #17
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20

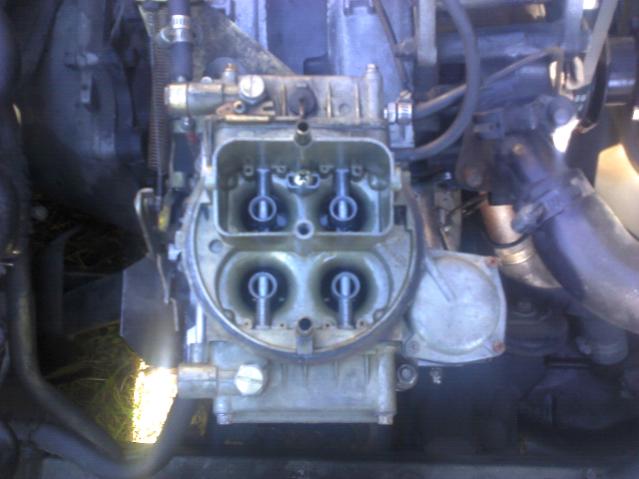

Here is the Holley Carb that is installed.

83 12A wont start.-forumrunner_20131103_123846.jpg

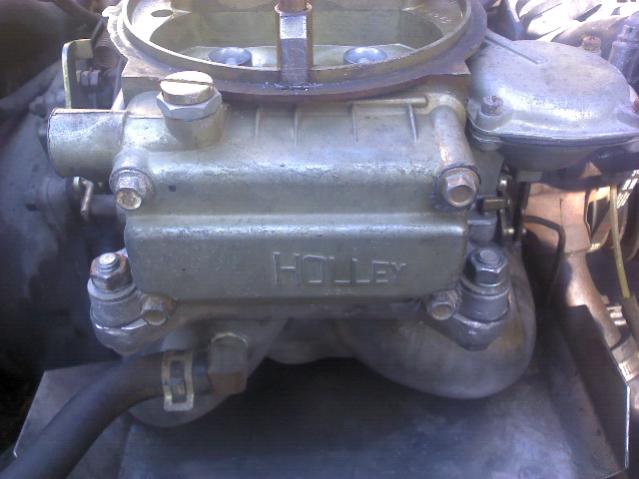

83 12A wont start.-forumrunner_20131103_123906.jpg

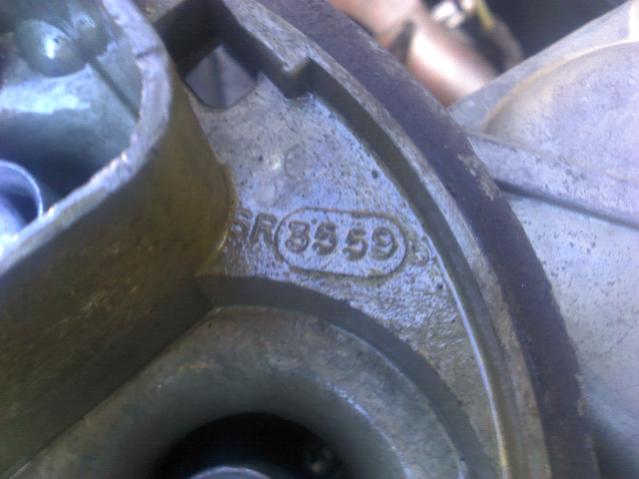

83 12A wont start.-forumrunner_20131103_123918.jpg
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 04:52 PM   #18
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
http://www.holley.com/data/TechServi...%20Listing.pdf

http://www.theturboforums.com/thread...-indentif-help

holley carb identification - Nova Tech

holley carb help - Hot Rod Forum : Hotrodders Bulletin Board

if you get some of the other numbers off the carb it might better help you figure out what you've got. my guess ... the carb is probably not sized or set up for your 12A.


i just noticed in all of this that you did not mention what pump and pressure you're running.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-03-13, 06:36 PM   #19
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by diabolical1 View Post
http://www.holley.com/data/TechServi...%20Listing.pdf

http://www.theturboforums.com/thread...-indentif-help

holley carb identification - Nova Tech

holley carb help - Hot Rod Forum : Hotrodders Bulletin Board

if you get some of the other numbers off the carb it might better help you figure out what you've got. my guess ... the carb is probably not sized or set up for your 12A.

i just noticed in all of this that you did not mention what pump and pressure you're running.
I just have stock everything else. So my guess on the pressure would be stock amount. I am not 100% sure
IfIWasJamesDean is offline   Reply With Quote
Old 11-03-13, 07:08 PM   #20
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
ahhh ... progress, finally! this is why it's important to provide as much info as you can. you could have been on the right track many posts ago.

well, for starters, there's no way a stock pump is going to drive a Holley! hell, it's marginal for the Nikki. get something else ... something that has good FLOW and can do so at at least 7 PSI. i can vouch for Carter and Holley pumps because i have used Carter in the past myself, and my brother used a Holley on his car. you will also NEED a regulator. Holley has two popular ones that i'm aware of. one that serves 4 PSI and less and one that serves 4 PSI and more. get the latter. for what it's worth, you probably want to get a gauge, too - however finding an accurate one is not as easy as it sounds. i used a Summit gauge since i bought my pump and regulator from them. i can't speak to accuracy, but it at least seemed to react appropriately to regulator adjustments.

this is no guarantee that the car is going to run well, but it will definitely put you on the right path. make like a pistachio and get crackin'.

also, figure out what Holley you actually have or you could be in a for a long, frustrating and painful journey.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)

Last edited by diabolical1; 11-03-13 at 07:14 PM.
diabolical1 is offline   Reply With Quote
Old 11-04-13, 01:25 PM   #21
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Quote:
Originally Posted by diabolical1 View Post
ahhh ... progress, finally! this is why it's important to provide as much info as you can. you could have been on the right track many posts ago.

well, for starters, there's no way a stock pump is going to drive a Holley! hell, it's marginal for the Nikki. get something else ... something that has good FLOW and can do so at at least 7 PSI. i can vouch for Carter and Holley pumps because i have used Carter in the past myself, and my brother used a Holley on his car. you will also NEED a regulator. Holley has two popular ones that i'm aware of. one that serves 4 PSI and less and one that serves 4 PSI and more. get the latter. for what it's worth, you probably want to get a gauge, too - however finding an accurate one is not as easy as it sounds. i used a Summit gauge since i bought my pump and regulator from them. i can't speak to accuracy, but it at least seemed to react appropriately to regulator adjustments.

this is no guarantee that the car is going to run well, but it will definitely put you on the right path. make like a pistachio and get crackin'.

also, figure out what Holley you actually have or you could be in a for a long, frustrating and painful journey.
Thank you so much for your help. Im looking into a new pump and regulator. Hopefully it works out. Any good forums about timing? I want to make sure that is out of the equation.
IfIWasJamesDean is offline   Reply With Quote
Old 11-04-13, 02:36 PM   #22
malignant narcissist

diabolical1's Avatar

Trader Score: (1)

Join Date: Feb 2002
Location: FL
Posts: 7,960
get a timing light if you don't already have one. i know AutoZone will allow you to borrow tools, so you shouldn't have that you have to buy one, unless you just want to. check the timing with it. i know the old RB catalog had a timing recommendation chart, if i recall. since everything is online, i suspect you should be able to find it on their site.

most questions you have should be able to be addressed in the Gen I forum.
__________________
1984 Rx-7 * 1987 Rx-7 * 2004 Rx-8
Quote:
Originally Posted by j9fd3s View Post
well its track only because to drive it on the street i need a smog, and that's not happening, i had visions, but i'm not sure it'll even pass in my imagination anymore.
Quote:
Originally Posted by OZZYINCALI View Post
plus if you ever hit a guardrail there would be no need for a coffin just weld some handles on the side and wallah (sp.). (voila!)
diabolical1 is offline   Reply With Quote
Old 11-04-13, 08:21 PM   #23
Exhaust Leak

Trader Score: (0)

Join Date: Sep 2013
Location: Iowa
Posts: 20
Found this. Not a bad price at all. I believe this should be enough. http://www.holley.com/12-802-1.asp
IfIWasJamesDean is offline   Reply With Quote
Old 11-12-13, 07:22 PM   #24
no life...

Jibaro 12A's Avatar

Trader Score: (8)

Join Date: Dec 2009
Location: Chicago
Posts: 993
Jibaro12a
Send a message via Yahoo to Jibaro 12A
http://www.racingbeat.com/manuals/timingchart.pdf
__________________
Rotoring since 1985...

83 GSL
Jibaro 12A is offline   Reply With Quote
Old 11-18-13, 01:32 PM   #25
Exhaust Leak

Trader Score: (0)

Join Date: Jan 2010
Location: Canada, to the North
Posts: 15
The standard pump on the 12A's is completely useless. I'm having almost the same problems as you, and I'm even running a nikki.

I can't really see any other carbies running with this POS pump, hell, my current one can hardly pump against gravity. I've got a universal Bosch one that I'm going to drop in some time tonight or tomorrow or something, hopefully it'll make a difference.
dnt 2.5 is offline   Reply With Quote
Old 11-18-13, 01:32 PM
RX7Club
Mazda RX7




Paid Advertisement





Reply

Tags
12a, 83, carbflooded, cloged, dies, filter, fuel, holley, mazda, randomly, rotor, rx7, start, stock, wont

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


All times are GMT -5. The time now is 09:16 PM.
All content Copyright 2007 by Internet Brands, Inc.

Contacts
