porting my first time with a rotary
#2
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
also how aggressive should i go on the exaust ports? what should the close and open time be on the port? and I got a bad set of housings to practice on ( curse those damn apex seals that stratched my housings lol)
#3

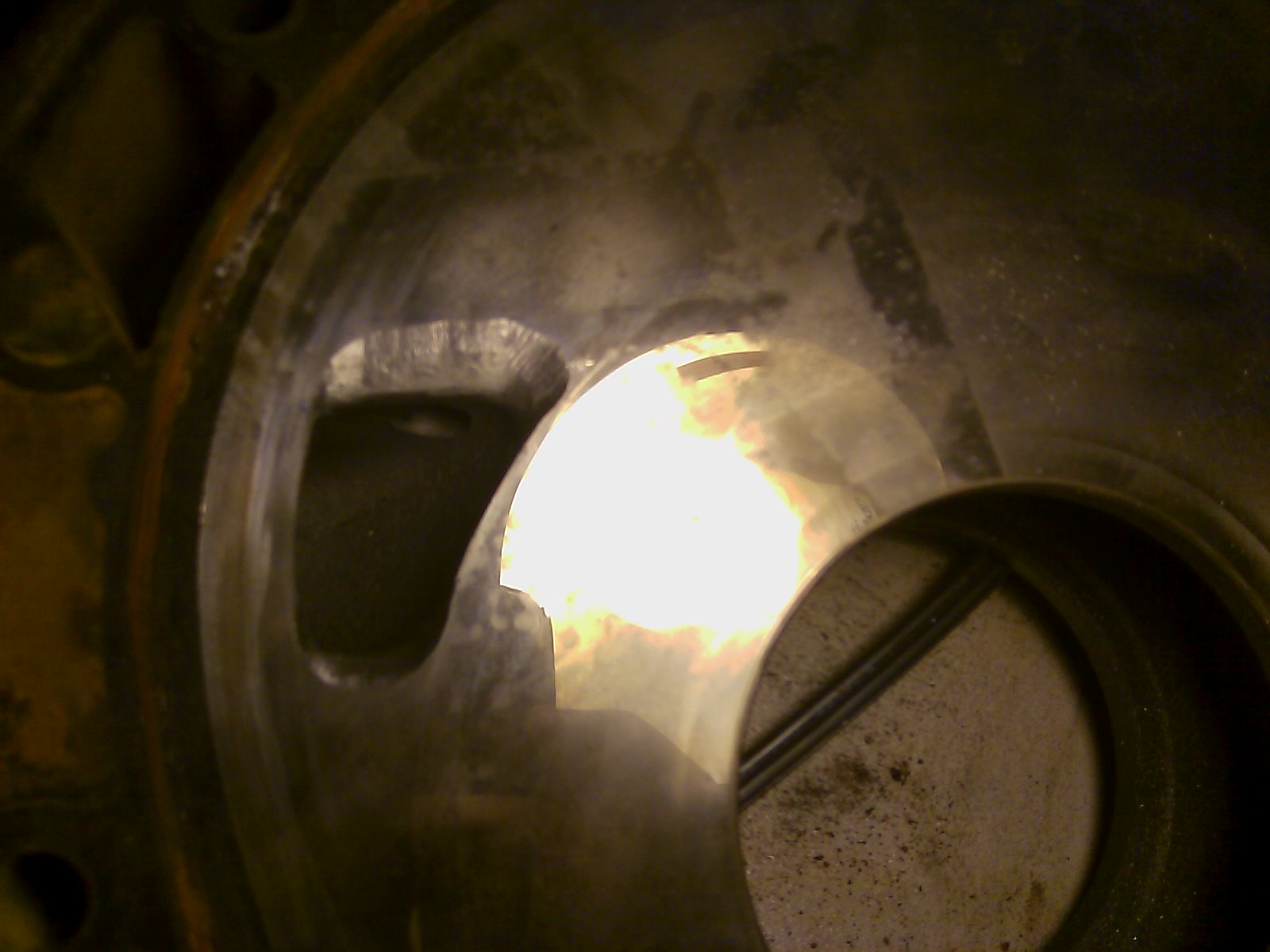

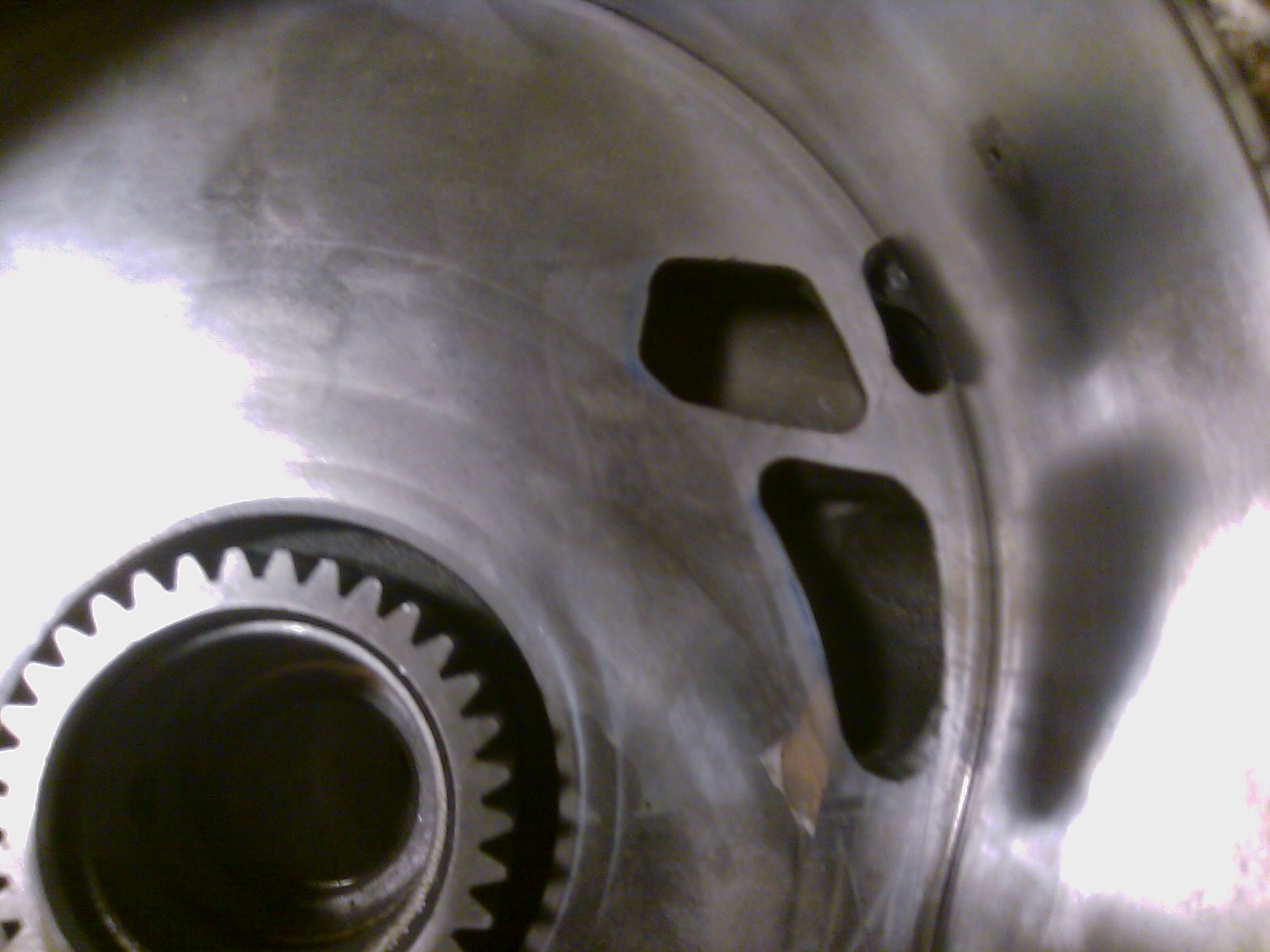

aux bridge looks to be in the side seal track. if it is, it's a paper weight now. primary port looks OK, just clean and smooth. my .02$ is if you bridge the aux, bridge the secondary port too.
#4
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
shes close i thought i went to far at first (my dog scared the hell out of me and i flintched)
thanks for the input though
thanks for the input though
Last edited by youngfc; 08-11-11 at 02:59 PM. Reason: forgot something
#6
#7
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts

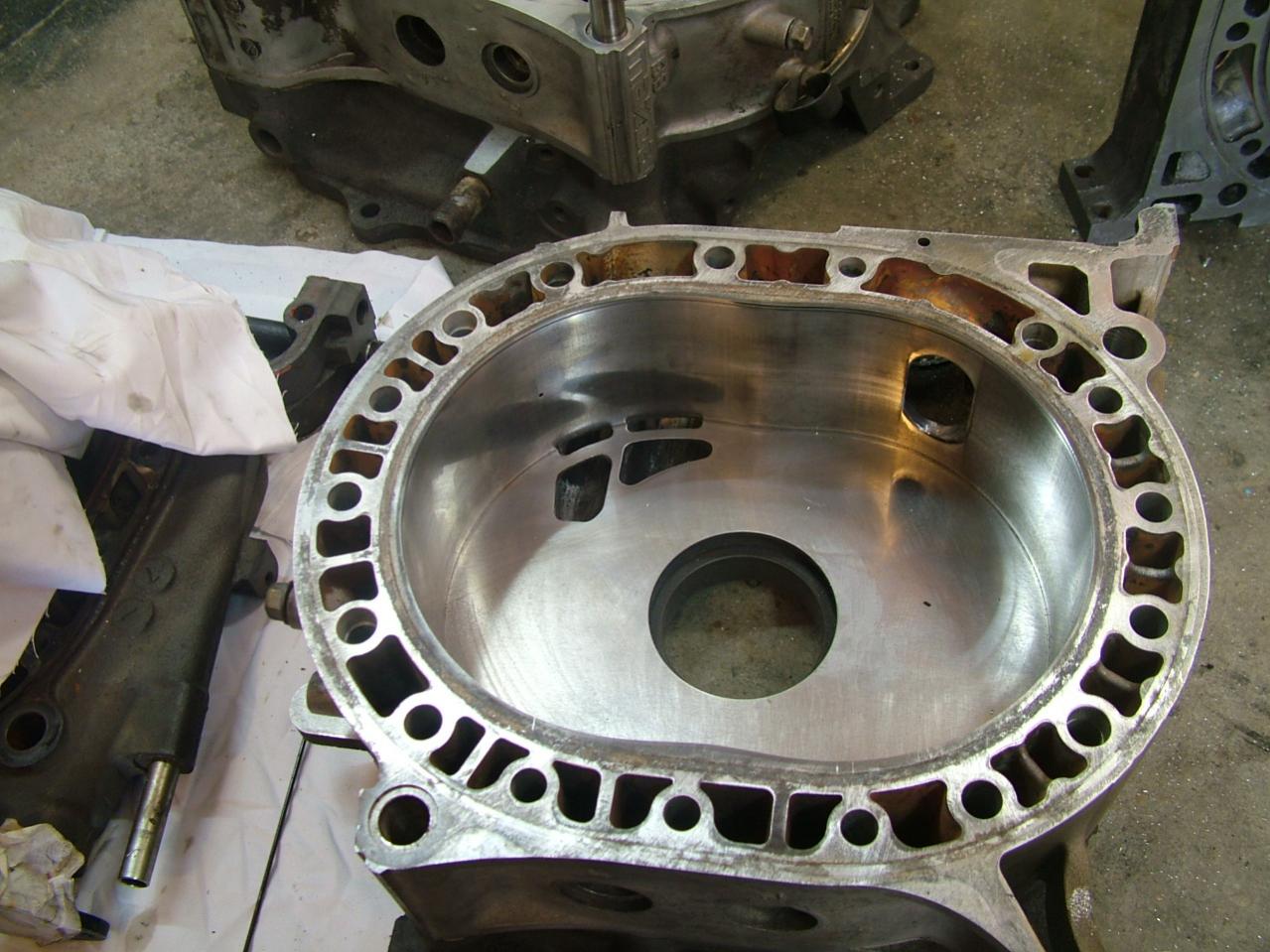

thanks thats a really nice pic it really helps, and do you think that I should bring the bridge down a bit? I was thinking a little latter close time = little more top end.
Last edited by youngfc; 08-15-11 at 09:27 AM. Reason: forgot a part
Trending Topics
#8
Full Member
Join Date: Jul 2007
Location: South Africa
Posts: 234
Likes: 0
Received 0 Likes
on
0 Posts
With regards to bridging the secondary, your bottom end power shouldn't decrease, if anything it should increase. Your low rpm drive-ability may suffer somewhat though.
#10
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
I grew up racing bikes so i can put up with some low tq as long as I got top end and a clutch (only drove two auto cars in my life a c5 vette with some mods and a 93 escort lx wich was bearable.),well I also drove my 7 for 3 days (damn road debis) but I dont know if that counts.
Last edited by youngfc; 08-15-11 at 11:25 AM. Reason: i didnt mean for the whole post to be mad just that part sorry
#11
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
thanks how much earlier would you reconmend? I dont know the timing off hand but I made a templet with them, or should I just bring it down to the bottom of the aux ports?
#13
Next set it to somewhere between 5-6mm and use the edge of the existing port as the next reference and again you will get a nice curved edge to port to leaving you with a nice 5-6mm bridge, then you can if you want to get technical use your degree wheel to figure out where you want them to open and close etc or you can take a punt and scribe the upper and lower edges of the port, I usually do this by hand and just make it a tidy half circle, just make sure you take a measurement off the fist housing and get the second one to open close at the same point.
Next fit your rotor housing to the plate with the dowel pins and mark the housing to match the plate and then port it match.
Dont be afraid to port the secondary as well, it will give you alot more power and with a secondary bridge in my experience they are still ery drivable and feel like they make more power all they way through the rev range,
The other thing worth noting with these engines is the auxport can be opened up to bring it closer to the edge of the rotor housing, measure the distance compared to the secondary and you will see what I mean, only approx 1mm but a small differents.
Good luck Have FUN!
#14
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
thanx alot aerosev that was the most techincal and clear response I've gotten so far.
after reading that im going to go ahead and brigde my sec. ports, and im going to do what you said and bring out that aux. port.
(ps im a broke HS student so kinda figured i could take some of my piston knowledge and make my own templets, so your measurements really really help)
after reading that im going to go ahead and brigde my sec. ports, and im going to do what you said and bring out that aux. port.
(ps im a broke HS student so kinda figured i could take some of my piston knowledge and make my own templets, so your measurements really really help)
Last edited by youngfc; 08-17-11 at 09:20 AM. Reason: spelling
#15
thanx alot aerosev that was the most techincal and clear response I've gotten so far.
after reading that im going to go ahead and brigde my sec. ports, and im going to do what you said and bring out that aux. port.
(ps im a broke HS student so kinda figured i could take some of my piston knowledge and make my own templets, so your measurements really really help)
after reading that im going to go ahead and brigde my sec. ports, and im going to do what you said and bring out that aux. port.
(ps im a broke HS student so kinda figured i could take some of my piston knowledge and make my own templets, so your measurements really really help)
The other thing I forgot to mention, I try and keep my bridge ports on a bit of an angle towards the intake manifold to try to encourage airflow to go into the bridgeport, I remove alot of material using an air pencil grinder and attack it from the manifold end of the port, the end result is when you look in the port you can just see though the bridge, if you do this you will need to make sure that you don't put too much of an angle or you will bust through to the water seal groove and render the housing useless. So far the best carbide bit I have found for bridge porting is a 3mm taper bit, the cutting edge starts at 3mm and tapers to about .5mm and it has swirled cutting edges, it removes material quickly and doesn't chatter so gives you good control for porting.
Feel free to ask any questions happy to help!
#16
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
yep most are.
and i found that same bit to be my favorite for it too.
i was tryin to angle them but progress is SLOW but surely...kinda scared that im gonna break into the water jacket.
and i found that same bit to be my favorite for it too.
i was tryin to angle them but progress is SLOW but surely...kinda scared that im gonna break into the water jacket.
#17
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
update
we painted everything i did a 1/2 bridge and just took out the difusers by breaking them then grinding them smooth.its 5:30 ish in the morning and we havent stopded since noon so i gonna go crash then put her together tomoro morning.
ill post pics when i get her running.
we painted everything i did a 1/2 bridge and just took out the difusers by breaking them then grinding them smooth.its 5:30 ish in the morning and we havent stopded since noon so i gonna go crash then put her together tomoro morning.
ill post pics when i get her running.
#18
update
we painted everything i did a 1/2 bridge and just took out the difusers by breaking them then grinding them smooth.its 5:30 ish in the morning and we havent stopded since noon so i gonna go crash then put her together tomoro morning.
ill post pics when i get her running.
we painted everything i did a 1/2 bridge and just took out the difusers by breaking them then grinding them smooth.its 5:30 ish in the morning and we havent stopded since noon so i gonna go crash then put her together tomoro morning.
ill post pics when i get her running.
#19
#20
#21
I just realized that GoodfellaFD3S has 25550 posts! if he spent 10 minutes for every post that would mean he spent 255500 minutes or 4258 hours of his life on this site! if he were to break that up into an average 40hr working week that would equate to 106 working weeks or 2 years of his working life spent on this site!
This could be why he takes offense to my keyboard warrior comment!
If he spent this much time working on his car it would have been the fastest rotary on the planet!
#23
Full Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: wilmington nc
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
And Im back doing this one more time. she never got to start just because of bad luck . ended up cracking a rear iron, but my luck has changed I went to a junk yard to pick up an engine for the rear iron and got lucky. picked up a mazda reman for a $100 that i just broke down, and she doesn't look like theres much mileage on her. hell she looks new.
so now Im gonna redo this port job. thanks guys, and on a side note to Goodfellafd3s I didnt mean to offend anyone.
so now Im gonna redo this port job. thanks guys, and on a side note to Goodfellafd3s I didnt mean to offend anyone.
