Long primary length
10-08-12, 10:59 AM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
the difference between 118 and 113 is pretty small, i'd just run whatever fit the chassis best, or even better make it adjustable
10-08-12, 11:20 AM
#5
Agreed on the length - just make it fit the car.
As for individual runner length, over a long span such as that, it doesn't matter as much as it does on a short primary. So make the header runners a comfortable length(shape/angle) for you.
The collector can can begin as a 2.5" smashed down to 2" tall and about 3" wide. The length should be 6" per .5" diameter increase (like a megaphone) but I would only expand to 3", then into a final muffler with a 3" core. You might try a center/offset core muffler so the offset can absorb a little more noise without hurting flow noticeably.
As for individual runner length, over a long span such as that, it doesn't matter as much as it does on a short primary. So make the header runners a comfortable length(shape/angle) for you.
The collector can can begin as a 2.5" smashed down to 2" tall and about 3" wide. The length should be 6" per .5" diameter increase (like a megaphone) but I would only expand to 3", then into a final muffler with a 3" core. You might try a center/offset core muffler so the offset can absorb a little more noise without hurting flow noticeably.
Trending Topics
10-25-12, 07:02 PM
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
when i get around to doing mine, im going to use something like these to be able to try a few different lengths. JEGS Stainless Steel Lap Band Exhaust Clamps - JEGS
i'm on exhaust 2.0 and not only was it expensive, its also broken, so 3.0 is going to be simpler
i'm on exhaust 2.0 and not only was it expensive, its also broken, so 3.0 is going to be simpler
11-09-12, 10:44 PM
#11

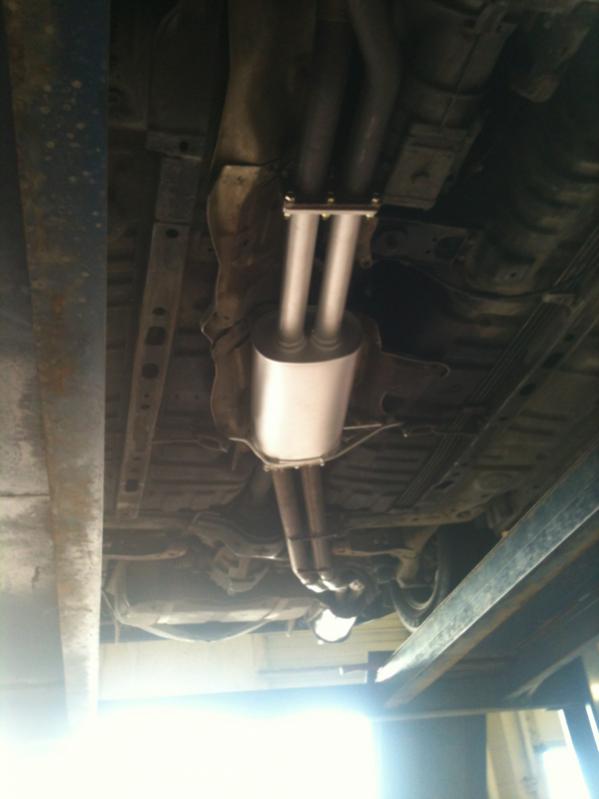

I had an old dynomax muffler welded up
It's long. And ghetto
I'm lookin for a 3" strait through muffler that is maybe like 10" round.
Basically as big as I can fit, then ill get better tubes bent
It's not to loud with the presilencer atleast
Haven't measured it yet, but its long
The collector is pretty much part of the muffler.
Ovaled it and has two 2" pipes into a 3" muffler
11-13-12, 11:04 AM
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
that system actually looks pretty good, its good enough you can go work on the intake/ecu.
i've been looking for an 8" round muffler forever, and the seem to be normal in japan, and AUS, but good luck finding one in the us!
i've been looking for an 8" round muffler forever, and the seem to be normal in japan, and AUS, but good luck finding one in the us!
11-13-12, 04:48 PM
#14
It wasn't too loud till I took it on the highway.
Muffler is blown out already and kills my brain it's so loud.
I'm lookin at huge strait through diesel mufflers.
Ill have a whole new rear section made when I get a new muffler.
Should I get a strait through style or the kind with the louvers that keep the sound down?
Too much backpressure for a half bridge?
Muffler is blown out already and kills my brain it's so loud.
I'm lookin at huge strait through diesel mufflers.
Ill have a whole new rear section made when I get a new muffler.
Should I get a strait through style or the kind with the louvers that keep the sound down?
Too much backpressure for a half bridge?
11-14-12, 12:05 PM
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,796
Received 2,574 Likes
on
1,830 Posts
the engine will eat baffles, the exhaust pulses are supersonic, so its probably literally like taking a hammer to the insides of the muffler.
11-14-12, 10:01 PM
#18
Banned
iTrader: (40)
Im using the HushPower 3in with the dump tip, I also have RB dual pre silencers and I love it! sounds deep and throaty...
11-14-12, 10:57 PM
#20
Banned
iTrader: (40)
No! not anything like the Flowmaster series... I talked to the Cheif design guy at HushPower and he stated that the HushPower mufflers with hold up to ovedr 2000 degrees and not blow out like flowMaster... They are built pretty well from what i can tell
11-15-12, 03:12 PM
#22
Banned
iTrader: (40)
Im running a large street ported 13b with a RB Holley here is a sound clip
Pictures by mazdasandcoffee - Photobucket
Pictures by mazdasandcoffee - Photobucket
11-19-12, 05:06 PM
#23
Still sounds pretty loud tho eh.
Do you have a presilencer or resonators?
I wish I could find sumthin like the rotaflo mufflers.
US currency is crap and worth less than AUD.
So one rotaflow muffler would be $411.15 USD then add shipping from Australia .... not cool
Do you have a presilencer or resonators?
I wish I could find sumthin like the rotaflo mufflers.
US currency is crap and worth less than AUD.
So one rotaflow muffler would be $411.15 USD then add shipping from Australia .... not cool
11-19-12, 05:52 PM
#24
Make your own muffler. Get the materials. Weld everything together. Can't be that hard. You'll save a ton of money and learn something too.
Here is a link to get you started.

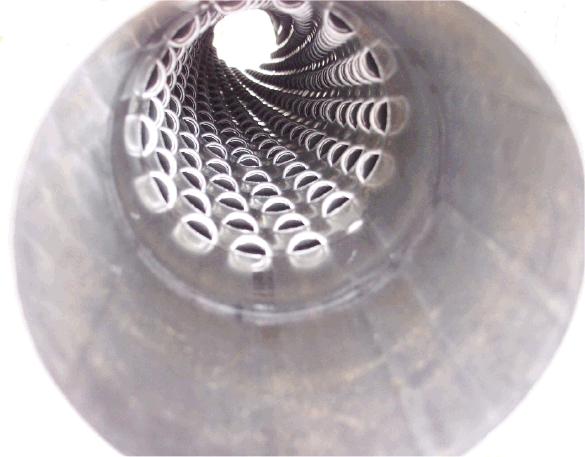

3" Stainless Steel Tube Perforated Pipe Exhaust 0 25M Long Straight 76mm OD Perf | eBay
Here is a link to get you started.
3" Stainless Steel Tube Perforated Pipe Exhaust 0 25M Long Straight 76mm OD Perf | eBay
11-19-12, 07:22 PM
#25
I would if I had a TIG
I was thinkin maybe I should just get a universal power pulse muffler
Seems like it would get the job done, especially if I get two more resonators
One for each tube before it collects at the muffler but after the presilencer
Apparently I have unequal length headers so I wanna try to put the two seperated resonators at equal lengths, so I guess they would look staggered slightly.
Would that even matter?
I was thinkin maybe I should just get a universal power pulse muffler
Seems like it would get the job done, especially if I get two more resonators
One for each tube before it collects at the muffler but after the presilencer
Apparently I have unequal length headers so I wanna try to put the two seperated resonators at equal lengths, so I guess they would look staggered slightly.
Would that even matter?
