a different kind of bridge and build
so i'm building my new motor now and ported, before anyone decides to start posting, WTF is that or talk any kind of BS, if your going to say something bad, abck it up with hard documented facts,
ok now with that being said this is my current setup i'm still working on and should be finished within a 2-3 months just in time for spring.
My setup is a S5 NA 6 port engine with a modern swiss cheese style bridge port, Lightened rotors and Lightened front and rear counter weights and eshaft rebalanced at 12K rpm, 54mm dual throttle bodies also fuel injected on racing beat ported manifold, intake ports ported, exhaust ports ported, rb true dual header to a y collector and 3inch exhaust, 2mm carbon apex seals with race springs, race bearings for rotors and stationary gears, 9lb turbo flywheel, those are mainly it for the engine specs.

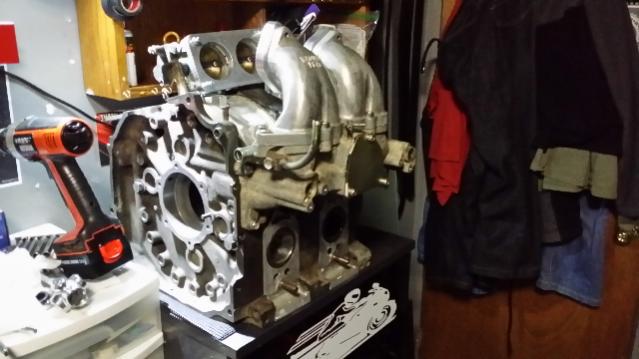

here are some pictures, i will put up more pictures are progress goes on
NO bashing posts please
ok now with that being said this is my current setup i'm still working on and should be finished within a 2-3 months just in time for spring.
My setup is a S5 NA 6 port engine with a modern swiss cheese style bridge port, Lightened rotors and Lightened front and rear counter weights and eshaft rebalanced at 12K rpm, 54mm dual throttle bodies also fuel injected on racing beat ported manifold, intake ports ported, exhaust ports ported, rb true dual header to a y collector and 3inch exhaust, 2mm carbon apex seals with race springs, race bearings for rotors and stationary gears, 9lb turbo flywheel, those are mainly it for the engine specs.
here are some pictures, i will put up more pictures are progress goes on
NO bashing posts please
12-09-13, 06:46 PM
#4
interesting, but i really just wanna hate... you said get the shaft balanced for 12k? you know you balance the rotors counter weights and shaft as an assembly right? also i dont see ceramic seals on your list for your 12k redline. also peri-ports don't even need a 12k redline.
as for the ports... your results will speak for themselves. i can't say i would encourage this idea if it was brought to my attention.. but you've already come to far NOT to get results
that being said, get er dun !
as for the ports... your results will speak for themselves. i can't say i would encourage this idea if it was brought to my attention.. but you've already come to far NOT to get results
that being said, get er dun !
12-09-13, 06:51 PM
#5
interesting, but i really just wanna hate... you said get the shaft balanced for 12k? you know you balance the rotors counter weights and shaft as an assembly right? also i dont see ceramic seals on your list for your 12k redline. also peri-ports don't even need a 12k redline.
as for the ports... your results will speak for themselves. i can't say i would encourage this idea if it was brought to my attention.. but you've already come to far NOT to get results
that being said, get er dun !
as for the ports... your results will speak for themselves. i can't say i would encourage this idea if it was brought to my attention.. but you've already come to far NOT to get results
that being said, get er dun !
12-09-13, 06:56 PM
#6
the shaft rotors and counterweights are balanced together currently at Chip motorsports, its balanced at 12K, it doesnt mean i will rev to 12K, if i make peak power at 9500-10K i will be very happy already, as for ceramic seals i though about them but its also $300 each on racing beats site as compared to the 1 piece 2mm carbon seals for $50 each, my Hp goals are to far a stretch for my setup as i am looking for 230-250whp range with the lightened rotors and higher revving with 54mm dual throttle bodies.
Trending Topics
12-09-13, 07:33 PM
#8
Old [Sch|F]ool
What you're doing is like doing a half or 3/4 eyebrow. The drivability is the same but you don't get as much power.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
12-09-13, 07:42 PM
#9
quietness wont be much of an issue i am using this car for autox and track days and maybe a meet once in a blue as i'm on my bike most of the time and daily subaru for work, but my setup as a whole i hope to net 230whp microtech is my ecu i have currently also
12-09-13, 08:06 PM
#10
What you're doing is like doing a half or 3/4 eyebrow. The drivability is the same but you don't get as much power.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
12-09-13, 08:37 PM
#11
Old [Sch|F]ool
Why would you want to drive a Subaru when you have a bridge ported RX-7 at your disposal?
I have two cars (well, four technically) and the RX-7 is my go-to for everything unless I have to haul something big or there's salt on the ground.
(disclaimer: I did drive a Subaru to/at/from the Rallycross National Championship this year... good thing I did too, as the trans in the RX-7 exploded at the next regional I attended. That would have been a looooong 1000 mile trip home if it happened in Oklahoma. I wouldn't have had room to take a spare trans with me like I did in 2012)
I have two cars (well, four technically) and the RX-7 is my go-to for everything unless I have to haul something big or there's salt on the ground.
(disclaimer: I did drive a Subaru to/at/from the Rallycross National Championship this year... good thing I did too, as the trans in the RX-7 exploded at the next regional I attended. That would have been a looooong 1000 mile trip home if it happened in Oklahoma. I wouldn't have had room to take a spare trans with me like I did in 2012)
12-09-13, 08:47 PM
#12
i drive a subaru for my daily driver to work, being its new york city alot of people cant park, signal and taxis like to dip in and out in heavy traffic and it has heat and ac for when girls want to go to the beach, and nyc roads are pothole central , my rx7 has no ac no heat proper depowered rack, not something i wanna drive everyday anymore, with 80% humidity every summer after a long days work sitting in 10mph traffic jams for hours long.
12-23-13, 12:29 AM
#15
these cheese ports are at angle to direct air compared to the ones i seen from 20 years ago and i only seem to find the ones that only have 3 drilled holes, i have many holes and angled as well, ill keep this updated as soon as i get my rotors back from Chip Motorsports
12-27-13, 07:55 AM
#17
Carbon seals would aide very well in this instance. Sure ceramic are better but on a "budget" you will be plenty okay with the high rpm of those carbons.
However wouldn't it make great response/torque? You are increasing the velocity of air by forcing such a large volume through those small ports.
I'm curious to see how this performs, should be fun at the very minimum.
What you're doing is like doing a half or 3/4 eyebrow. The drivability is the same but you don't get as much power.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
Actually, what you're doing is worse, since airflow through many small holes is much worse than airflow through one hole of the same area.
You can do what you want, but I discovered power gains, with no downsides, by not screwing around and just opening the eyebrow up to the full height of the port. I think my first bridge 6 port engine made about 160-170hp, same as a stockport with the same intake manifold and exhaust system. Then when I had it apart to fix a coolant seal issue I opened up the bridges and saw power gains everywhere (peak roughly 190-200hp) with the same drivability.
I'm on 230hp with the 4 port engine and Holley manifold. Limited mainly by RPM and my exhaust system, which is rather quiet. Still excellent drivability and decent fuel economy and good torque everywhere from about 2000rpm up.
I'm curious to see how this performs, should be fun at the very minimum.
12-28-13, 08:45 AM
#18
Old [Sch|F]ool
I'm all but convinced that until you get into large J-port style ports where you have a MASSIVE cut into the rotor housing, the majority of the purpose of the eyebrow is during the time the main port window is closed - it gives somewhere for the slug in the runner to go without having to stop, and it opens up the "window of opportunity" for exhaust vacuum to pull air/fuel in. Which is why bridge ports tend to have much broader powerbands than street ports with their smaller overlap period.
That assumes that you have a free flowing exhaust to begin with, of course. If the exhaust is so choked/poorly tuned that the vacuum portion of the exhaust pressure cycle is not very lo, or doesn't happen during the overlap period, then you won't see much scavenging. And any time the exhaust pressure is higher than manifold pressure during the overlap period, you're losing power compared to a street port with the same exhaust system. Brap brap brap.
12-28-13, 09:18 PM
#19
Full Member
Join Date: Sep 2006
Location: NZ
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
Interesting ..... Over here people that do that sort of porting call it a Drill port. Drill a few holes throw it back together, They end up with Shity gas milage, Same power, More noise and the Best thing of all you get the **** factor ! but that's NZ in itself.
Your's is more of a TearDrop Port to me, Hope it work's out well for you.
Your's is more of a TearDrop Port to me, Hope it work's out well for you.
